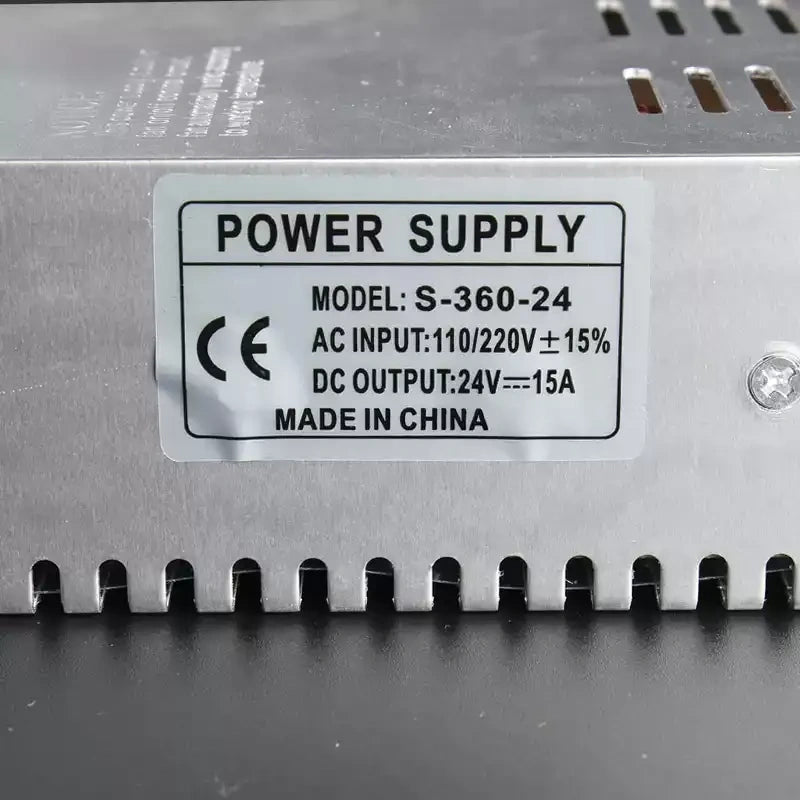

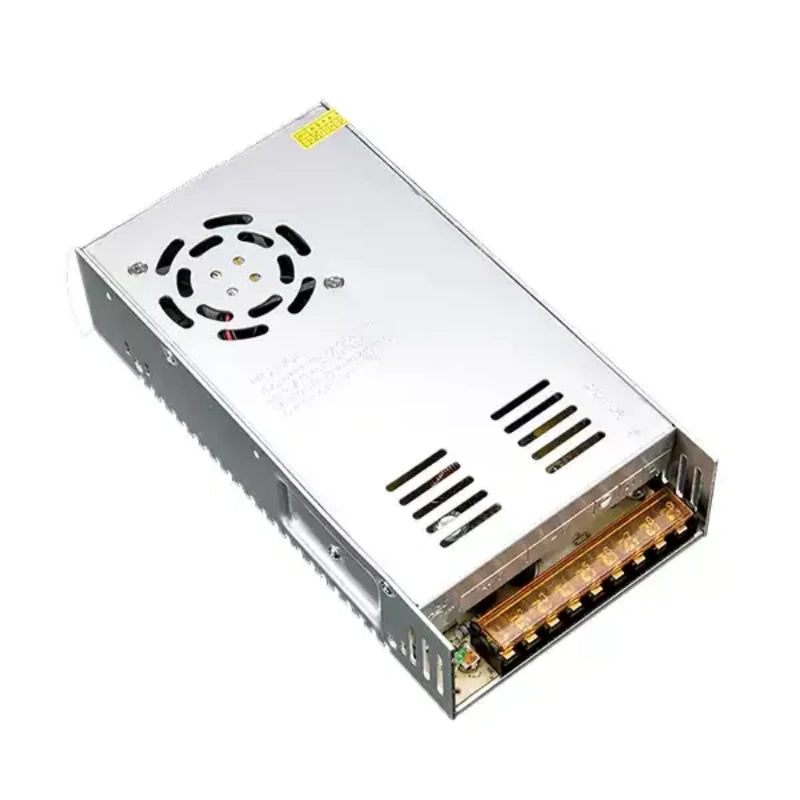

S-360-24 Switching Power Supply 220V AC to 24V DC 15A 360W Transformer, Special Power Supply for Linear Actuator
تعذّر تحميل توفر الاستلام
24v power supply,linear actuator power supply
Description
S-360-24 switching power supply converts AC 110V/220V input to stable DC 24V 15A 360W output, specially designed for electric linear actuators. Wide input voltage range: 110/220V ±15%. Built-in overvoltage, overcurrent, short-circuit and overheat protection functions, safe and reliable for long-time continuous operation. Metal casing with ventilation slots for excellent heat dissipation, low ripple & low noise. Widely used for linear actuators, LED lights, industrial control equipment, surveillance cameras and other 24V DC devices. CE certified.
🔹 Specification
| Attribute Name | Value |
|---|---|
| Model | S-360-24 |
| Input Voltage | AC110V / 220V ±15% |
| Output Voltage | DC24V |
| Output Current | 15A |
| Rated Power | 360W |
| Housing Material | Metal Aluminum Shell |
| Certification | CE |
| Application | Electric Linear Actuator, LED, Industrial Equipment |
| Protection | Over Voltage, Over Current, Short Circuit, Overheat Protection |
| Feature | Good Heat Dissipation, Low Ripple, Stable Output |
🔹FAQ
Q1: Is this power supply suitable for electric linear actuator?
A1: Yes, S-360-24 is specially designed for 24V linear actuators, 360W high power output to meet heavy load working requirement.
Q2: What is the input voltage? Can it work on 110V?
A2: AC input supports 110V/220V ±15V wide voltage, it can work both for 110V and 220V mains power.
Q3: What protection functions does it have?
A3: Built-in overvoltage, overcurrent, short-circuit and overheat protection. It will automatically cut off output when abnormal conditions occur to protect your linear actuator.
Q4: How about heat dissipation?

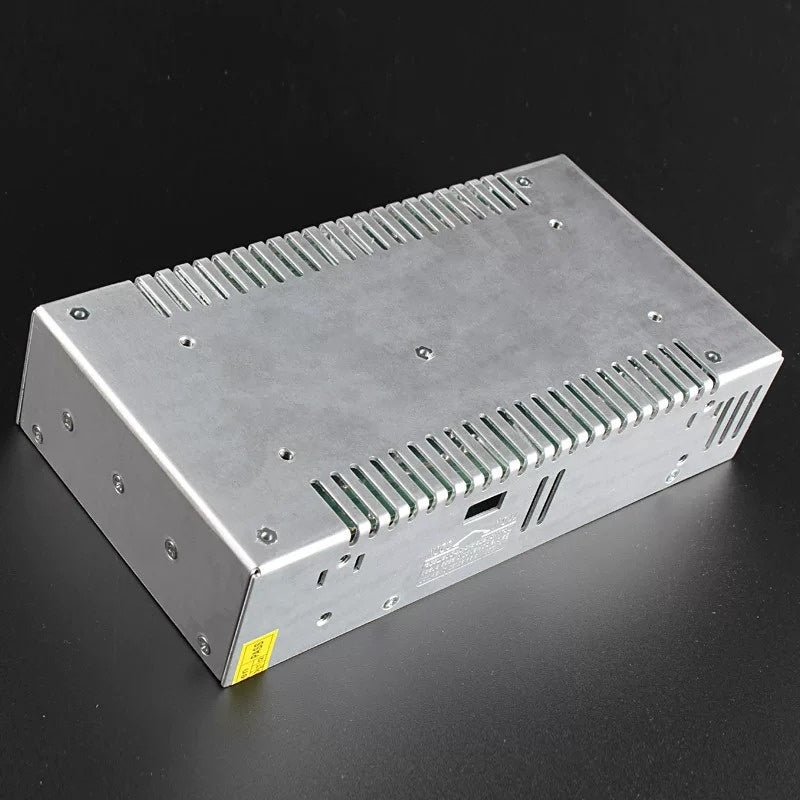

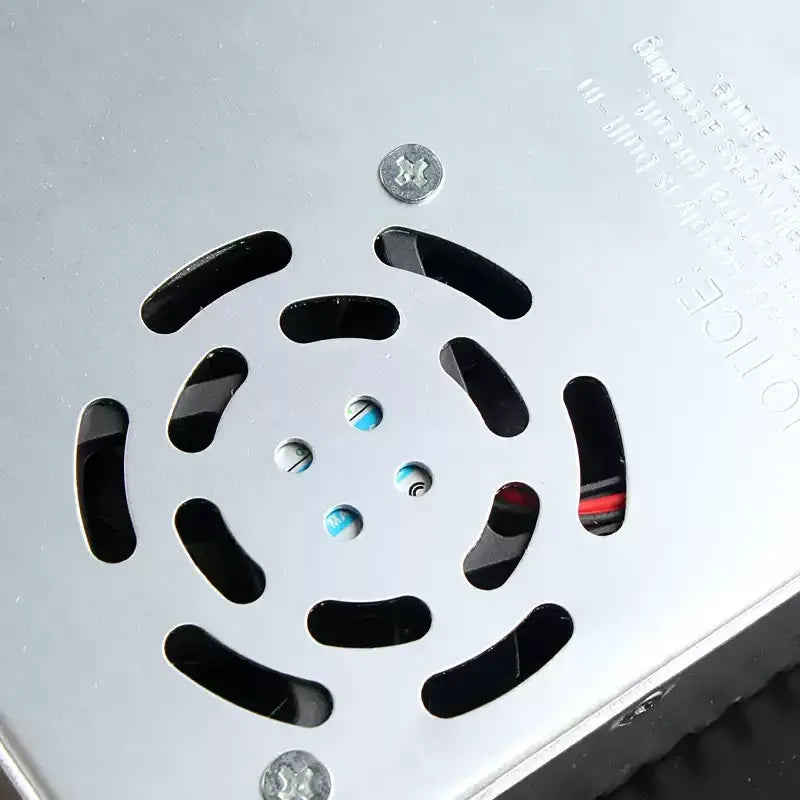

A4: Metal casing with dense ventilation holes, good heat dissipation to ensure long time continuous operation.
Q5: What other devices can this power supply drive?
A5: It can also power 24V LED strips, CCTV cameras, relays, small industrial control equipment and other 24V DC loads.
