JQX-60F 60A Electromagnetic Intermediate Relay, 1NO 1NC, DC12V DC24V DC48V AC220V, Heavy Duty Electromagnetic Relay
تعذّر تحميل توفر الاستلام
60A electromagnetic relays
Description

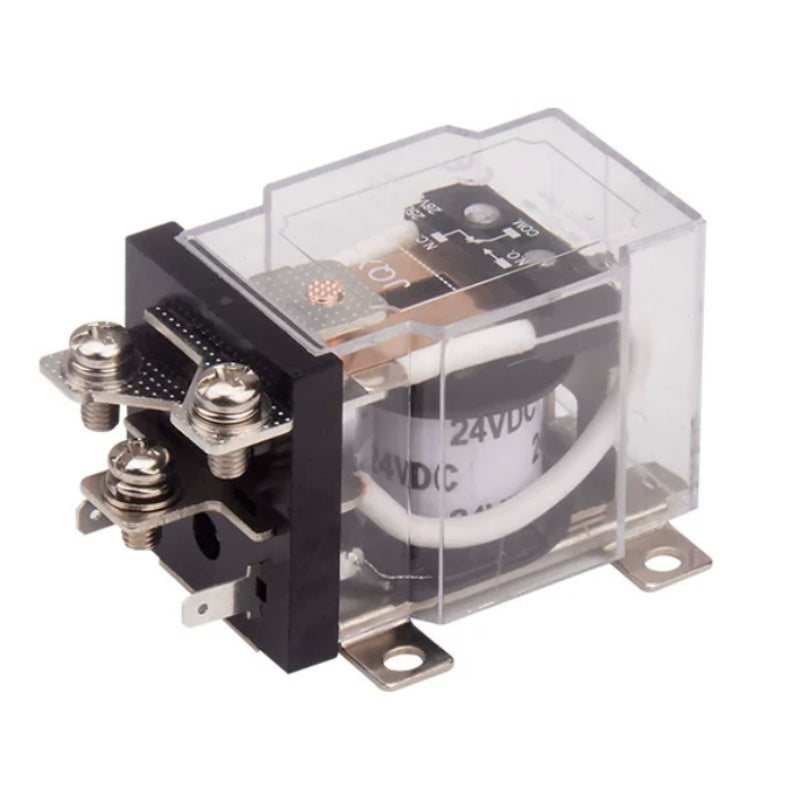

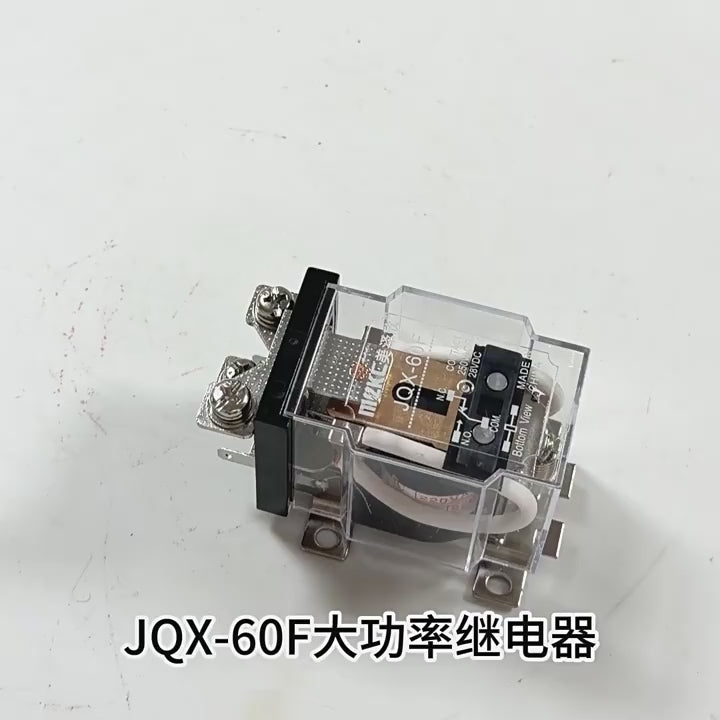

This JQX-60F heavy-duty intermediate relay features 60A high current load capacity with 1 Normally Open + 1 Normally Closed contact form. Built with silver contact, it delivers stable conductivity, sensitive response and strong overload resistance for long service life. Adopted full copper wound coil, low power consumption, stable operation. Transparent shell design allows visual inspection of internal working status. Mount via M3.5 screw, easy for installation. Widely used for industrial control, automation, power distribution, motor control, lighting control and other high-current switching applications.
Specifications
- Model: JQX-60F
- Rated Contact Current: 60A

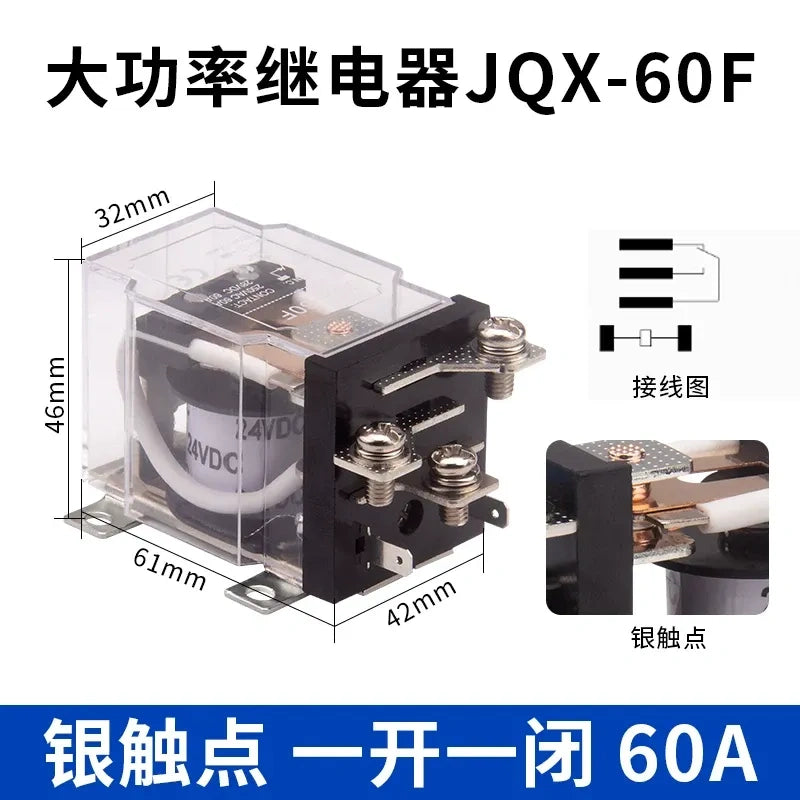

- Contact Form: 1NO +1NC (1 Normally Open,1 Normally Closed)
- Contact Material: Silver Contact
- Coil Material: Pure Copper Coil

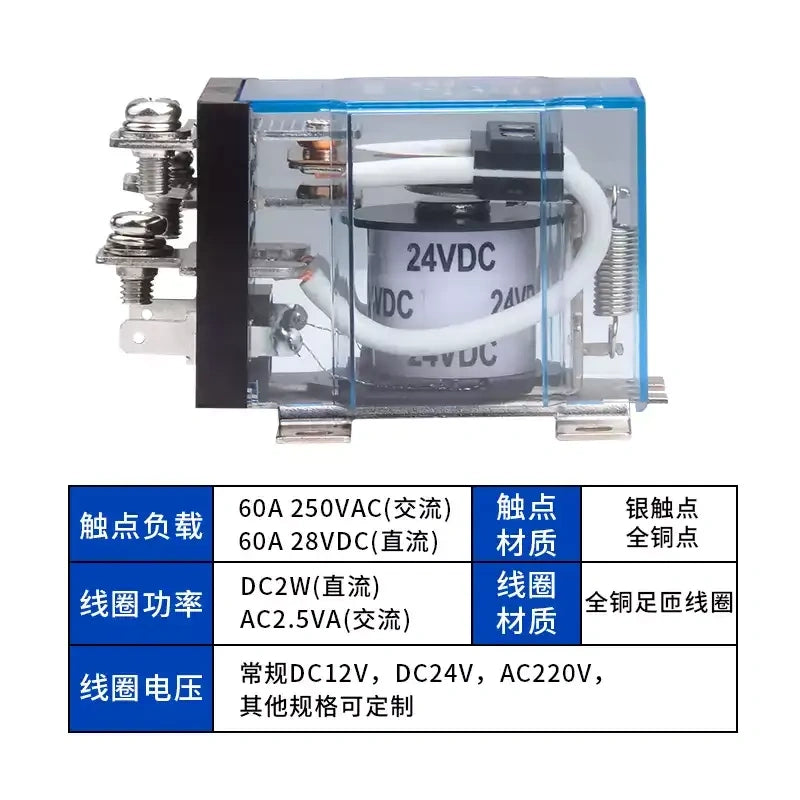

- Contact Load: 60A 250VAC / 60A 28VDC
- Coil Power: DC 2.0W, AC 2.5VA
- Coil Voltage Options: DC12V, DC24V, DC48V, AC220V, Custom Voltage Available

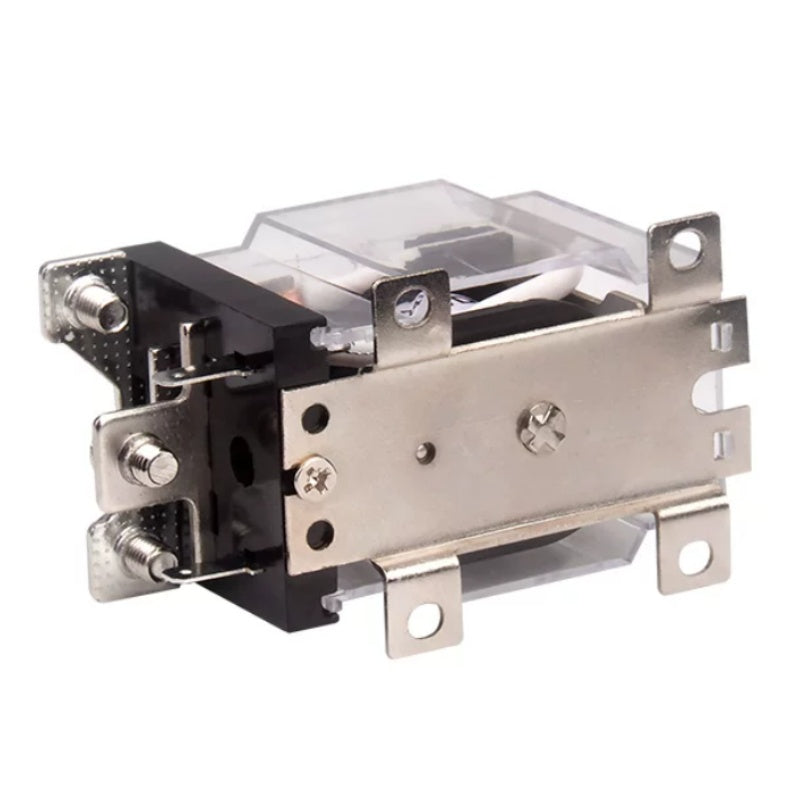

- Mounting: M3.5 Screw Mount
- Shell: Transparent Cover
✅ 60A High Current Rating: Heavy duty relay with 60A rated current, supports 250VAC /28VDC high load switching
✅ Silver Contact Design: Excellent conductivity, stable contact, anti-arc performance for long working life
✅ Pure Copper Coil: Full copper wound coil, low power consumption, stable and reliable operation
✅ Transparent Shell: Visible internal structure, convenient for inspection and maintenance
✅ Multiple Voltage Options: DC12V, DC24V, DC48V, AC220V available, M3.5 screw mounting for easy installation
Specification
| Attribute | Value |
|---|---|
| Product Type | Electromagnetic Relay / Intermediate Relay |
| Model | JQX-60F |
| Rated Current | 60A |
| Contact Configuration | 1NO 1NC (1 Normally Open,1 Normally Closed) |
| Contact Material | Silver Contact |
| Coil Material | Pure Copper Coil |
| Max AC Load | 60A 250VAC |
| Max DC Load | 60A 28VDC |
| Coil Voltage Variants | DC12V, DC24V, DC48V, AC220V |
| Coil Power | DC:2.0W, AC:2.5VA |
| Installation Method | M3.5 Screw Mount |
| Shell Type | Transparent Plastic Shell |
| Application | Industrial Automation, Motor Control, Lighting Switching, Power Control |
| Feature | High Current, Heavy Duty, Sensitive Switching, Stable Performance |
FAQs
Q1: What is the maximum load current of JQX-60F relay?
A: Rated 60A, it supports 60A@250VAC and 60A@28VDC.
Q2: What coil voltage options are available?
A: Standard versions: DC12V, DC24V, DC48V, AC220V. Custom voltage can be made upon request.
Q3: Is this relay silver contact?
A: Yes, it adopts silver contact, good conductivity, stable contact and longer lifespan for heavy current switching.
Q4: How to install this relay?
A: Fixed by M3.5 screws, easy panel mounting.
Q5: What is contact form?
A: 1NO +1NC (one normally open, one normally closed).
Q6: What applications can this relay be used for?
A: Suitable for industrial control, motor, lighting, battery and other high-current switching circuits.
