60mm Outer Diameter CNC MPG Handwheel Pulse Generator
السعر الاعتيادي
$42.12 USD
السعر الاعتيادي
سعر البيع
$42.12 USD
سعر الوحدة
لكل
الشحن يُحسب عند إتمام الشراء.
تعذّر تحميل توفر الاستلام

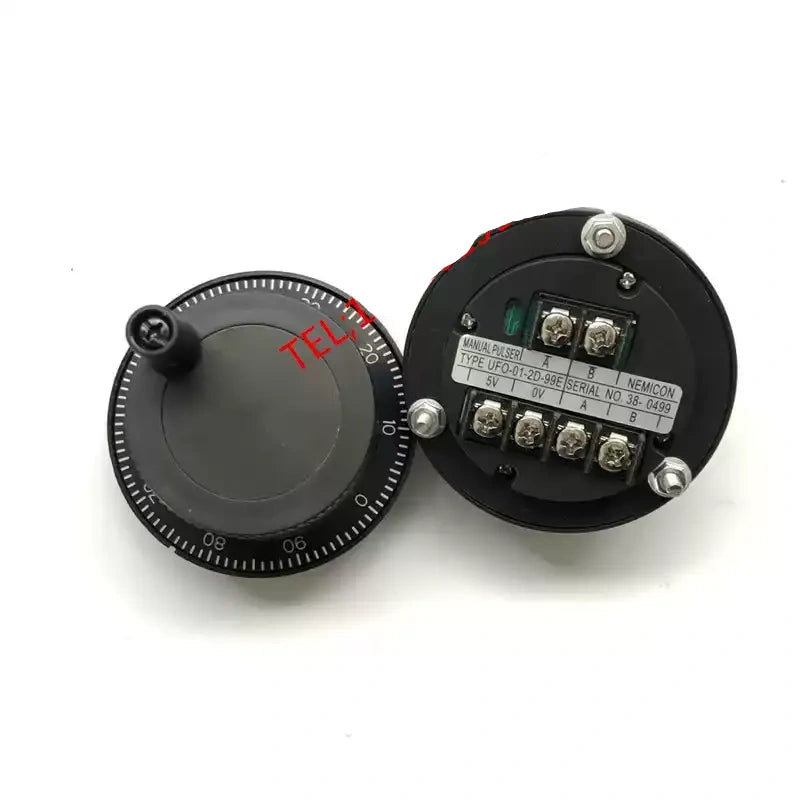

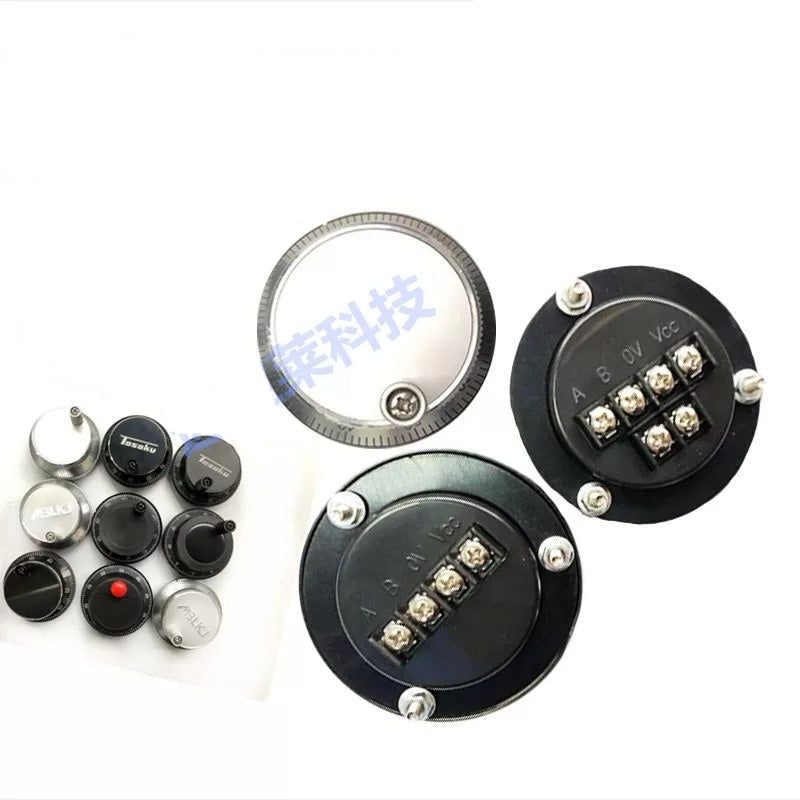

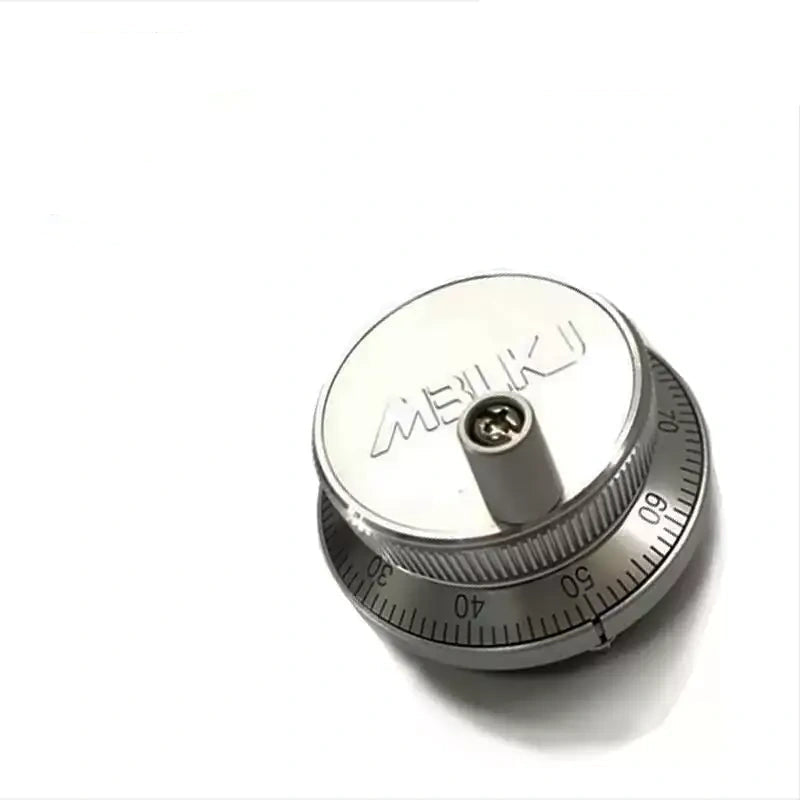

60 Outer Diameter Electronic Handwheel MPG Manual Pulse Generator 5V/12V/24V 4/6 Pin Silver Black Metal CNC Hand Pulse Wheel Compatible with Mitsubishi PLC GSK KND CNC Lathe Milling Machine
Product Description
This 60mm outer diameter CNC electronic handwheel (MPG manual pulse generator) is specially designed for CNC lathes, milling machines, machining centers, compatible with Mitsubishi, PLC, GSK, KND and other mainstream CNC control systems.
Multiple Specifications Available
- Voltage options: DC5V, DC12V, DC24V
- Terminal pin: 4-pin / 6-pin
- Housing appearance: Silver metal shell / Black metal shell
Core Technical Parameters
- Power Supply Voltage: DC5V±5% / DC5~12V / DC5~24V
- Output Waveform: Square wave, duty ratio 0.5T±0.1T
- Max Response Frequency: 0~20KHz
- Max Mechanical Speed: 500rpm
- Operating Current: ＜100mA
- Output Level: High level Vn≥85%Vcc, Low level VL＜0.3V
- Start Torque: 1×10⁻²Nm (+25℃)
- Service Life: MTBF ≥10000h (2000rpm, +25℃)
- Weight: 0.3kg
- Working Temperature: -10℃ ~ 70℃; Storage Temperature: -30℃ ~ 85℃
- Humidity: Working 30~85% non-condensing
- Protection Grade: IP54, waterproof, oil-proof, dust-proof
- Vibration Resistance: 50m/S², 10~200Hz, X/Y/Z axis test for 2h each
- Position Signal: 4 types, 100 stop positions with normal reset function
Quality Inspection Standard
- Appearance: No scratches, dents, clean panel
- Rotation feel: Smooth rotation without stuck points
- Position reset: 100 stop positions support normal reset, no abnormal high-level output
- Signal performance: Clear, smooth square waveform, no pulse loss & signal interference
Application Scenario
Widely matched with CNC lathe, milling machine, engraving machine, machining center, supporting Mitsubishi system, PLC, GSK, KND, FANUC and other CNC controllers for manual axis fine-tuning operation.
Specification
| Attribute Name | Attribute Value |
|---|---|
| Product Name | CNC Electronic Handwheel / MPG Manual Pulse Generator |
| Outer Diameter | 60mm |
| Supply Voltage | DC5V, DC12V, DC24V |
| Terminal Pin Count | 4Pin, 6Pin |
| Shell Color | Silver Metal, Black Metal |
| Compatible System | Mitsubishi, PLC, GSK, KND, CNC Lathe/Milling Controller |
| Output Waveform | Square Wave |
| Max Frequency | 20KHz |
| Protection Class | IP54 (Waterproof, Oil-proof, Dust-proof) |
| Net Weight | 0.3kg |
| Operating Temp | -10℃ ~70℃ |
| MTBF Lifespan | ≥10000 Hours |
| Core Function | Manual Axis Pulse Control, CNC Manual Fine Tuning |
| Industry Application | CNC Lathe, CNC Milling Machine, Machining Center, Engraving Machine |
