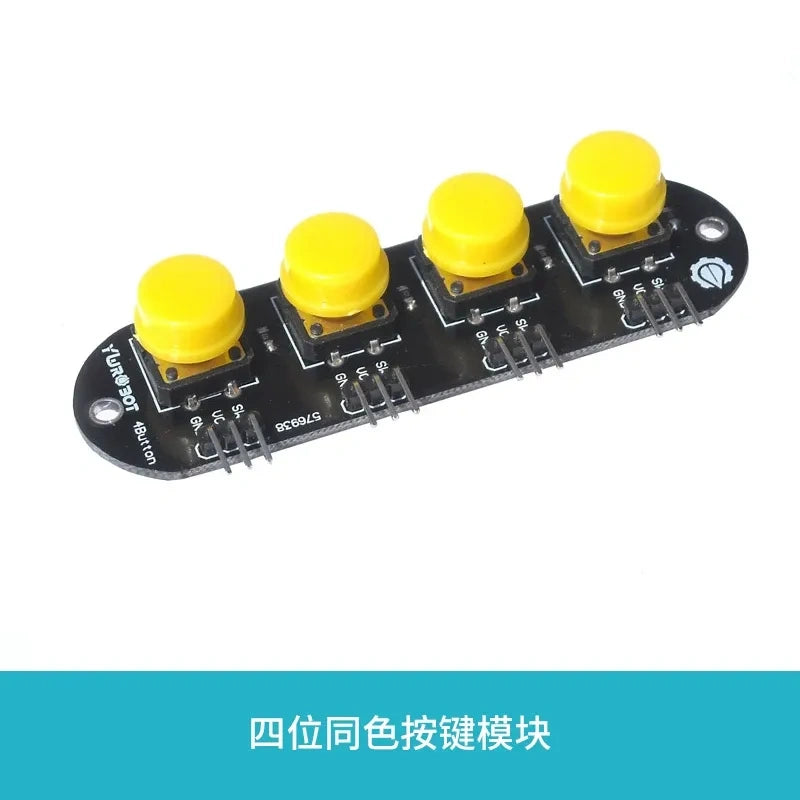

Arduino Push Button Module 2/3/4/6/8 Keys, 3.5V-5V Digital Input Electronic Block with Optional Plastic Housing
تعذّر تحميل توفر الاستلام
Arduino Button, Push Button Arduino
OMRON Type Big Button Keypad Module for Arduino DIY Project, Digital Output Keypad Board

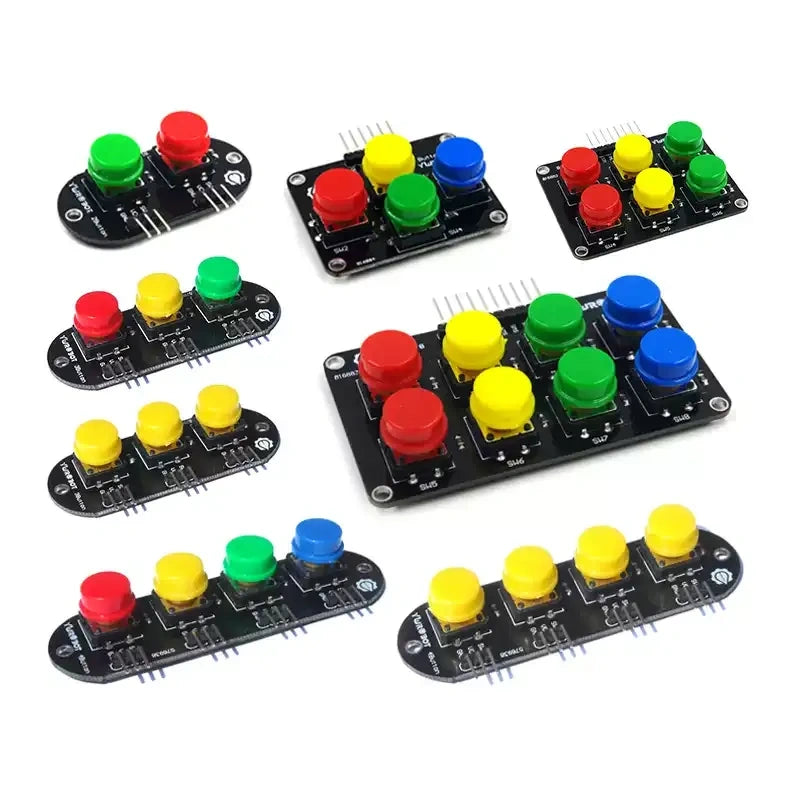

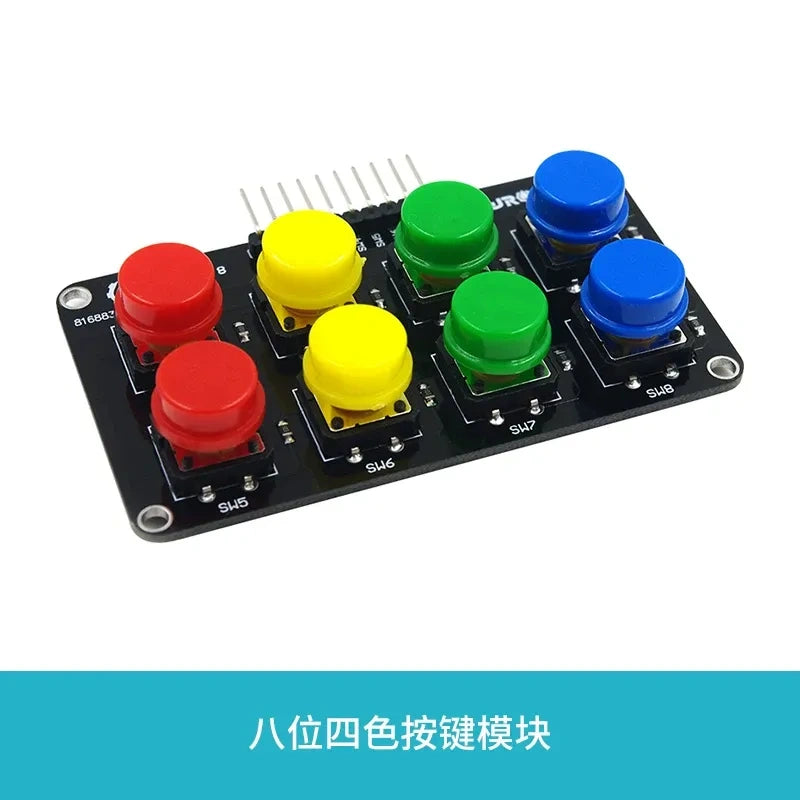

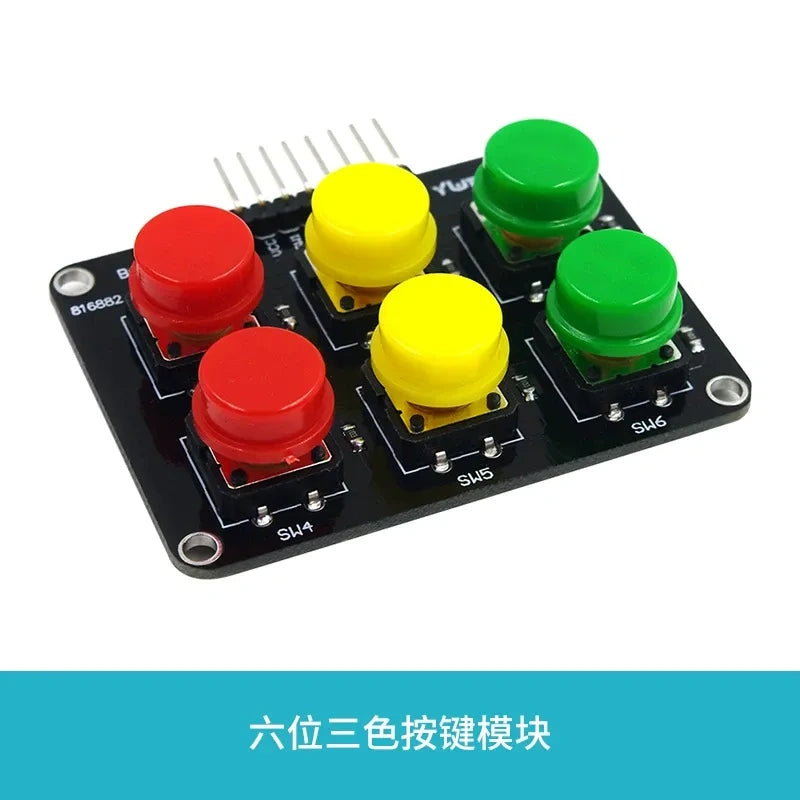

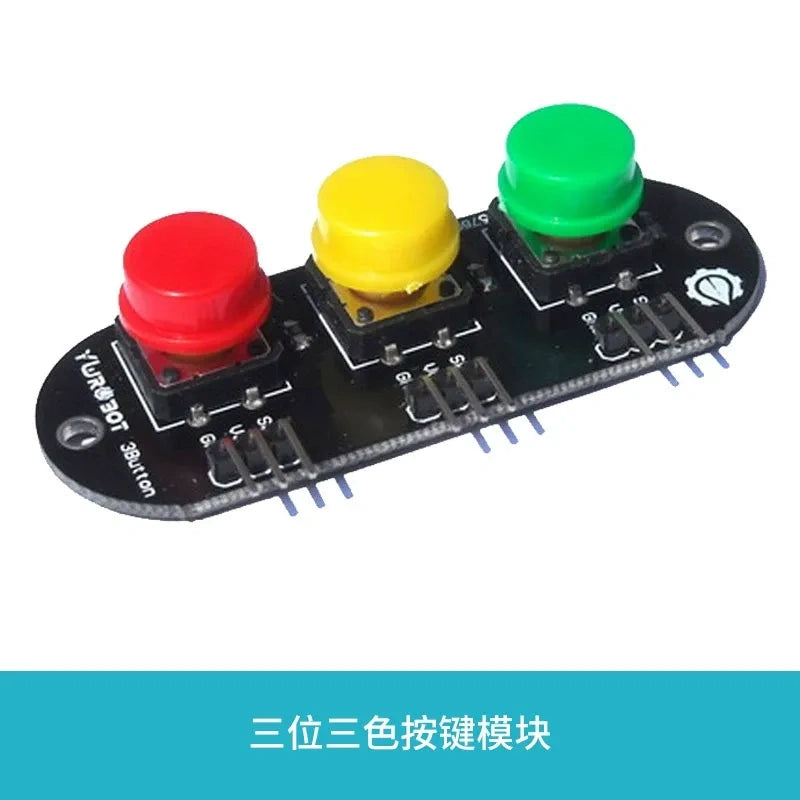

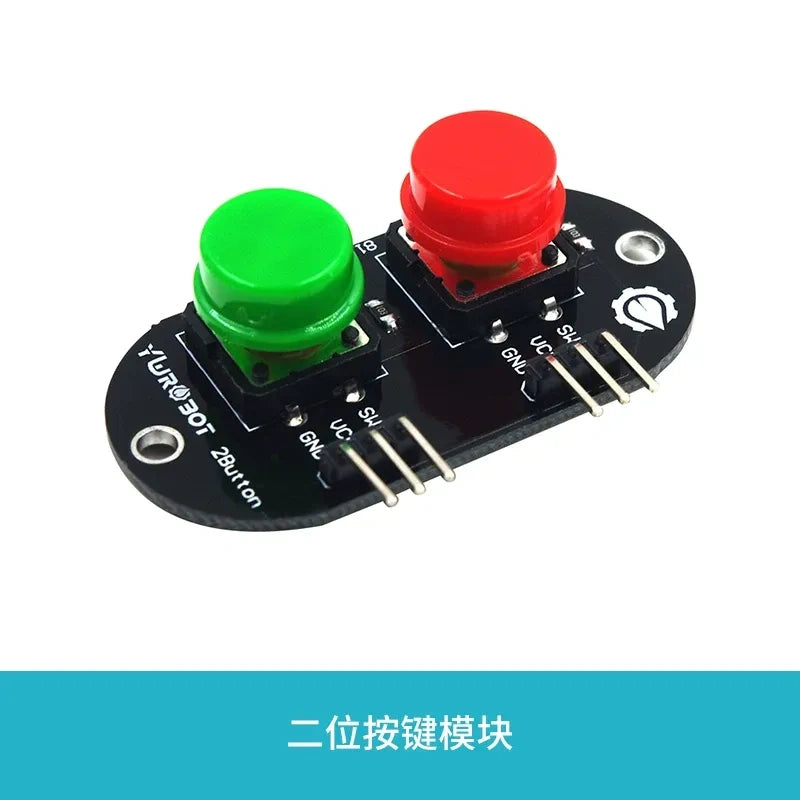

This YwRobot large push button electronic building block is compatible with Arduino and equipped with OMRON-style tactile switches. The module works at 3.5V or 5V, with digital level output: low level when pressed and high level when released. Multiple variants are available, including 2-key, 3-key, 4-key, 4-way cross keypad, 6-key and 8-key. You can select the bare PCB version or the version with a protective bottom housing.
It supports Arduino, Raspberry Pi, STM32 and other microcontroller boards. The buttons provide a comfortable pressing feel and stable signal output. Standard 3mm mounting holes are reserved for easy installation. The terminal adopts 3P SVG socket or pin header for simple wiring.
Suitable for Arduino DIY projects, robot control, human-machine interaction, game controllers, electronic teaching experiments, smart equipment input and electronic competition projects.

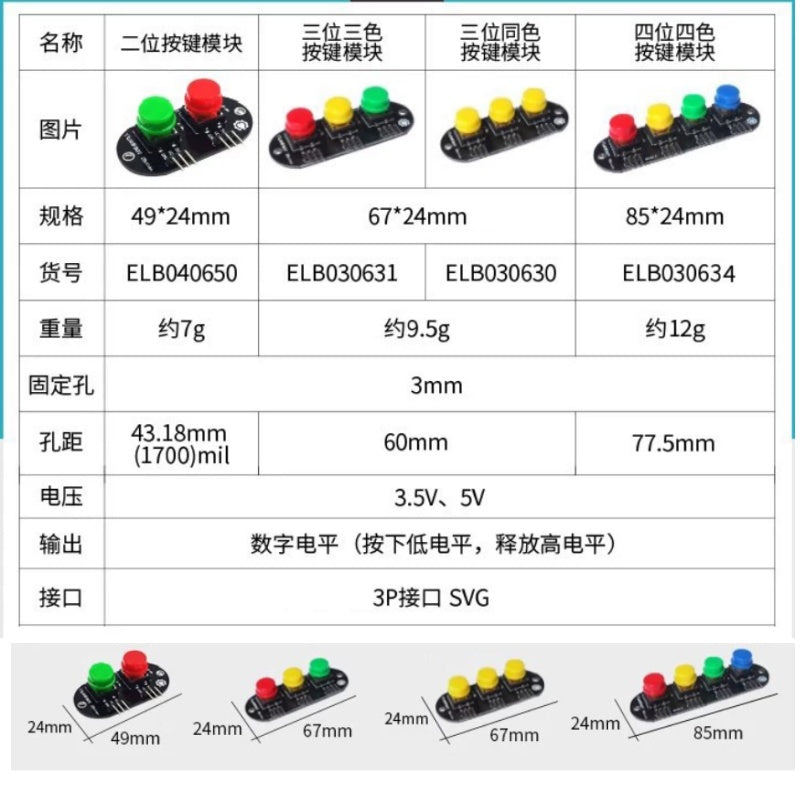

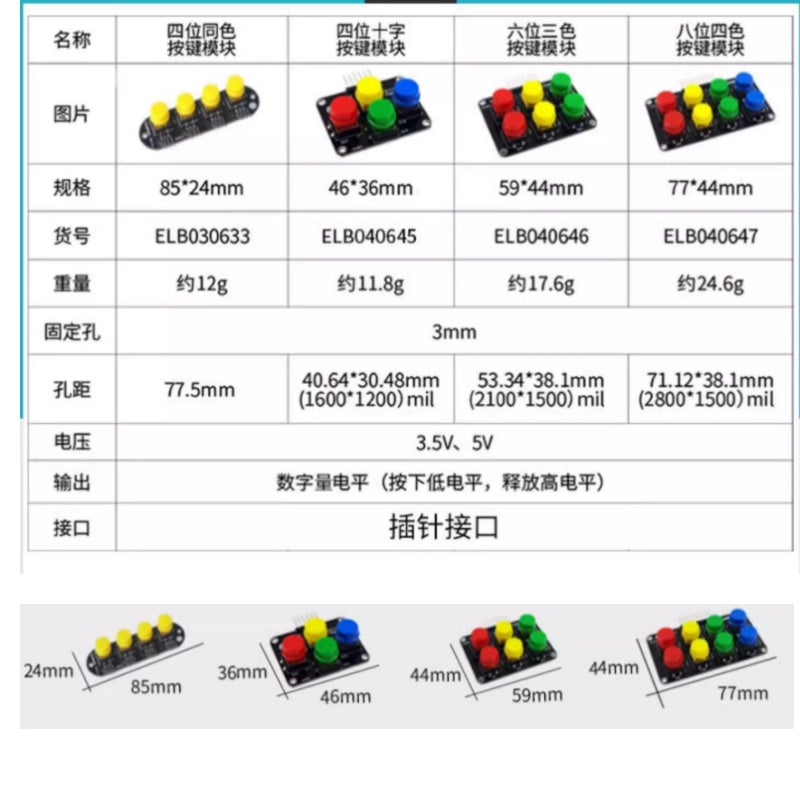

Attribute Table
| Attribute Name | Value |
|---|---|
| Brand | YwRobot |
| Product Name | Push Button Keypad Module |
| Compatible Board | Arduino, Raspberry Pi, STM32 |
| Switch Type | OMRON Style Tactile Push Button |
| Working Voltage | 3.5V, 5V |
| Output Signal | Digital Level, Active Low |

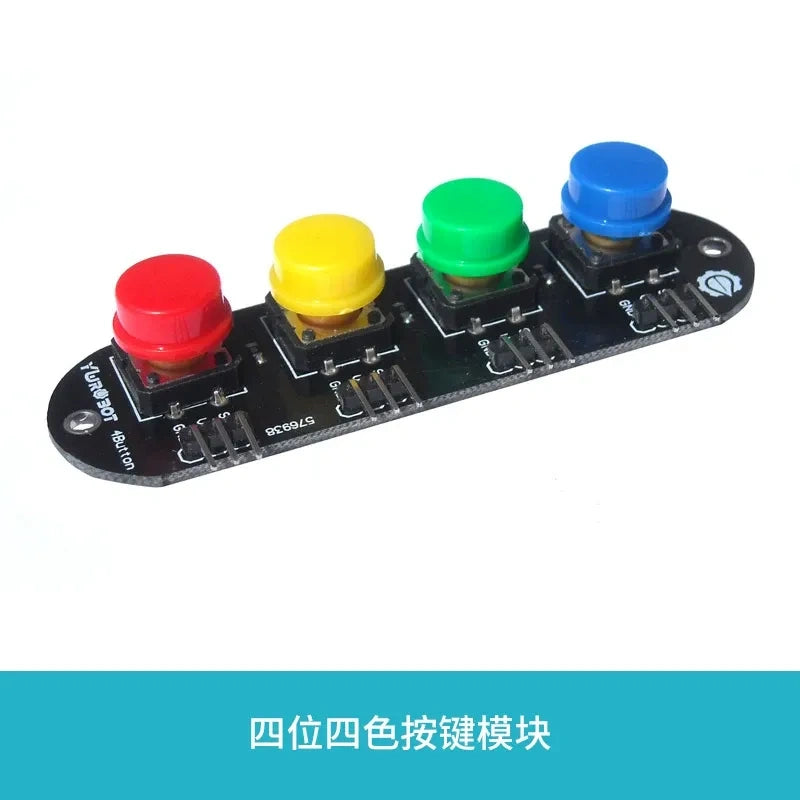

| Variants | 2-key,3-key,4-key,4-way cross,6-key,8-key |

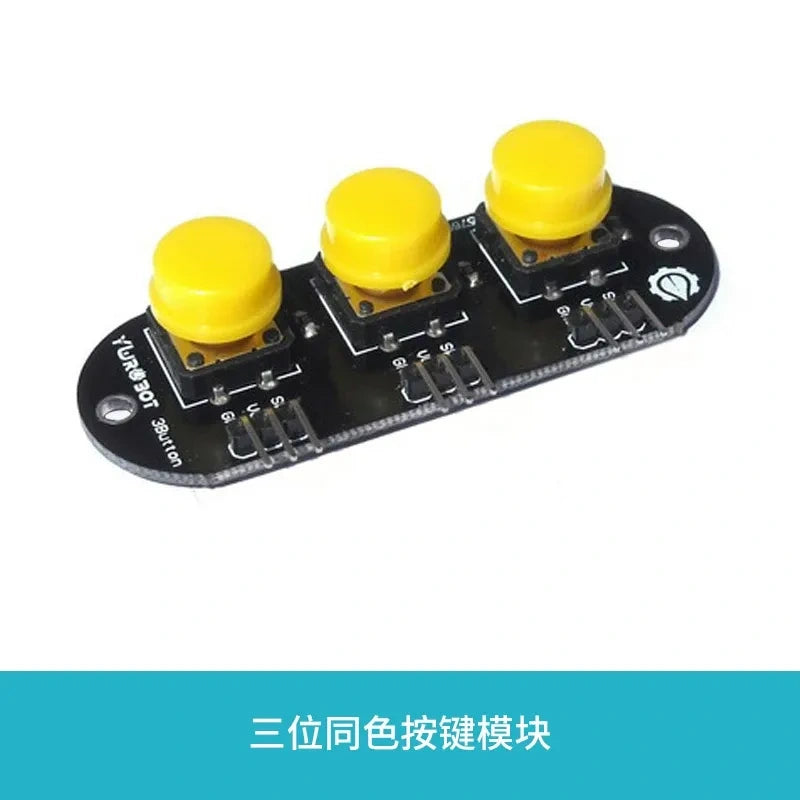

| Key Option | Same-color / Multi-color keys |

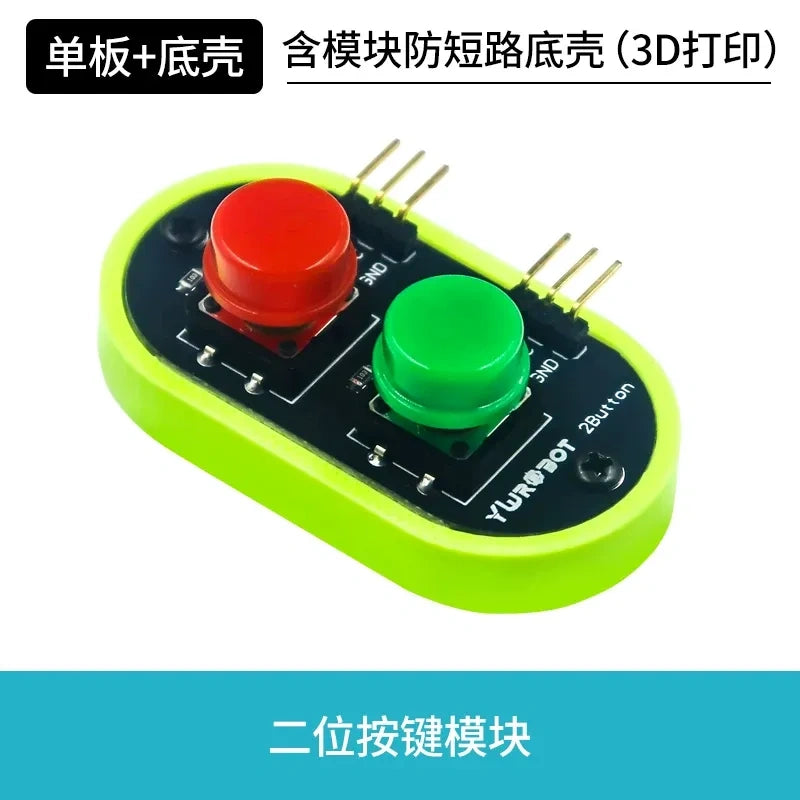

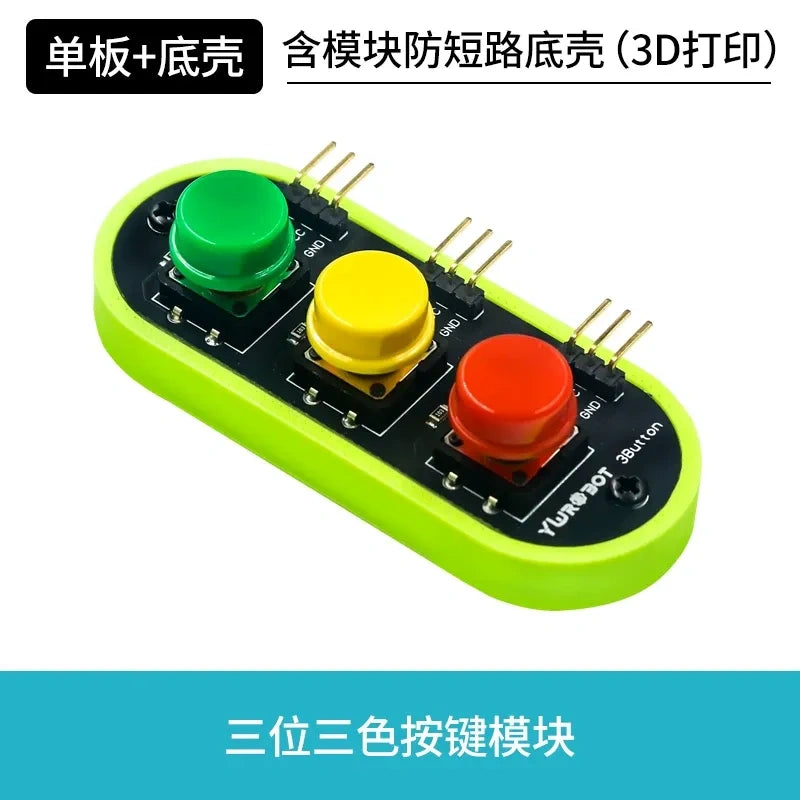

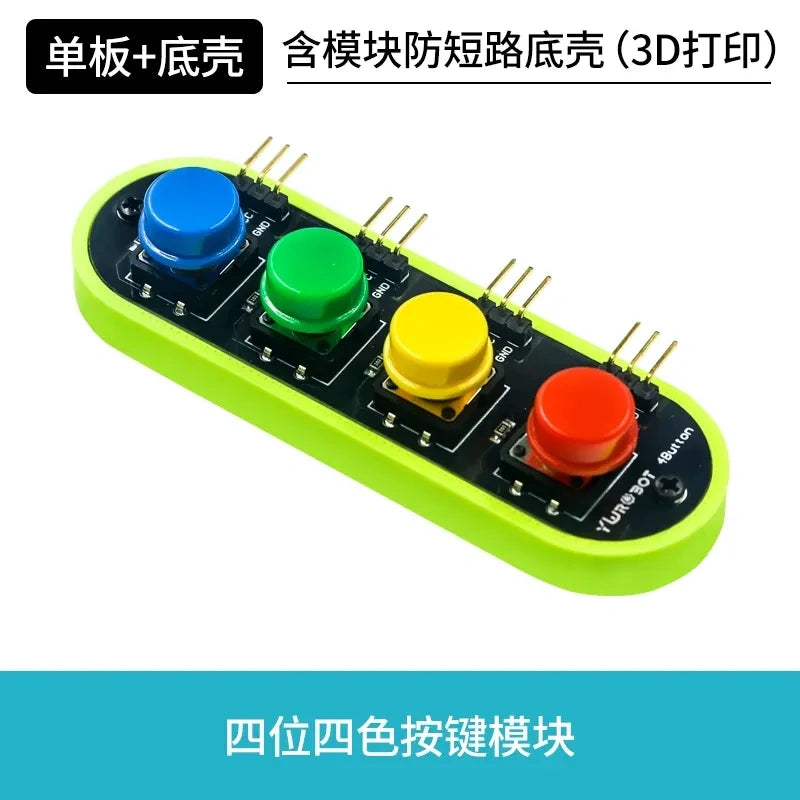

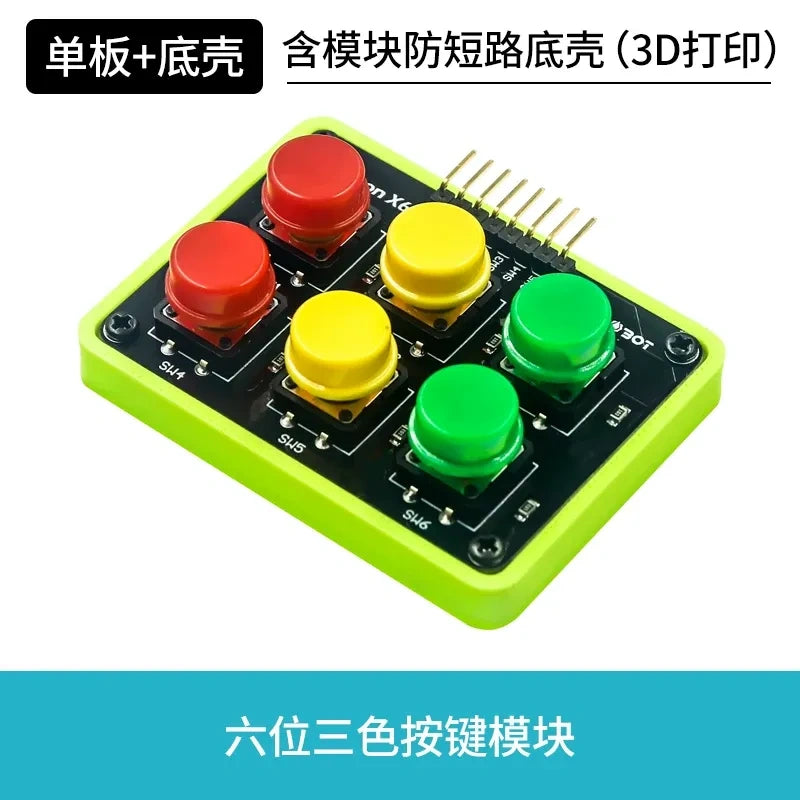

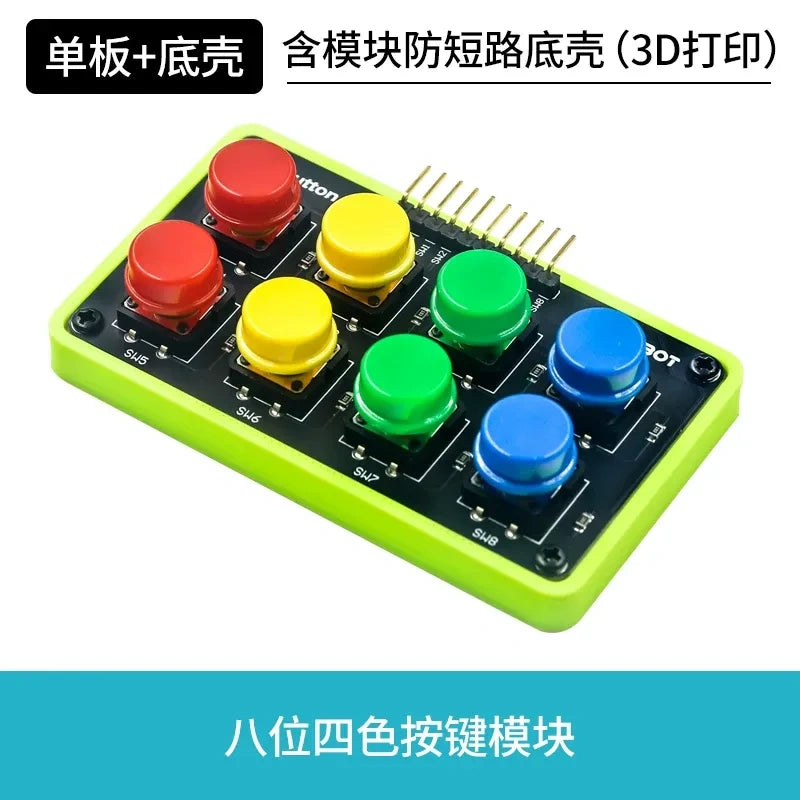

| Version Option | Bare PCB / PCB with bottom housing |
| Connector Type | 3P SVG Socket / Pin Header |
| Mounting Hole Diameter | 3mm |
| Application | Electronic Building Block, DIY, Robot, Teaching Experiment |
| Certification | CE |
| Origin | Mainland China |
FAQ
Q1: What is the output logic of this Arduino button module?
A: It outputs digital level. Low level when button pressed, high level when released (active low).
Q2: What voltage does this keypad module support?
A: Support 3.5V and 5V, widely compatible with Arduino mainboards.
Q3: What are the two versions for selection?
A: Bare PCB only version, or PCB equipped with a plastic bottom protective housing.

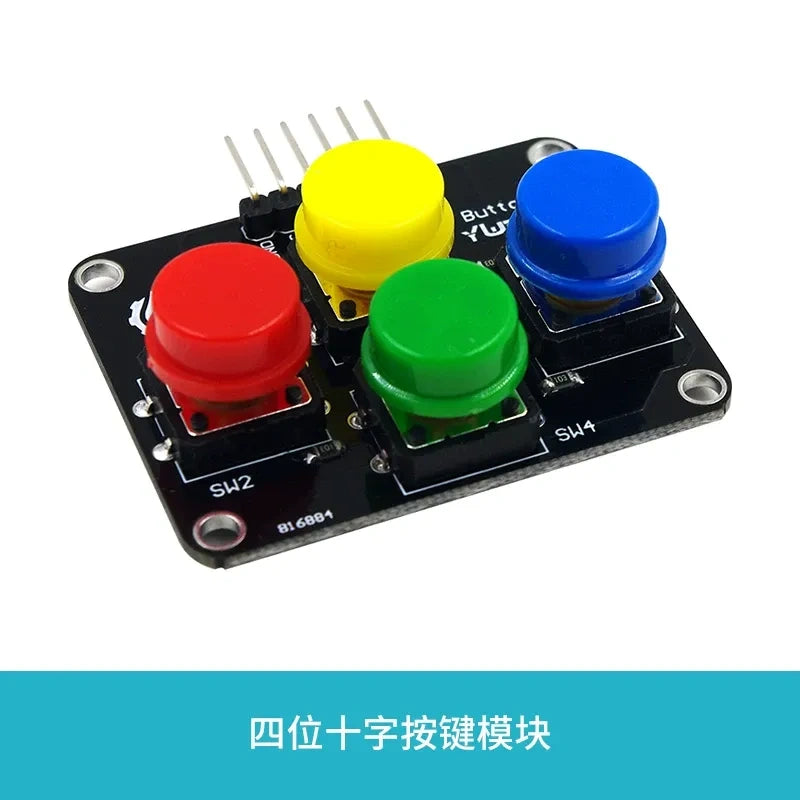

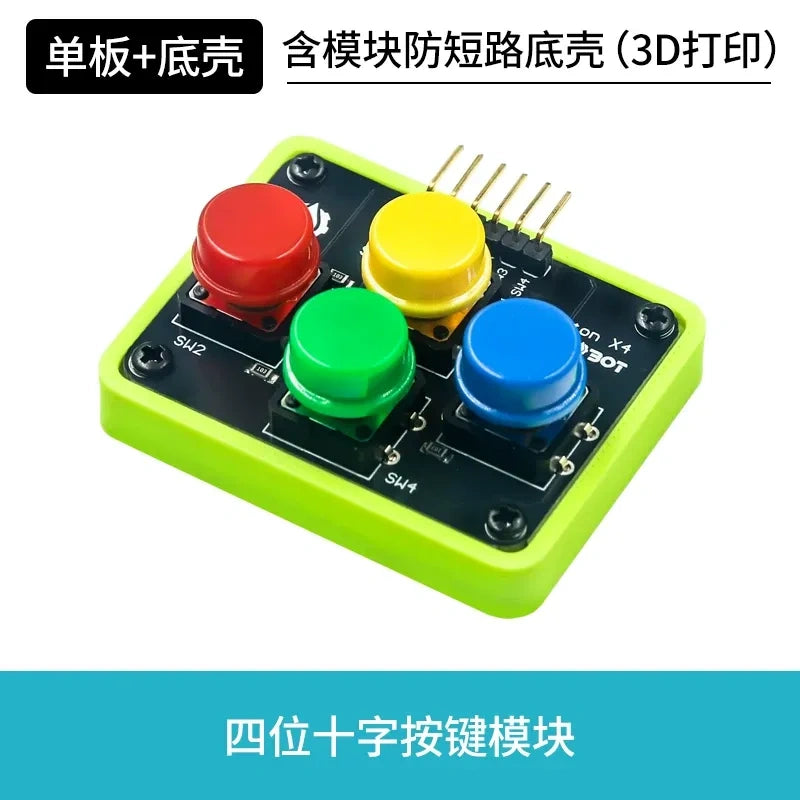

Q4: Can the 4-key cross version be used as direction control keys?
A: Yes, the 4-way cross keypad is designed for up/down/left/right directional control, great for game handle and robot movement control.
Q5: Is it compatible with Raspberry Pi?
A: Yes, it works for Raspberry Pi, STM32 and most MCU boards with digital IO port.
Q6: What connector does this button module use?
A: Some models use 3P SVG socket, others use pin header for wiring.
