BL-3630 DC Brushless Motor 12V 24V, Built-in Driver, Low Noise, 3000~10000rpm Forward & Reverse Rotation, PWM Speed

Name: BL-3630 DC Brushless Motor 12V 24V, Built-in Driver, Low Noise, 3000~10000rpm Forward & Reverse Rotation, PWM Speed
Brand: electrical center b2c
SKU: 3000RPM / DC12V 5-Wire / 10mm
Price: 33.89 USD
Availability: InStock

$33.89 USD

مبيع نفد المخزون

الشحن يُحسب عند إتمام الشراء.

Motor Speed 3000RPM 4000RPM 5000RPM 6000RPM 7000RPM 8000RPM 9000RPM 10000RPM

Motor Voltage & Wire Type DC12V 5-Wire DC12V 6-Wire DC24V 5-Wire DC24V 6-Wire

Output Shaft Length 10mm 11mm 20mm

متغيرات المنتج

الكمية

Free Shipping on Orders $30+

BL-3630 DC Brushless Motor 12V 24V, Built-in Driver, Low Noise, Forward & Reverse Rotation, PWM Speed Control Small BLDC Motor

Product Description

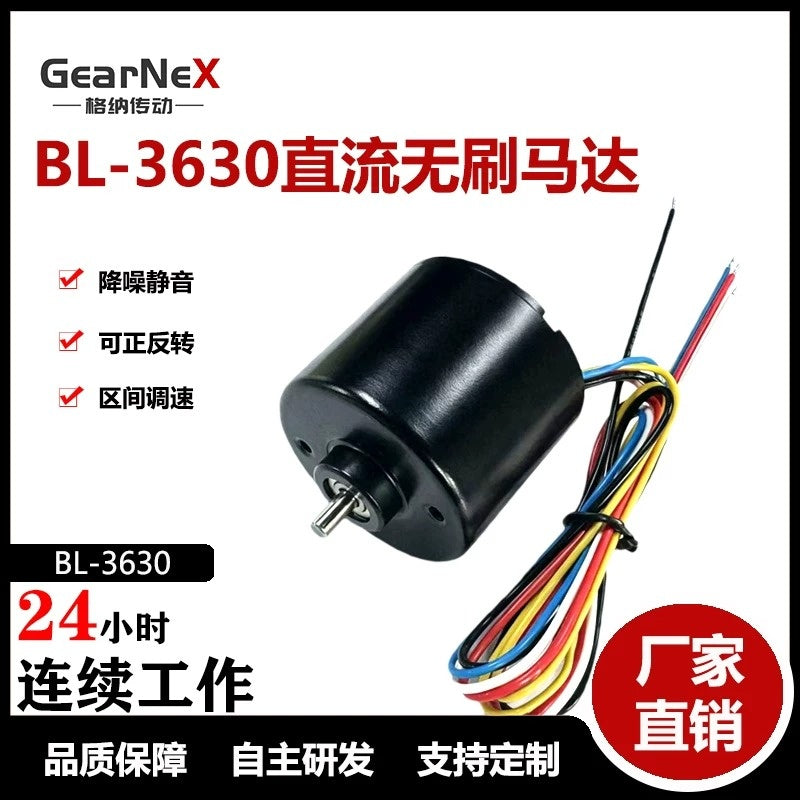

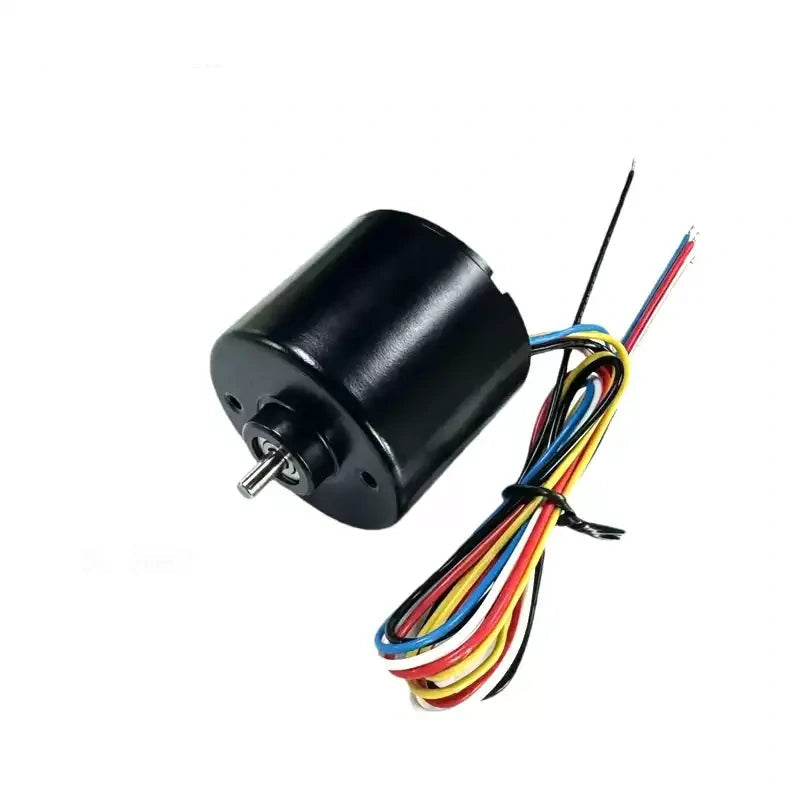

BL-3630 compact DC brushless motor comes with integrated built-in driver, featuring low noise operation, reversible rotation and PWM speed regulation. Dual voltage options:12V / 24V.

Multiple optional no-load speeds:3000,4000,5000,6000,7000,8000,9000,10000 RPM.

Output shaft length optional:10mm,11mm,20mm; available in 5-wire /6-wire versions for different control requirements.

Rated power:5W, net weight approx 168g. Built with pure copper winding and premium magnetic rotor, stable running, low heat generation and long service lifespan.

Suitable for CNC machine tools, laser cutting equipment, food packaging machinery, textile machinery, robotic manipulators, medical devices, semiconductor equipment, automation control systems and other precision industrial applications.

Core Advantages

✅ Built-in driver, simple wiring

✅ PWM adjustable speed & forward/reverse rotation

✅ Ultra-low noise, stable performance

✅ Pure copper coil, low heat, durable

✅ Multiple speed & shaft length selections

✅ Wide voltage 12V/24V compatible

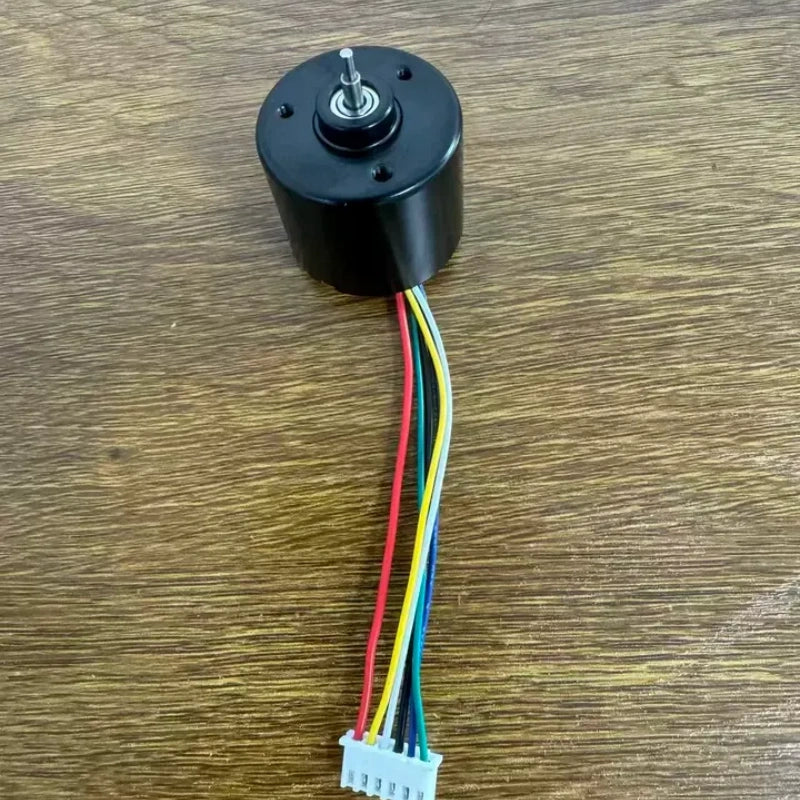

Wire Sequence & Function Description

Please read carefully before using the product

Red Wire: Motor Power Positive + (DC 12V–24V). Do NOT miswire
Black Wire: Motor Power Negative − (DC 12V–24V). Do NOT miswire
Yellow Wire: Speed Feedback Signal (6 pulses per rotation. Max low level:0.6V; High level:4V ~ 5.6V)
Orange Wire: Motor Direction Control Input Signal (Forward rotation when connected together with black negative wire)
White Wire: PWM Speed Control Signal for motor speed regulation (Compatible with 0–5V speed controller)
Green Wire: Motor Brake Signal Input Control (Brake triggered at low level, max 0.6V)
⚠️ WARNING: Never reverse positive and negative power supply. Signal wires must NOT connect to power. Warranty void if miswired!

Specification

Attribute	Value
Product Model	BL-3630
Motor Type	DC Brushless BLDC Motor
Rated Voltage	12V / 24V
Rated Power	5W
No-load Speed	3000~10000 RPM optional
Function	PWM Speed Control, Forward & Reverse Rotation
Wire Type	5 Wire / 6 Wire
Output Shaft Length	10mm / 11mm / 20mm
Material	Pure Copper Coil, High Strength Magnetic Tile, Ball Bearing
Net Weight	168g
Feature	Built-in driver, low noise, compact size, low heating
Application	Medical instrument, packaging, robotics, CNC, automation equipment
