Electric Linear Actuator for Smart Trash Can, 300N(30kg) Force DC12V/24V, 100/150/200/300mm Stroke
تعذّر تحميل توفر الاستلام
electric linear actuator, Quiet Electric Telescopic Rod for Smart Trash Can
DC 12V 24V Linear Actuator 300N, IP54 Waterproof Quiet Linear Motor for Automatic Waste Bin Lid Opening
Product Description

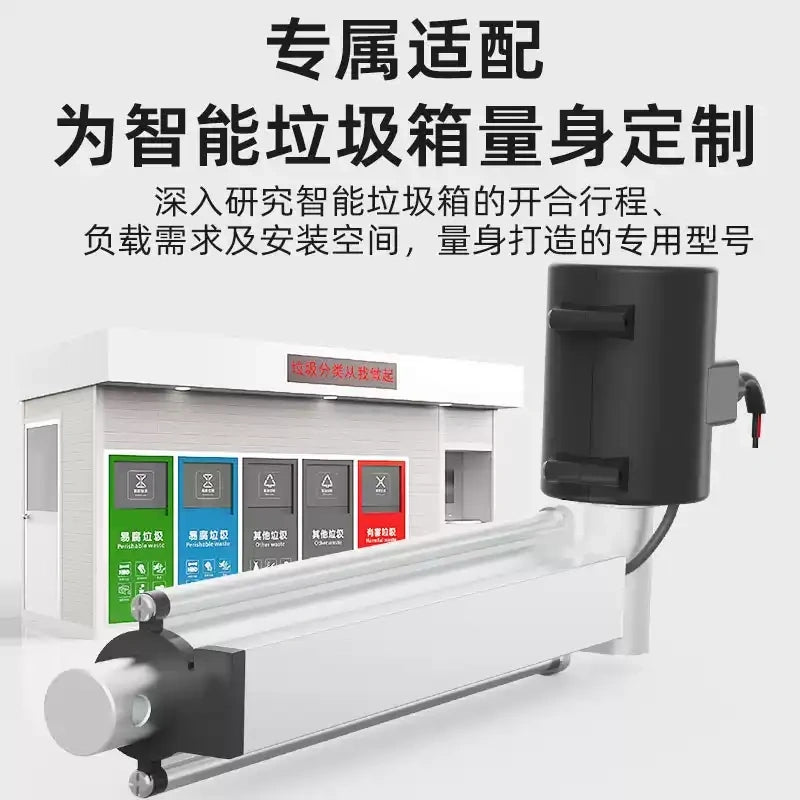

This TDTL linear actuator is specially customized for smart trash cans, designed to realize automatic lid opening & closing, replace manual operation perfectly. Built with aluminum alloy housing and permanent magnet DC motor, it runs ultra quietly at only 22dB with fast 0.01s response. Rated thrust up to 300N(30kg), stable power output to drive waste bin lids smoothly.

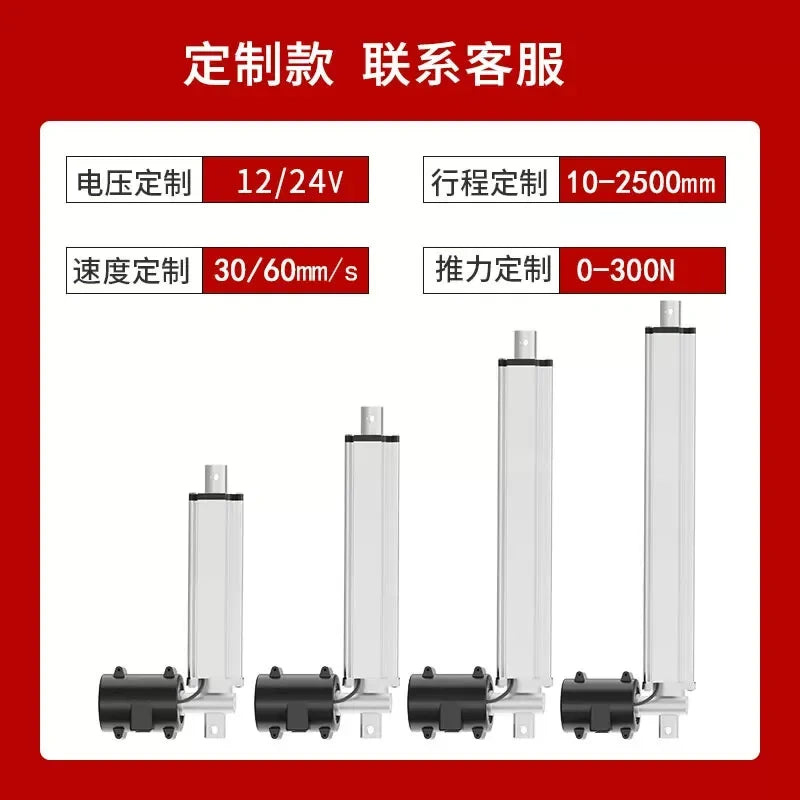

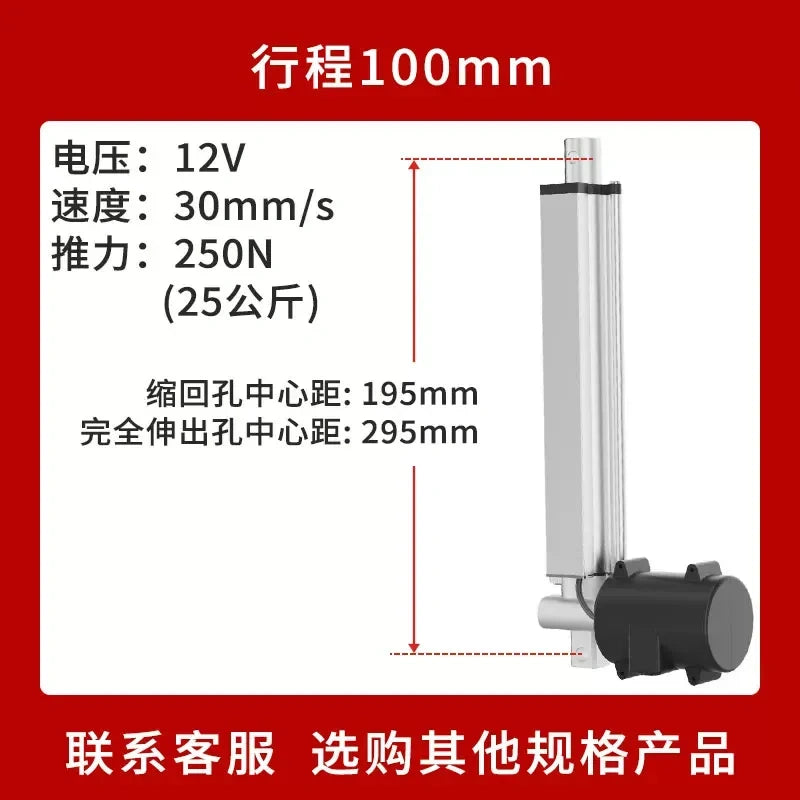

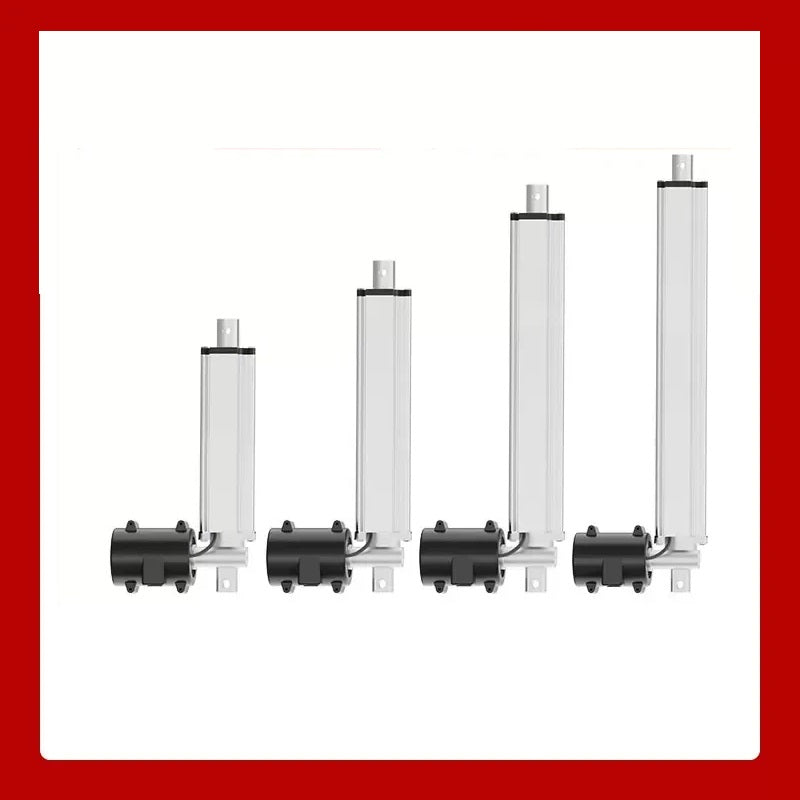

Available stroke options:100mm,150mm,200mm,300mm, custom stroke supported. Two speed choices:30mm/s &60mm/s, power supply DC12V / DC24V. Comes with built-in limit switches, overload & overheat dual protection for safe operation. IP54 protection grade, wide working temperature range -40℃ ~ +102℃, adapts for outdoor & indoor environments.
Suitable for household smart trash bins, commercial sorting waste bins, community recycling containers and more. Compact integrated structure, simple installation, reliable performance for long time continuous operation.
3. Attribute Table
表格
| Attribute Name | Value |
|---|---|
| Product Name | TDTL Linear Actuator for Smart Trash Can |
| Model | TDTL |
| Material | Aluminum Alloy |
| Rated Thrust | 300N (30kg) |
| Voltage | DC12V / DC24V |
| Stroke | 100mm,150mm,200mm,300mm,Customizable |
| Speed | 30mm/s, 60mm/s |
| Noise Level | 22dB |
| Protection Class | IP54 |
| Working Temp | -40℃ ~ +102℃ |
| Protection Device | Built-in limit switch, Overload & Overheat protection |
| Application | Smart Trash Can / Waste Bin Automatic Lid Control |
| Feature | Ultra quiet, Fast response, Stable lifting |
4. FAQs
Q1: What is this linear actuator mainly used for?
A: It is specially designed for smart trash cans, to drive automatic opening and closing of waste bin lids. Also compatible with household, commercial and community recycling bins.
Q2: What voltage options are available?
A: DC12V and DC24V for selection.
Q3: What stroke lengths can I choose?
A: Standard strokes:100mm,150mm,200mm,300mm. We support custom stroke length for special project.
Q4: What is the max thrust?
A: Rated thrust is 300N, equal to about 30kg load capacity.
Q5: How about the noise during working?
A: Only 22dB ultra quiet operation, low noise when opening bin lid.
Q6: What protection features does it have?
A: Built-in limit switch, overload protection and overheat protection. IP54 dust & splash resistant.
Q7: What working temperature can it withstand?
A: Wide temperature range -40℃ to +102℃, works stable in cold and hot outdoor environments.
Q8: Two speed options?
A: Yes, 30mm/s and 60mm/s for selection.
