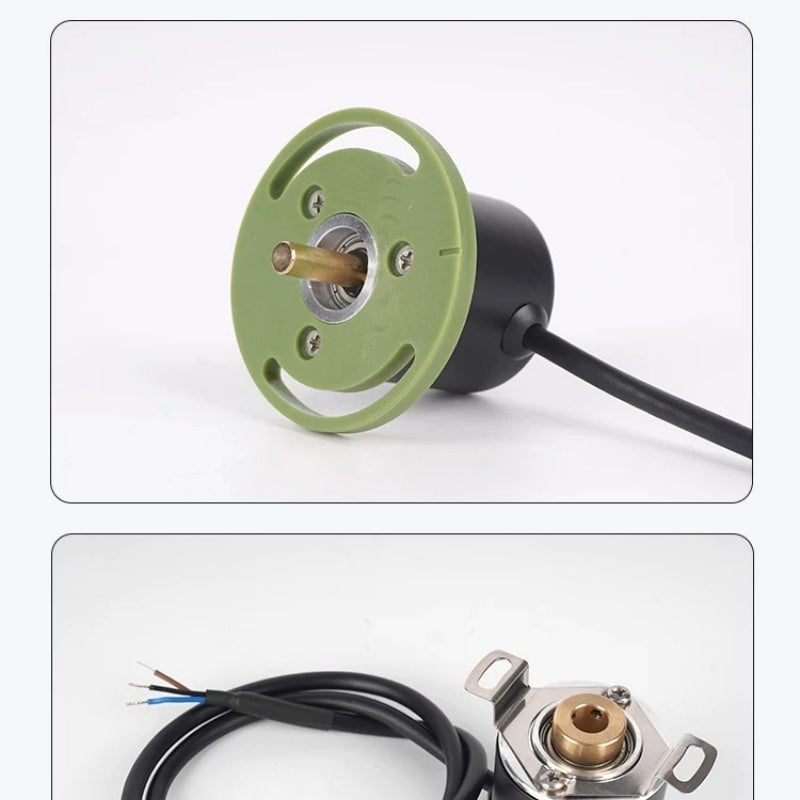

FD Non-Contact Angle Sensor Magnetic Single-Turn Absolute Rotary Encoder
تعذّر تحميل توفر الاستلام
FD Non-Contact Magnetic Angle Sensor, Single Turn Absolute Rotary Position Encoder, Contactless Conductive Plastic Potentiometer Replacement for Rotational Displacement Measurement
FD series angle sensor adopts intelligent magneto-sensitive components to convert mechanical rotation and angular displacement into electrical signals with non-contact measurement.
✅ Non-contact design, no noise, high sensitivity & repeatability, nearly unlimited service life
✅ Excellent environmental resistance, works steadily under water, oil, gas, dust, high/low temperature, vibration and shock
✅ 360° single-turn absolute position detection, programmable angle range
✅ 12-bit resolution, frequency response up to 1KHz; Supports Analog, PWM, SPI output
✅ Wide working temperature: -40℃ ~ 150℃, storage temperature -55℃ ~155℃
Widely used in industrial automation monitoring systems, perfect for equipment with frequent rotation and harsh working conditions.
Model Options: FD-360051, FD-360058, FB-360051, FB-360244, FB-360243
Specification
| Attribute | Content |
|---|---|
| Product Name | FD Non-Contact Magnetic Angle Sensor, Single Turn Absolute Rotary Encoder |
| Alternative Name | Contactless Rotational Displacement Sensor, Magnetic Potentiometer |
| Series | FD / FB Series Angle Sensor |
| Model List | FD-360051, FD-360058, FB-360051, FB-360244, FB-360243 |
| Measuring Range | 0~360° Single Turn, Custom programmable angle stroke |
| Measuring Principle | Magneto-sensitive Non-contact Detection |
| Resolution | 12 Bits |
| Power Supply | 5VDC ±10% |
| Working Temperature | -40℃ ~ 150℃ |
| Storage Temperature | -55℃ ~ 155℃ |
| Frequency Response | 1 KHz |
| Output Signal | Analog Signal / PWM / SPI |
| Feature | Non-contact, Wear-free, Infinite Rotation Life, High Repeatability, Anti-vibration, Dustproof, Oil-resistant |
| Replacement For | Optical Encoder, Resolver, Conductive Plastic Potentiometer |
| Application | Industrial Automation, Rotary Position Monitoring, Angular Displacement Measurement |
Product Dimension
