Servo Electric Cylinder Heavy Load Linear Actuator, 28/40/65/95/140 series, Stroke 0-500mm Custome Made

servo electric cylinder, heavy load linear actuator

Product Description

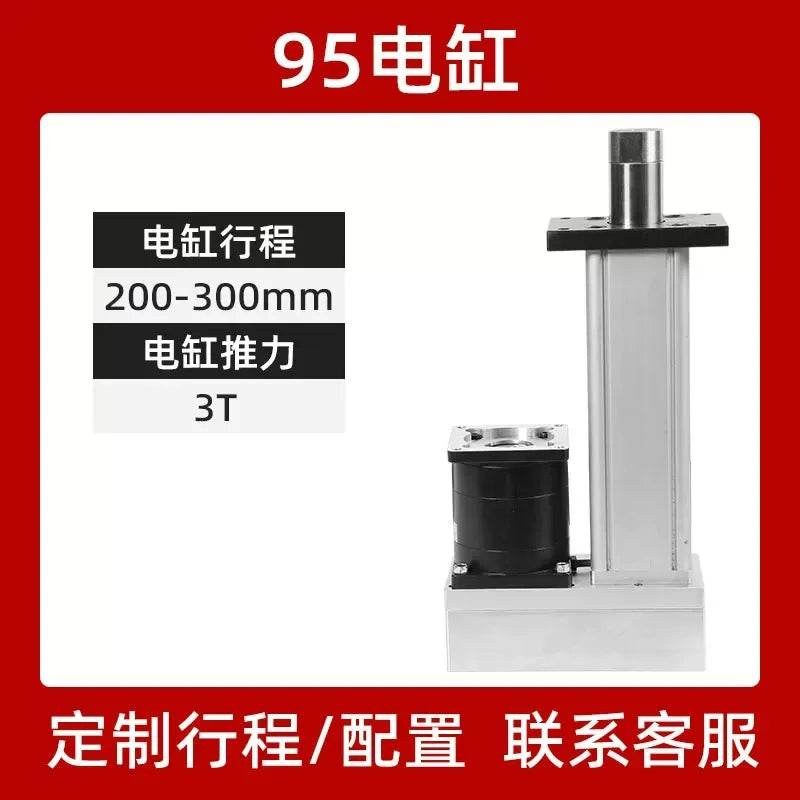

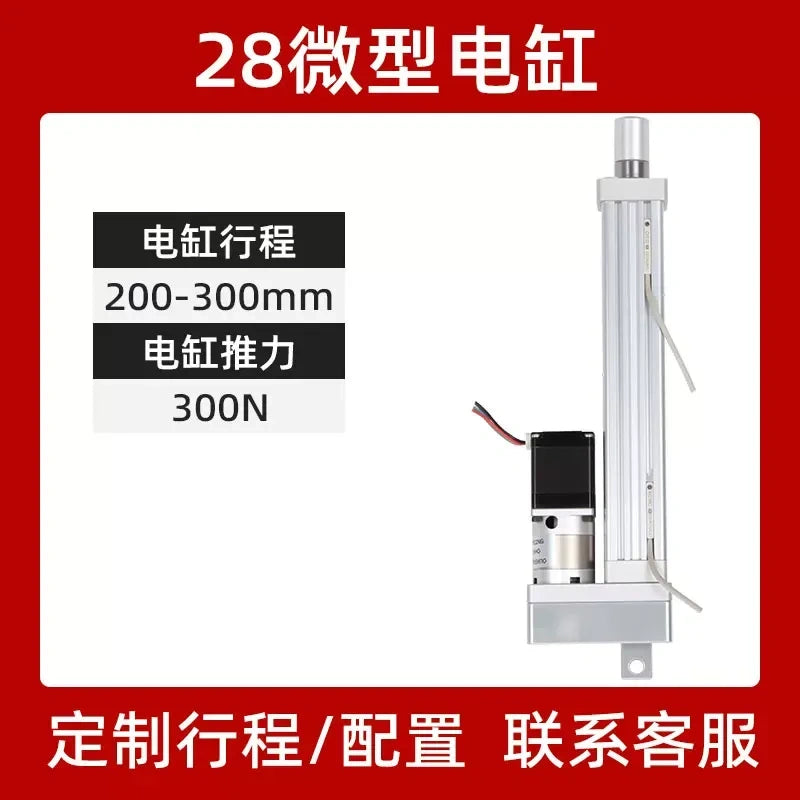

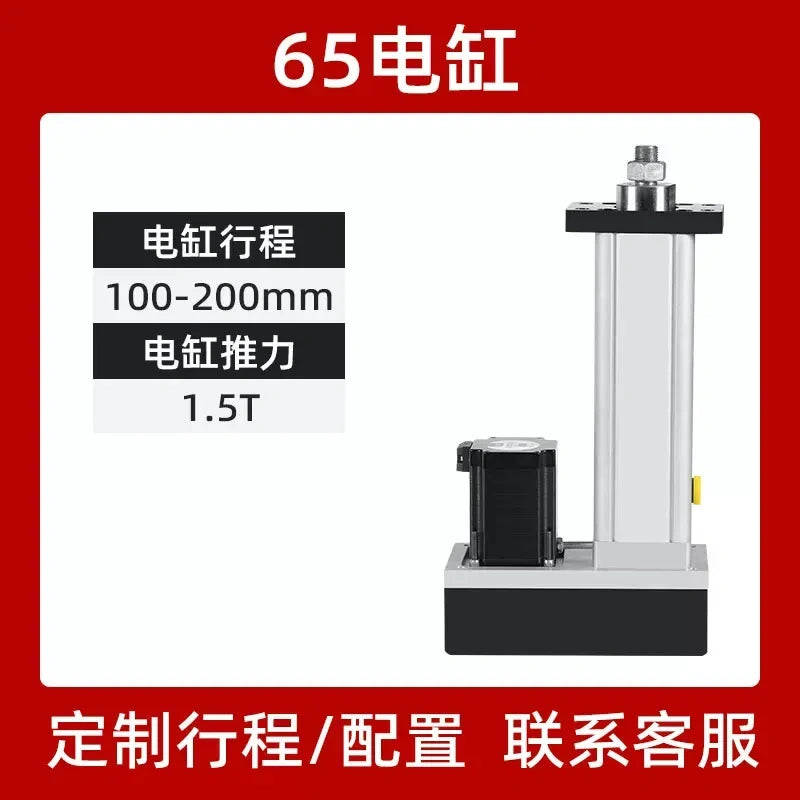

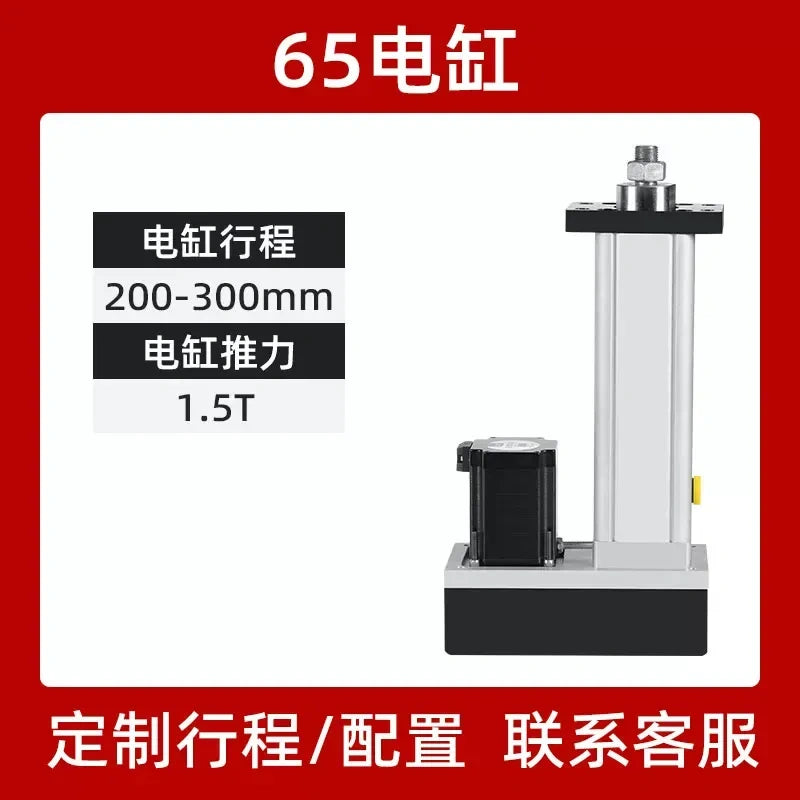

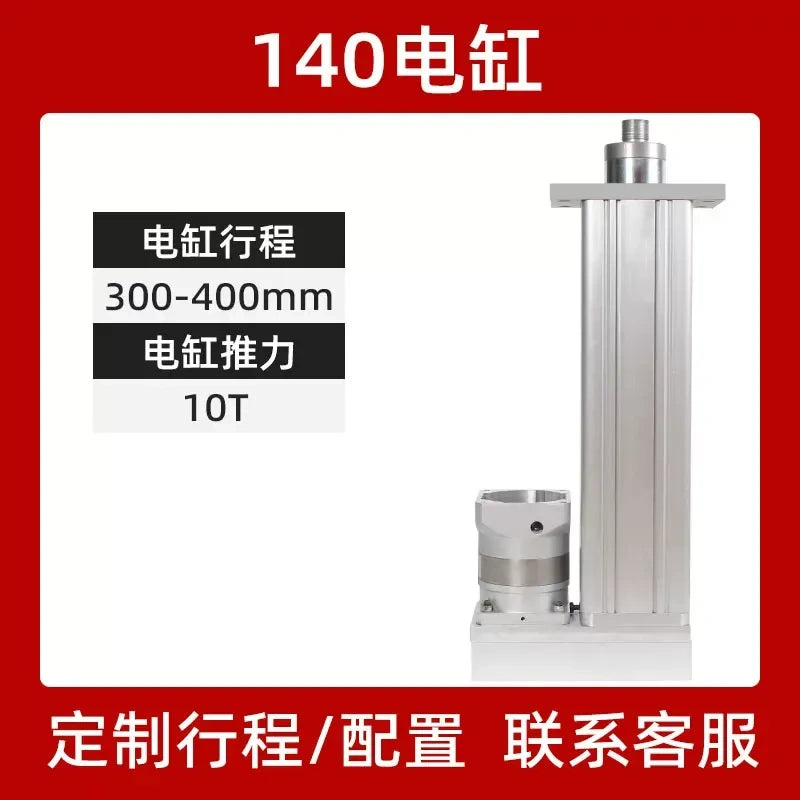

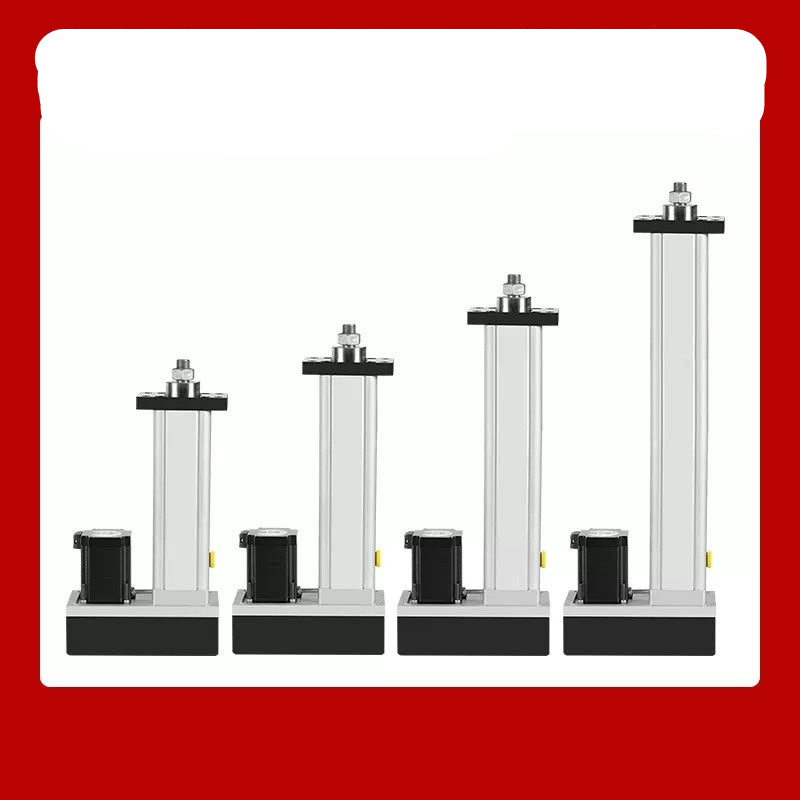

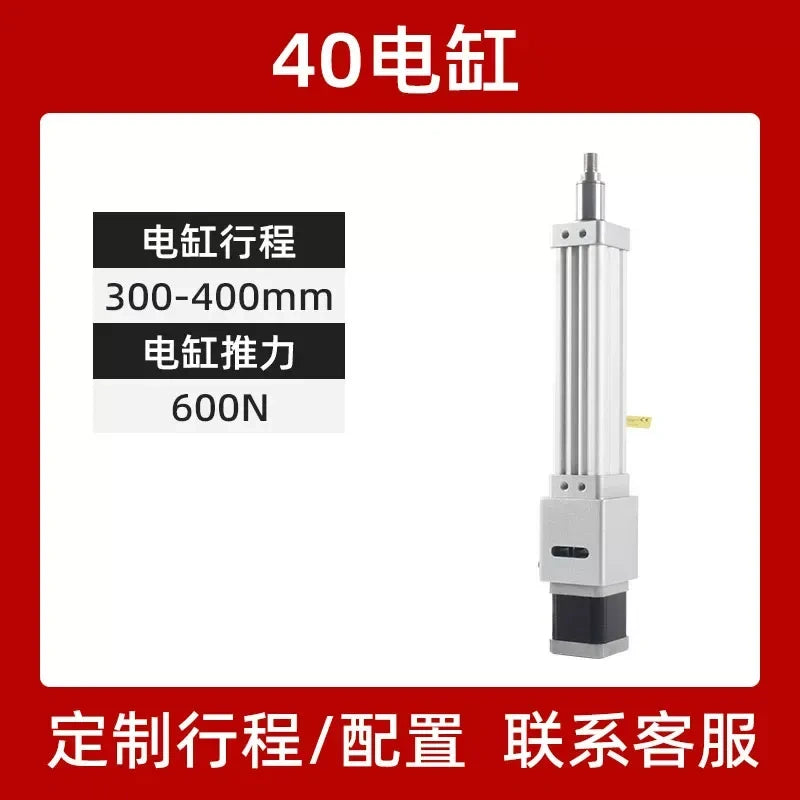

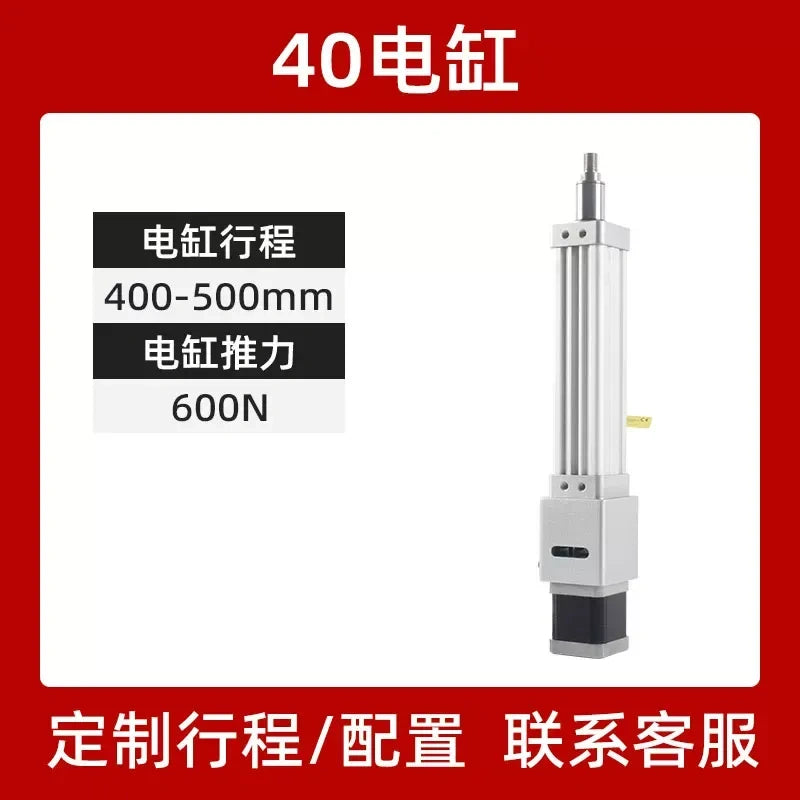

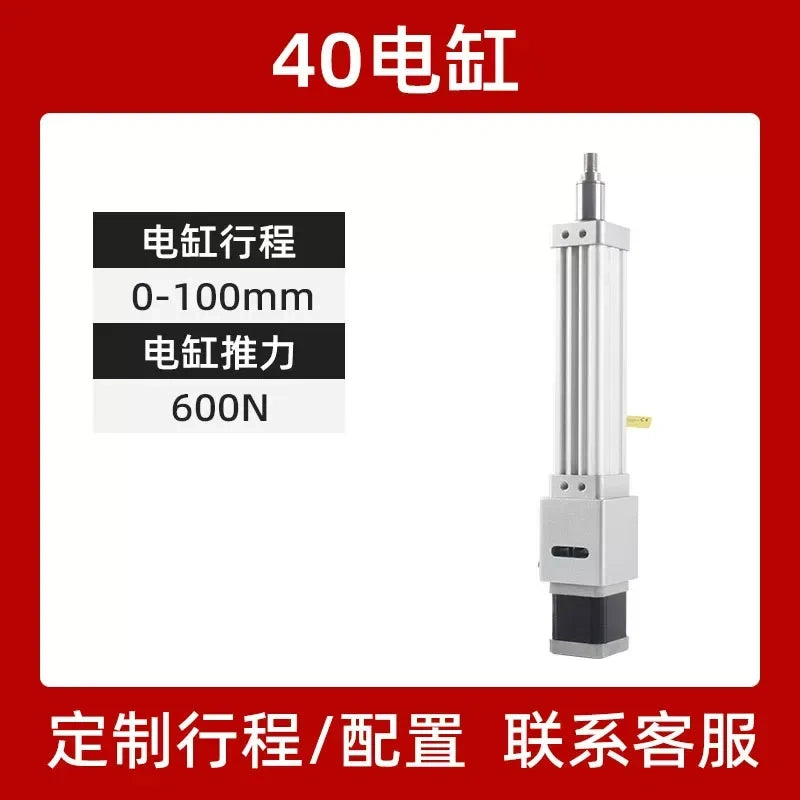

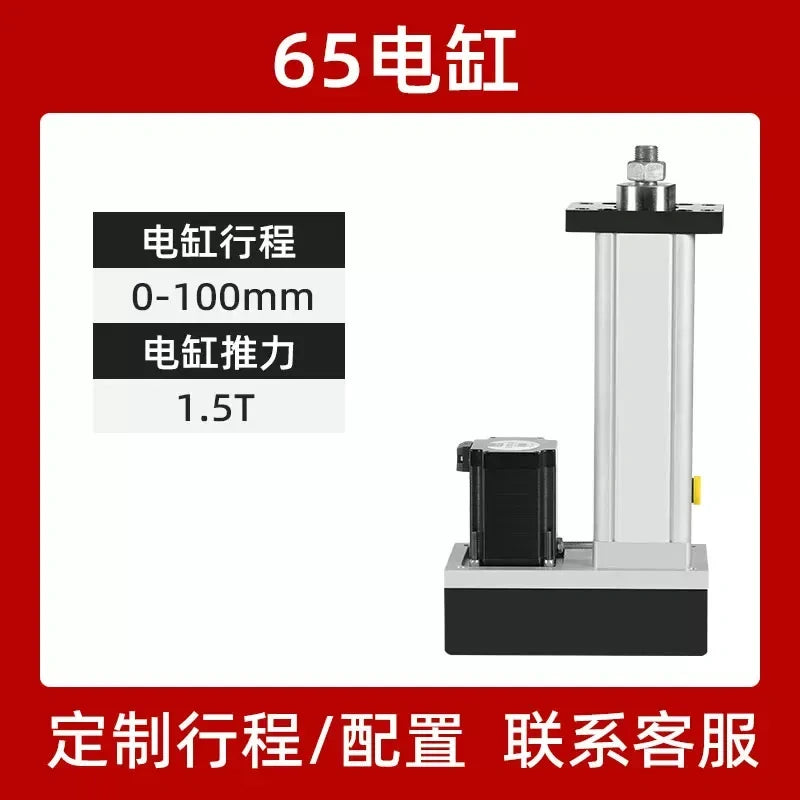

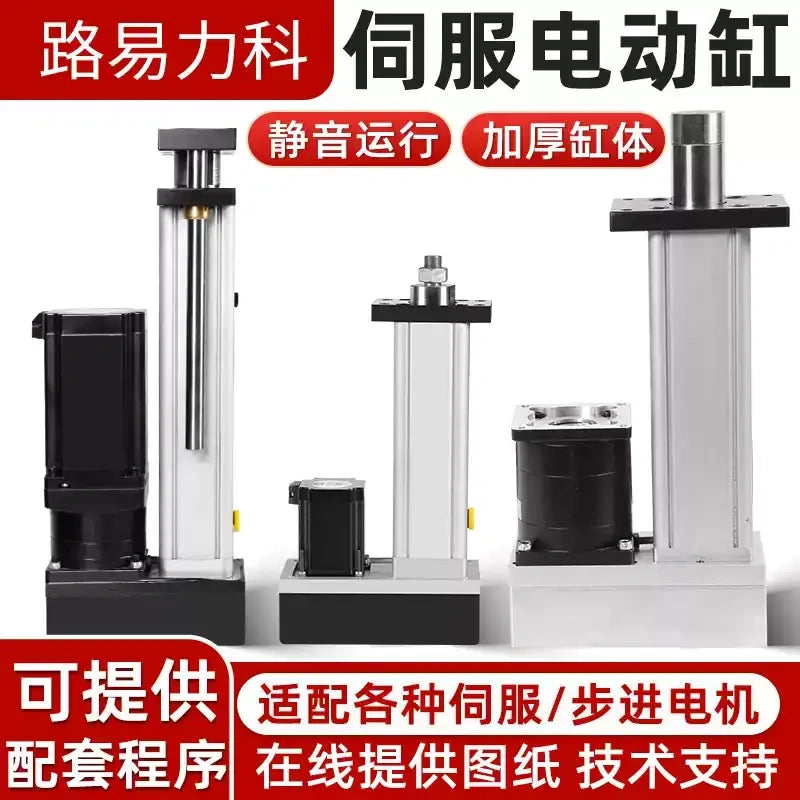

Our servo electric cylinder is a high-precision linear actuator that converts rotary motion into linear reciprocating push/pull movement. Available in multiple frame sizes: 28,40,65,95,140 series, covering thrust from small load up to 10 Ton, stroke ranges from 0-500mm, and custom stroke options.

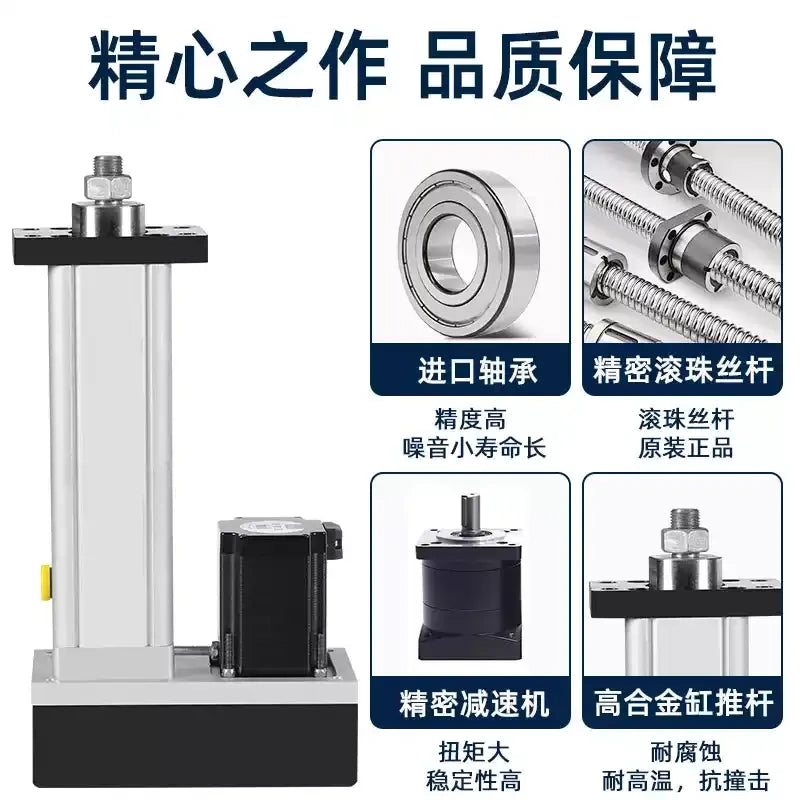

Adopts closed-loop servo control with position encoder, solves step loss issue of traditional stepper motors. Features low heat generation, high efficiency, large torque, high speed, smooth & precise motion, low noise. IP65/IP66 protection grade available for harsh working environments.

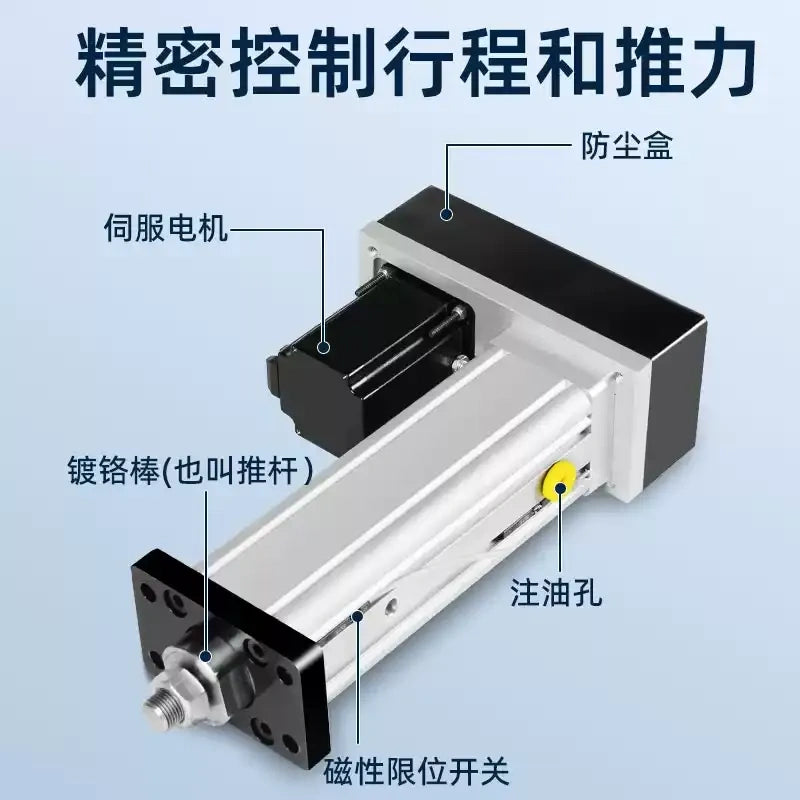

Comes with adjustable magnetic limit switch slots and high-strength mounting base for stable output. Compatible with mainstream PLC, MCU, and programming languages including Python, C#, C++, LabVIEW. SDK & DLL dynamic link libraries are provided for secondary development. Widely used for servo press machines, robotic arms, assembly press equipment, VR simulation platforms, 6-DOF motion platforms, laser processing machines, QC force test benches and industrial automation systems.

We support custom service: you only need to inform us your target thrust, speed, stroke and mounting method, our engineering team will draw technical drawings for confirmation before production. CE certified, low maintenance, only regular grease lubrication required. Optional drive & power supply kits to simplify wiring. Free technical support available.

Attribute Table

FAQs

Q1: What series options are available for this servo electric cylinder?

A: We have 28, 40, 65, 95, 140 series electric cylinders. Thrust ranges from small load up to 10 tons, stroke 0-500mm, custom stroke also supported.

Q2: What advantages does this servo electric cylinder compare with ordinary stepper actuators?

A: It uses closed-loop encoder and vector control, no step loss. It has lower heat, higher efficiency, larger torque, smoother low-speed operation and less vibration & noise.

Q3: What is the IP rating of the servo electric cylinder?

A: It can reach IP65 or IP66, works steadily under dusty and humid harsh environments.

Q4: What control systems can the electric cylinder connect to?

A: Compatible with Siemens, Mitsubishi, Delta PLC, STM32, ARM, FPGA. Support Python, C#, C++, LabVIEW, HALCON. We can provide SDK & DLL package for secondary development.

Q5: Can I customize the electric cylinder?

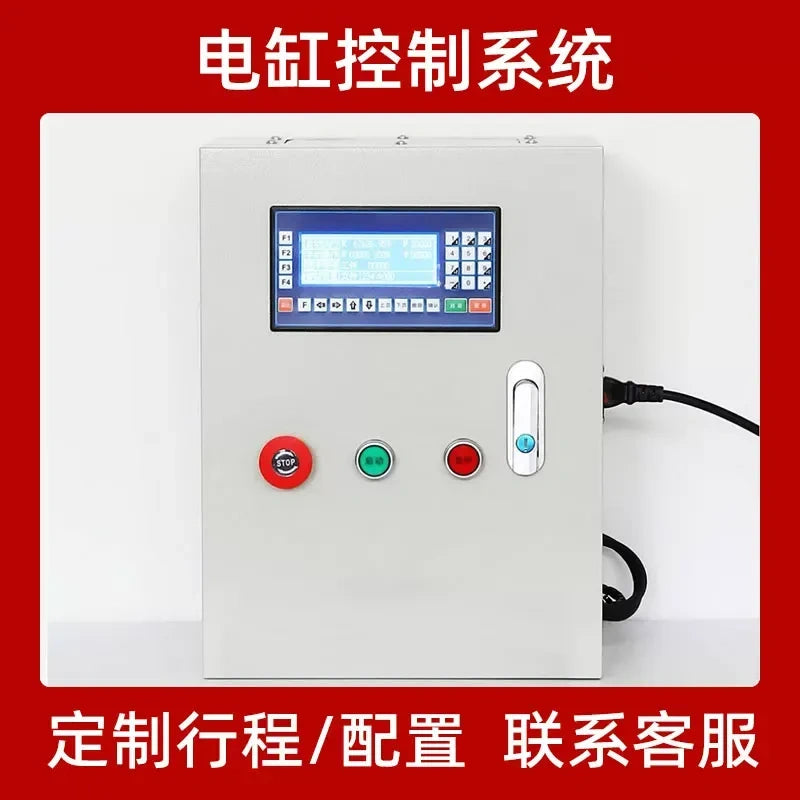

A: Yes. Please send us your requirements of thrust, speed, stroke and installation way. Our engineer will make drawings for your confirmation before production. We also supply matched electric cylinder control system.

Q6: What applications are these servo electric cylinders suitable for?

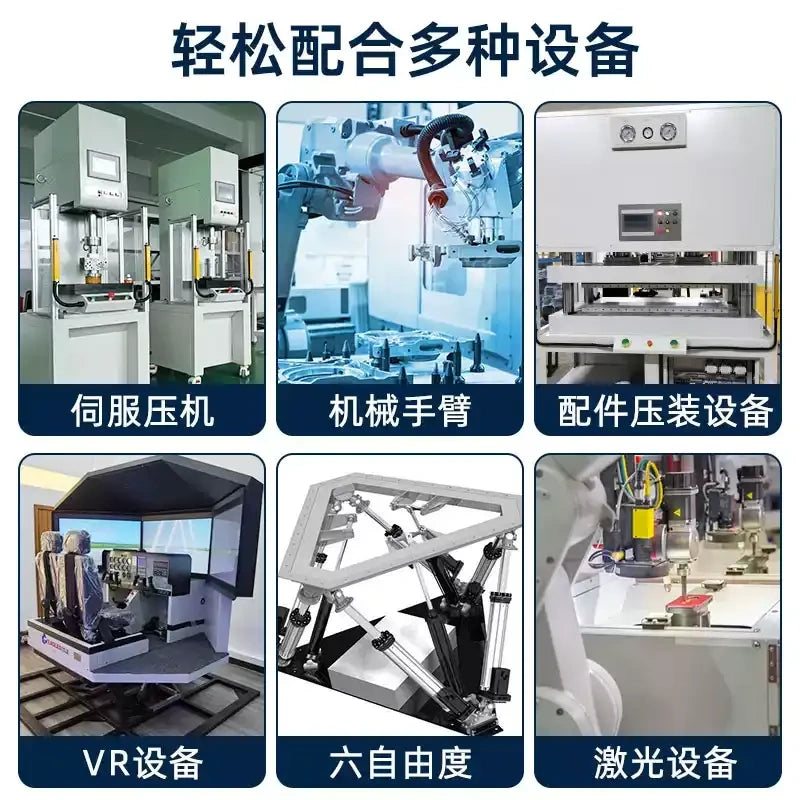

A: Widely used for servo press, robotic arm, component press machine, VR simulation equipment, 6-degree-of-freedom motion platform, laser equipment, push-pull force test benches and other automation QC equipment.

Q7: Any installation tips?

A: The shaft end cannot bear radial force. For high precision application, use positioning flange to guarantee coaxiality. Notify us if you need inverted installation, self-locking, synchronous multi-cylinder control, high/low temperature working condition.

Q8: What about maintenance?

A: Low maintenance cost. Only regular grease lubrication needed, no easily worn spare parts to replace.
