SP2110 SP2112 back nut waterproof connector SP21 2pin 3pin 4pin 5pin 7pin 9pin 12 pin IP68 connectors plug and socket

$4.32 USD
$2.76 USD $4.32 USD
Sale Sold out
Shipping calculated at checkout.
Color
 More payment options

SPECIFICATIONS

SP2110 SP2112 back nut waterproof connector SP21 2pin 3pin 4pin 5pin 7pin 9pin 12 pin IP68 connectors plug and socket

Voltage: 24V

Origin: Mainland China

Model Number: SP2110 back nut

Certification: CE

Brand Name: CNMAWAY

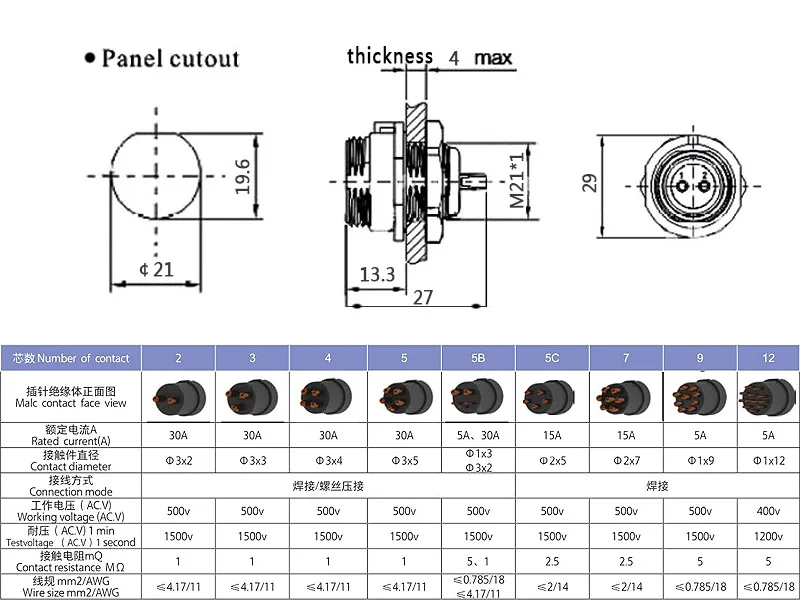

Specification parameter
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Operating temperature: -35 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)
Sealing: in line with IP68
Applicable wire diameter: diameter 6.0~12.0mm
Mechanical life: more than 500 times
