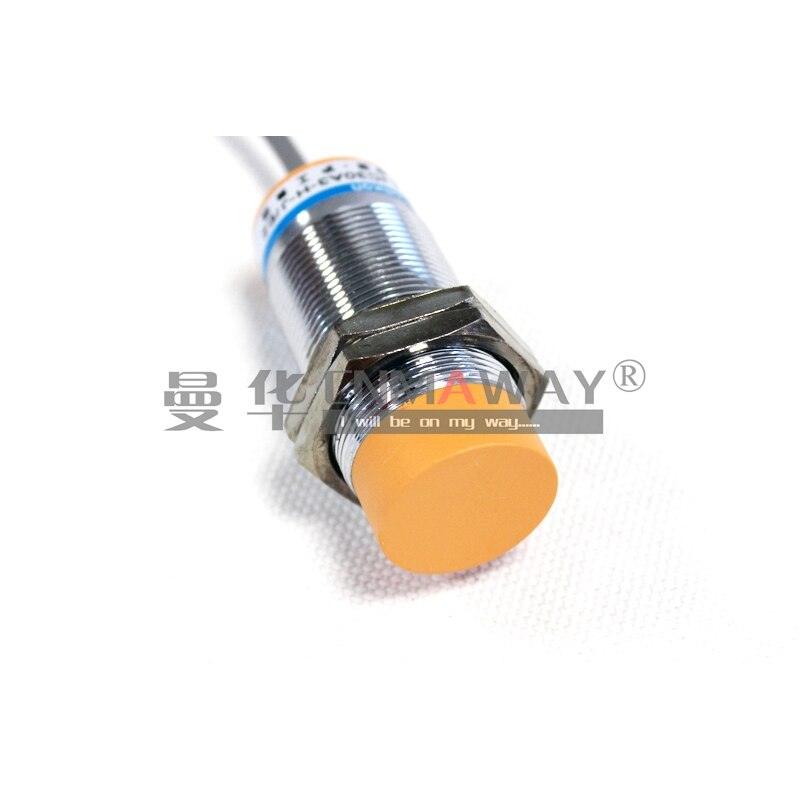

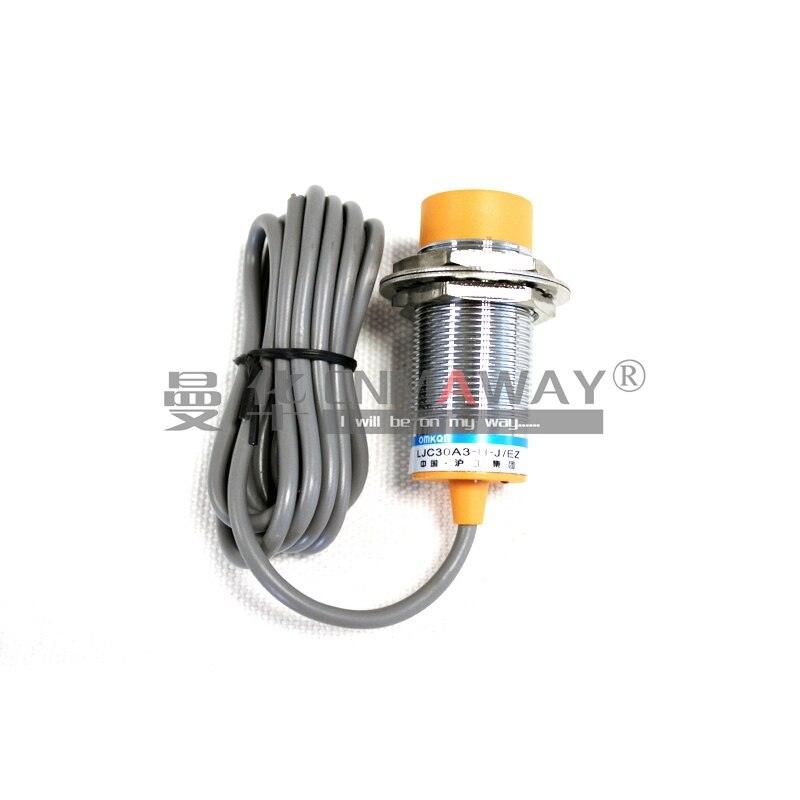

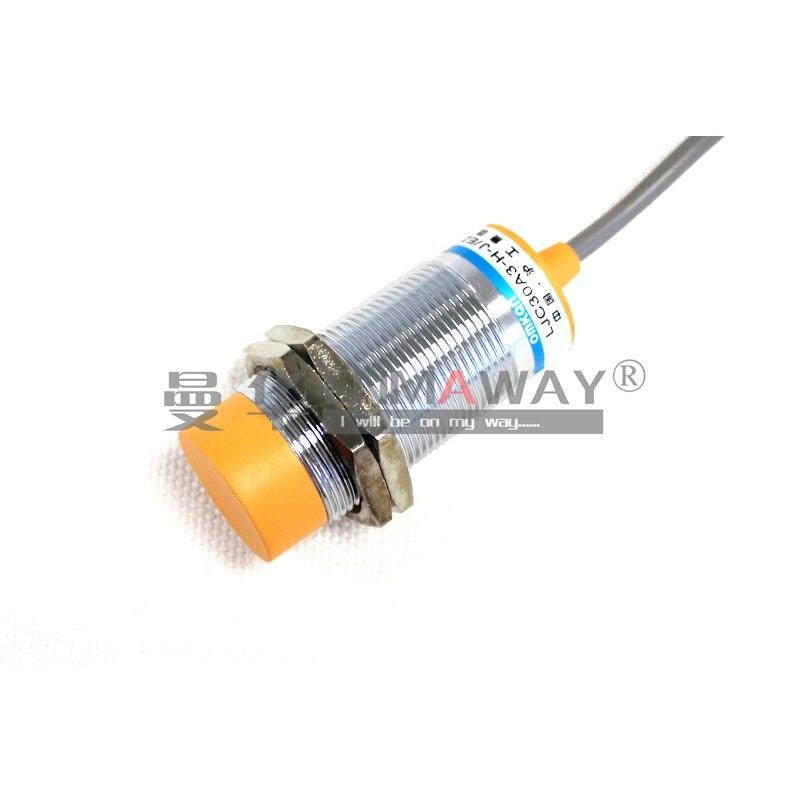

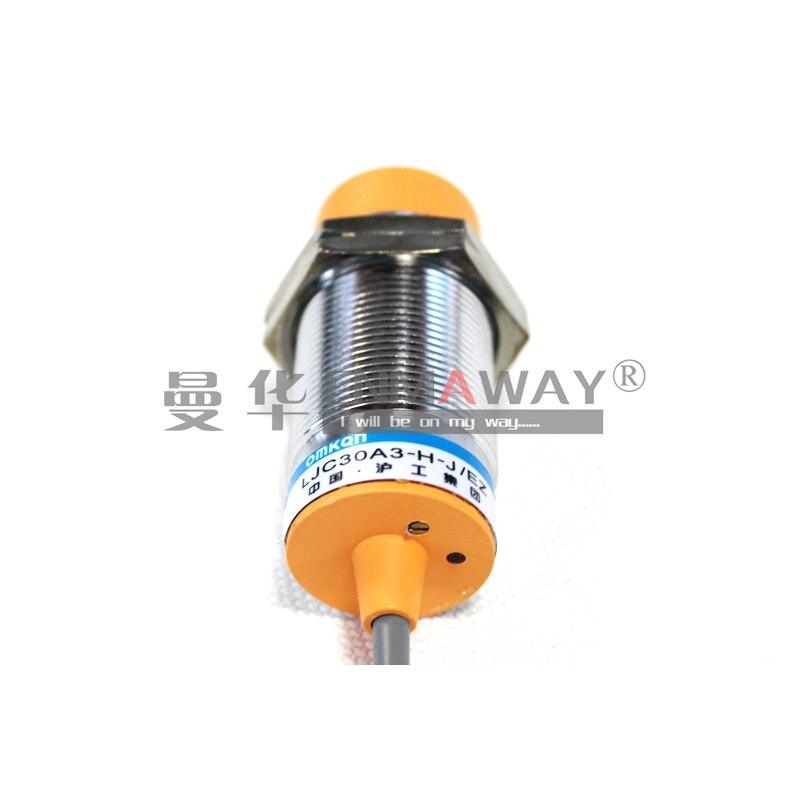

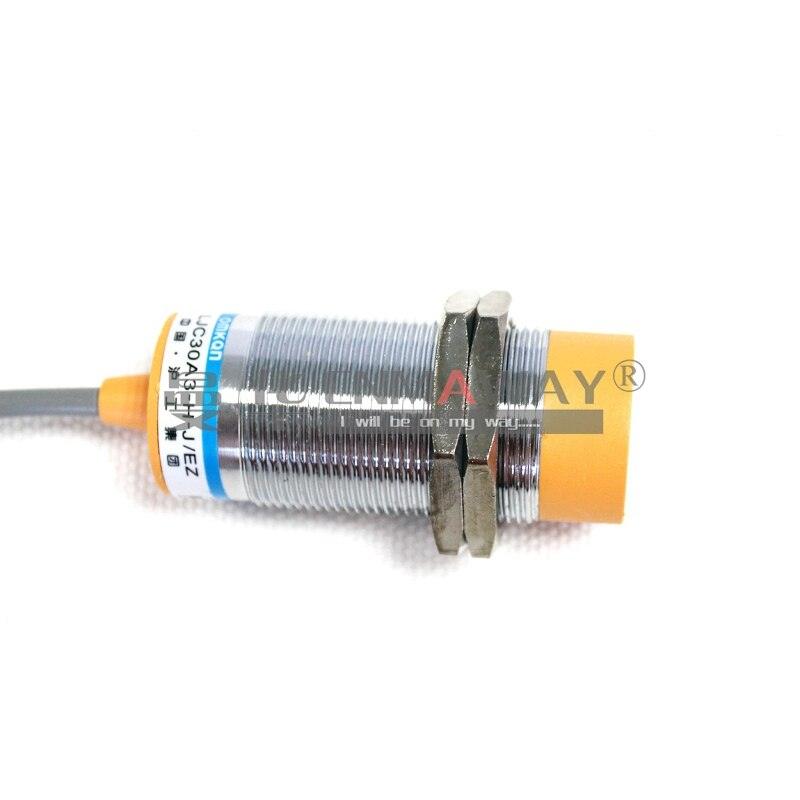

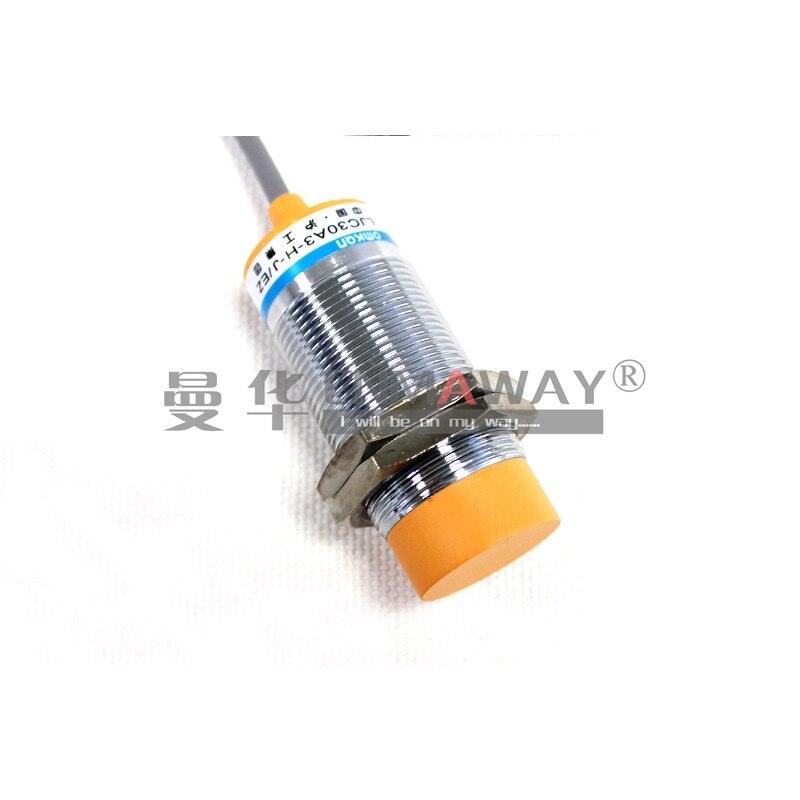

30MM Capacitive proximity sensor switch NO NPN 25MM Detection distance LJC30A3-H-Z/BX

$13.77 USD
$13.77 USD
Sale Sold out
Shipping calculated at checkout.
Color
 More payment options

SPECIFICATIONS

30MM Capacitive proximity sensor switch NO NPN 25MM Detection distance LJC30A3-H-Z/BX 3-WIRE

DC6-36V+mounting bracket

Warranty: 1 year

Switch Type: Pressure Switch

Origin: CN(Origin)

Model Number: LJC30A3-H-Z/BX

Material: Plastic

Item Type: Switches

Features: LJC30A3-H-Z/BX

Class B:Economic type, widely used ;;; Class A:High precision and high quality;;;; usually ,Class A Class B has different color, Class B yellow color ,, Class A Blue color ( Individual exception )

[type]: LJC30A3-H-Z/BX
[name]: capacitive proximity switch
[shape]: 30 mm in diameter
[detection distance]: 25 mm
[operating voltage]: DC 6-36V
[output mode]: NPN three line often open
[object]: metals and non metals such as plastics, glass, water, oil, etc.; detection distance with the conductivity of an object to be detected, the dielectric constant, water absorption rate, different volume and different, for connecting metal for obtaining maximum detection distance.
