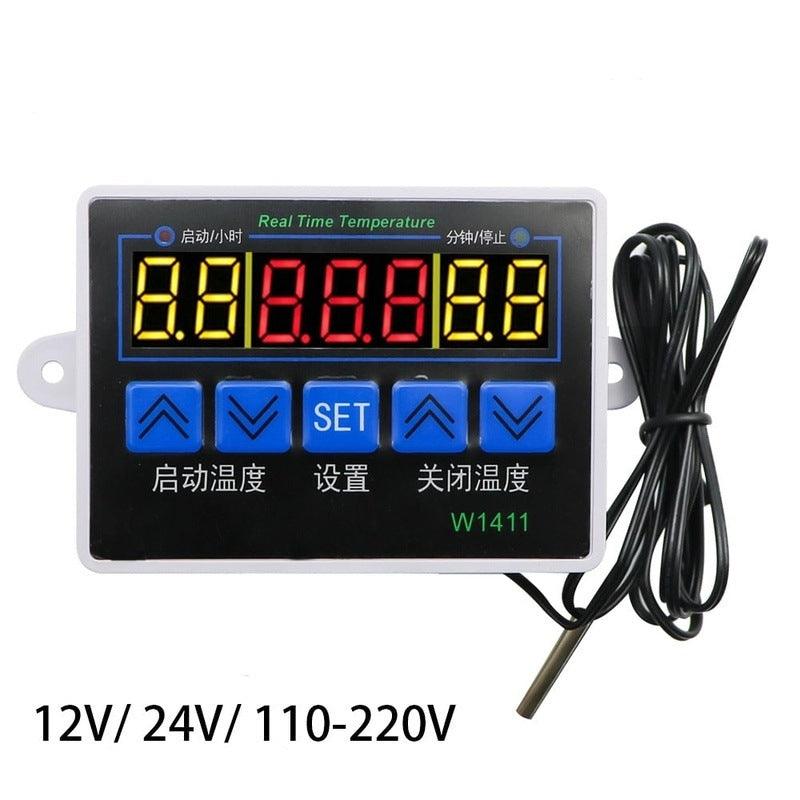

W1411 AC110V-220V DC 12V 10A LED Digital Temperature Controller Thermostat Control Switch Sensor For Greenhouses Aquatic Animal
Regular price
$13.51 USD
Regular price
$10.40 USD
Sale price
$13.51 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
W1411 AC110V-220V DC 12V 10A LED Digital Temperature Controller Thermostat Control Switch Sensor For Greenhouses Aquatic Animal
Usage: Indoor
Type: PT100
Theory: Temperature Controller
Screw: 1/4'
Power Type: Charger
Model Number: W1411
Measure Type: PT100
Max Measuring Temperature: 100°C - 119°C
Is Smart Device: NO
Display Type: DIGITAL
Display Size: 1.9 Inches & Under
Certification: CE
Cable Length: 1M
W1411 DATA SHEET DOWNLOAD

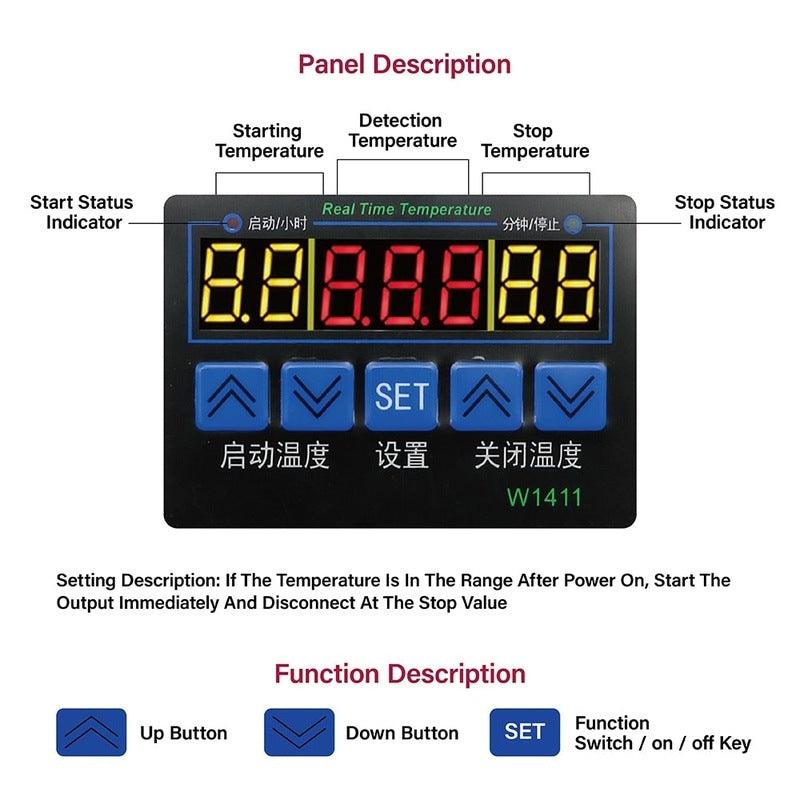

This product adopts a single-chip microcomputer control system and a high-precision temperature control probe, and its temperature control performance is significantly better than similar products.Humanized design of three windows, real-time display of start and end values. With intermittent work, timing switch function, etc.

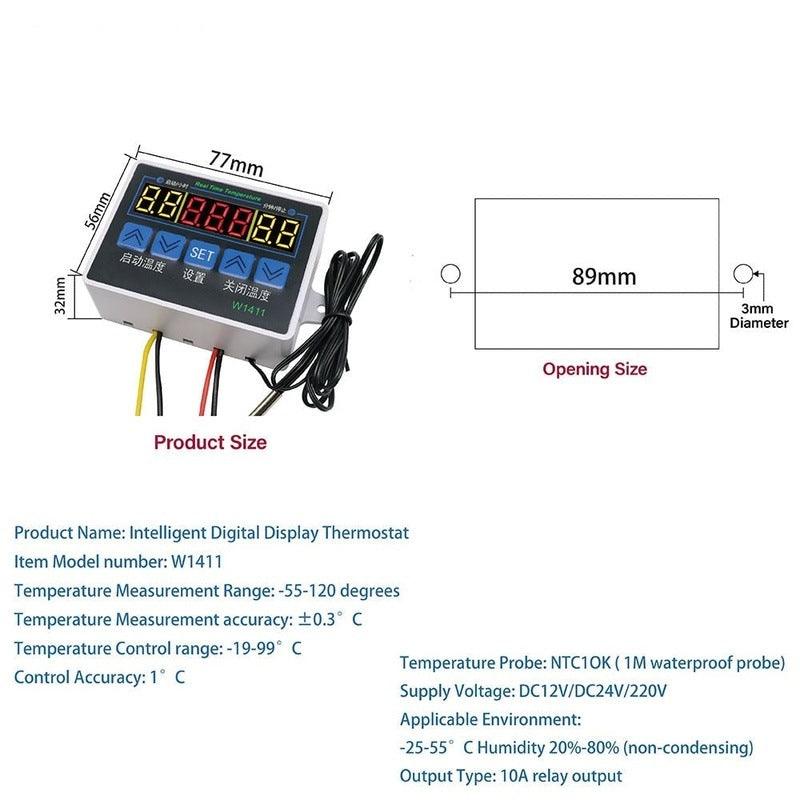

Parameter:
Product Name: Intelligent Digital Display Thermostat
Item model number: W1411
Temperature measurement range: -55-120 degrees
Temperature measurement accuracy: ±0.3°C
Temperature control range: -19-99°C
Control accuracy: 1°C
Temperature probe: NTC10K (standard 1 meter waterproof probe)

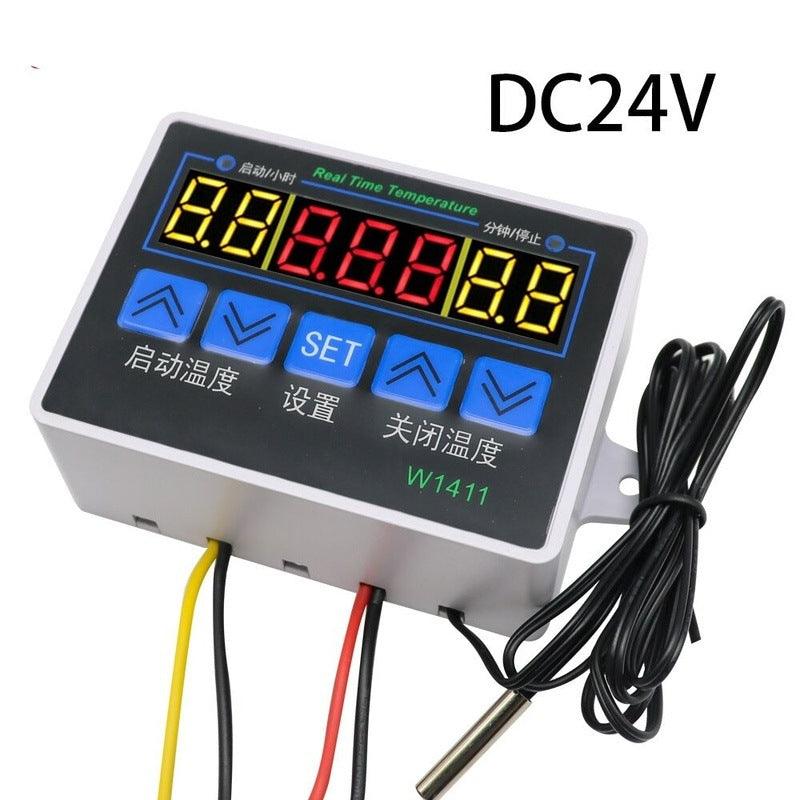

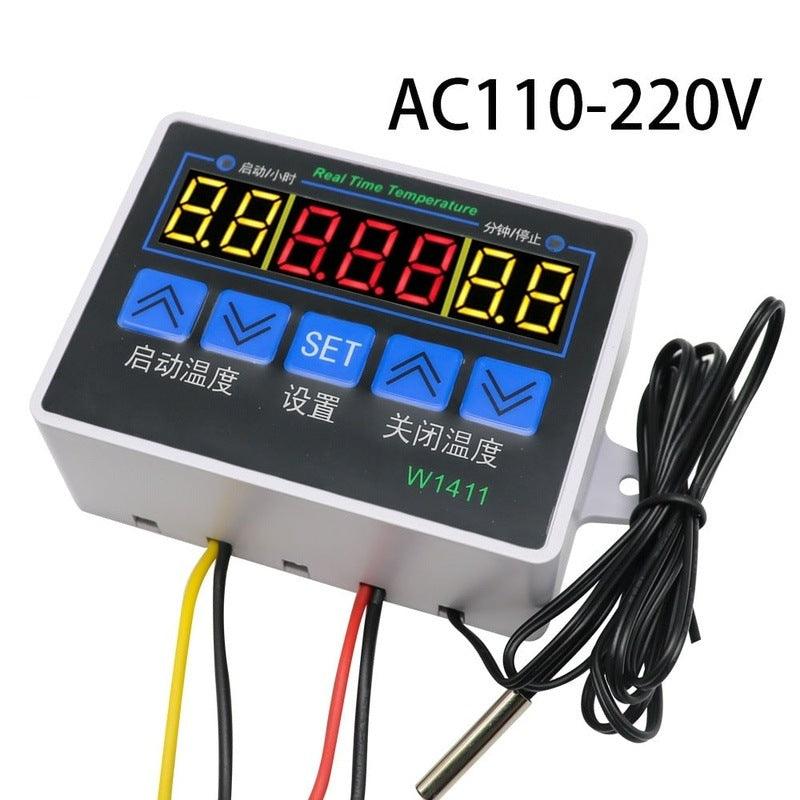

Supply voltage: DC12V/DC24V/AC110-220V
Applicable environment: -25-55°C Humidity 20%-80% (non-condensing)
Output type: 10A relay output
Instructions for use
1. When using a simple thermostat, set an opening temperature and a closing temperature. reach set temperature
on or off,
In order to achieve a constant temperature effect, there are two temperature control methods: heating and cooling
The heating mode refers to the heated product, which is turned on below the start temperature and turned off above the stop temperature.
Refrigeration method With cooling and cooling equipment, such as fan air conditioner, etc., higher than the opening temperature to open, lower than the stop temperature
closure.
Setting range:
-19-99 degrees, display accuracy 1 degree
-19-99 degrees, display accuracy 1 degree
2. It can be used directly as a timer, and has the function of intermittent switch: it means that the device is turned on for a period of time and turned off for a period of time.
ask, then open, close,
Cycle all the time, setting range: 1-99 minutes (function F1)
3. Can be used directly as a timer, with countdown and shutdown functions
If the set time is exceeded, it will be turned off after running to the set time. Setting range: 1-99 hours and 59 minutes (function F2)
4. It can be used directly at the scheduled time, and has the function of making an appointment to start the machine.
That means setting the time and turning it on when the time is up. The setting range is from 1 minute to 99 hours and 59 minutes.
(function F3)
The timing function has nothing to do with temperature control. The temperature can be controlled by directly setting the switch temperature without timing.
