100 Pcs/lot TUV/ 2 Way Solar Energy Junction Box PV Panel Boxes Solar JB with 2.5mm2 Cable and IP67 Solar Panel Connector
Regular price
$1,044.17 USD
Regular price
$932.86 USD
Sale price
$1,044.17 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
100 Pcs/lot TUV/ 2 Way Solar Energy Junction Box PV Panel Boxes Solar JB with 2.5mm2 Cable and IP67 Solar Panel Conenctor
Brand Name: BLUSUNSOLAR
Origin: Mainland China
Model Number: JB2B
Type: Adapter
Application: RF, Lighting
is_customized: Yes
Gender: Female and male

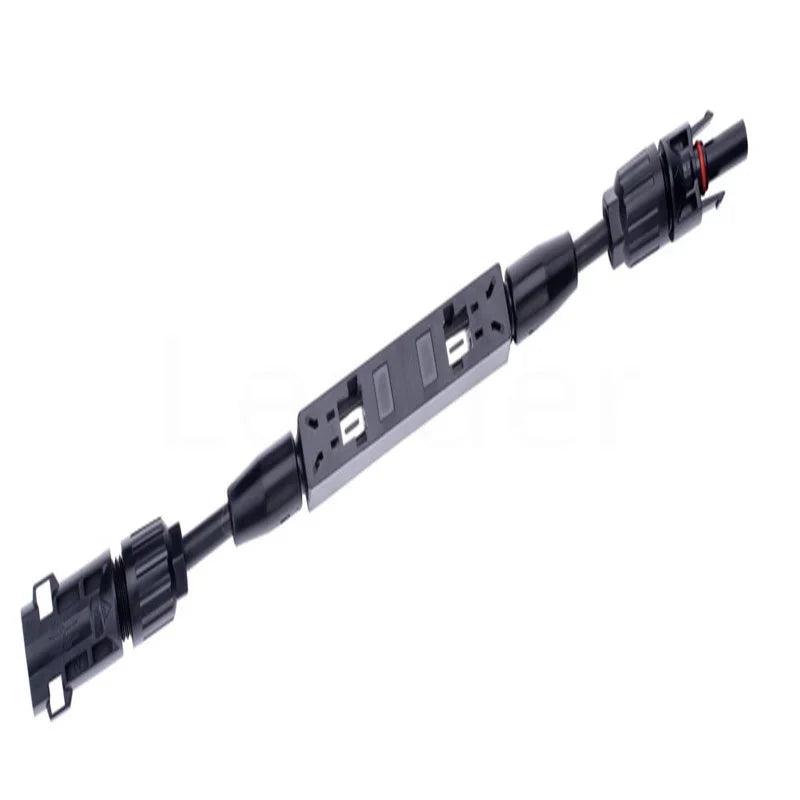

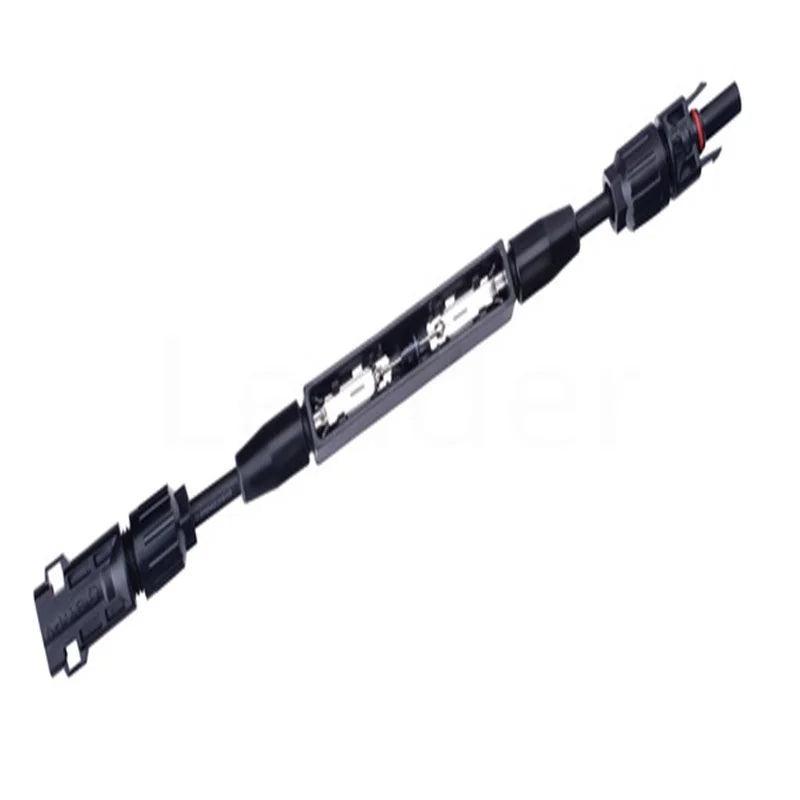

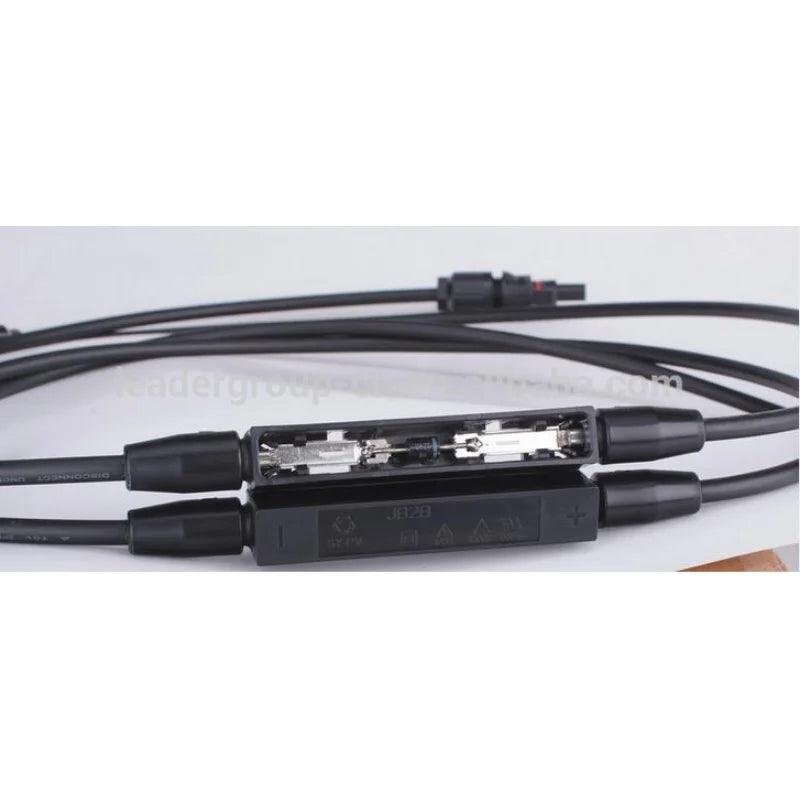

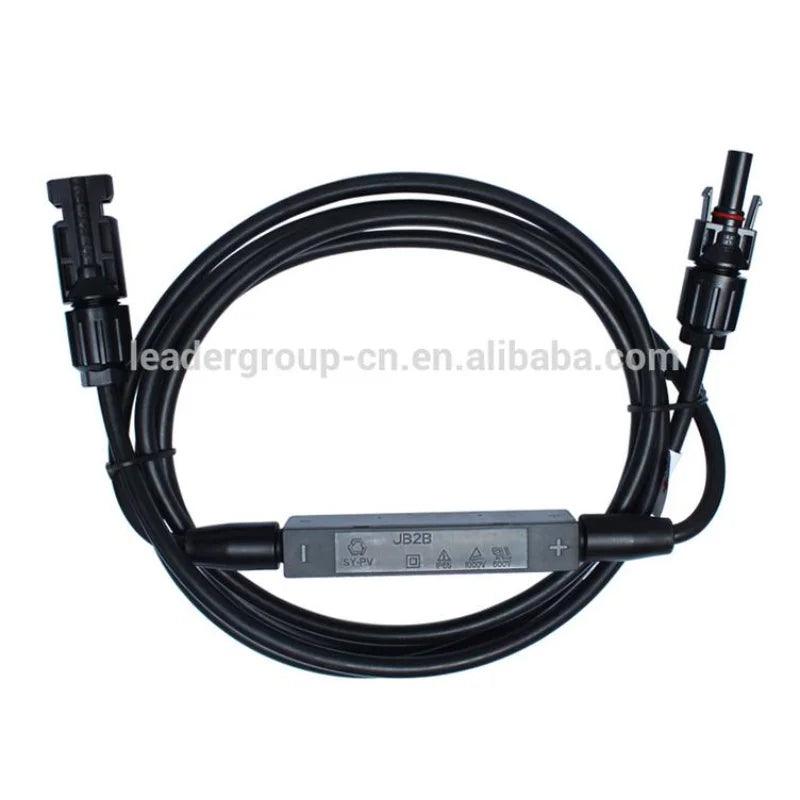

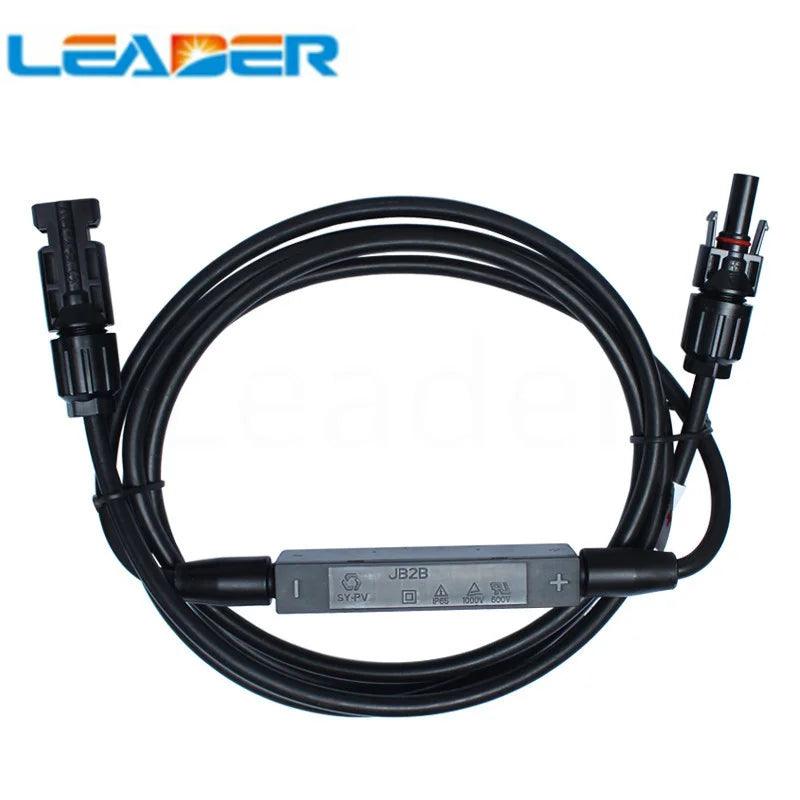

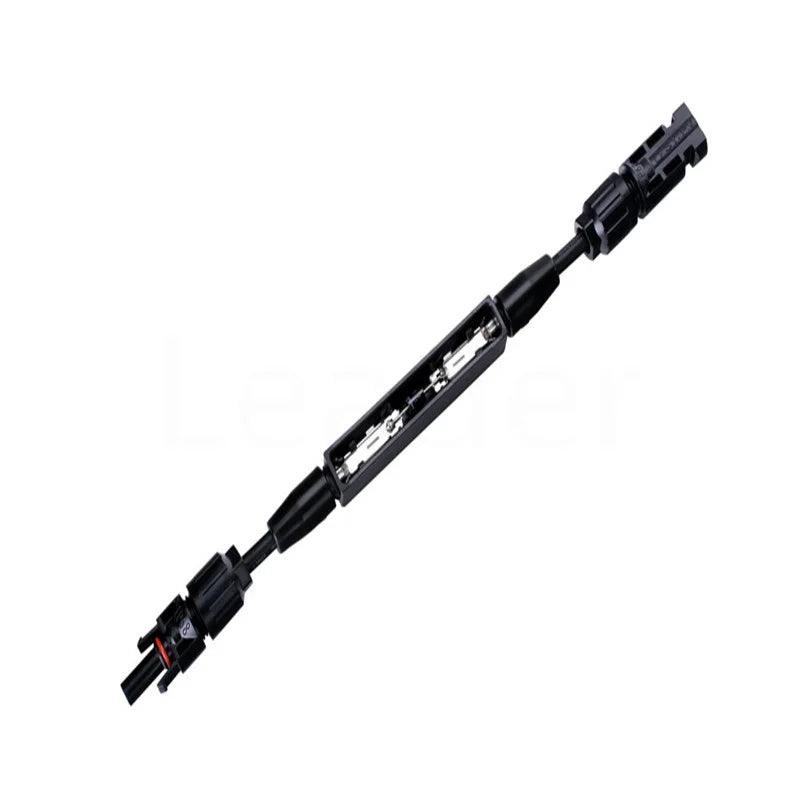

2 Way Solar Junction Box with 1M 2.5mm2 Cable and IP67 SOLAR Connector
| PV Junction Box with 2 Terminal Junction Box | |
| Product NO. | SY-JB2B- rails terminals |
| Insulation material | PPO |
| Rated Voltage | TUV 1000 DC/ UL 600V DC |
| Rated Current | 3A-20A (Potting) |
| Joining of Ribbon | Soldering |
| Test voltage | 6KV(50Hz,1Min) |
| Contact material | copper, tin plated |
| Contact resistance | less than 0.5 m ohm |
| Degree of protection | IP67 |
| Pollution Degree | 2 |
| Protection class | Class II |
| Flame class | UL94V-0 |
| Plug Force | less than 50N |
| Withdrawal force | more than 50N |
| Ambient temperature range | -40°C ~ + 90°C |
| Pin dimension | 4.0mm |
| Total Cable Length | 90CM |
