1000N Micro Linear Actuator DC 12/24V

$127.71 USD

~~$88.58 USD~~ $127.71 USD

Sale Sold out

Shipping calculated at checkout.

Size Stroke 20mm Stroke 30mm Stroke 50mm Stroke 100mm Stroke 150mm

Product variants

Quantity

Added ✓

SPECIFICATIONS

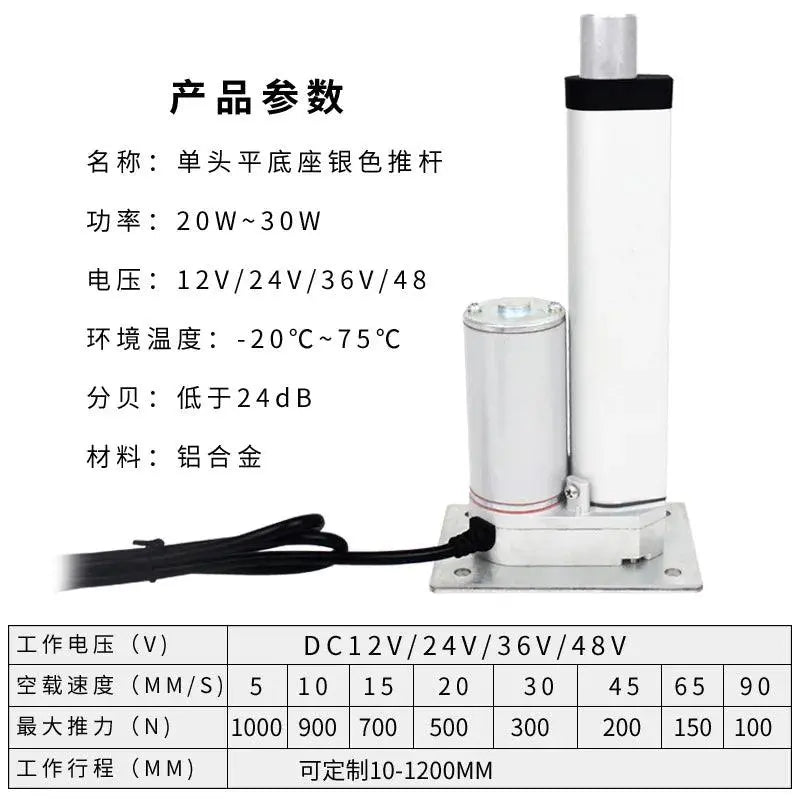

1000N Micro Linear Actuator DC 24V 12V Telescopic Rod 20mm 30mm 50mm 100mm 400mm Electric Lineal Actuador Lift Platform Table

Brand Name: HYSMOTOR

Origin: Mainland China

Certification: RoHS

Model Number: 1000N Linear Acutator DC12V DC24V

Rated power:20W Maximum 30W

Permanent magnet DC motor drive;Voltage:24V 12v

Standard protection grade:IP54

Material: aluminum alloy

Decibel: less than 24db

Application:Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....

Note：If you need other voltage (DC12V 36V 48V ...) or if you need other strokes (550/600/650/700/750/800/850/900/950/1000mm)

Please contact me

The self-locking force of the linear actuator is about 80%
