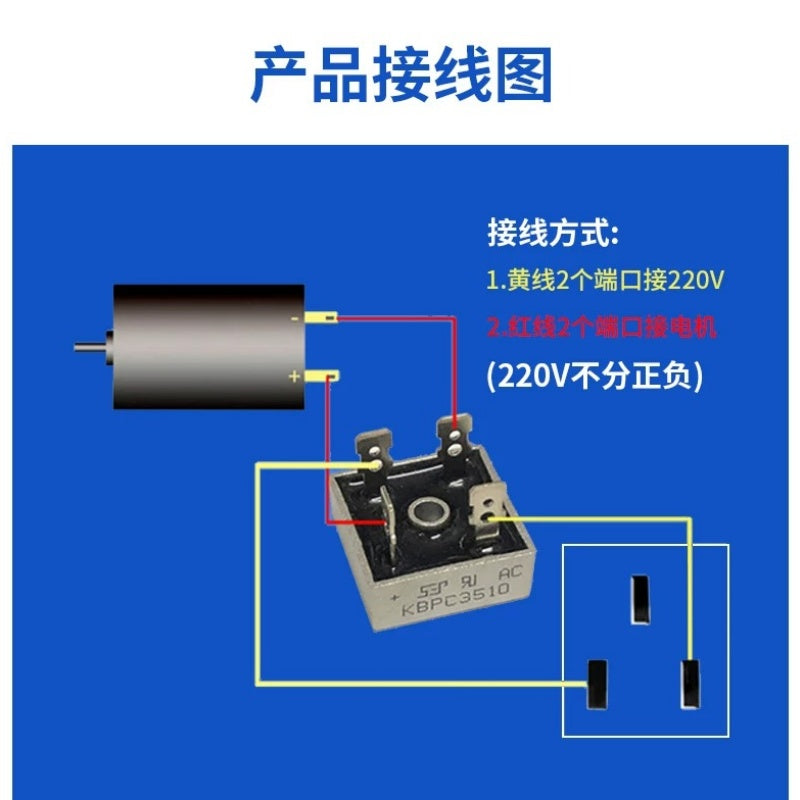

  • 100W motor+220V AC?DC Motor rectifier

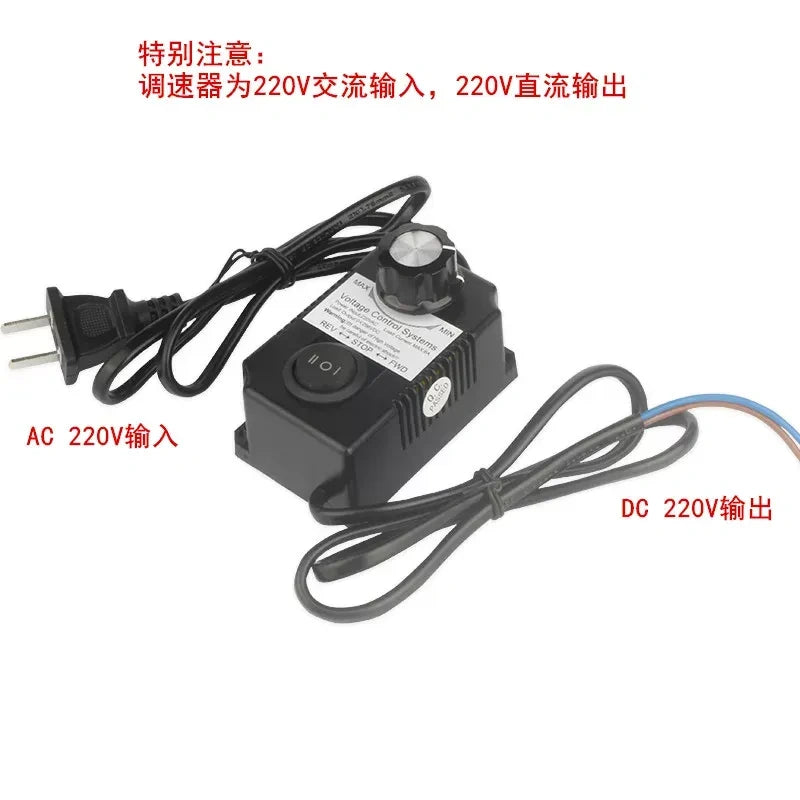

  • AC/DC220V Forward & Reverse Rotation Motor Speed controller

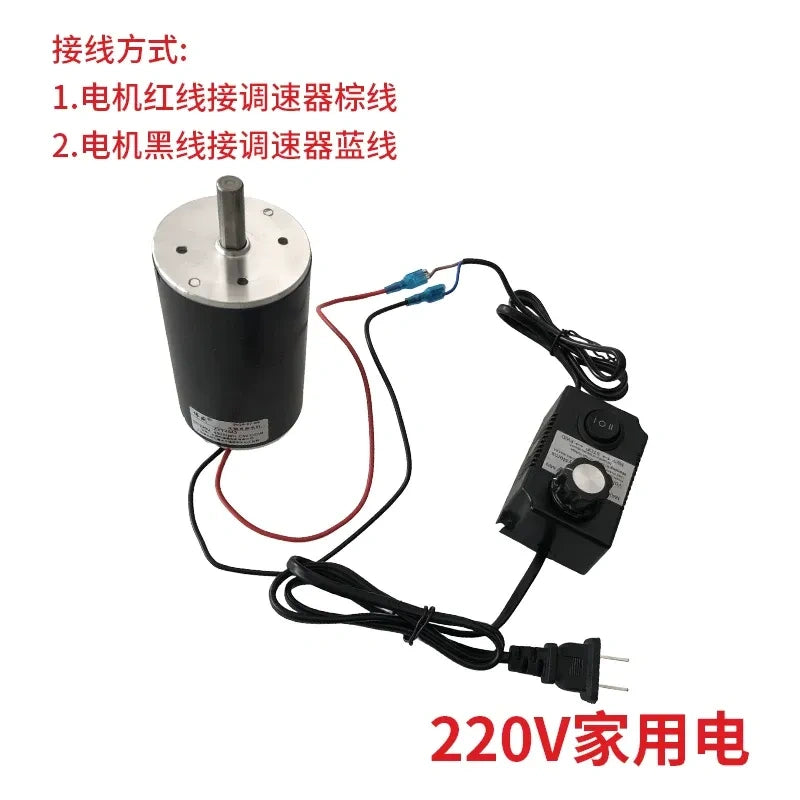

  • Motor and speed controller with wiring diagram

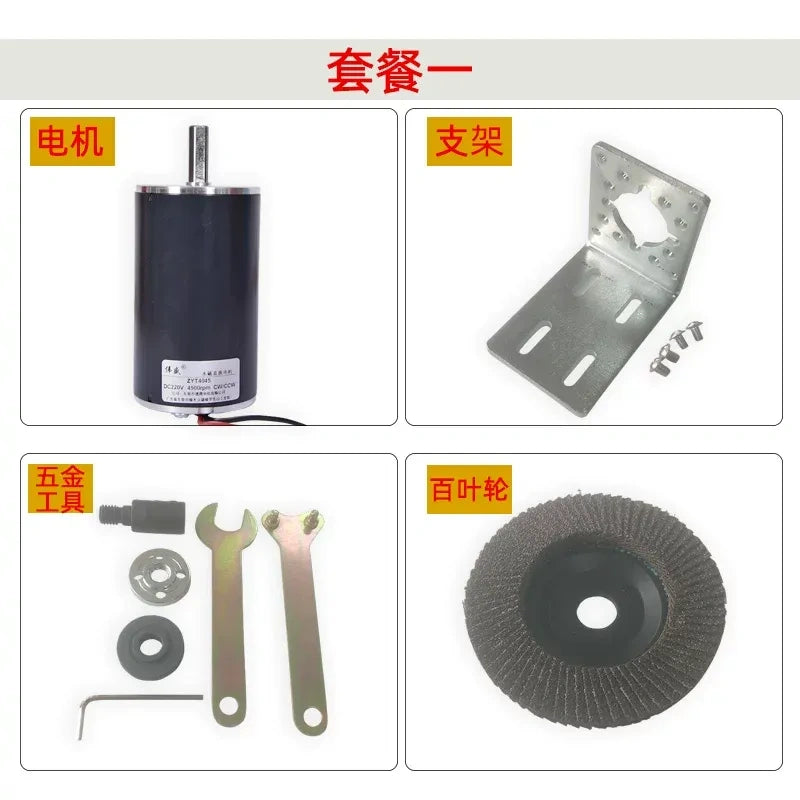

  • 100w dc motor+mounting bracket+Hardware Tools, Flap Wheel

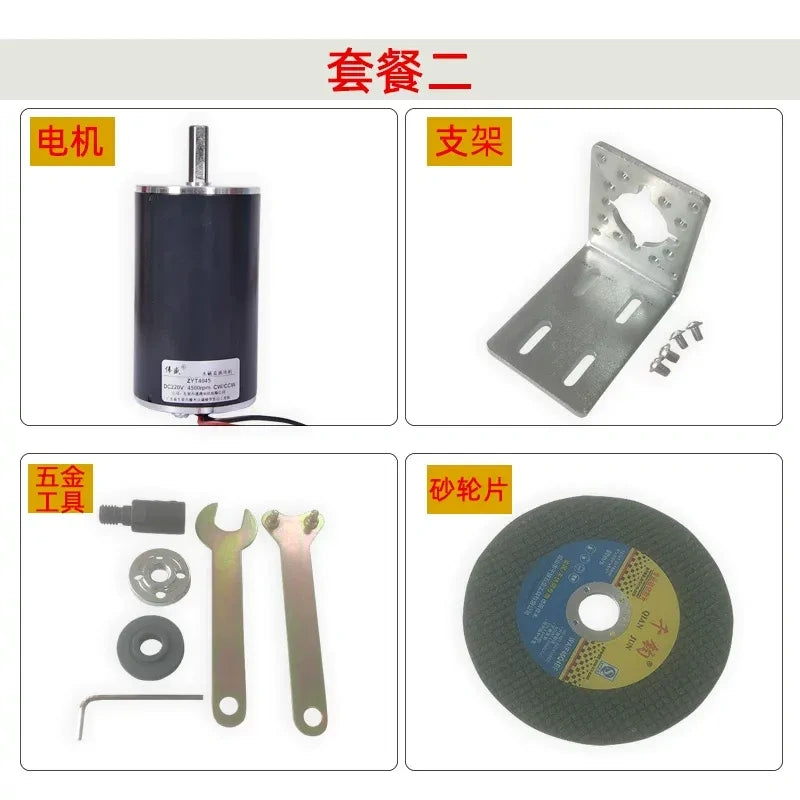

  • 100w dc motor+mounting bracket+Hardware Tools, grinding Wheel

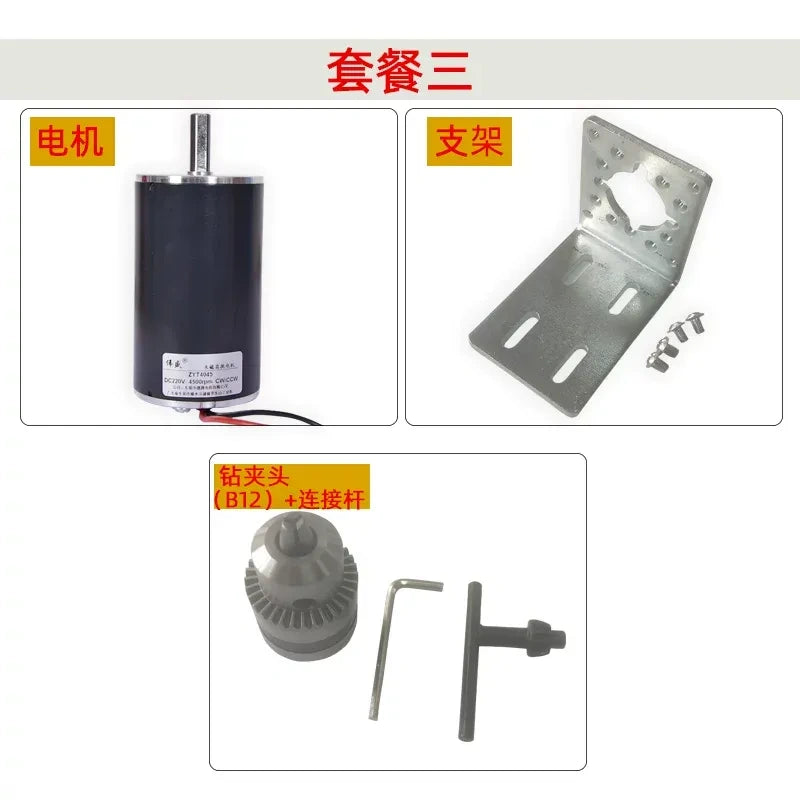

  • 100w dc motor+mounting bracket+drill chuck B12

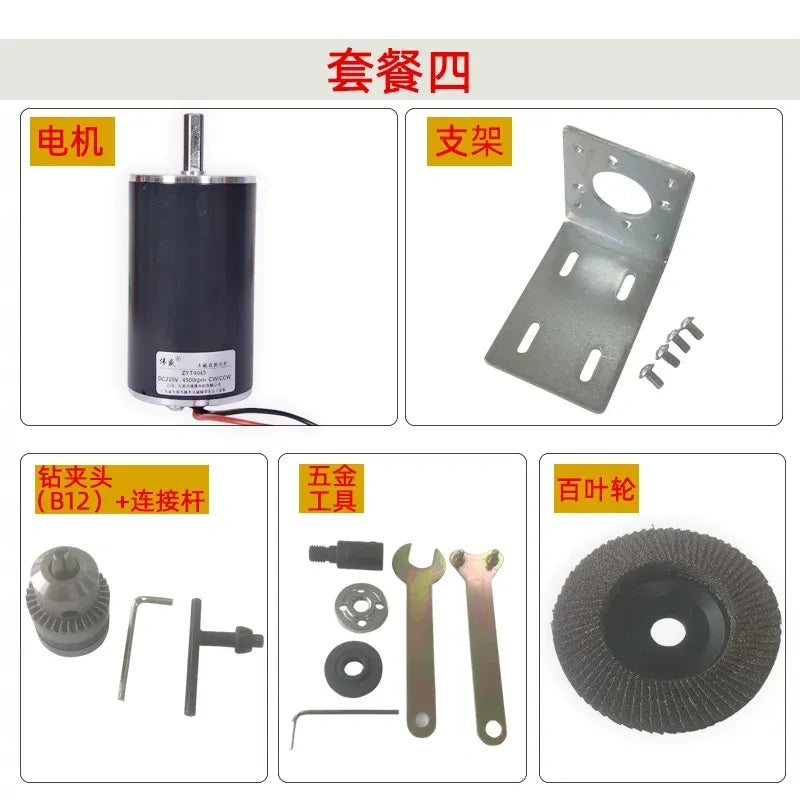

  • 100w dc motor+mounting bracket+Hardware Tools, Flap Wheel+Drill chuck B12

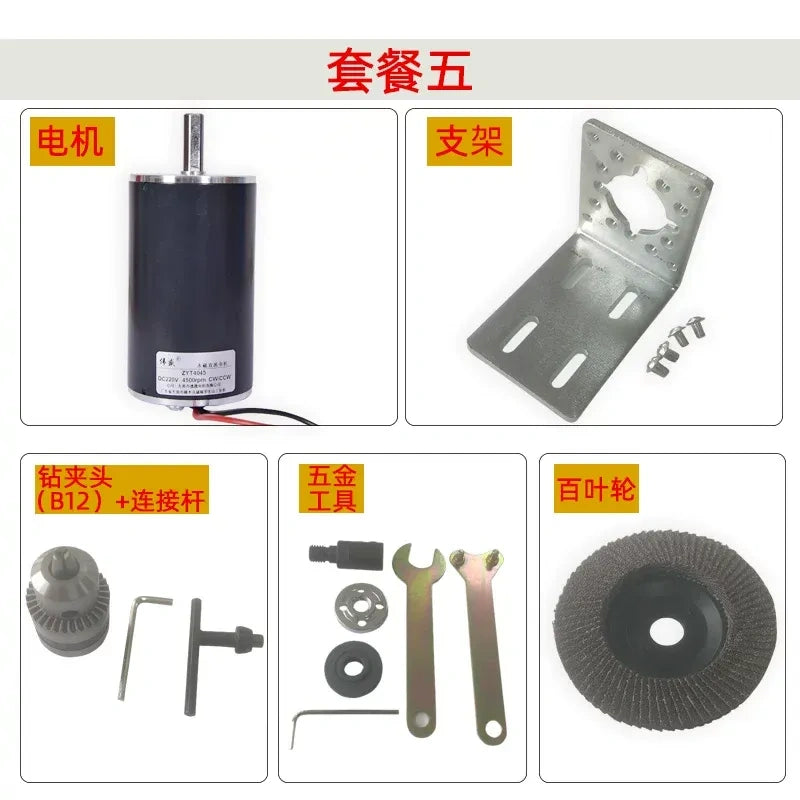

  • 100w dc motor+mounting bracket+Hardware Tools, Grinding Wheel+drill chuck B12
  • ZYT4045 motor,100W DC motor,220V DC motor,high torque dc motor,forward reverse motor,high speed dc motor,vertical mount motor,lathe motor,bead making machine motor,belt sander motor,polishing machine motor,dc motor kit,motor with speed controller,mini industrial motor
  • ZYT4045 motor,100W DC motor,220V DC motor,high torque dc motor,forward reverse motor,high speed dc motor,vertical mount motor,lathe motor,bead making machine motor,belt sander motor,polishing machine motor,dc motor kit,motor with speed controller,mini industrial motor
  • ZYT4045 motor,100W DC motor,220V DC motor,high torque dc motor,forward reverse motor,high speed dc motor,vertical mount motor,lathe motor,bead making machine motor,belt sander motor,polishing machine motor,dc motor kit,motor with speed controller,mini industrial motor
  • v
  • ZYT4045 motor,100W DC motor,220V DC motor,high torque dc motor,forward reverse motor,high speed dc motor,vertical mount motor,lathe motor,bead making machine motor,belt sander motor,polishing machine motor,dc motor kit,motor with speed controller,mini industrial motor

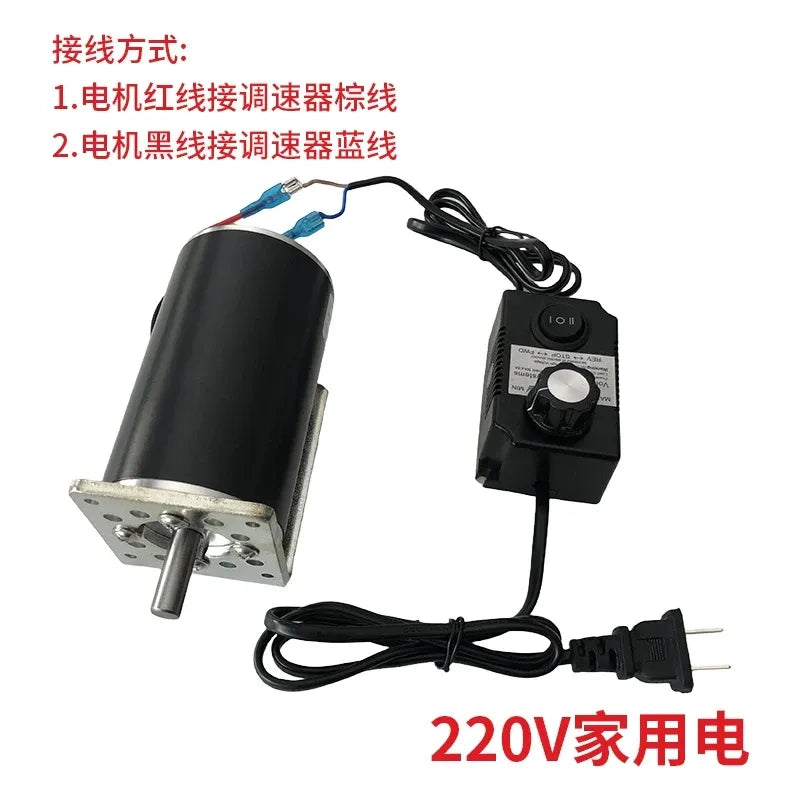

  • 100W Motor+AC/DC220V Forward & Reverse Speed Controller
  • ZYT4045 motor,100W DC motor,220V DC motor,high torque dc motor,forward reverse motor,high speed dc motor,vertical mount motor,lathe motor,bead making machine motor,belt sander motor,polishing machine motor,dc motor kit,motor with speed controller,mini industrial motor
1 11

electrical center b2c

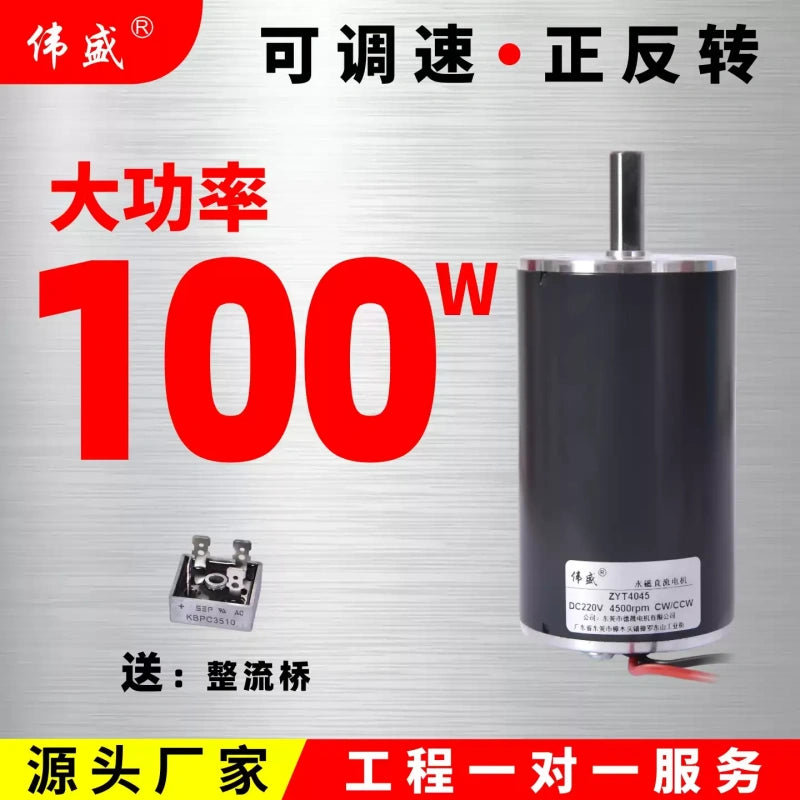

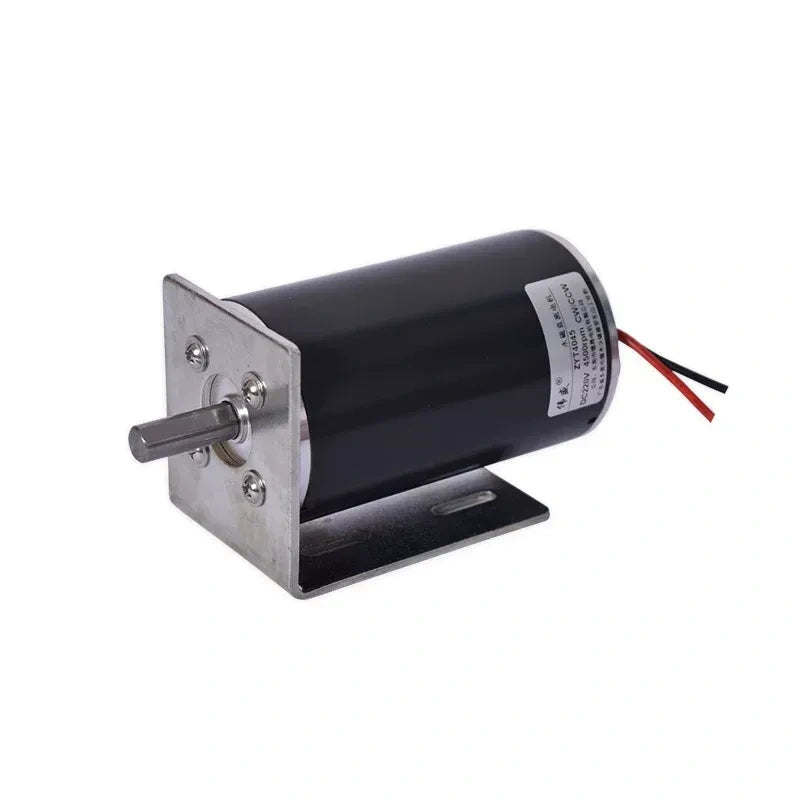

100W High?Torque ZYT4045 High?Speed DC Motor

$52.20 USD
$59.40 USD $52.20 USD
Sale Sold out
Shipping calculated at checkout.
Motor Voltage
Motor Speed&Shaft Length
Motor Config.

ZYT4045?4500RPM 220V DC Motor, High Power Reversible Mini Motor with Speed Controller & Mount Bracket Kits, for Grinder Cutting Polishing Machine,with 220V AC?DC Motor Rectifier

Product Description

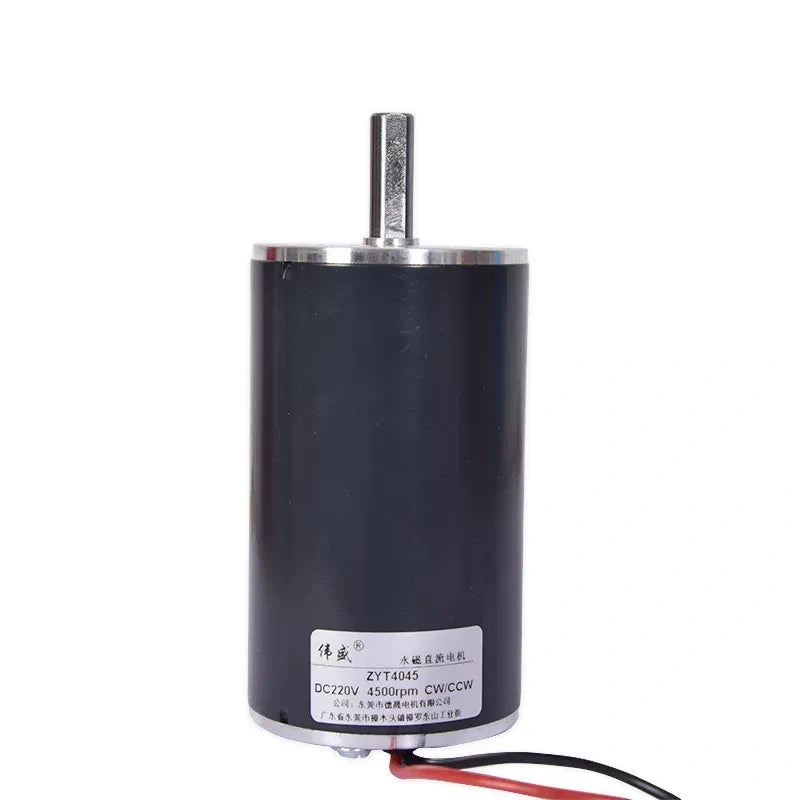

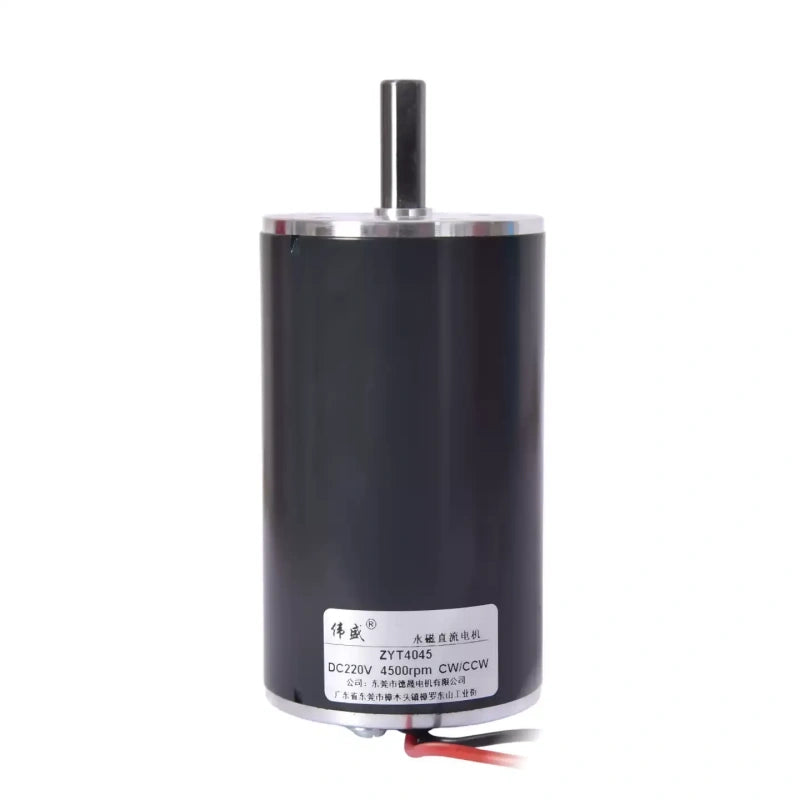

This is the WS?ZYT4045 high?power high?torque DC motor, rated voltage DC 220V, rated current 500mA, speed 4500RPM, supporting forward and reverse rotation.

Adopts vertical installation design, stable torque output, long service life, widely used in lathes, bead making machines, belt sanders, cutting machines, grinders, polishing machines and other industrial DIY equipment.

Multiple configuration options are available: single motor, single speed controller, motor + mounting bracket, motor + speed controller, motor + bracket + speed controller, and 5 complete kits with flap wheel, grinding wheel, B12 drill chuck, connecting rod and hardware tools for one?stop assembly.

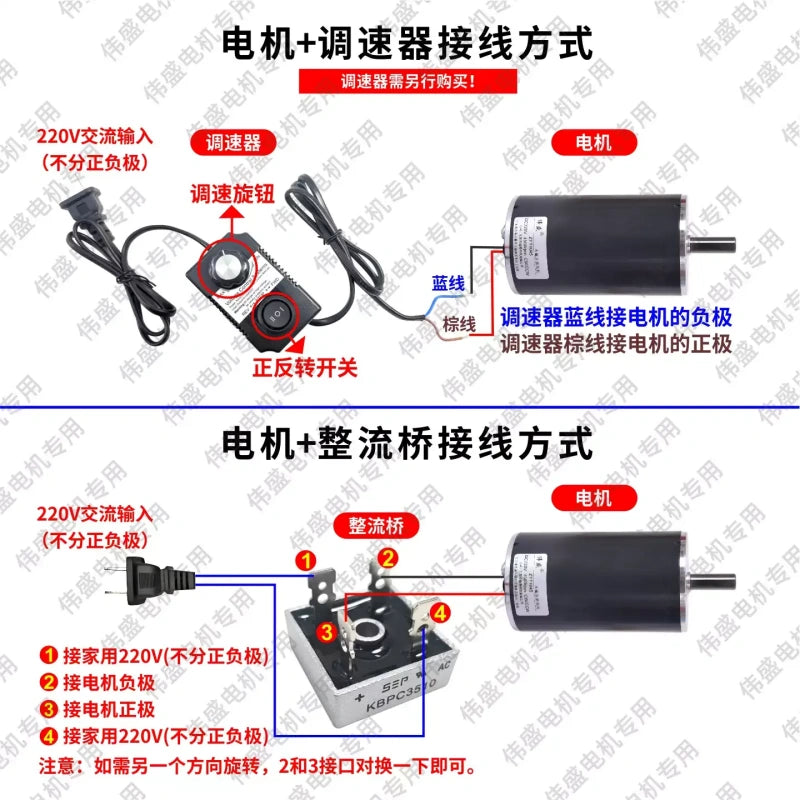

Important Note: This is a DC motor, 220V AC power must be rectified to DC power via motor rectifier before use.

Key Specifications


  • Model: WS?ZYT4045?4500RPM
  • Brand: Weisheng
  • Rated Voltage: DC 220V
  • Rated Current: 500mA
  • Rated Speed: 4500RPM
  • Rotation Mode: Forward & Reverse Rotation
  • Installation Type: Vertical Mount
  • Power: 100W

Key Features

  • High?power 100W & high torque, strong driving force
  • Forward & reverse rotation adjustable, wide application
  • Vertical mounting design, easy installation
  • Multiple complete kits for DIY grinding, cutting, polishing, drilling
  • Compact structure, stable operation, durable

Specification

Attribute Name Attribute Value
Product Model WS?ZYT4045?4500RPM
Brand Weisheng
Rated Voltage DC 220V
Rated Current 500mA
Rated Speed 4500RPM
Power 100W
Rotation Forward & Reverse Rotation
Installation Type Vertical Mount
Configuration Type Single Motor, Single Speed Controller, Motor+Bracket, Motor+Speed Controller, Motor+Bracket+Speed Controller, 5 Complete Kits
Kit Accessories Mounting Bracket, Speed Governor, B12 Drill Chuck, Connecting Rod, Hardware Tools, Flap Wheel, Grinding Wheel
Application Lathe, Bead Making Machine, Belt Sander, Cutting Machine, Grinder, Polishing Machine, DIY Industrial Equipment
Note AC 220V needs rectification by motor rectifier

?

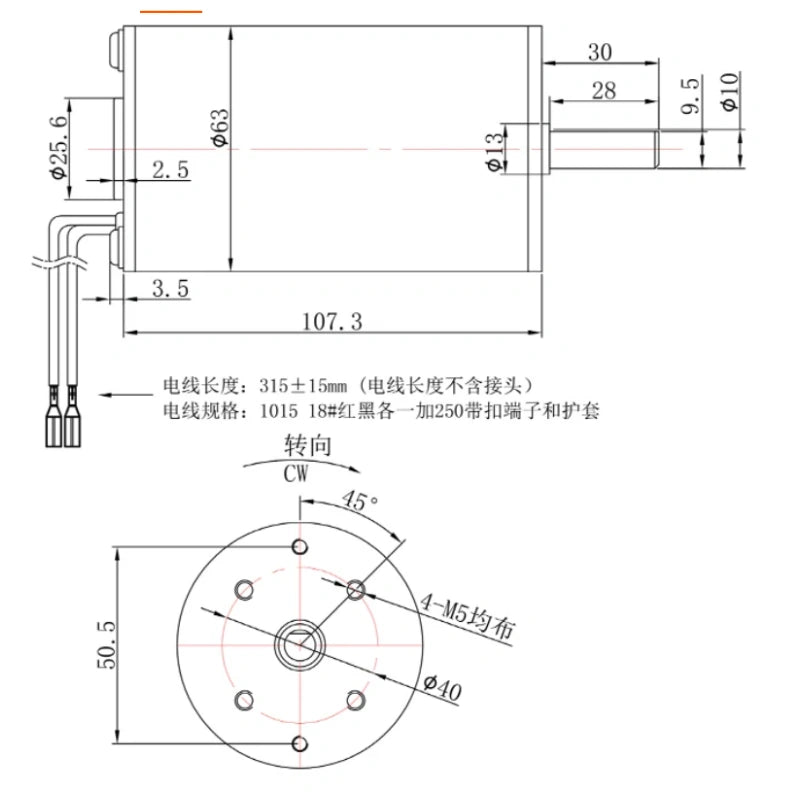

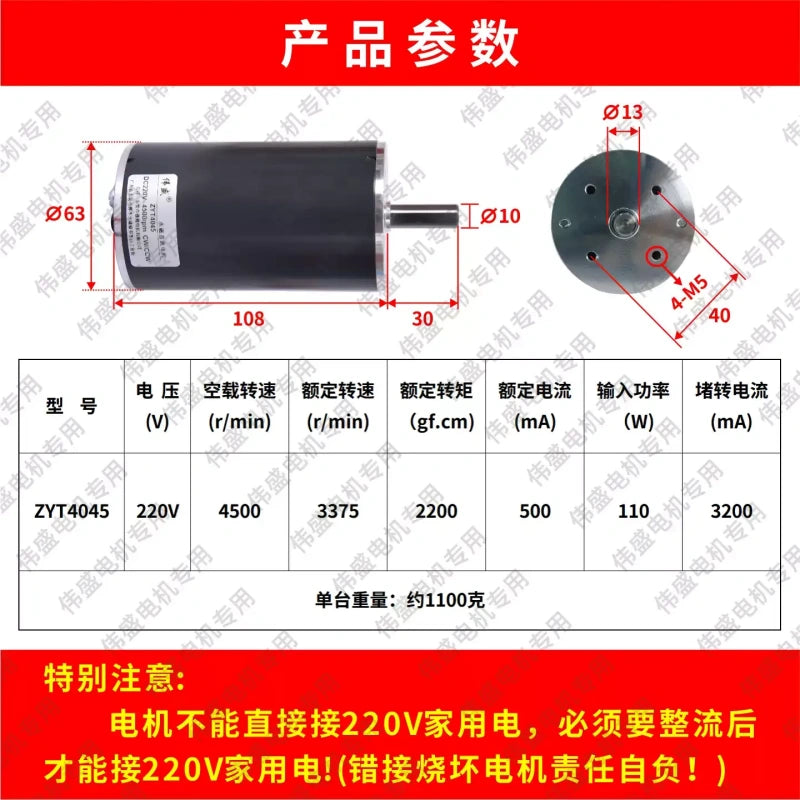

ZYT4045 Motor Specification Sheet

Model Voltage (V) No?load Speed (r/min) Rated Speed (r/min) Rated Torque (gf¡¤cm) Stall Torque (gf¡¤cm) Rated Current (mA) Stall Current (mA) Weight (g)
ZYT4045 DC 220V 4500 3375 2200 7500 500 3200 1100

?

Important Note


This is a DC motor with rated voltage of 220V (DC 36V?DC 220V available).


220V AC power must be rectified to DC power before use.


Please contact customer service for wiring guidance to avoid damage caused by incorrect connection.
