24GP-370 Motor Kit, 24V with Bracket, Speed Controller & Power Supply
1:125 High Torque 24V DC Planetary Gear Motor, 46 RPM, Metal Gears
Product Overview

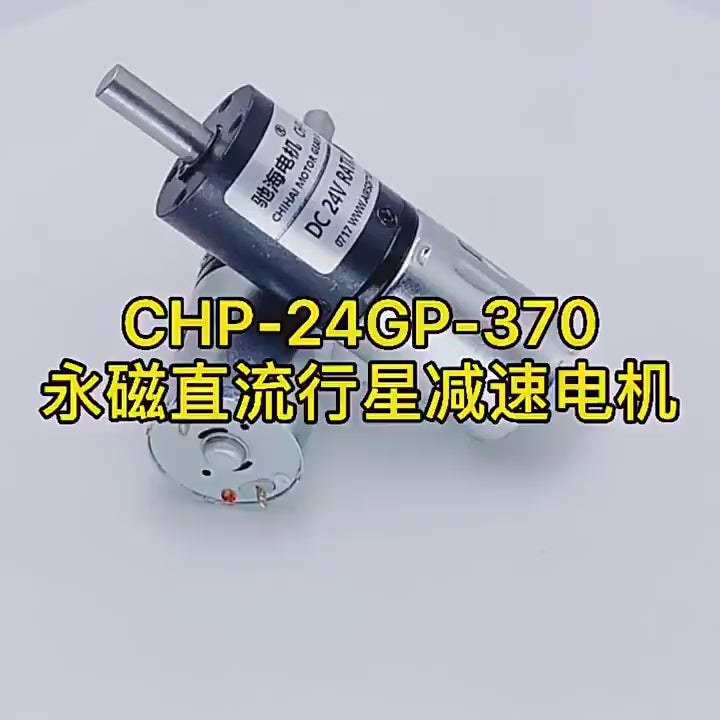

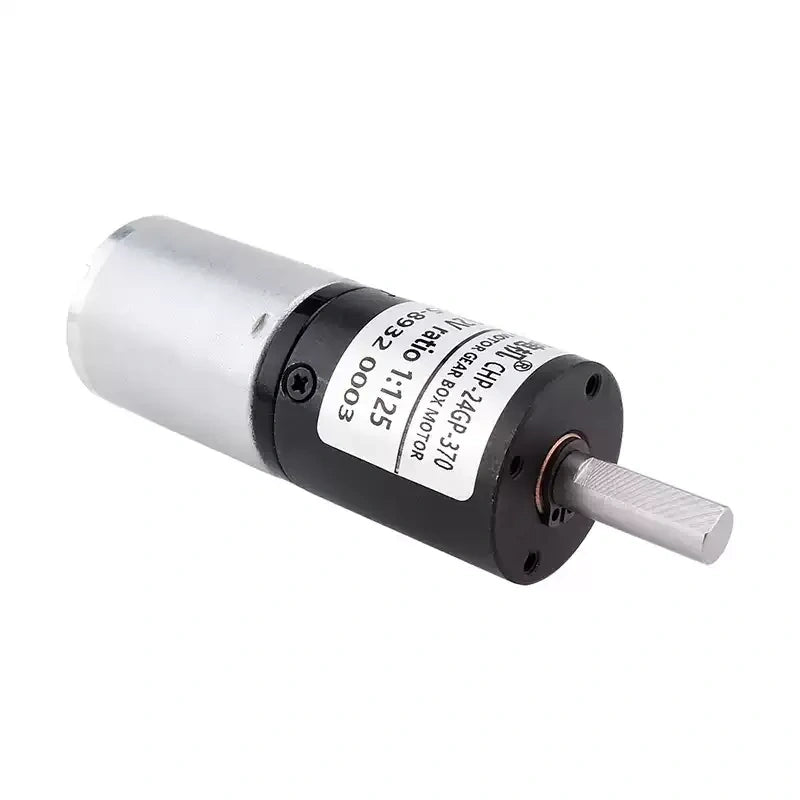

The CHP-24GP-370 permanent magnet DC planetary gear motor is a compact, high-efficiency motor designed for applications requiring precise speed control and high torque. Featuring all-metal gears, pure copper windings, and a wide operating voltage range, it’s ideal for robotics, smart home devices, and automation projects.
Key Features

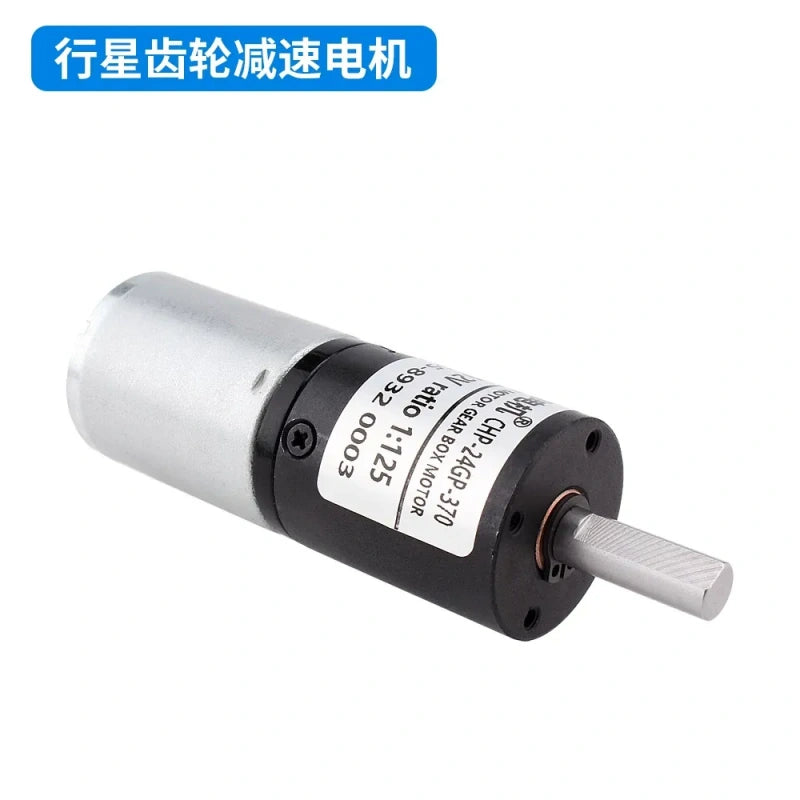

- All-Metal Planetary Gears: Durable metal gears for high torque, low noise, and long service life.
- Wide Voltage Compatibility: Supports DC 6-24V operation, with optimized performance at 12V and 24V.
- Multiple Gear Ratios: Choose from 1:5 (1150 RPM), 1:25 (230 RPM), 1:64 (90 RPM), 1:80 (72 RPM), 1:100 (58 RPM), or 1:125 (46 RPM) to match your speed/torque needs.
- Adjustable Speed Control: Optional speed controller allows precise RPM adjustment for custom applications.
- Pure Copper Windings: Low-resistance copper coils for efficient power delivery and minimal heat generation.

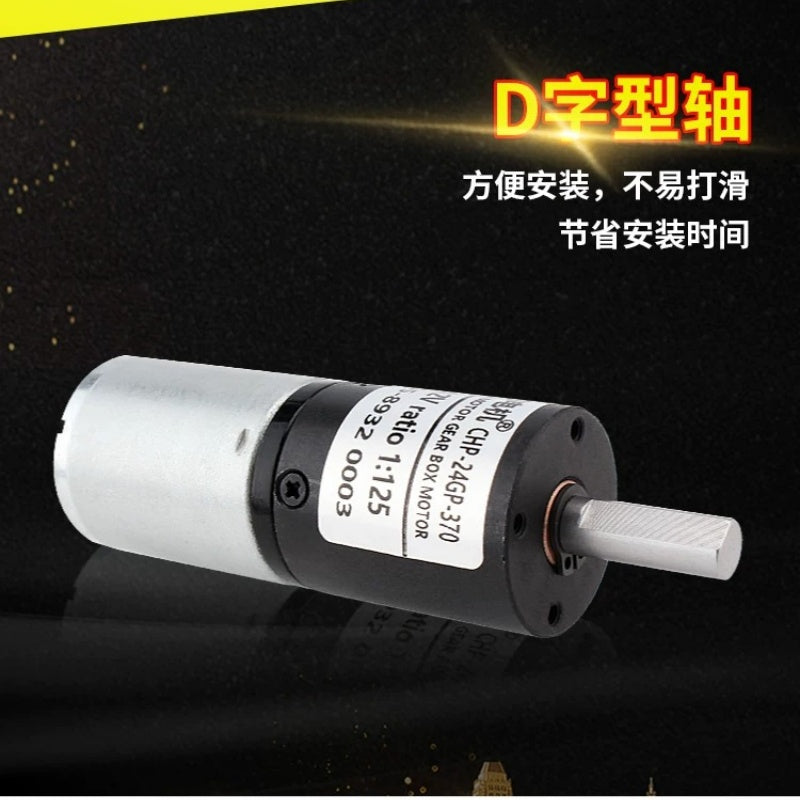

- Robust Output Shaft: 6mm D-shaped shaft (18mm length) for secure mounting and power transmission.
Specifications (CHP-24GP-370)
- Model: CHP-24GP-370
- Brand: ChiHai Motor
- Rated Voltage: DC 12V / 24V (supports 6-24V)
- Motor Type: Permanent Magnet DC Planetary Gear Motor
- Gear Ratios: 1:5, 1:25, 1:64, 1:80, 1:100, 1:125
- Output Shaft: 6mm D-shaped shaft, 18mm length
- Weight: Approx. 150g (varies by gear ratio)
- No-Load Speed (24V): 1150 RPM (1:5) to 46 RPM (1:125)
- Rated Torque (24V): 0.2 kg·cm (1:5) to 5.0 kg·cm (1:125)
- Stall Torque (24V): ≥0.7 kg·cm (1:5) to ≥15.0 kg·cm (1:125)
- Operating Current (24V): ≤80mA (no-load) / ≤180mA (rated)
Available Configurations
- Motor Only

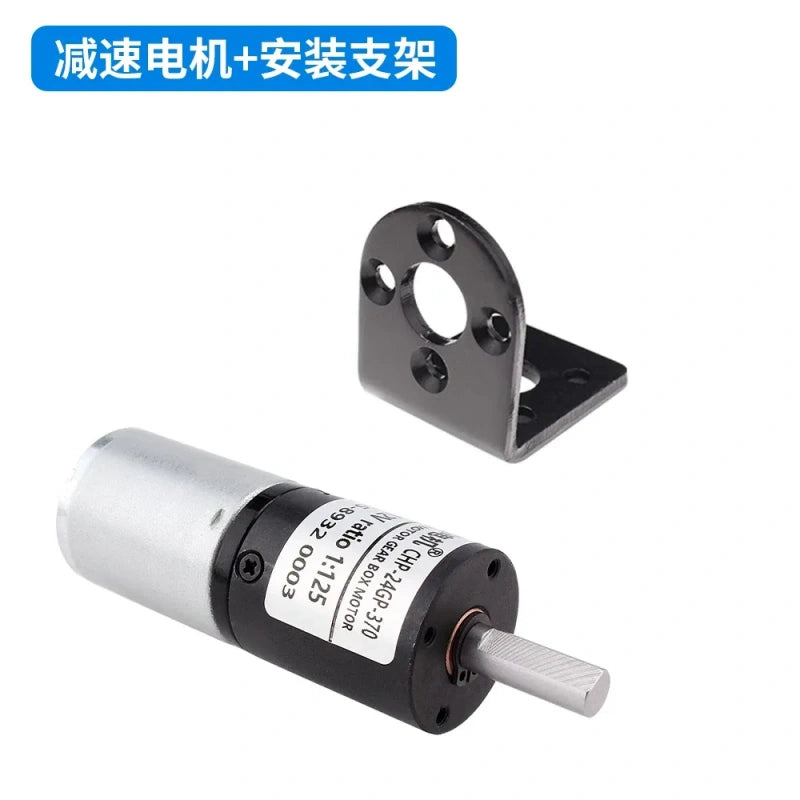

- Motor + Mounting Bracket

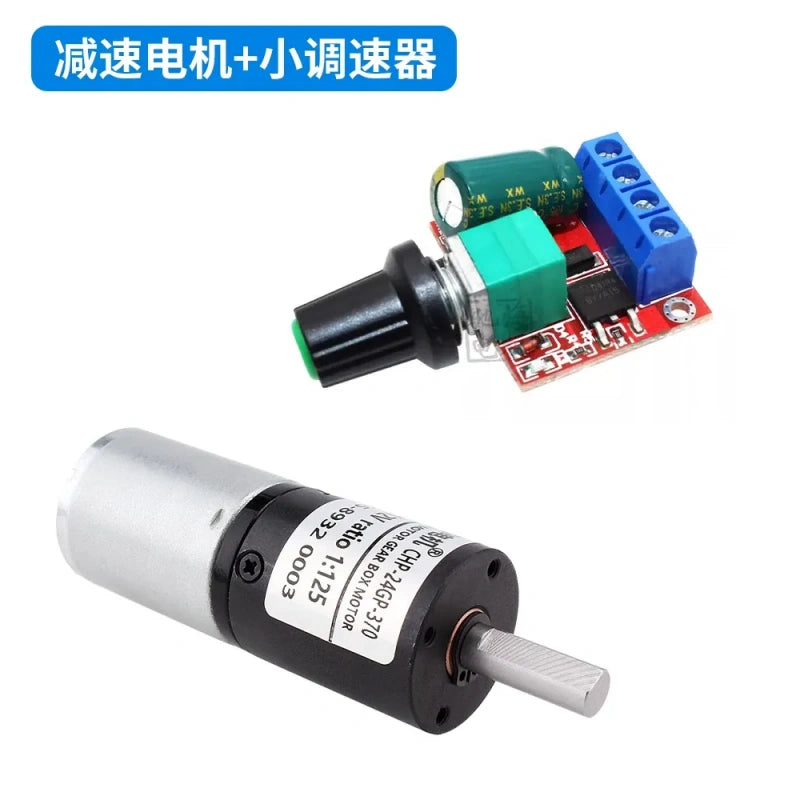

- Motor + Mini Speed Controller

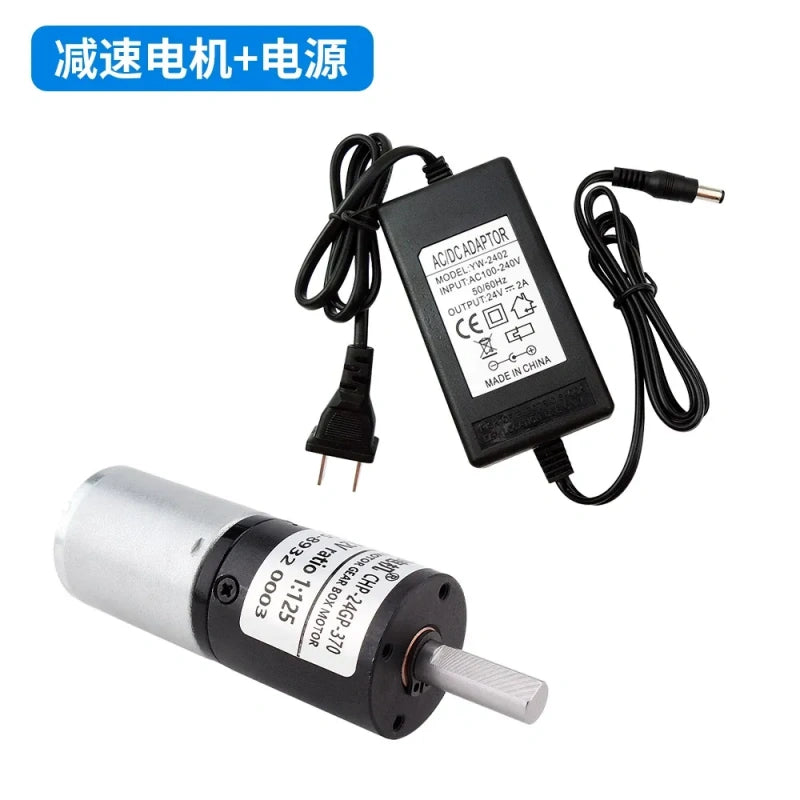

- Motor + Power Supply

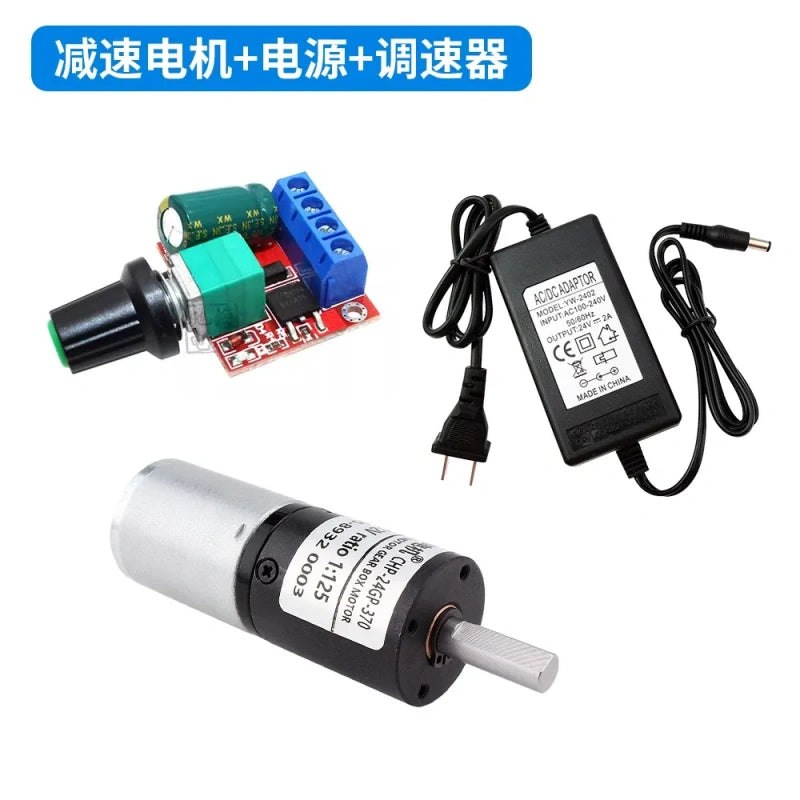

- Motor + Speed Controller + Power Supply

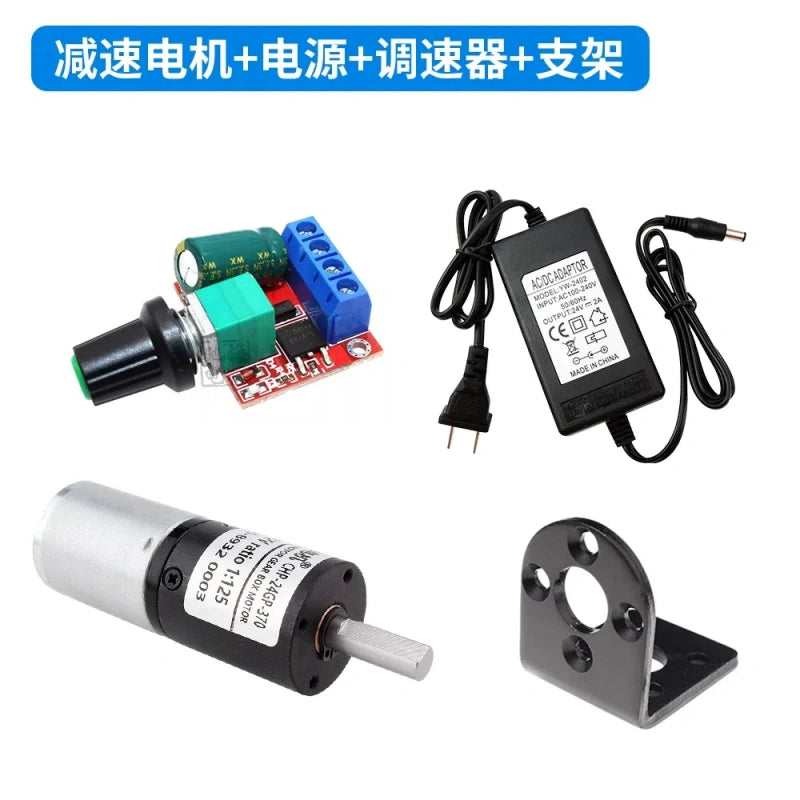

- Motor + Speed Controller + Power Supply + Bracket
Applications
Perfect for smart robots, electric curtains, smart balance cars, robotic arms, and other automation projects requiring controlled, high-torque motion.
DATA SHEET
| Attribute | Value |
|---|---|
| Product Type | Planetary Gear DC Motor / 370 DC Gear Motor |
| Model | CHP-24GP-370 |
| Brand | ChiHai Motor |
| Rated Voltage | DC 12V / 24V (6-24V compatible) |
| Motor Type | Permanent Magnet DC Motor |
| Gear Ratios | 1:5, 1:25, 1:64, 1:80, 1:100, 1:125 |
| Output Shaft | 6mm D-shaped shaft, 18mm length |
| Weight | Approx. 150g |
| Materials | Metal gears, pure copper windings |
| Optional Accessories | Mounting bracket, speed controller, power supply |
| Applications | Smart Robots, Electric Curtains, Balance Cars, Robotic Arms |
Under Operating Voltage: DC 12.0V
| Parameter | 1:5 | 1:16 | 1:20 | 1:25 | 1:64 | 1:80 | 1:100 | 1:125 |
|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 1:5 | 1:16 | 1:20 | 1:25 | 1:64 | 1:80 | 1:100 | 1:125 |
| No-Load Current (mA) | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 |
| No-Load Speed (rpm) | 1600 | 500 | 400 | 320 | 125 | 100 | 80 | 64 |
| Rated Torque (kg·cm) | 0.14 | 0.42 | 0.55 | 0.7 | 1.7 | 2.2 | 2.8 | 3.5 |
| Rated Speed (rpm) | 1340 | 415 | 335 | 265 | 105 | 82 | 67 | 27 |
| Rated Current (mA) | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 |
| Stall Current (A) | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Stall Torque (kg·cm) | ≥0.7 | ≥2.0 | ≥2.8 | ≥3.5 | ≥9.0 | ≥11.0 | ≥13.0 | ≥15.0 |
| Planetary Gear Stages | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |

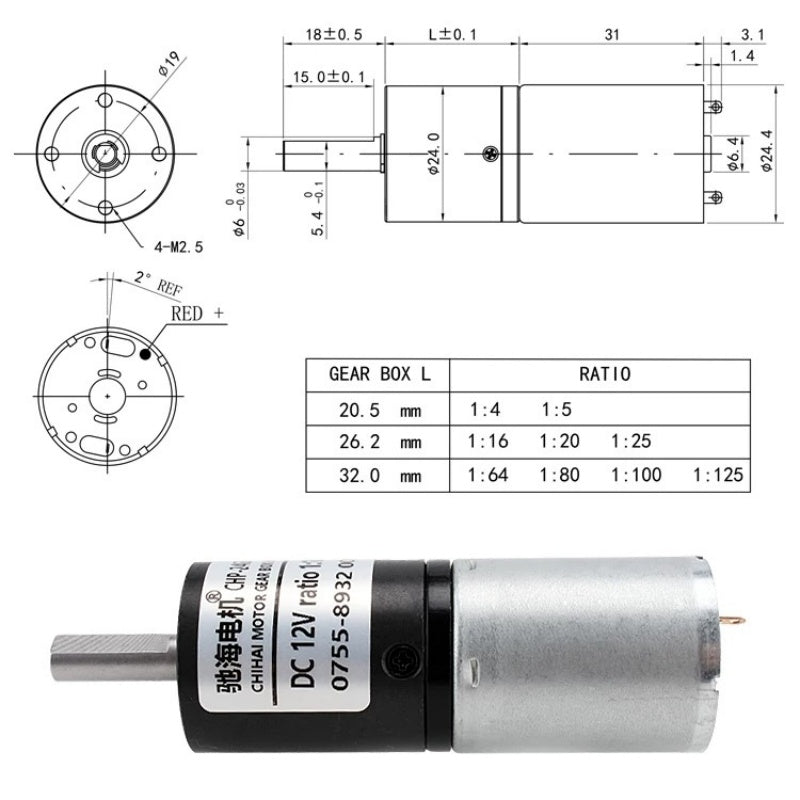

| Gearbox Length (L) | 20.5 | 26.2 | 26.2 | 26.2 | 32.0 | 32.0 | 32.0 | 32.0 |
Under Operating Voltage: DC 24.0V
| Parameter | 1:5 | 1:16 | 1:20 | 1:25 | 1:64 | 1:80 | 1:100 | 1:125 |
|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 1:5 | 1:16 | 1:20 | 1:25 | 1:64 | 1:80 | 1:100 | 1:125 |
| No-Load Current (mA) | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 |
| No-Load Speed (rpm) | 1150 | 360 | 290 | 230 | 90 | 72 | 58 | 46 |
| Rated Torque (kg·cm) | 0.2 | 0.60 | 0.8 | 1.0 | 2.5 | 3.2 | 4.0 | 5.0 |
| Rated Speed (rpm) | 900 | 281 | 225 | 180 | 70 | 56 | 45 | 36 |
| Rated Current (mA) | ≤180 | ≤180 | ≤180 | ≤180 | ≤180 | ≤180 | ≤180 | ≤180 |
| Stall Current (A) | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 |
| Stall Torque (kg·cm) | ≥0.7 | ≥2.0 | ≥2.8 | ≥3.5 | ≥9.0 | ≥11.0 | ≥13.0 | ≥15.0 |
| Planetary Gear Stages | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Gearbox Length (L) | 20.5 | 26.2 | 26.2 | 26.2 | 32.0 | 32.0 | 32.0 | 32.0 |
