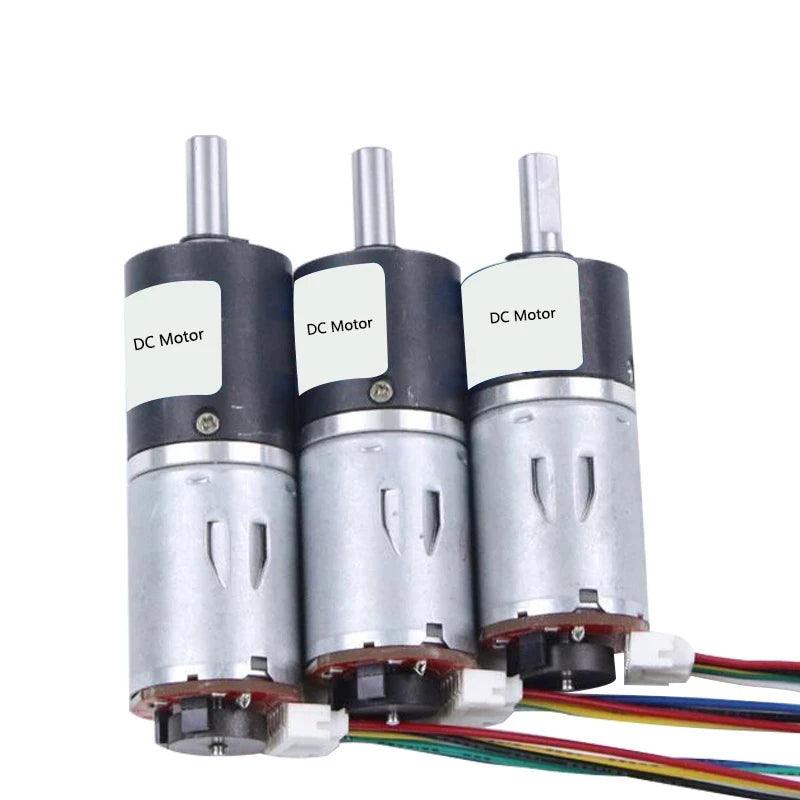

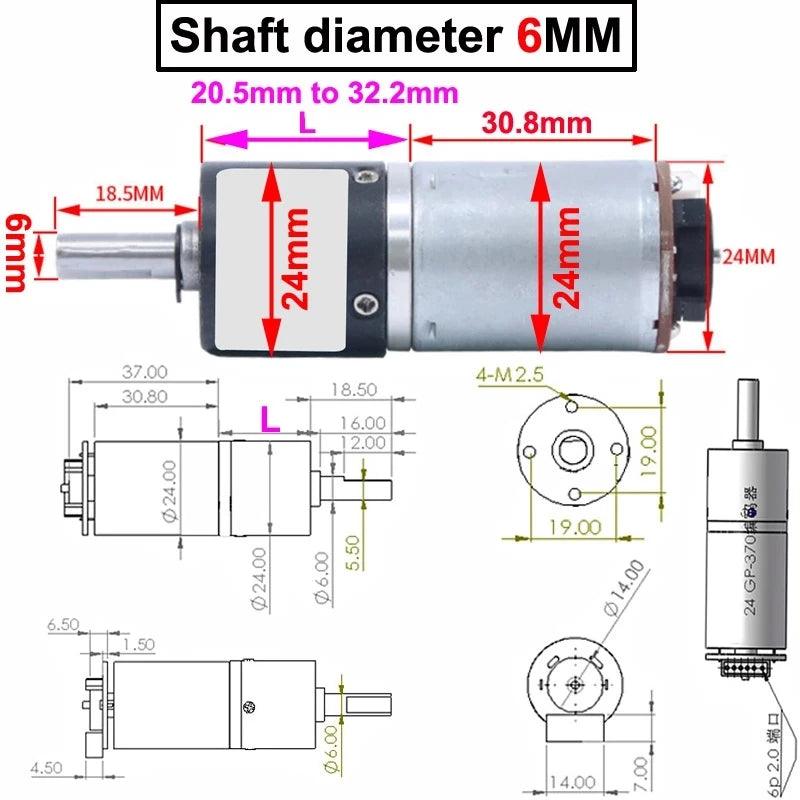

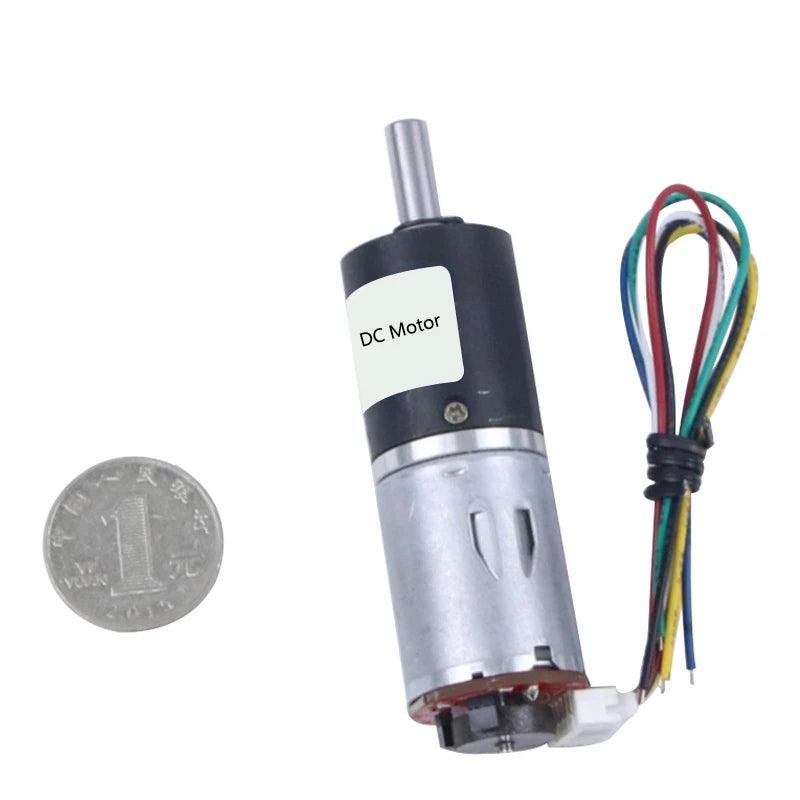

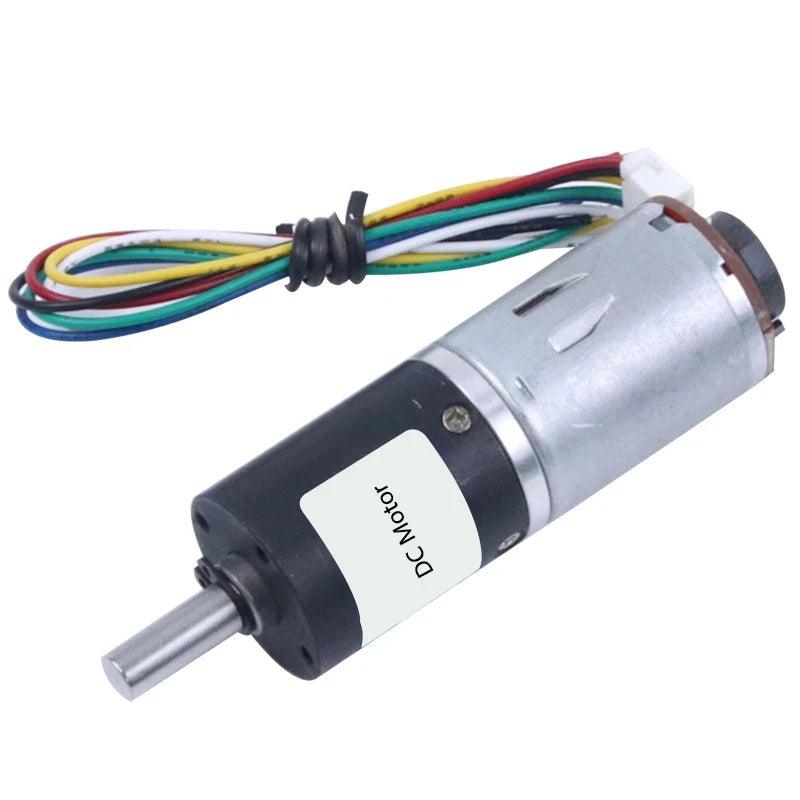

370 Motor 24mm Diameter Planetary Gear DC 6v 12v 24v Geared Motor Micro Electric Moter With Encoder
Couldn't load pickup availability
SPECIFICATIONS
370 Motor 24mm Diameter Planetary Gear DC 6v 12v 24v Geared Motor Micro Electric Moter With Encoder,dc motor with encoder,brushless dc motor with encoder,bldc motor with encoder,brushless motor with encoder
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Continuous Current(A): 1.4a-0.8a
Commutation: Brush
Type: Gear Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: my24gp-370
Torque: 25kg.cm

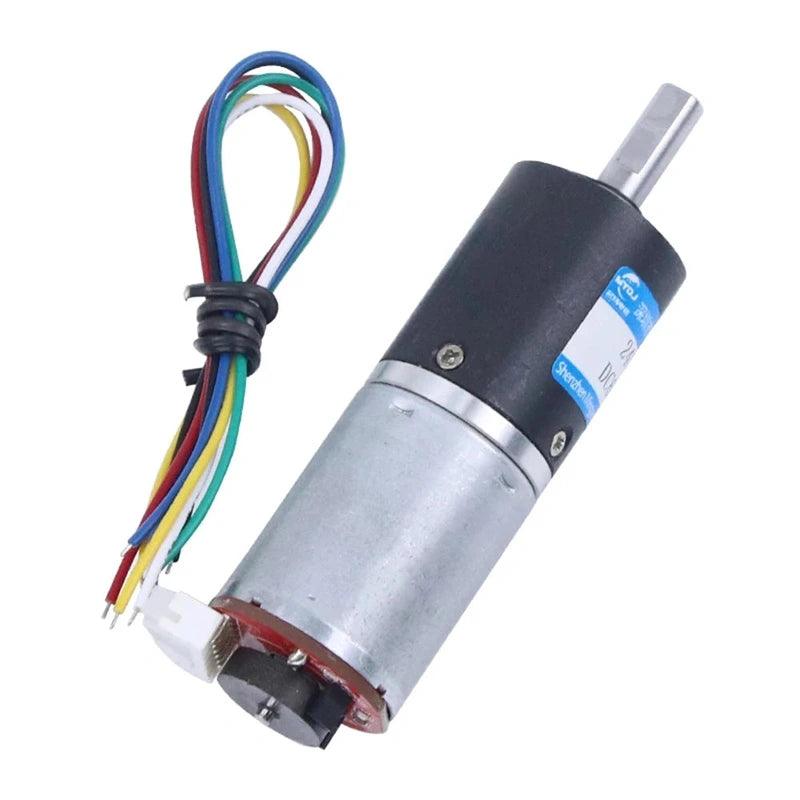

Wiring method:
Red:motor +
Black:encoder - (The positive and negative poles should not be wrongly connected to 3.3-5V)
Yellow:signal feedback(11 signals when the motor rotates one circle)
Green:signal feedback(11 signals when the motor rotates one circle)
Blue:encoder + (The positive and negative poles should not be wrongly connected to 3.3-5V)
White:motor - (The exchange can control the forward and reverse rotation of the motor)
