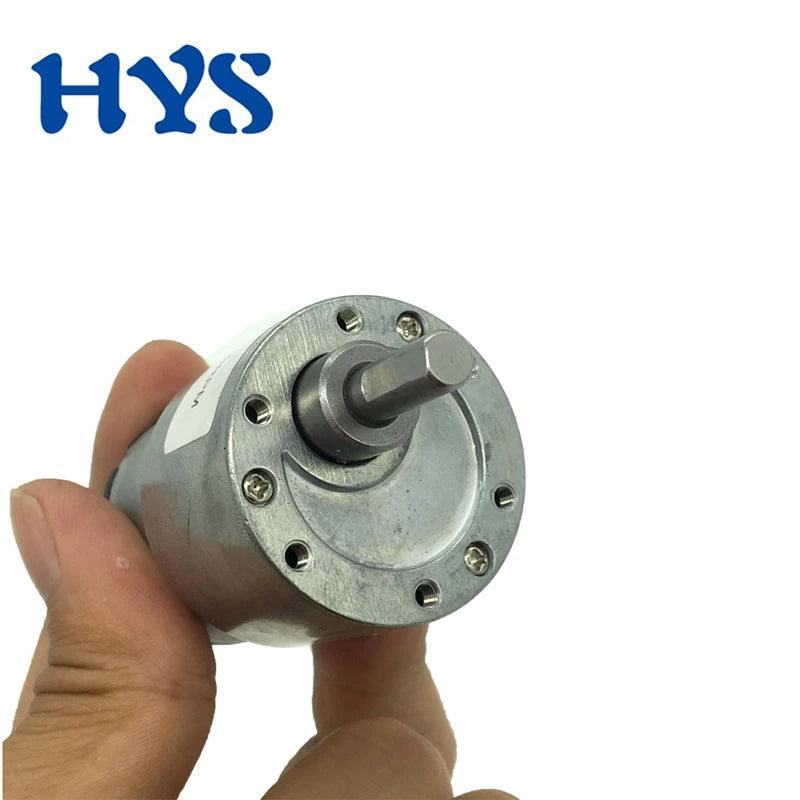

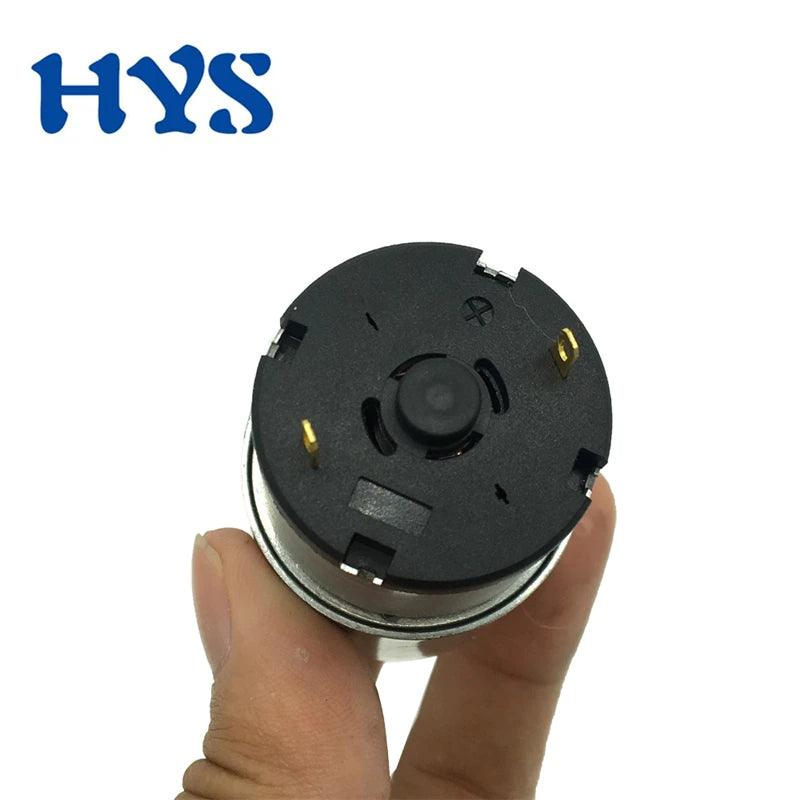

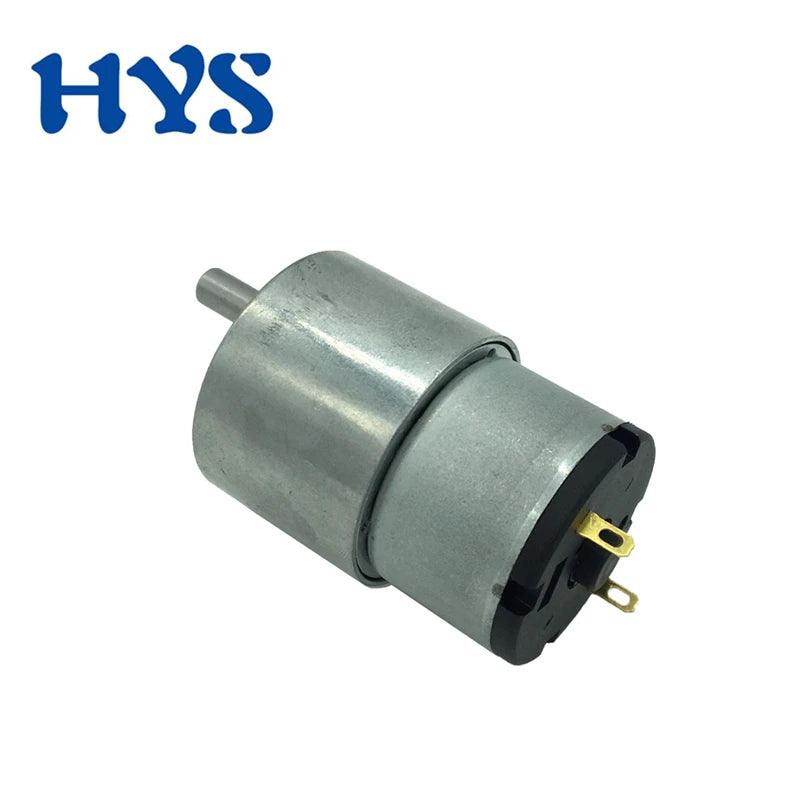

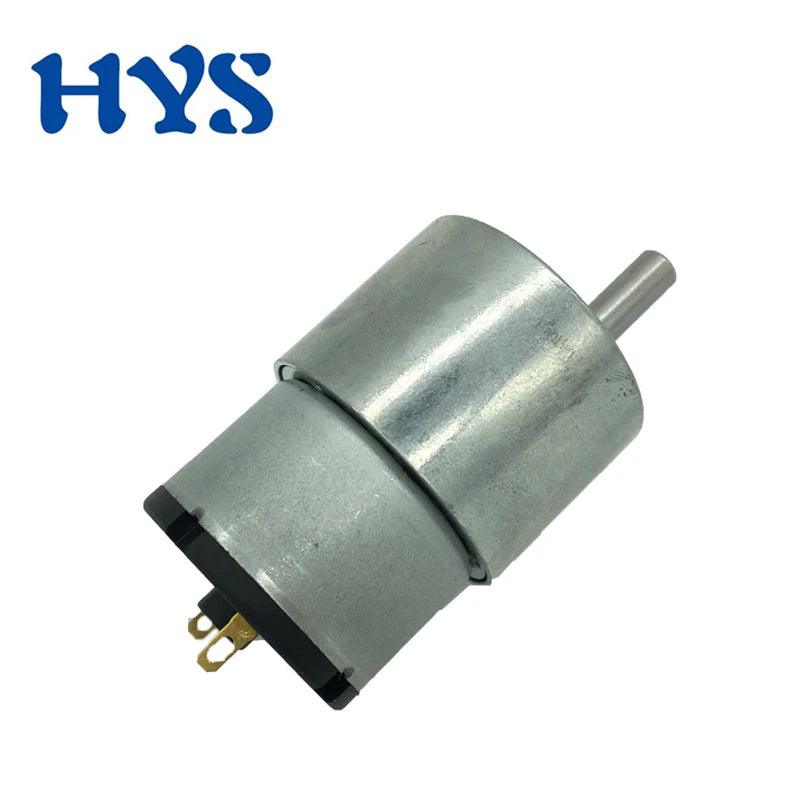

JGB37-520 DC Gear Motor 6V 12V 24V High Torque Metal Gear Low Speed Motor

SPECIFICATIONS

Brand Name: HYSMOTOR    Origin: Mainland China

Continuous Current(A): 300ma     Output Power: 1W

Commutation: Brush                      Type: Gear Motor

Protect Feature: Drip-proof            Construction: Permanent Magnet

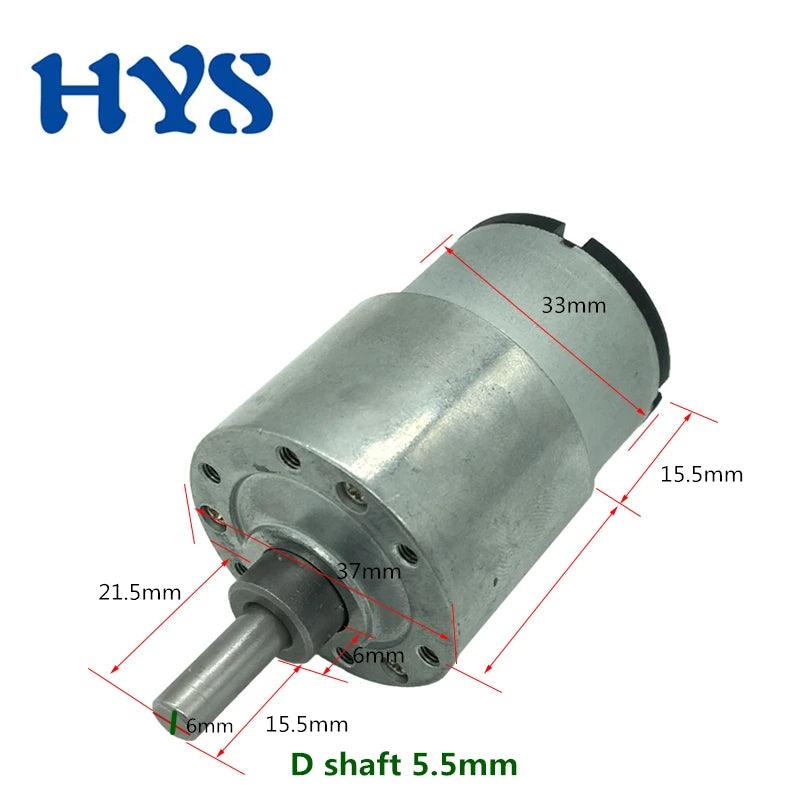

Motor Shaft: D shaft 5.5mm

Special Reminder:

This is a miniature DC motor with a small size.

All motors are fully tested before shipment.

Please test the motor first upon receipt before installation.

No returns or exchanges will be accepted for motor damage caused by soldering or manual installation. Please pay special attention.

What Does Torque Mean?

Common Torque Units: 1 N·m = 10 kg·cm = 0.1 kg·m

The standard torque of the motor is 10 kg·cm. Assuming it drives a pulley:

• If the pulley radius is 1 cm, the output tension is 10 kg.
• If the pulley radius is 2 cm, the output tension is 5 kg, and so on.

Torque Concept:

Torque = Tension Perpendicular to the Lever Arm × Lever Arm

Example: Drum Lifting

• Left diagram: Drum radius (lever arm) = 10 cm, lifting weight = 5 kg


  Required torque = 5 kg × 10 cm = 50 kg·cm
• Right diagram: Drum radius (lever arm) = 5 cm, lifting weight = 5 kg


  Required torque = 5 kg × 5 cm = 25 kg·cm

From this example, we can see that the lever arm is crucial. Even for the same lifting weight, the required torque varies significantly. Actual calculations are needed for different applications.
