45ZY Micro High?Speed Permanent Magnet DC Motor| 12V/24V
Regular price
$38.60 USD
Regular price
$45.60 USD
Sale price
$38.60 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

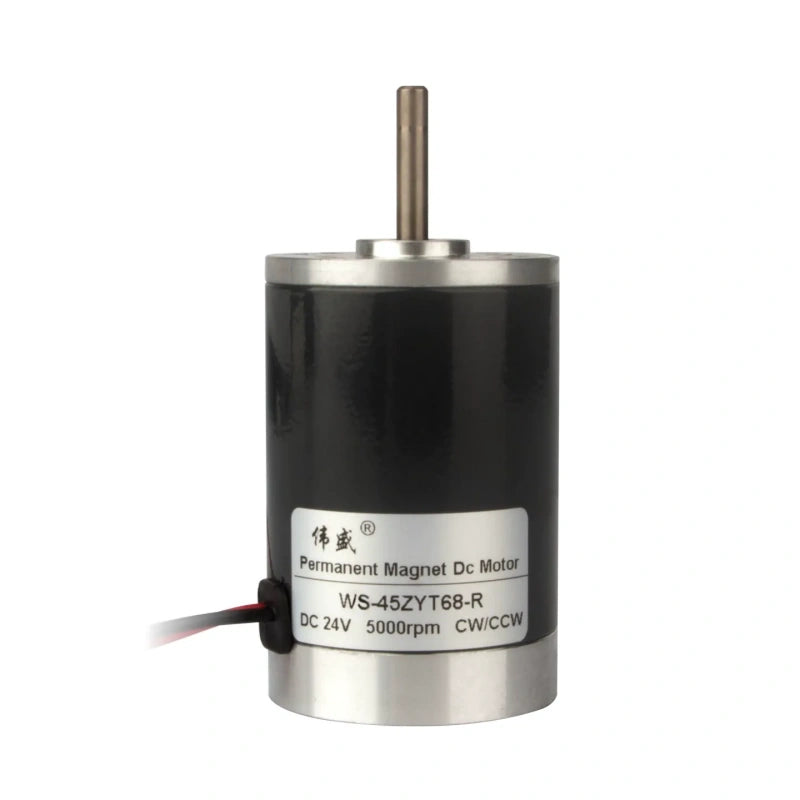

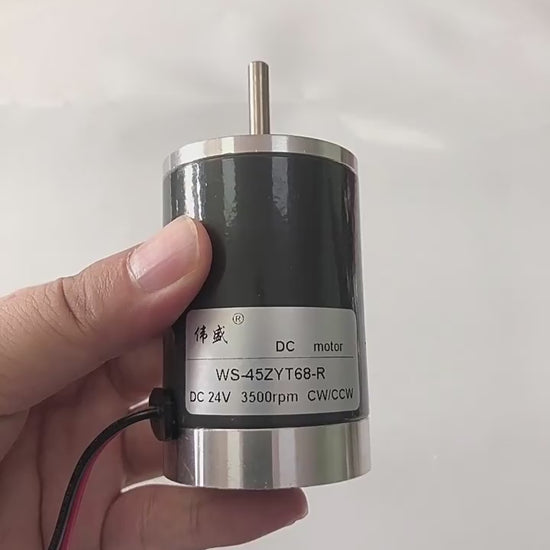

WS?45ZYT78?R 45mm Micro Permanent Magnet DC Motor, 12V/24V High?Speed Reversible Speed?Adjustable Motor, Vertical Mount with Bracket Option, for Cotton Candy Machine
Product Description

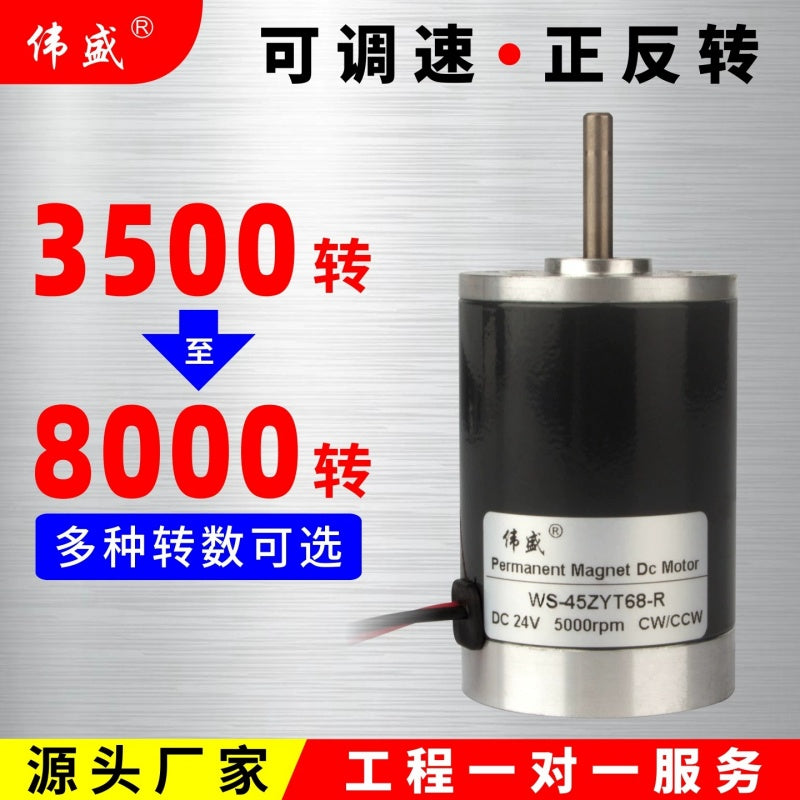

This is the WS?45ZYT78?R micro permanent magnet DC motor, available in 12V/24V voltage, with 5 speed options: 2000/3000/4000/6000RPM.
It features forward & reverse rotation, adjustable speed, built?in magnetic encoder, IP44 dustproof & waterproof grade, vertical installation design. Rated power 12W, rated torque 0.06N¡¤m, rated current 500mA, separately excited type.

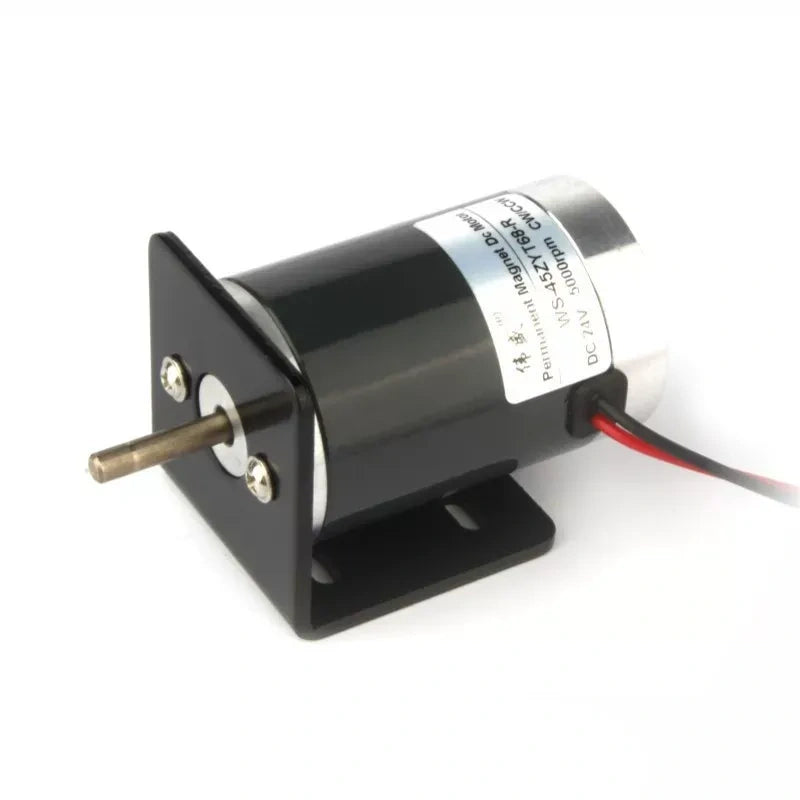

Two configurations are available: single motor, motor + mounting bracket. Widely used in cotton candy machines, powder shakers, small automated equipment and DIY projects.
This motor has passed CE certification, stable performance, long service life.
Key Specifications
- Model: WS?45ZYT78?R
- Brand: Weisheng
- Rated Voltage: 12V / 24V DC
- Rated Power: 16W
- Rated Torque: 0.04N¡¤m
- Rated Current: 700mA
- Speed Options: 3500/5000/6000/7000RPM/8000RPM
- Encoder Type: Magnetic Encoder
- Protection Grade: IP44
- Excitation Type: Separately Excited
- Installation Type: Vertical Mount
- Certification: CE
- Origin: Chinese Mainland
Key Features

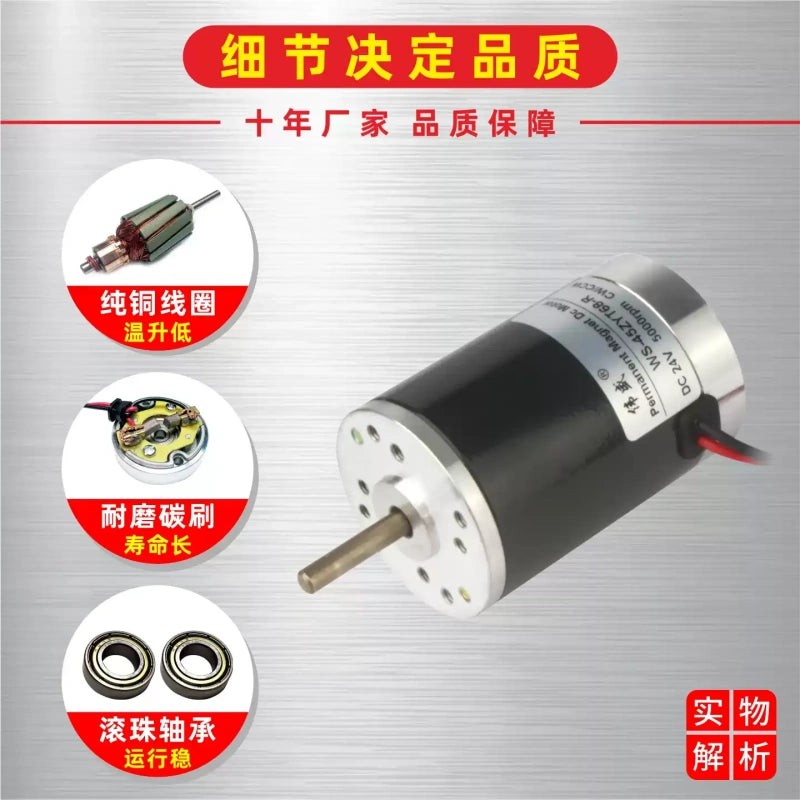

- Permanent magnet structure, high efficiency, low noise
- Forward/reverse rotation & speed adjustable
- Built?in magnetic encoder for precise speed control
- IP44 dust?proof and water?proof, stable operation
- Compact micro size, easy to install with optional bracket
- Wide application for small machinery and DIY projects
Specification
| Attribute Name | Attribute Value |
|---|---|
| Product Model | WS?45ZYT78?R |
| Brand | Weisheng |
| Rated Voltage | 12V DC, 24V DC |
| Rated Power | 16W |
| Rated Torque | 0.04N¡¤m |
| Rated Current | 700mA |
| Speed | 3500RPM, 5000RPM, 6000RPM, 7000RPM, 8000RPM |
| Rotation Mode | Forward & Reverse Rotation |
| Speed Control | Adjustable Speed |
| Encoder Type | Magnetic Encoder |
| Protection Grade | IP44 |
| Excitation Type | Separately Excited |
| Installation Type | Vertical Mount |
| Configuration | Single Motor, Motor with Mounting Bracket |
| Certification | CE |
| Origin | Chinese Mainland |
| Application | Cotton Candy Machine, Powder Shaker, Small Automated Equipment, DIY Projects |
?
Application Scenarios
- Paper Shredder
- Bag Cutting Machine
- Lawn Mower
- Copier
- Wire Winding Machine
- Cotton Candy Machine

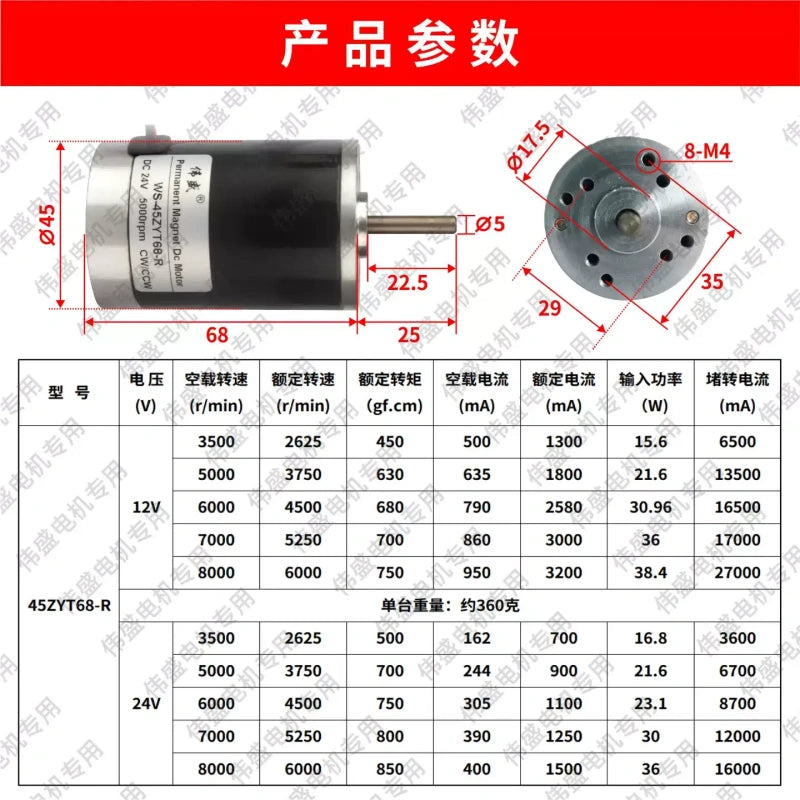

45ZYT68?R Motor Specification Sheet
| Model | Voltage (V) | No?load Speed (r/min) | Rated Speed (r/min) | Rated Torque (gf¡¤cm) | No?load Current (mA) | Rated Current (mA) | Stall Current (mA) |
|---|---|---|---|---|---|---|---|
| 45ZYT68?R | 12 | 3500 | 2625 | 450 | 500 | 1300 | 6000 |
| 12 | 5000 | 3750 | 630 | 635 | 1800 | 9500 | |
| 12 | 6000 | 4500 | 680 | 790 | 2580 | 11000 | |
| 12 | 7000 | 5250 | 700 | 860 | 3000 | 12500 | |
| 12 | 8000 | 6000 | 750 | 950 | 3200 | 16000 | |
| 24 | 3500 | 2625 | 500 | 162 | 700 | 3600 | |
| 24 | 5000 | 3750 | 700 | 244 | 900 | 6700 | |
| 24 | 6000 | 4500 | 750 | 305 | 1100 | 8700 | |
| 24 | 7000 | 5250 | 800 | 390 | 1250 | 12000 | |
| 24 | 8000 | 6000 | 850 | 400 | 1500 | 16000 |
?
Precautions for Motor Use
- Confirm the correct motor voltage before use. For DC motors, also verify that the power supply provides sufficient current.
- Do not operate under overload conditions. Overload mainly arises from two factors: torque and shaft stress. The load torque must not exceed the motor¡¯s rated torque; the axial and radial stress on the shaft must not exceed its allowable limit. The actual measured current of the motor under load must not exceed the rated current. A fuse is generally required to prevent motor burnout caused by overload.
- Do not store or operate the motor in high?temperature, humid, or corrosive gas environments, as these will degrade motor performance.
- When installing transmission components such as gears and pulleys onto the motor shaft, avoid abnormal knocking during pressing?in.
- When soldering the positive and negative power terminals of the motor, use a soldering iron at 340¡ãC ¡À 40¡ãC for no more than 3 seconds. Avoid plastic deformation, solder penetration into the motor, or broken wire ends, which will impair motor function.
- When installing the motor, check screw length to prevent overly long screws from pressing against internal motor components.
