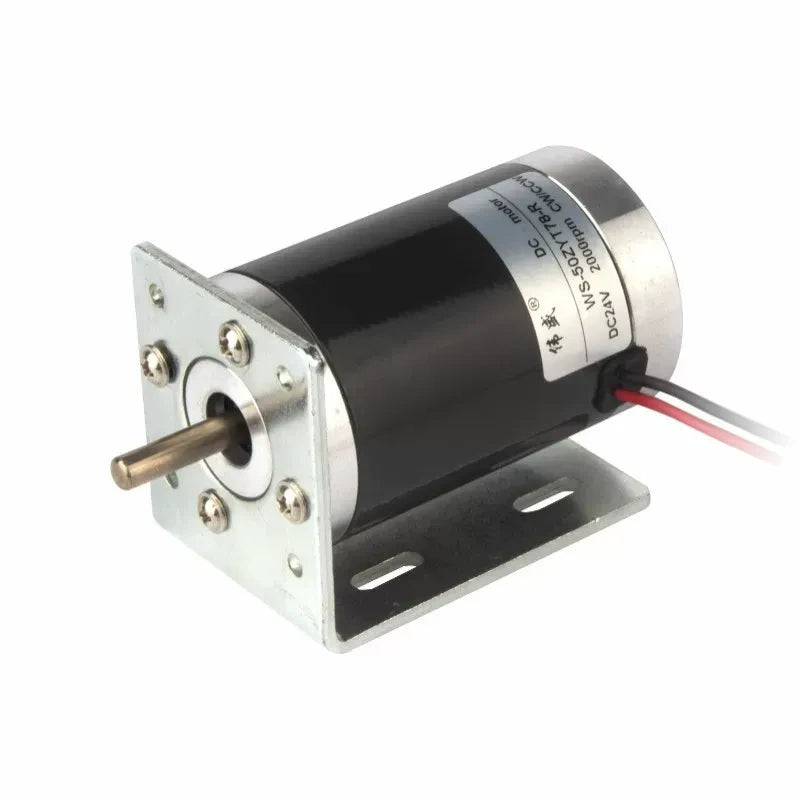

50ZY Micro High?Speed Permanent Magnet DC Motor| 12V/24V
Regular price
$33.55 USD
Regular price
$38.70 USD
Sale price
$33.55 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

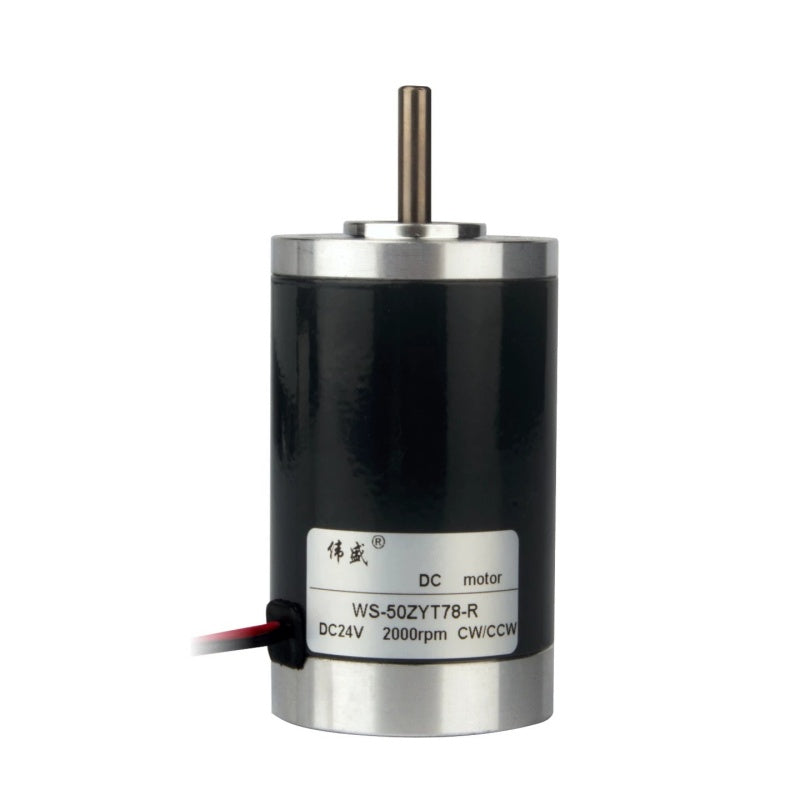

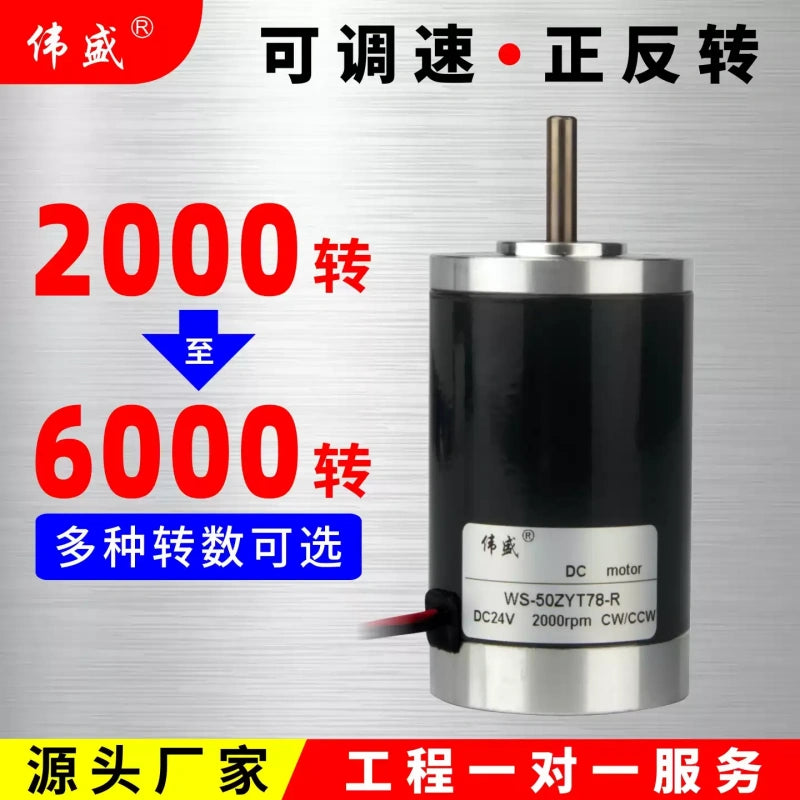

WS?50ZYT78?R Micro Permanent Magnet DC Motor, 12V/24V High?Speed Reversible Speed?Adjustable Motor, Vertical Mount with Bracket Option, for Cotton Candy Machine
Product Description
This is the WS?50ZYT78?R micro permanent magnet DC motor, available in 12V/24V voltage, with 5 speed options: 2000/3000/4000/5000/6000RPM.
It features forward & reverse rotation, adjustable speed, built?in magnetic encoder, IP44 dustproof & waterproof grade, vertical installation design. Rated power 12W, rated torque 0.06N¡¤m, rated current 500mA, separately excited type.

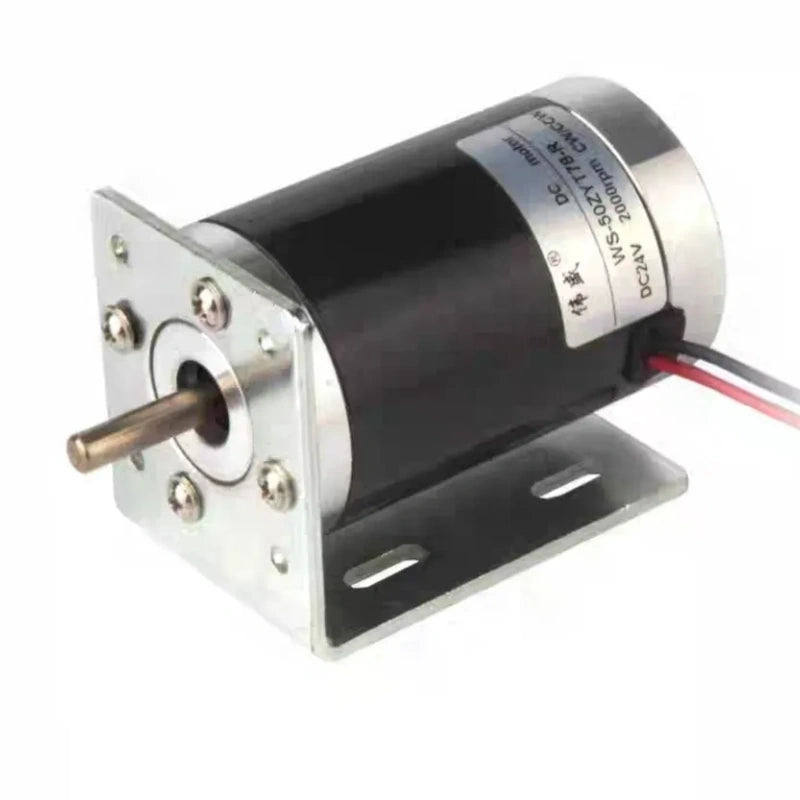

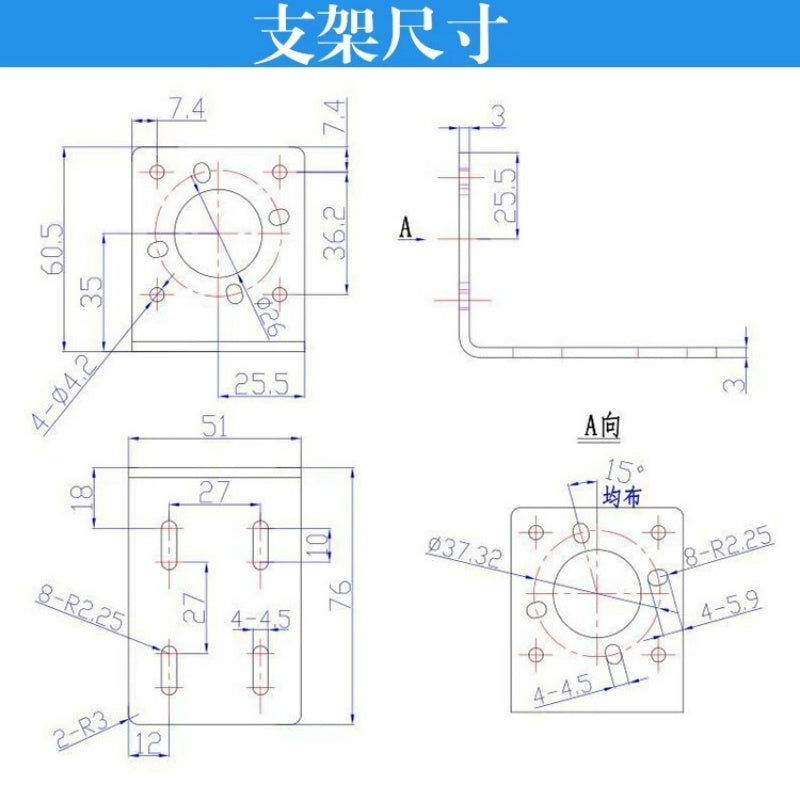

Two configurations are available: single motor, motor + mounting bracket. Widely used in cotton candy machines, powder shakers, small automated equipment and DIY projects.
This motor has passed CE certification, stable performance, long service life.
Key Specifications
- Model: WS?50ZYT78?R
- Brand: Weisheng
- Rated Voltage: 12V / 24V DC
- Rated Power: 12W
- Rated Torque: 0.06N¡¤m
- Rated Current: 500mA
- Speed Options: 2000/3000/4000/5000/6000RPM
- Encoder Type: Magnetic Encoder
- Protection Grade: IP44
- Excitation Type: Separately Excited
- Installation Type: Vertical Mount
- Certification: CE
- Origin: Chinese Mainland
Key Features

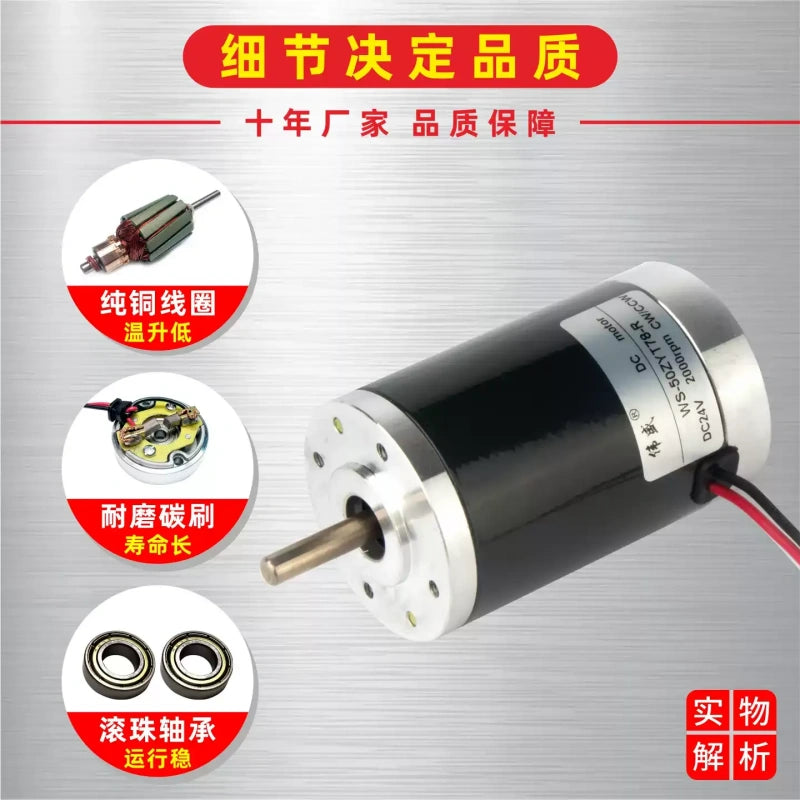

- Permanent magnet structure, high efficiency, low noise

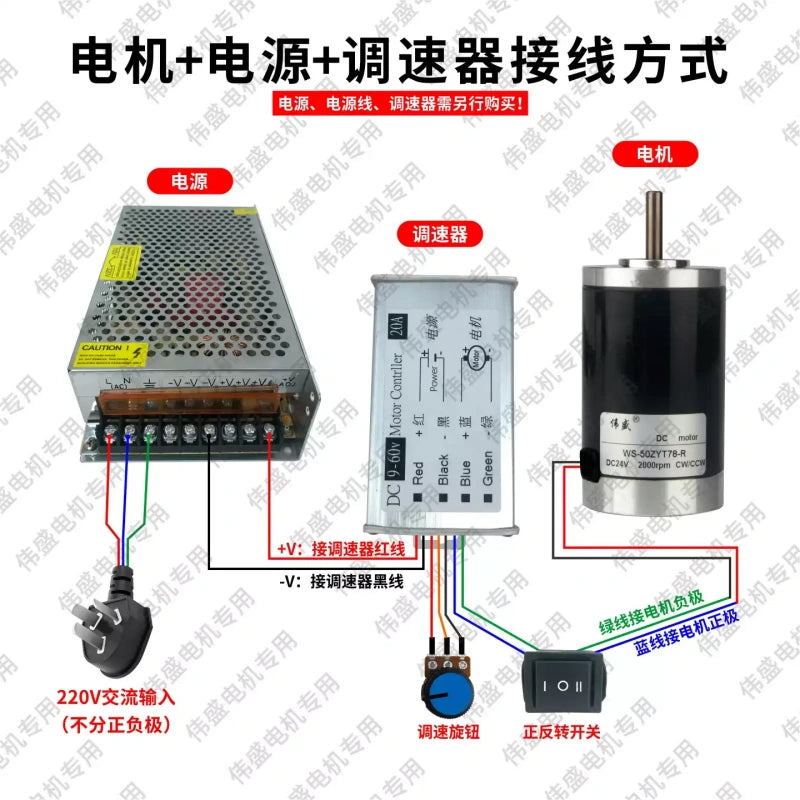

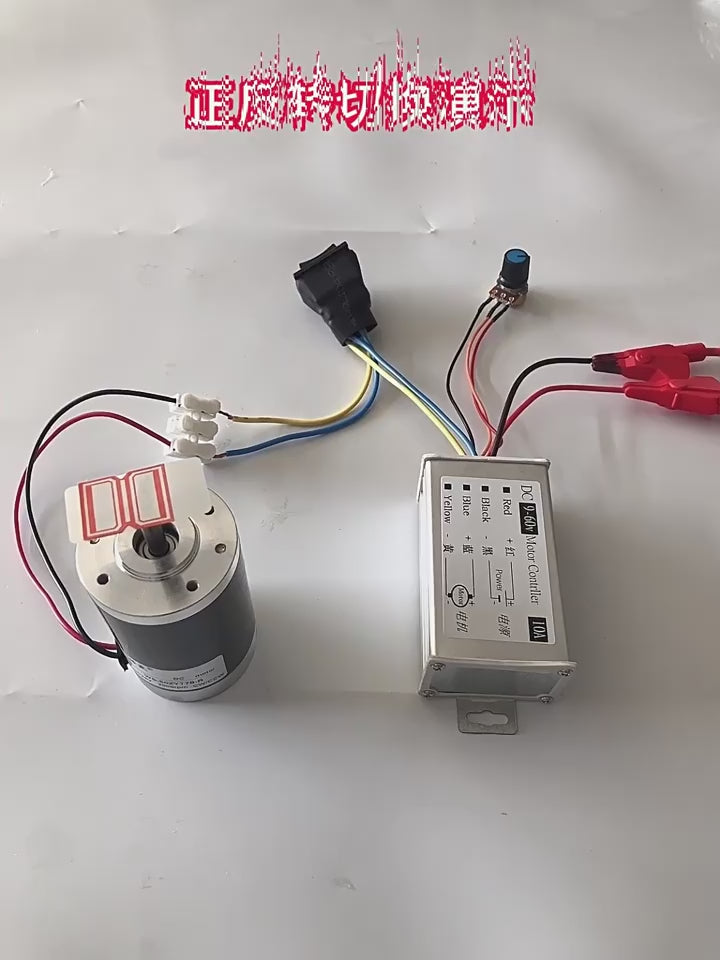

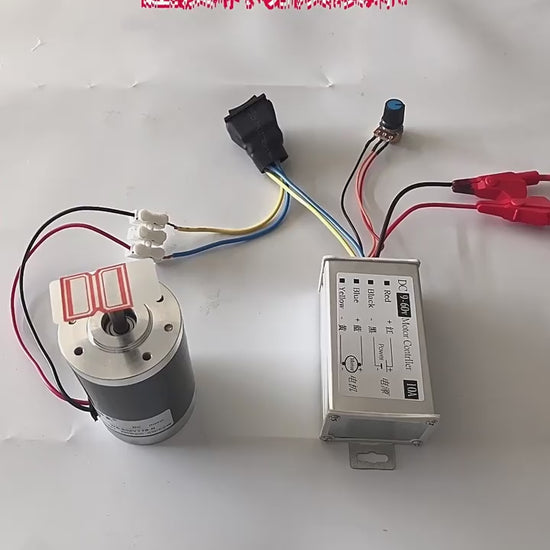

- Forward/reverse rotation & speed adjustable
- Built?in magnetic encoder for precise speed control
- IP44 dust?proof and water?proof, stable operation
- Compact micro size, easy to install with optional bracket
- Wide application for small machinery and DIY projects
Specification
| Attribute Name | Attribute Value |
|---|---|
| Product Model | WS?50ZYT78?R |
| Brand | Weisheng |
| Rated Voltage | 12V DC, 24V DC |
| Rated Power | 12W |
| Rated Torque | 0.06N¡¤m |
| Rated Current | 500mA |
| Speed | 2000RPM, 3000RPM, 4000RPM, 5000RPM, 6000RPM |
| Rotation Mode | Forward & Reverse Rotation |
| Speed Control | Adjustable Speed |
| Encoder Type | Magnetic Encoder |
| Protection Grade | IP44 |
| Excitation Type | Separately Excited |
| Installation Type | Vertical Mount |
| Configuration | Single Motor, Motor with Mounting Bracket |
| Certification | CE |
| Origin | Chinese Mainland |
| Application | Cotton Candy Machine, Powder Shaker, Small Automated Equipment, DIY Projects |
?

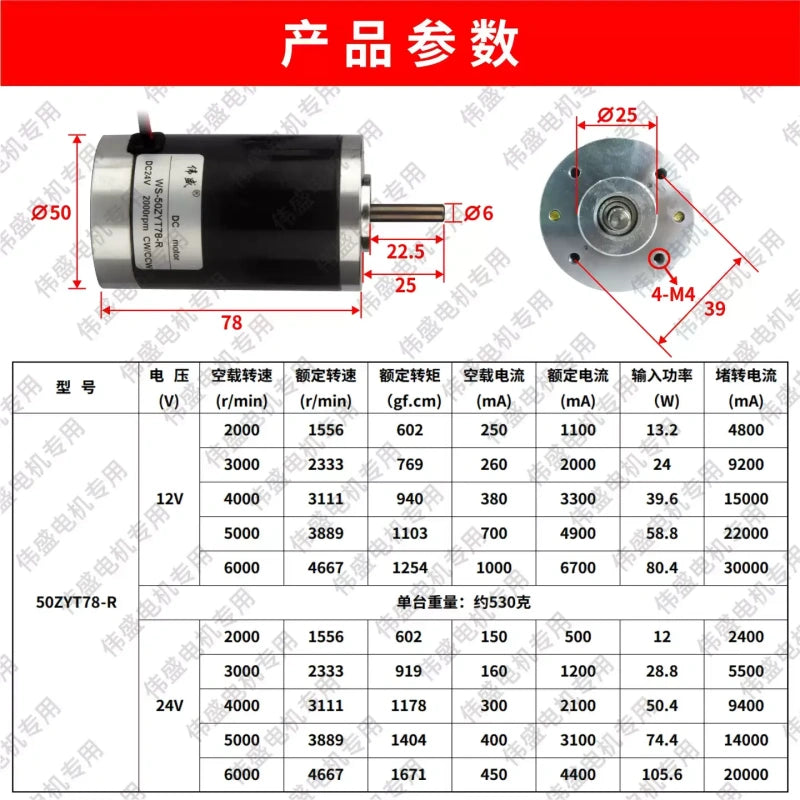

50ZYT78?R Motor Specification Sheet
| Model | Voltage (V) | No?load Speed (r/min) | Rated Speed (r/min) | Rated Torque (gf¡¤cm) | Stall Torque (gf¡¤cm) | No?load Current (mA) | Rated Current (mA) | Stall Current (mA) |
|---|---|---|---|---|---|---|---|---|
| 50ZYT78?R | 12 | 2000 | 1556 | 602 | 2708 | 250 | 1100 | 4800 |
| 12 | 3000 | 2333 | 769 | 3460 | 260 | 2000 | 9200 | |
| 12 | 4000 | 3111 | 940 | 4231 | 380 | 3300 | 15000 | |
| 12 | 5000 | 3889 | 1103 | 4964 | 700 | 4900 | 22000 | |
| 12 | 6000 | 4667 | 1254 | 5641 | 1000 | 6700 | 30000 | |
| 24 | 2000 | 1556 | 602 | 2708 | 150 | 500 | 2400 | |
| 24 | 3000 | 2333 | 919 | 4137 | 160 | 1200 | 5500 | |
| 24 | 4000 | 3111 | 1178 | 5303 | 300 | 2100 | 9400 | |
| 24 | 5000 | 3889 | 1404 | 6318 | 400 | 3100 | 14000 | |
| 24 | 6000 | 4667 | 1671 | 7521 | 450 | 4400 | 20000 |
?
Net Weight: Approx. 530g per unit
