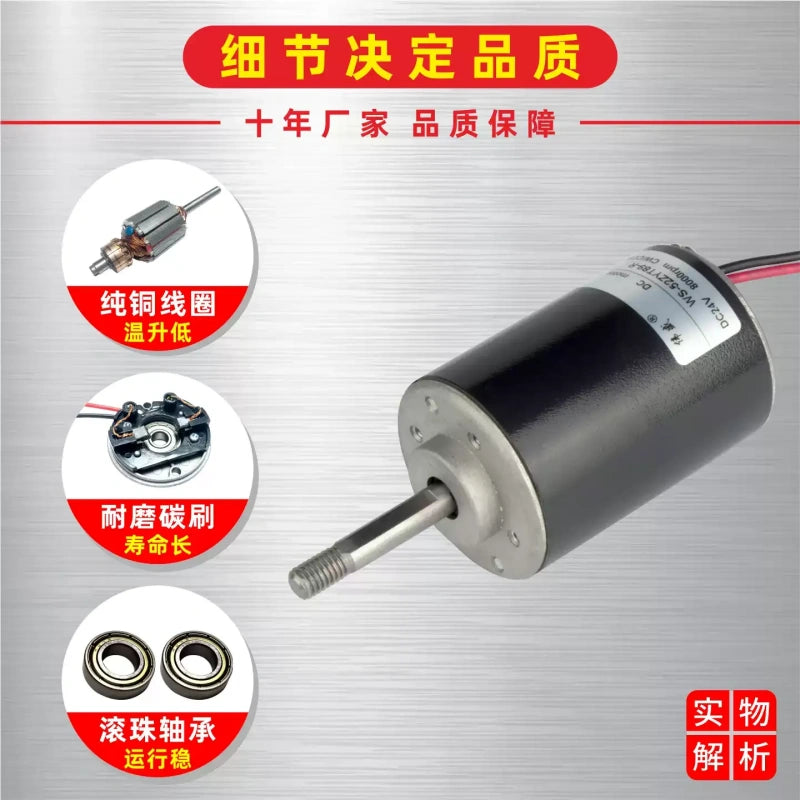

52ZY 8mm Threaded Shaft High?Speed DC Motor
Regular price
$32.86 USD
Regular price
$38.60 USD
Sale price
$32.86 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
WS?52ZYT89?R Threaded Shaft Permanent Magnet DC Motor, 12V/24V High?Speed Reversible Speed?Adjustable Motor, 8mm Thread Shaft, IP44, for Belt Sander & Cutting Machine
Product Description

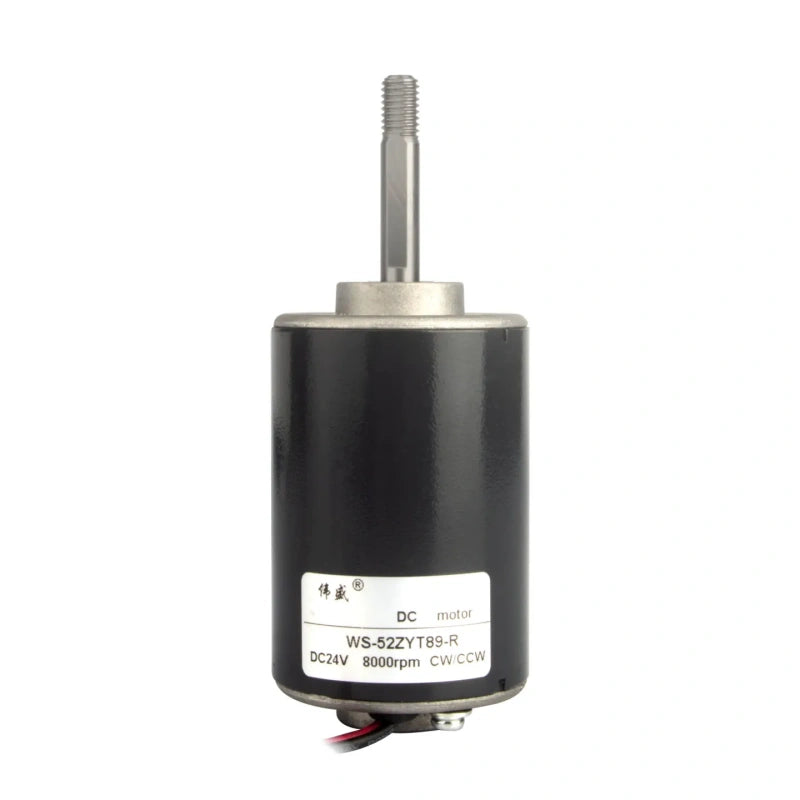

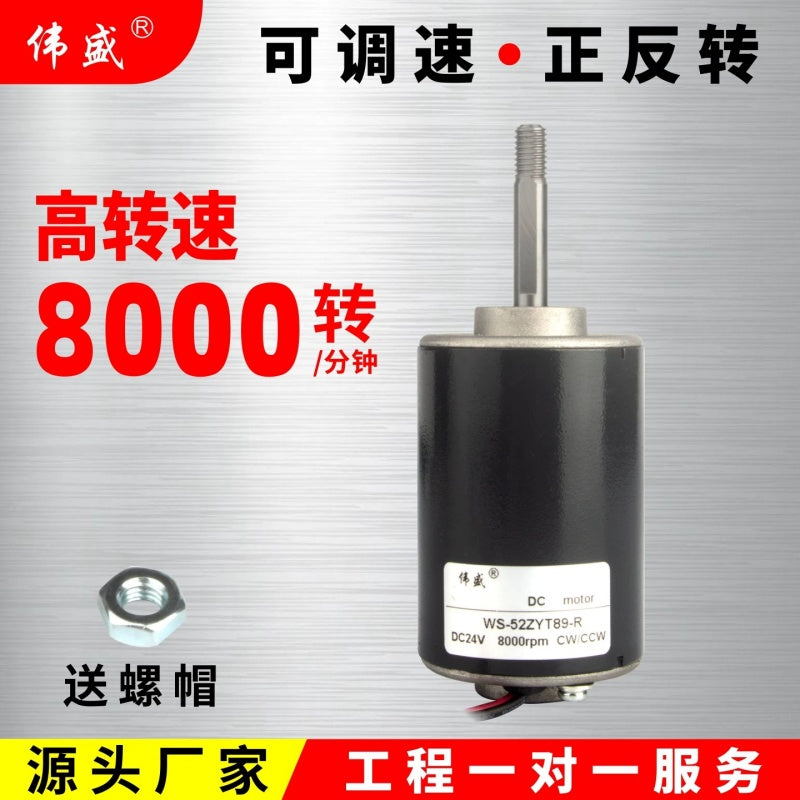

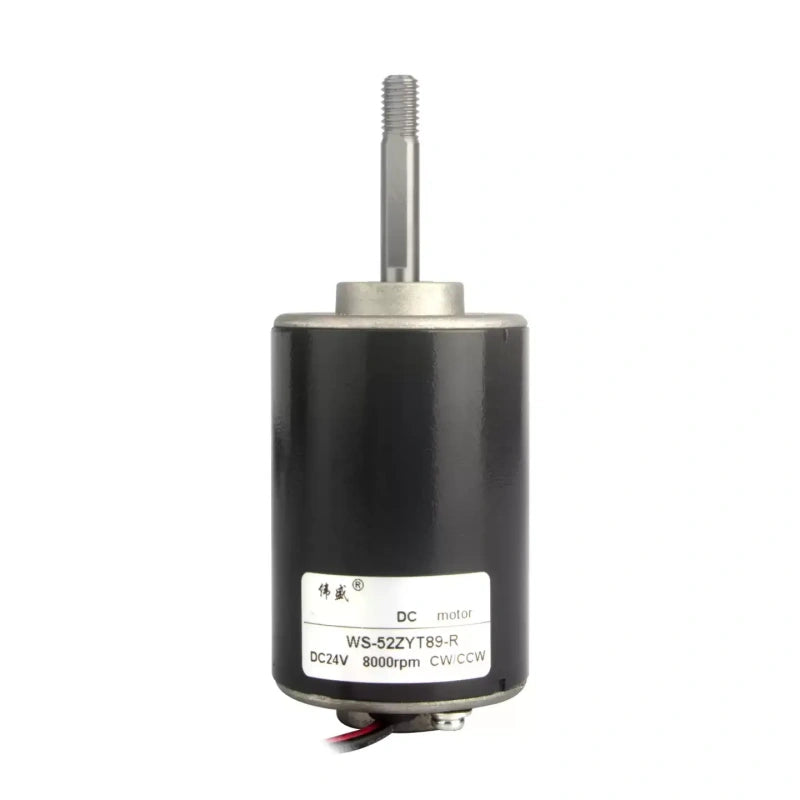

This is the WS?52ZYT89?R permanent magnet DC motor with 8mm threaded shaft, available in 12V/24V voltage.
It supports forward & reverse rotation and speed adjustment, built?in magnetic encoder, IP44 dust?proof & water?proof grade, vertical installation design. Rated power 20W, rated torque 0.1N¡¤m, separately excited type, equipped with silent ball bearings for stable low?noise operation.

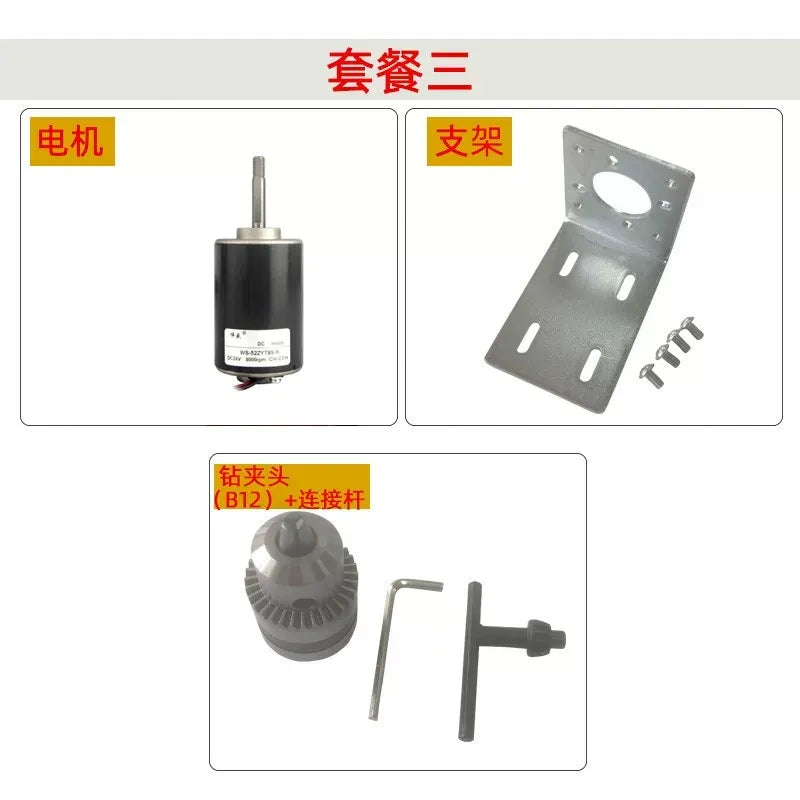

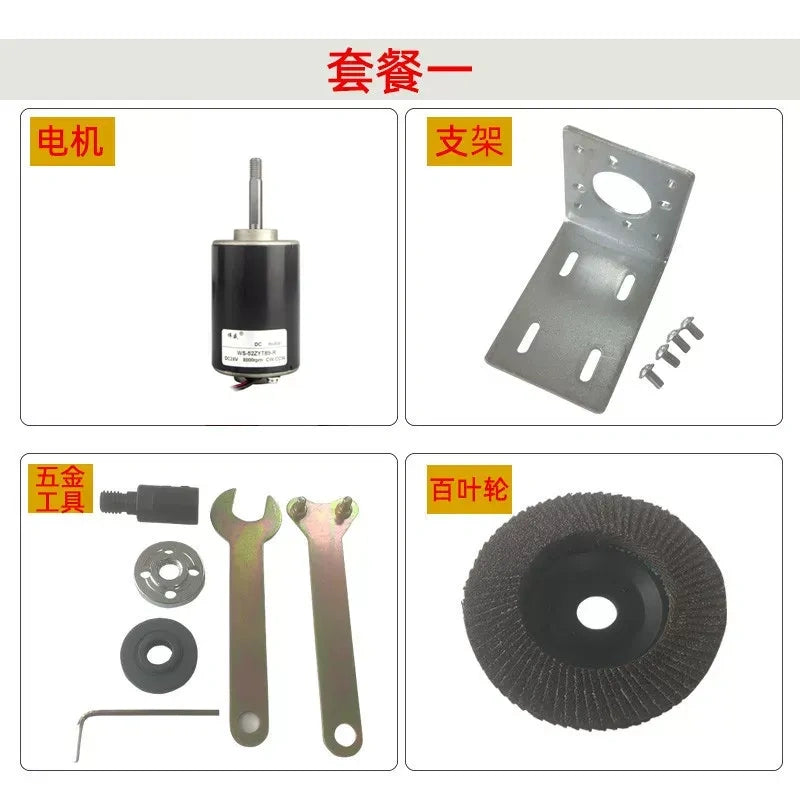

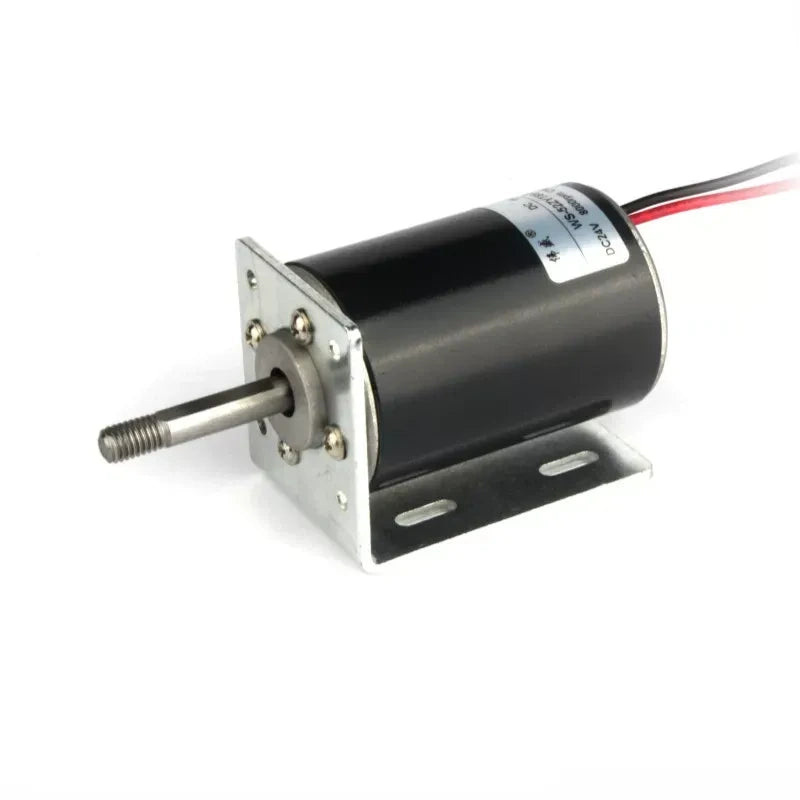

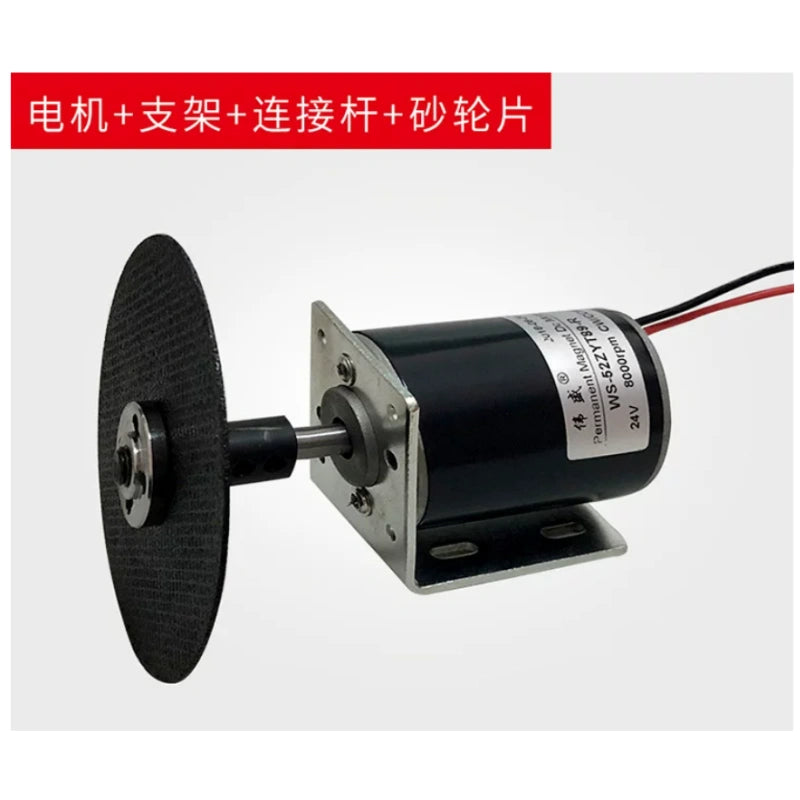

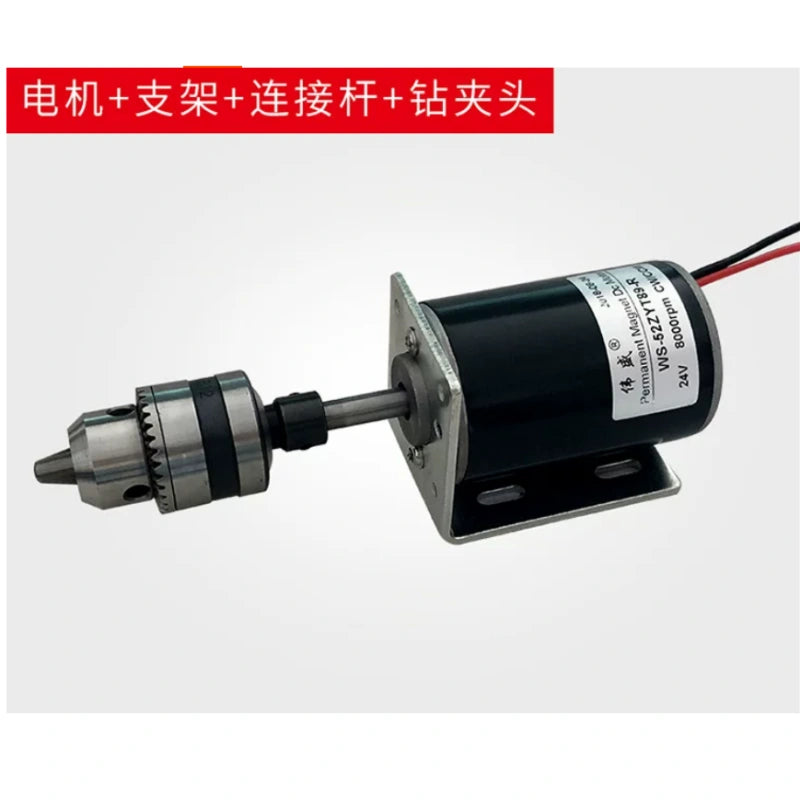

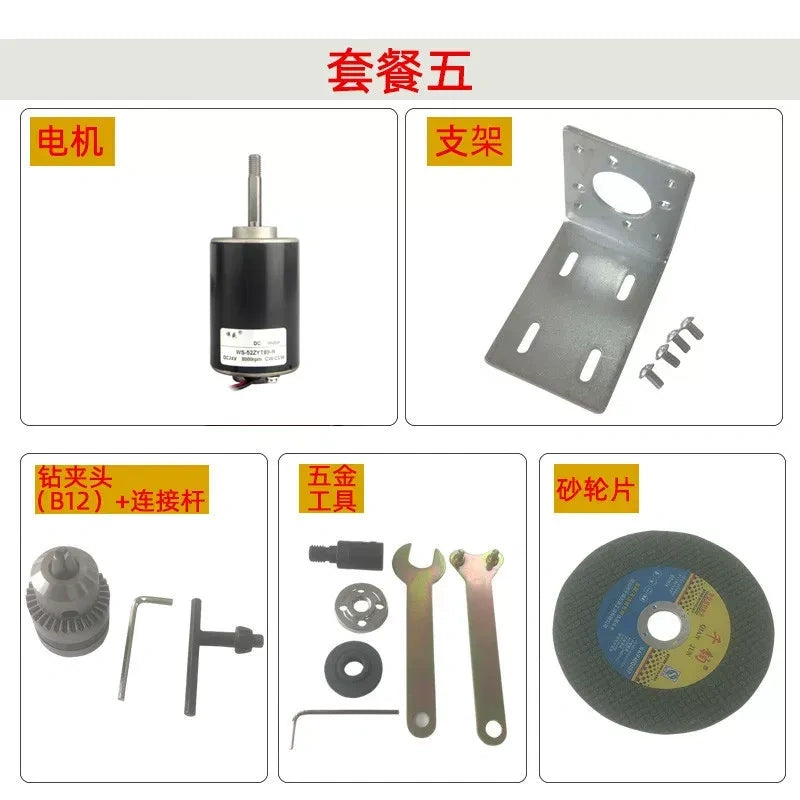

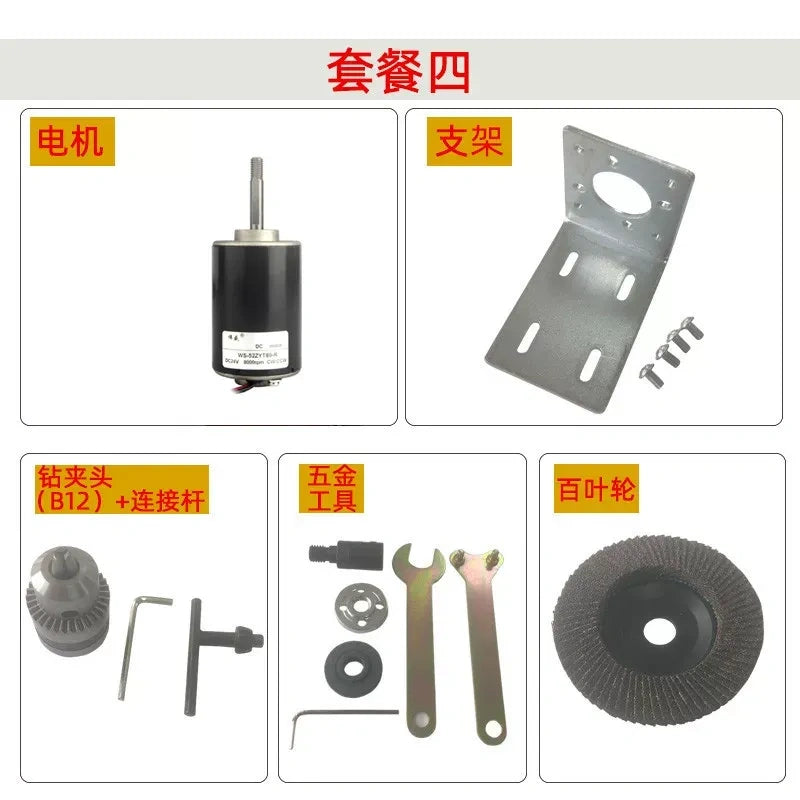

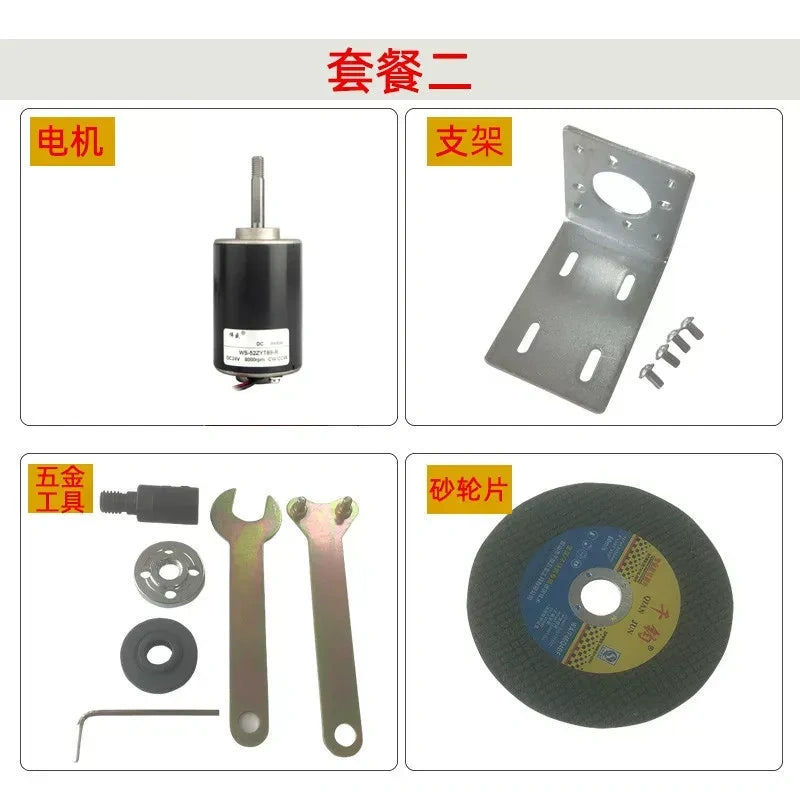

Multiple configuration options are available: single motor, motor + mounting bracket, and 5 complete kits with flap wheel, grinding wheel, B12 drill chuck, connecting rod and hardware tools for one?stop assembly.
Widely used in belt sanders, cutting machines, grinders, polishing machines, lawn mowers, cotton candy machines and other DIY & industrial equipment.
This motor has passed CE certification, with silicon steel sheet design for low temperature rise, high efficiency, strong power and long service life.
Key Specifications
- Model: WS?52ZYT89?R (Threaded Shaft)
- Brand: Weisheng
- Rated Voltage: 12V / 24V DC
- Rated Power: 20W
- Rated Torque: 0.1N¡¤m
- Rated Current: 1825mA (12V) / 2000mA (24V)
- Speed: 4000RPM (12V), 8000RPM (24V)

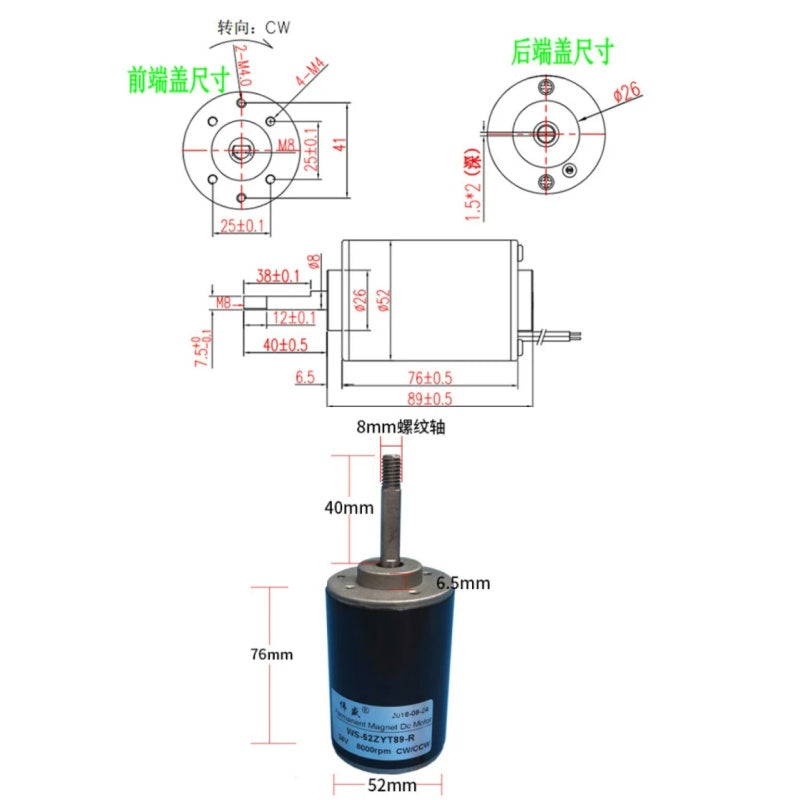

- Shaft Type: 8mm Threaded Steel D?Shaft
- Encoder Type: Magnetic Encoder
- Protection Grade: IP44
- Excitation Type: Separately Excited
- Installation Type: Vertical Mount
- Certification: CE
- Net Weight: Approx. 580g
Key Features
- 8mm threaded shaft design, easy to install grinding/polishing accessories
- Silent ball bearing, smooth and stable operation with low noise
- High?quality silicon steel sheet, low temperature rise, long service life
- Forward/reverse rotation & speed adjustable, wide application
- IP44 dust?proof and water?proof, durable for long?term use
- Multiple complete kits for one?stop DIY assembly
Specification
| Attribute Name | Attribute Value |
|---|---|
| Product Model | WS?52ZYT89?R (Threaded Shaft) |
| Brand | Weisheng |
| Rated Voltage | 12V DC, 24V DC |
| Rated Power | 20W |
| Rated Torque | 0.1N¡¤m |
| Rated Current | 1825mA(12V), 2000mA(24V) |
| Speed | 4000RPM(12V), 8000RPM(24V) |
| Shaft | 8mm Threaded Steel D?Shaft |
| Rotation Mode | Forward & Reverse Rotation |
| Speed Control | Adjustable Speed |
| Encoder Type | Magnetic Encoder |
| Protection Grade | IP44 |
| Excitation Type | Separately Excited |
| Installation Type | Vertical Mount |
| Configuration | Single Motor, Motor+Bracket, 5 Complete Kits |
| Kit Accessories | Mounting Bracket, B12 Drill Chuck, Connecting Rod, Hardware Tools, Flap Wheel, Grinding Wheel |
| Certification | CE |
| Weight | Approx. 580g |
| Application | Belt Sander, Cutting Machine, Grinder, Polishing Machine, Lawn Mower, Cotton Candy Machine, DIY Industrial Equipment |
?

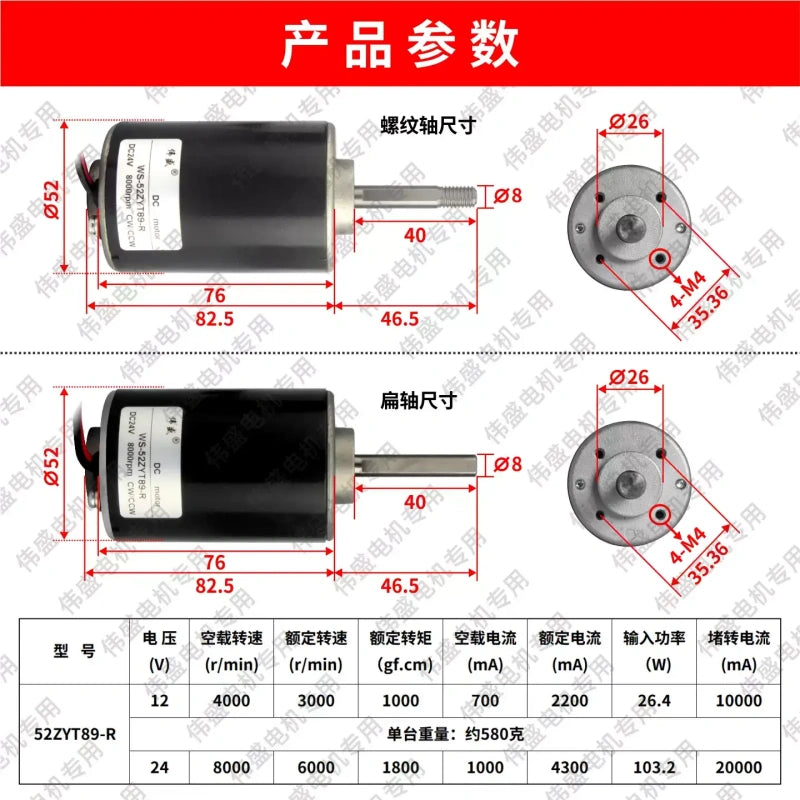

WS?52ZYT89?R DC Motor Specifications
| Model | Voltage (V) | No?load Speed (r/min) | Rated Speed (r/min) | Rated Torque (g¡¤cm) | Stall Torque (g¡¤cm) | Rated Current (mA) | Stall Current (mA) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 52ZYT89?R | 12 | 4000 | 3000 | 1000 | 3000 | 1825 | 6735 | Approx. 580 |
| 24 | 8000 | 6000 | 1800 | 5400 | 2000 | 8000 | Approx. 580 |
?
Precautions for Motor Use
- Confirm the correct motor voltage before use. For DC motors, also verify that the power supply provides sufficient current.
- Do not operate under overload conditions. Overload mainly arises from two factors: torque and shaft stress. The load torque must not exceed the motor¡¯s rated torque; the axial and radial stress on the shaft must not exceed its allowable limit. The actual measured current of the motor under load must not exceed the rated current. A fuse is generally required to prevent motor burnout caused by overload.
- Do not store or operate the motor in high?temperature, humid, or corrosive gas environments, as these will degrade motor performance.
- When installing transmission components such as gears and pulleys onto the motor shaft, avoid abnormal knocking during pressing?in.
- When soldering the positive and negative power terminals of the motor, use a soldering iron at 340¡ãC ¡À 40¡ãC for no more than 3 seconds. Avoid plastic deformation, solder penetration into the motor, or broken wire ends, which will impair motor function.
- When installing the motor, check screw length to prevent overly long screws from pressing against internal motor components.
