555 DC Gear Motor 12V/24V 5-160RPM 7-Shape
Regular price
$41.60 USD
Regular price
$35.30 USD
Sale price
$41.60 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

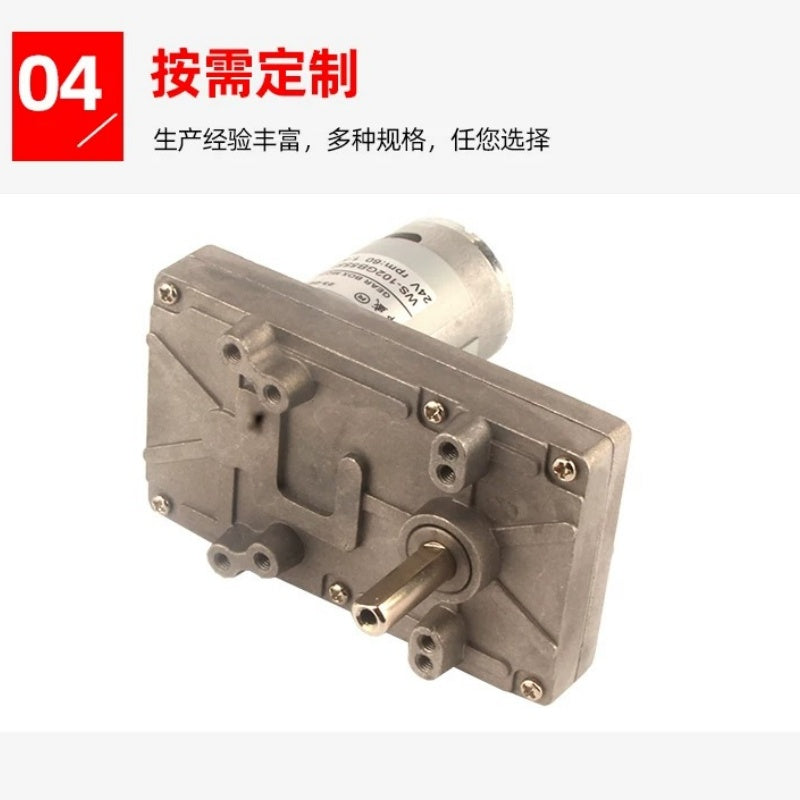

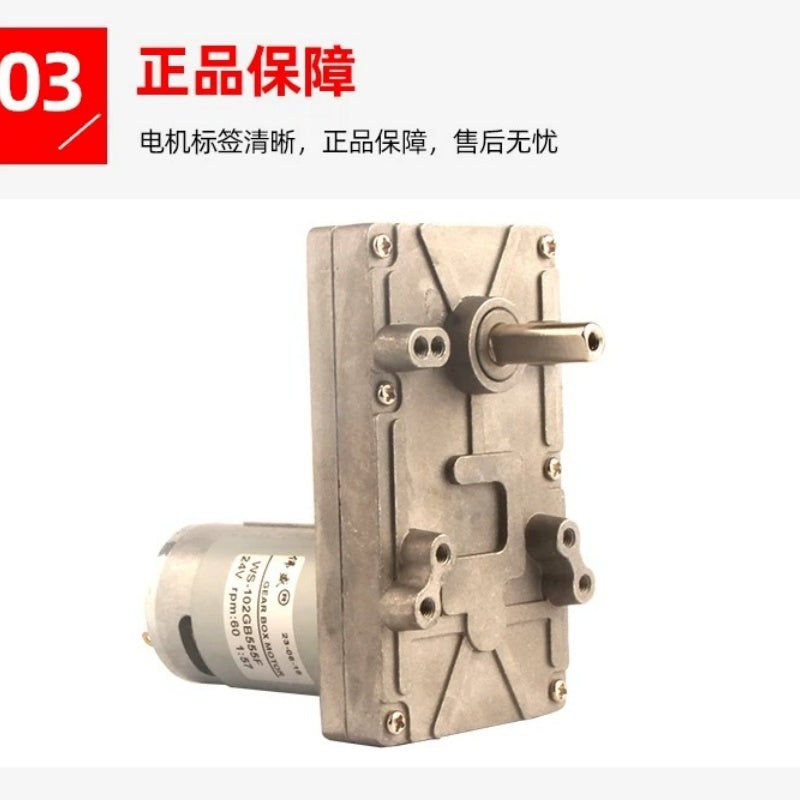

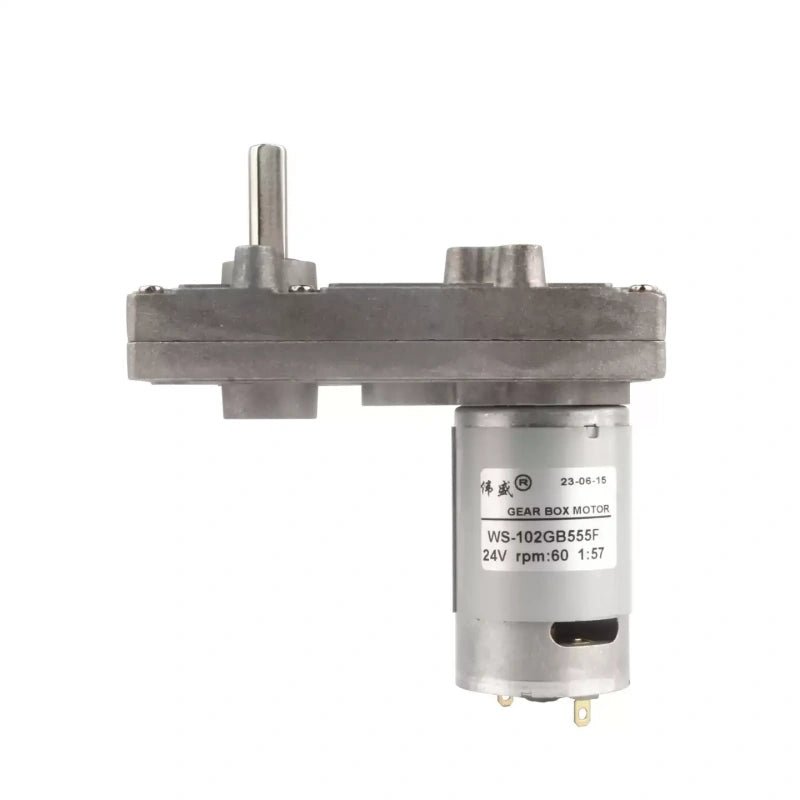

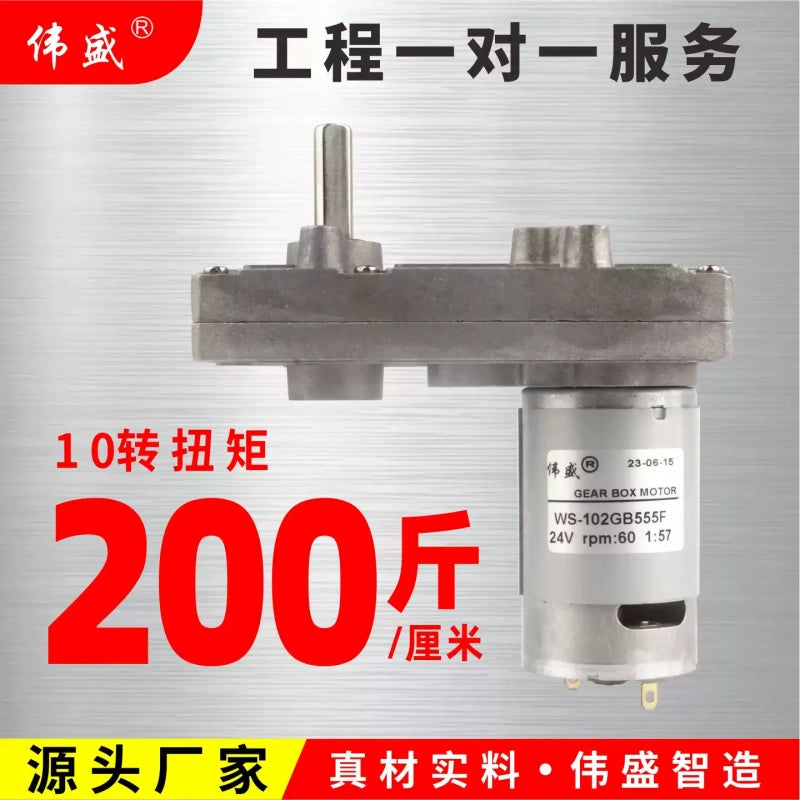

102GB555F 555 DC Gear Motor 12V/24V 5-160RPM 7-Shape Metal Gear Motor for Vending Machine
Product Description
102GB555F 7-shape DC gear motor with metal gears, 12V/24V options, speeds from 5RPM to 160RPM. High torque, reversible, speed-controllable, ideal for vending machines, game consoles, and automation projects.
Specification
| 属性项 | 内容 |
|---|---|
brand |
Generic / OEM |
model |
102GB555F |
type |
7-Shape DC Gear Motor |
rated voltage |
12V / 24V DC |
speed options (RPM) |
12V: 5, 10, 20, 30, 45, 80
|
structure |
7-shaped gearbox (offset shaft) |
motor type |
555 DC motor, all-copper winding |
gear material |

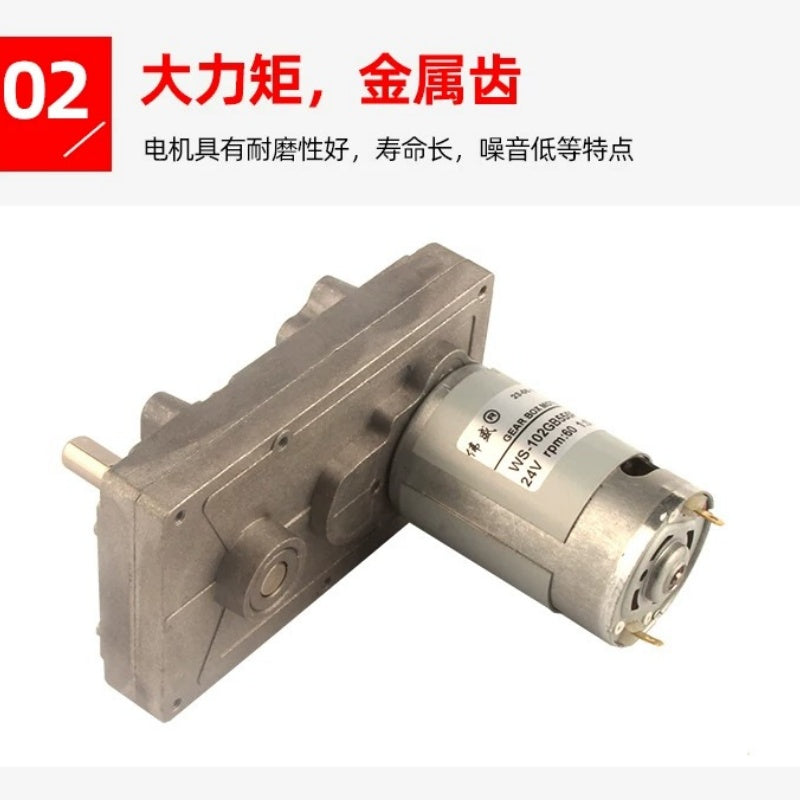

Metal gears (impact-resistant) |
magnet type |
High-quality magnetic tiles (high torque) |
features |

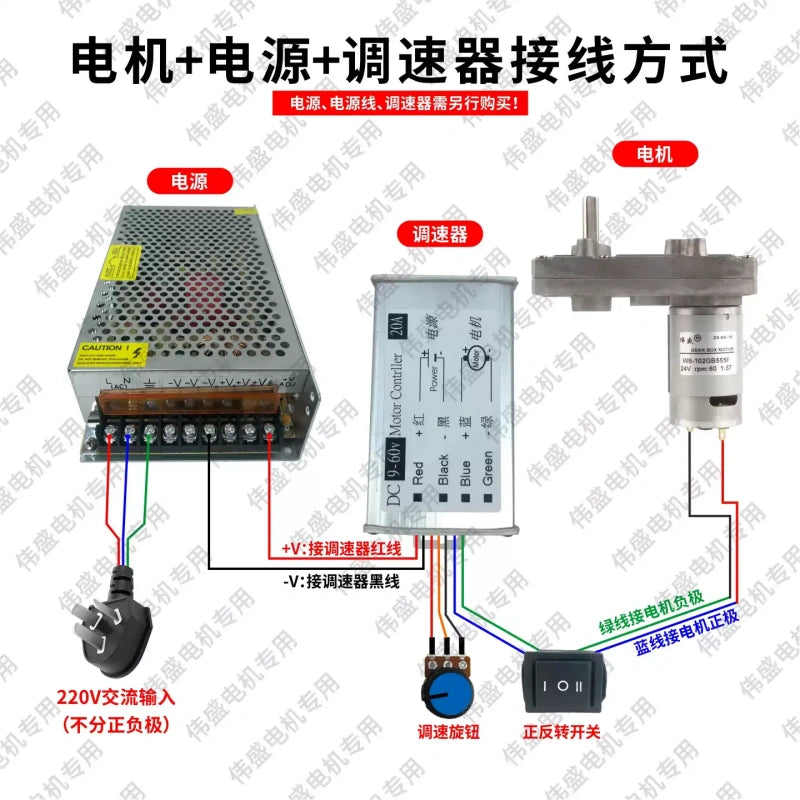

Reversible, speed-controllable, high torque, low noise |
application |
Vending machines, game consoles, automation equipment, DIY projects |
options |
Motor only / Motor + mounting bracket |
warranty |
1 year |
102GB555F DC Gear Motor – Technical Specifications (English)
This is the complete parameter table for the 102GB555F series 7-shaped DC gear motors, including 12V and 24V variants.

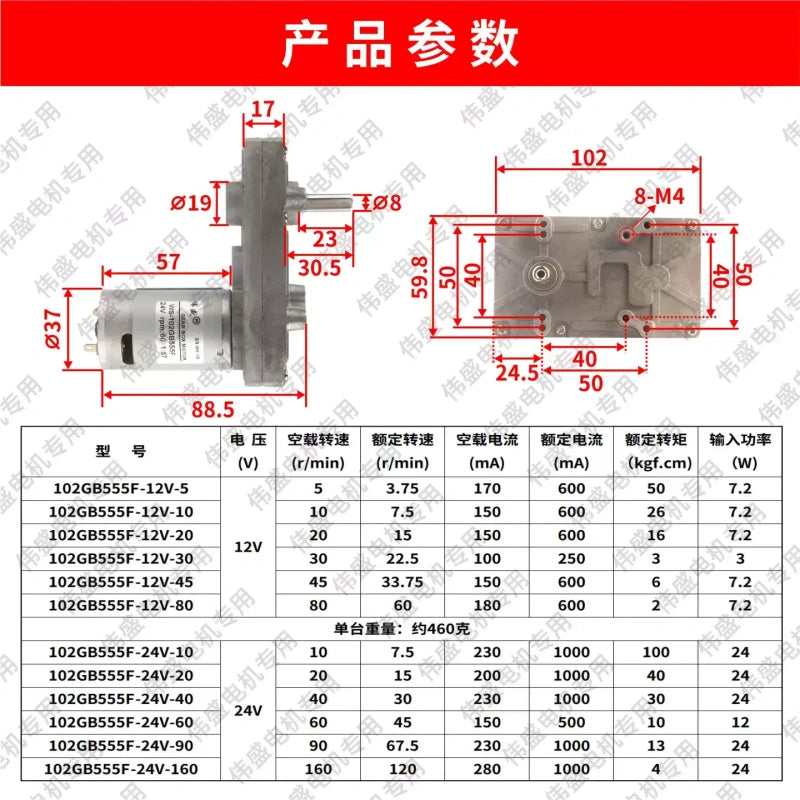

Motor Parameter Information
| Model | Voltage (V) | No-load Speed (r/min) | Rated Speed (r/min) | No-load Current (mA) | Rated Current (mA) | Rated Torque (kgf·cm) | Input Power (W) |
|---|---|---|---|---|---|---|---|
| 102GB555F-12V-5 | 12 | 5 | 3.75 | 170 | 600 | 50 | 7.2 |
| 102GB555F-12V-10 | 12 | 10 | 7.5 | 150 | 600 | 26 | 7.2 |
| 102GB555F-12V-20 | 12 | 20 | 15 | 150 | 600 | 16 | 7.2 |
| 102GB555F-12V-30 | 12 | 30 | 22.5 | 100 | 250 | 3 | 3 |
| 102GB555F-12V-45 | 12 | 45 | 33.75 | 150 | 600 | 6 | 7.2 |
| 102GB555F-12V-80 | 12 | 80 | 60 | 180 | 600 | 2 | 7.2 |
| 102GB555F-24V-10 | 24 | 10 | 7.5 | 230 | 1000 | 100 | 24 |
| 102GB555F-24V-20 | 24 | 20 | 15 | 200 | 1000 | 40 | 24 |
| 102GB555F-24V-40 | 24 | 40 | 30 | 230 | 1000 | 30 | 24 |
| 102GB555F-24V-60 | 24 | 60 | 45 | 150 | 500 | 10 | 12 |
| 102GB555F-24V-90 | 24 | 90 | 67.5 | 230 | 1000 | 13 | 24 |
| 102GB555F-24V-160 | 24 | 160 | 120 | 280 | 1000 | 4 | 24 |
Unit Net Weight: Approx. 460g
Notes:
- Rated Torque: Measured at the rated operating point, in kgf·cm (kilogram-force centimeter).
-
Input Power: Calculated as
Voltage × Rated Currentunder rated load conditions. - Speed: "No-load Speed" refers to the speed when no load is applied; "Rated Speed" refers to the speed under rated load.
