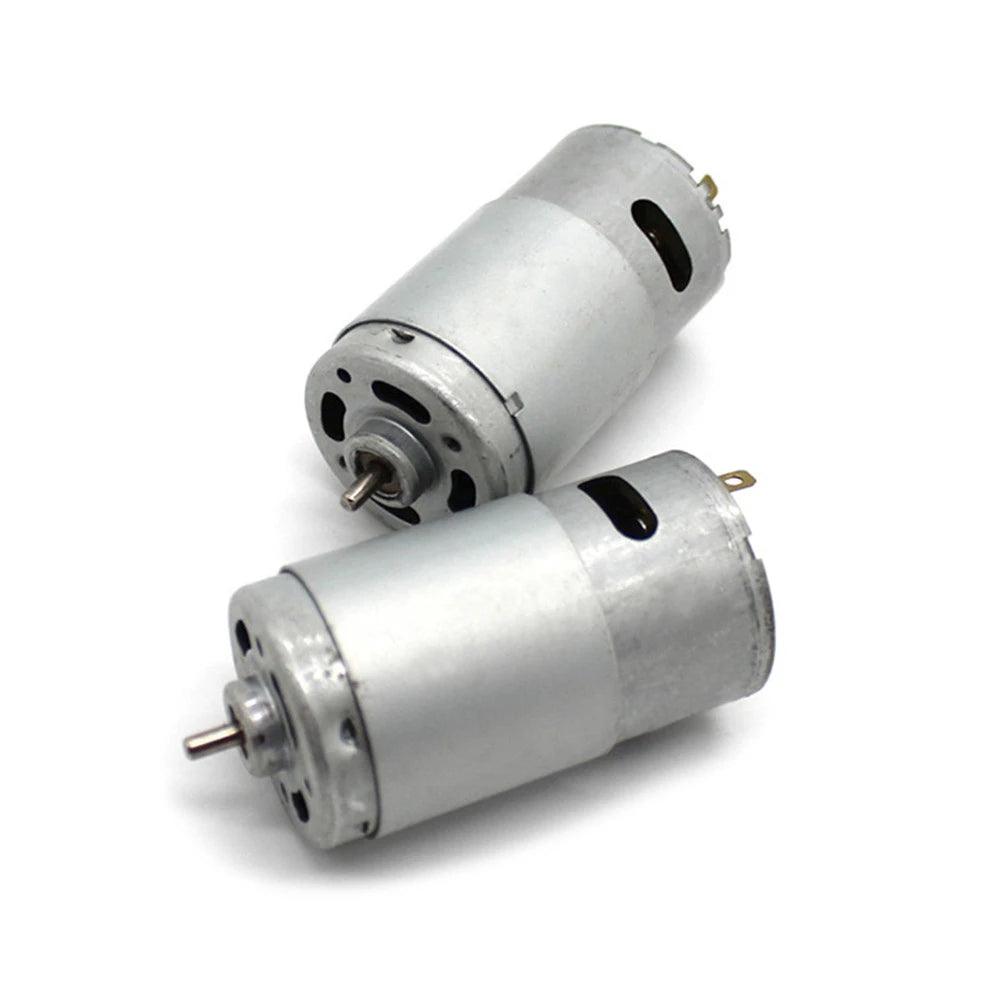

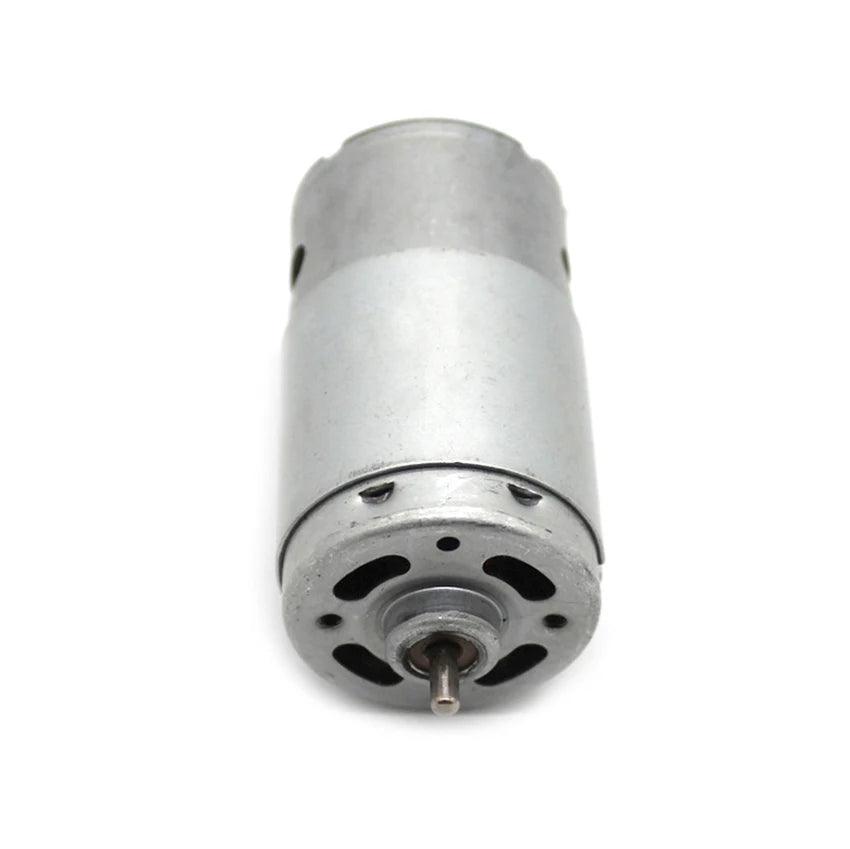

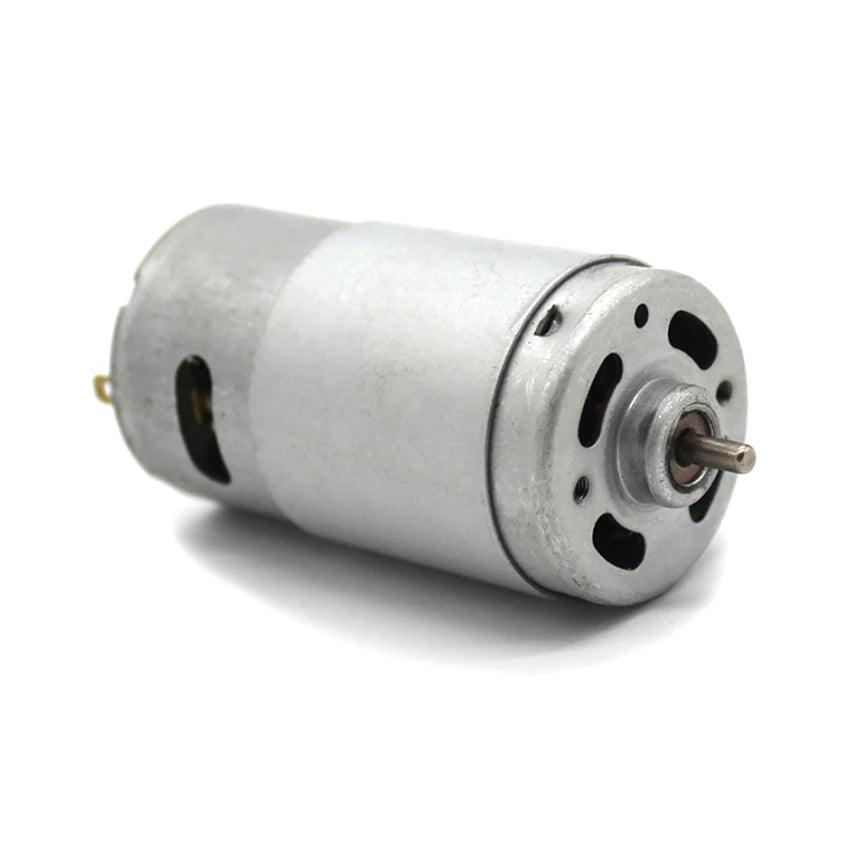

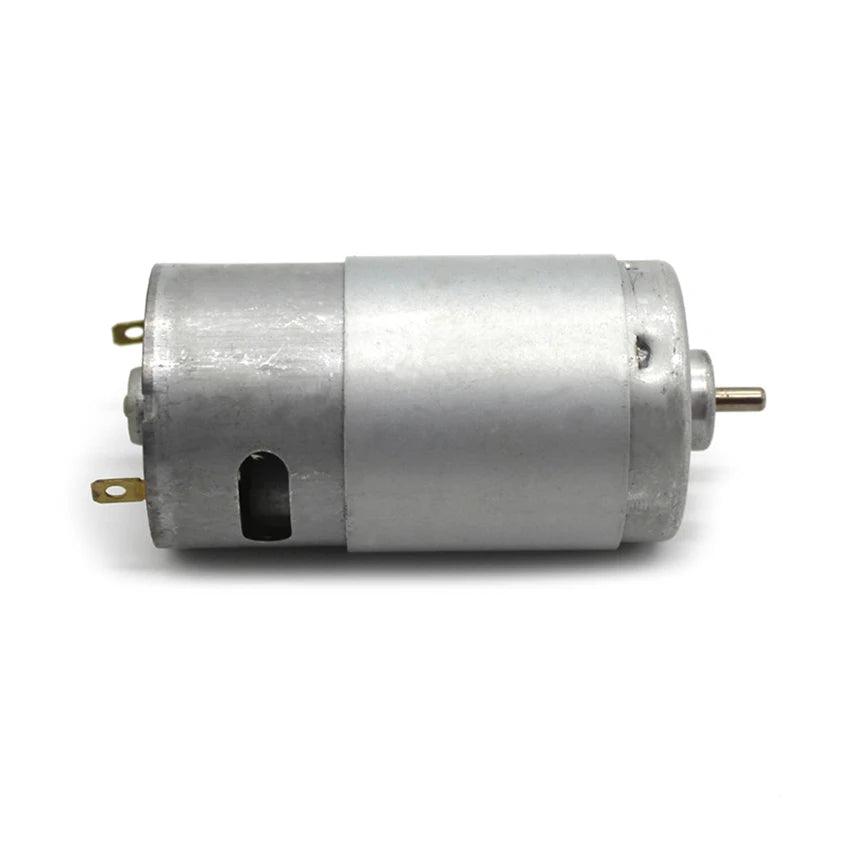

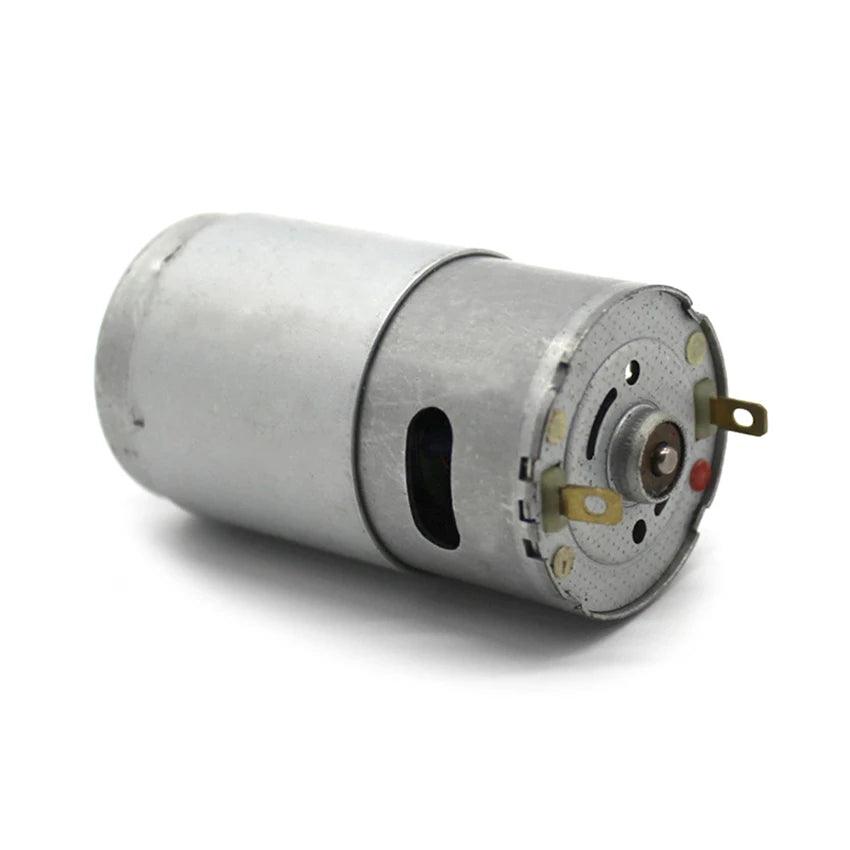

575 Micro DC Motor 12V 3200rpm High Speed Large Torque Metal Moter Low Noise Electric DC12V DIIY Technology Tool Model Drill

SPECIFICATIONS

575 Micro DC Motor 12V 3200rpm High Speed Large Torque Metal Moter Low Noise Electric DC12V DIIY Technology Tool Model Drill,high torque high rpm dc motor

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brush

Type: Micro Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Model Number: 575 DCmotor

575 motor, 3.175 mm shaft diameter, need 12V voltage drive Oh! It is suitable for making all kinds of handicrafts.

Rated voltage: DC 12V

Product speed: about 3200 rpm

Motor diameter: 37mm

Step height: 4.5mm

Step diameter: 13mm

Motor length: 65.4mm (excluding shaft)

Shaft diameter: 3.17mm

Motor shaft length: 7mm

Installation hole distance: About 25mm

Mounting aperture: m3 (fixed with 3mm screw)
