5V L-Type Mini Electric Linear Actuator

Name: 5V L-Type Mini Electric Linear Actuator
Brand: electrical center b2c
SKU: 5V L-shaped Linear Actuator Stroke 5MM/ Speed 4mm/s 40N(4KG) with protection modular
Price: 54.21 USD
Availability: InStock

$54.21 USD

Sale Sold out

Shipping calculated at checkout.

Model NO. 5V L-shaped Linear Actuator Stroke 5MM/ Speed 4mm/s 40N(4KG) with protection modular 5V L-shaped Linear Actuator Stroke 10MM/ Speed 4mm/s 40N(4KG) with protection modular 5V L-shaped Linear Actuator Stroke 15MM/ Speed 4mm/s 40N(4KG) with protection modular 5V L-shaped Linear Actuator Stroke 20MM/ Speed 4mm/s 40N(4KG) with protection modular 5V L-shaped Linear Actuator Stroke 5MM/ Speed 8mm/s 20N(2KG) with protection modular 5V L-shaped Linear Actuator Stroke 10MM/ Speed 8mm/s 20N(2KG) with protection modular 5V L-shaped Linear Actuator Stroke 15MM/ Speed 8mm/s 20N(2KG) with protection modular 5V L-shaped Linear Actuator Stroke 20MM/ Speed 8mm/s 20N(2KG) with protection modular

Product variants

Quantity

5V L-Type Mini Electric Linear Actuator, 4/8mm/s Speed, 20-40N Max Thrust, 5/10/15/20mm Stroke, Tiny Telescopic Push Rod Motor with Stall Protection

Specification

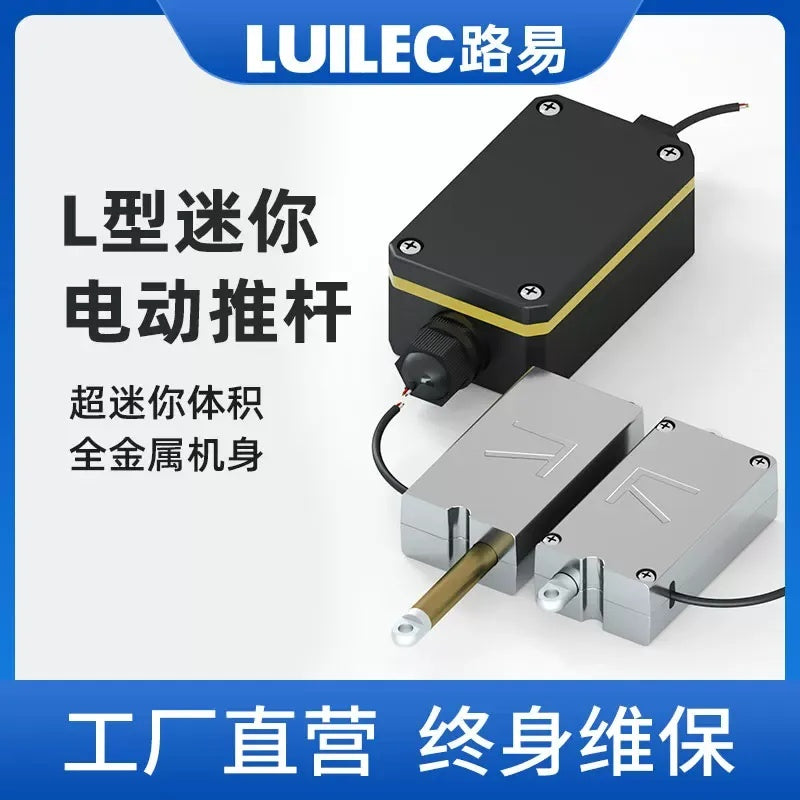

This L-shaped micro linear actuator is an ultra-compact telescopic motor designed for small-scale automation, robotics, and DIY projects. It operates on 5V DC with two speed options (4mm/s for high thrust, 8mm/s for faster movement) and features a maximum thrust of 40N. Available in fixed strokes of 5/10/15/20mm (customizable), it includes built-in stall protection (stops when encountering resistance) to prevent damage. The zinc alloy body and brass telescopic rod ensure durability, while low current draw (0.02A no-load) makes it ideal for battery-powered applications. Perfect for small robots, door locks, mini lifting mechanisms, and precision projects requiring compact linear motion.

DATA SHEET

Name	Parameter
Product Type	Linear Actuator / Micro Linear Actuator
Model Number	LMNTL
Rated Voltage	5V DC
Speed Range	4mm/s / 8mm/s
Max Thrust	20N / 40N
Stroke Length	5/10/15/20mm (Customizable 0-20mm)
Material	Zinc Alloy Body + Brass Telescopic Rod
Protection Features	Stall Protection (Stall Stop)
Control Module	With Protection Module Included
No-Load Current	0.02A
Operating Temperature	-26°C ~ +85°C
Duty Cycle	10% (2min ON / 18min OFF)
Application	Small Robotics, DIY Projects, Door Locks, Precision Automation
Features	Ultra-Compact, Low Power Consumption, Durable, Easy Installation
