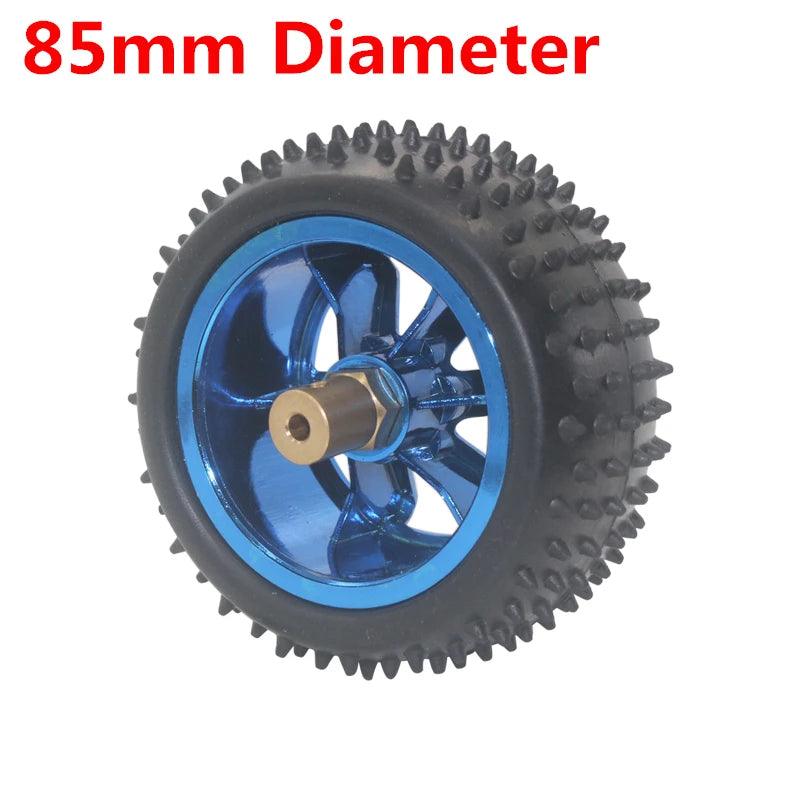

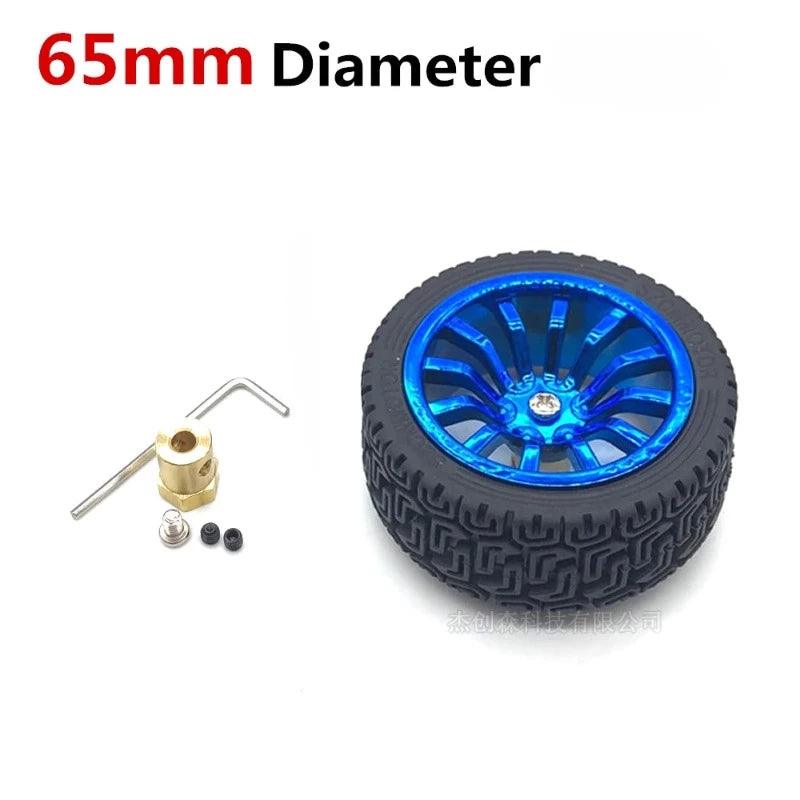

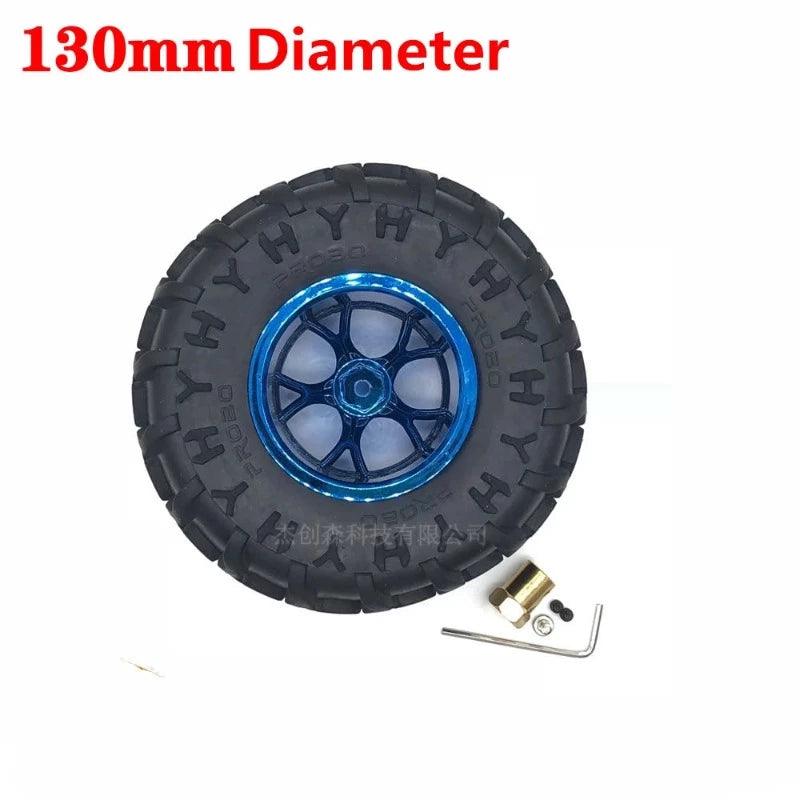

65mm 85mm 130mm Wheel Hub Motor Kit Encode DC 6V 12V 24V Speed 12- 1360rpm Metal Gearbox Encoder Moter RC Car Robot JGA25-370
Couldn't load pickup availability
encoder wheel hub motor kit, 65mm 85mm 130mm,electric hub motor for car,hub motors,wheel motor,
65mm 85mm 130mm Wheel Hub Motor Kit Encode DC 6V 12V 24V Speed 12- 1360rpm Metal Gearbox Encoder Moter RC Car Robot JGA25-370,dc motor with encoder,brushless dc motor with encoder,bldc motor with encoder,brushless motor with encoder
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Continuous Current(A): 100ma
Output Power: 3W
Commutation: Brush
Type: Gear Motor
Protect Feature: Totally Enclosed
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: JGA25-370 Encoder Motors
Torque: max 8kg.cm

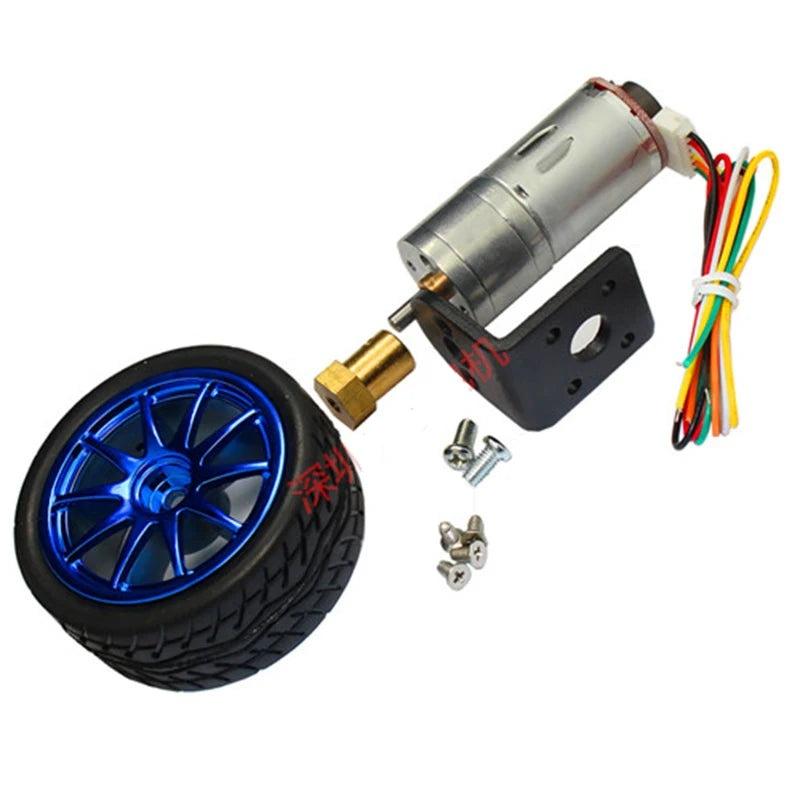

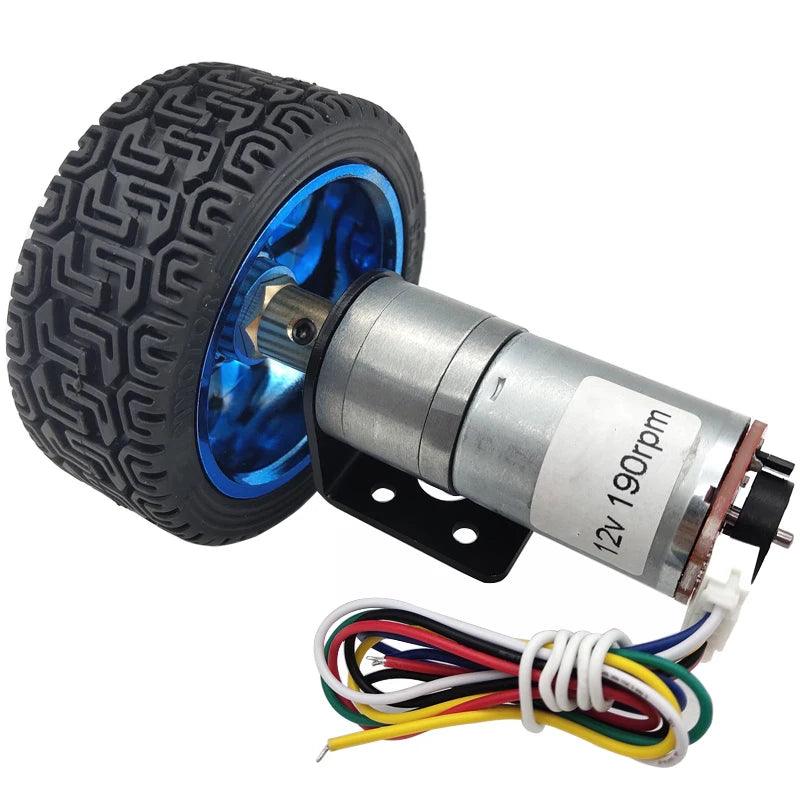

The following is the picture of the motor

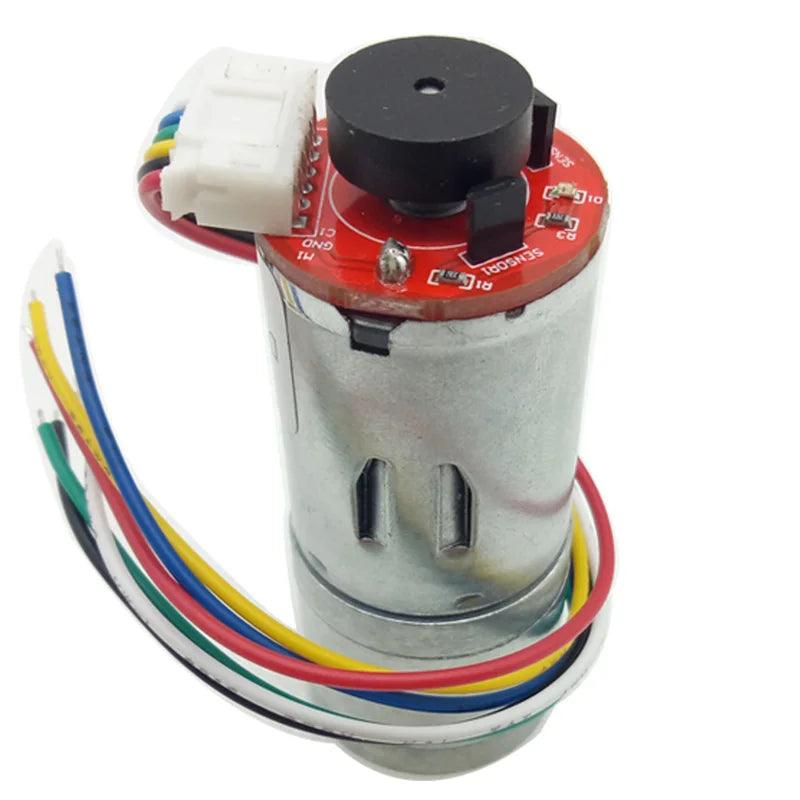

Wiring method:
-
Red Wire - positive power supply of motor(+)(change positive and negative of motor the rotation will change)
-
White Wire - negative power supply of motor(-)(change positive and negative of motor the rotation will change))
-
Yellow Wire - signal feedback (motor one turn has 11 signals)
-
Green Wire - signal feedback (motor one turn has 11 signals)
-
Blue Wire - positive of encoder power supply(+)(3.3-5V),cannot be wrong
-
Black Wire - negative of encoder power supply(-)(3.3-5V),cannot be wrong
