7-Shape 520 DC Gear Motor 12V/24V Low Speed High Torque

Name: 7-Shape 520 DC Gear Motor 12V/24V Low Speed High Torque
Brand: electrical center b2c
SKU: Single 520 7-shape DC Gear Motor / DC12V 110RPM (2kgf.cm) SKU for Single 520 7-shape DC Gear Motor / DC12V 110RPM (2kgf.cm)
Price: 25.7 USD
Availability: OutOfStock

$25.70 USD

Sale Sold out

Shipping calculated at checkout.

Motor Config.- Single 520 7-shape DC Gear Motor

Motor Speed&Torque DC12V 35RPM (1.2kgf.cm) DC12V 75RPM (1.5kgf.cm) DC12V 110RPM (2kgf.cm) DC12V 145RPM (1.4kgf.cm) DC12V 185RPM (1.6kgf.cm) DC12V 350RPM (1.5kgf.cm) DC24V 70RPM (2.5kgf.cm) DC24V 145RPM (2.1kgf.cm) DC24V 290RPM (2.2kgf.cm)

Product variants

Quantity

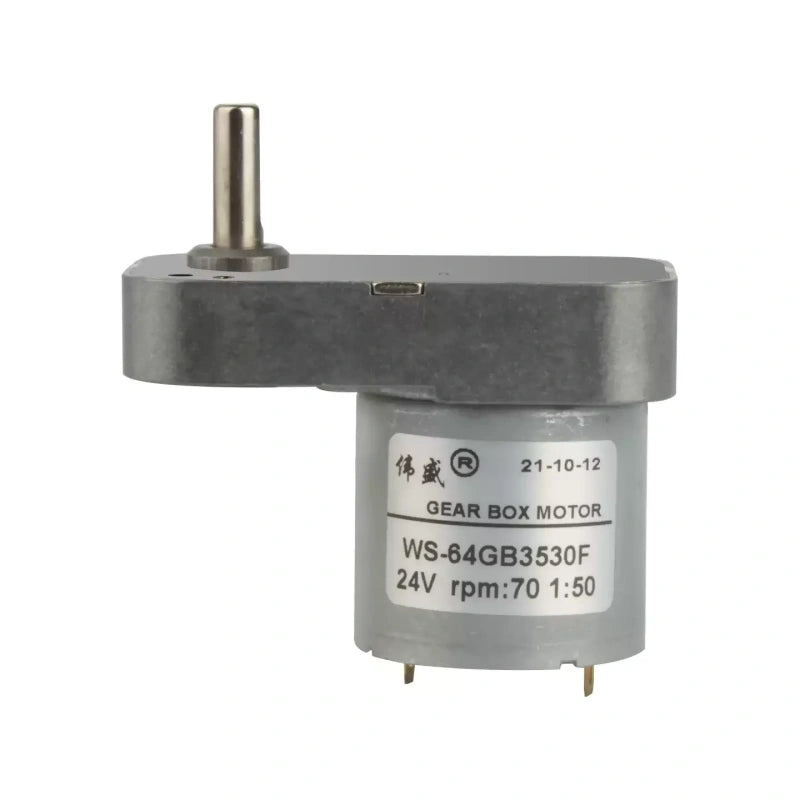

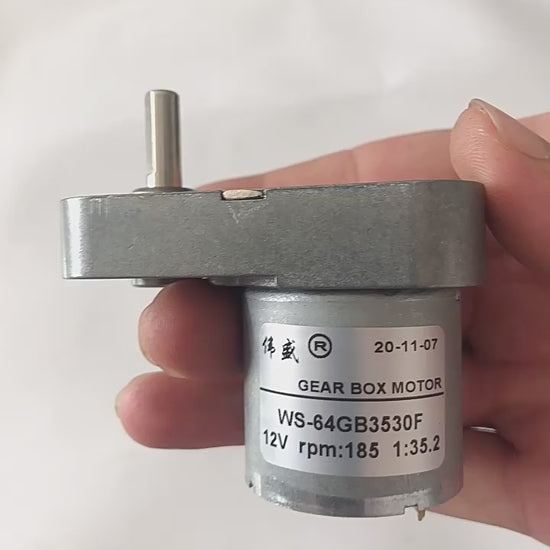

520 7-Shape DC Gear Motor 12V/24V Low Speed High Torque Motor

Product Description

7-shaped right-angle DC gear motor with metal gears, 12V/24V options, speeds from 5RPM to 350RPM. Reversible, speed-controllable, ideal for vending machines, arcade games, and automation projects.

Specification

属性项	内容
`brand`	Electrical Center B2C
`model`	64GB3530F
`type`	7-Shape DC Gear Motor
`rated voltage`	12V / 24V DC
`speed options (RPM)`	12V: 35, 75, 110, 145, 185, 350 24V: 75, 145, 290
`structure`	7-shaped gearbox (offset shaft)
`motor type`	520 DC motor, all-copper winding

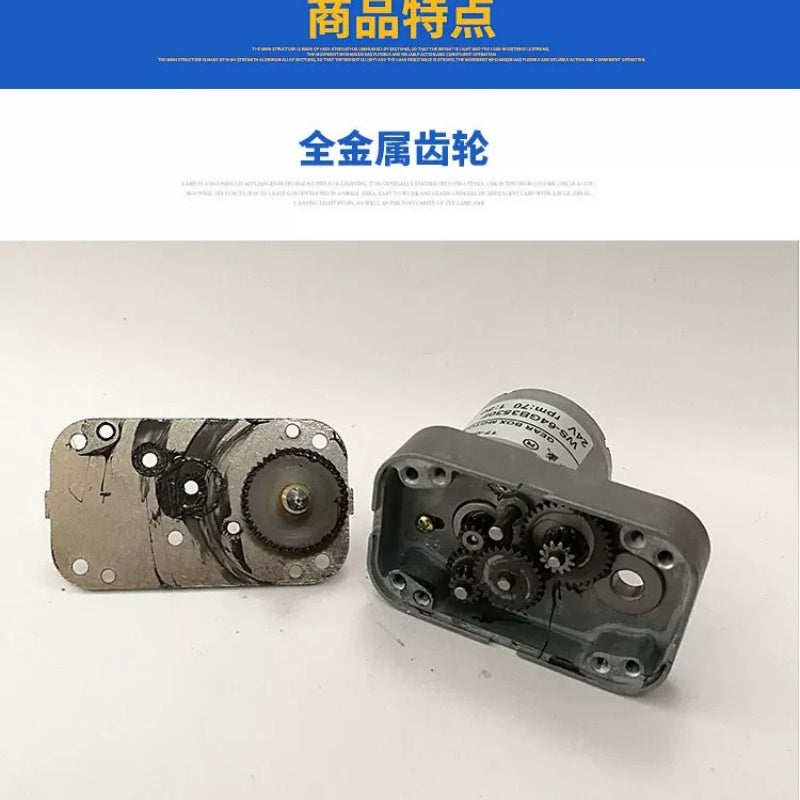

`gear material`	Metal gears (impact-resistant)
`magnet type`	High-quality magnetic tiles (high torque)
`features`	Reversible, speed-controllable, high torque, low noise
`application`	Vending machines, game consoles, automation equipment, DIY projects
`options`	Motor only
`warranty`	1 year

3. Key Points

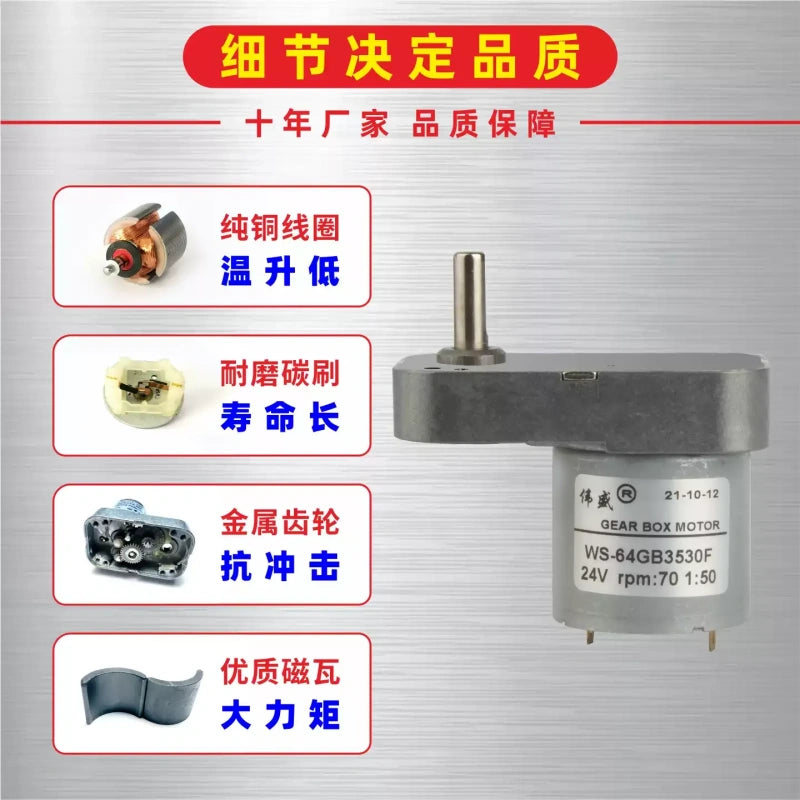

✅ Right-Angle (7-Shape) Design: Ideal for tight spaces in kiosks, vending machines, and arcade cabinets.

✅ Metal Gearbox: Durable, impact-resistant gears extend service life and handle frequent use.

✅ High Torque Performance: High-quality magnetic tiles deliver strong torque while remaining energy-efficient.

✅ All-Copper Motor: Low heat generation, stable performance, and long operational life.

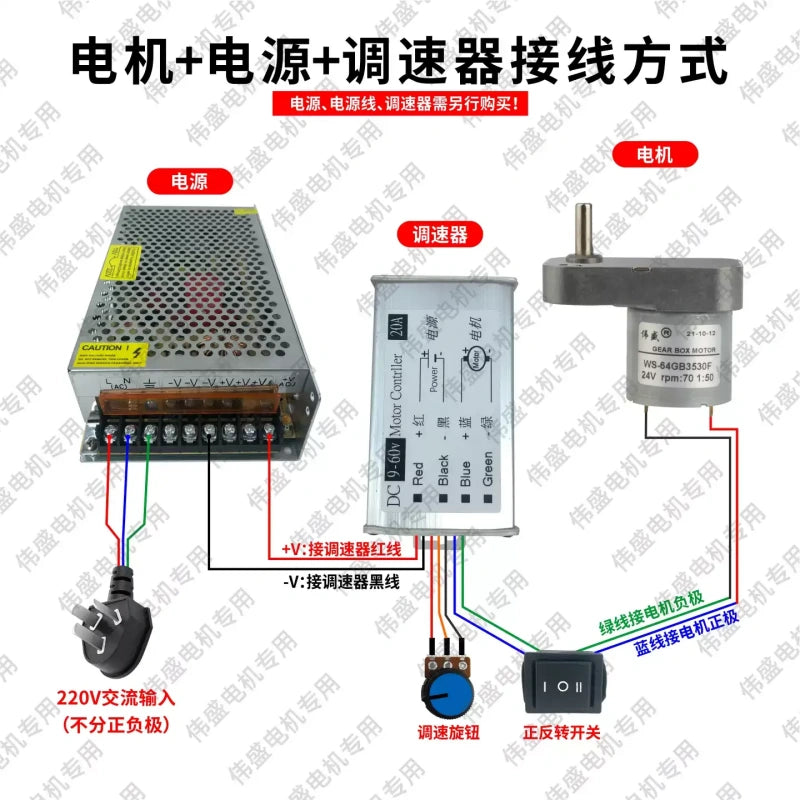

✅ Versatile Control: Supports forward/reverse rotation and speed control with PWM drivers.

✅ Multiple Speed Options: 12V and 24V variants with a wide range of speeds to match your project needs.

4. Applications

This motor is widely used in:

Robotics & Automation: Robots, robotic arms, and automated machinery
Kiosks & Vending: Vending machines, arcade game consoles, and financial equipment (ATMs)
Medical & Education: Medical devices, dental chairs, and teaching instruments
Security & Surveillance: Pan-tilt cameras, searchlights, and parking locks
Home & Commercial: Display stands, rotating racks, and gas meters

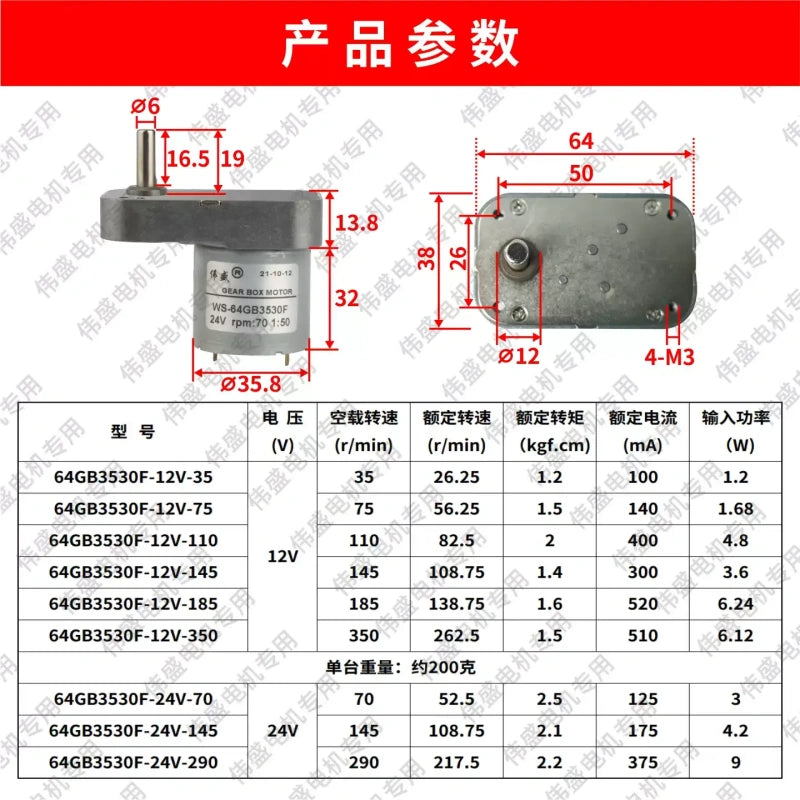

64GB3530F DC Gear Motor – Technical Parameters

This is the complete specification table for the 64GB3530F series DC gear motors, including both 12V and 24V variants.

Motor Parameter Reference Table

Model	Voltage (V)	No-load Speed (r/min)	Rated Speed (r/min)	Rated Torque (kg·cm)	Rated Current (mA)	Weight (g)	Gear Ratio
64GB3530F-12V-35	12	35	26.25	1.2	100	~200	50
64GB3530F-12V-75	12	75	56.25	1.5	140	~200	35
64GB3530F-12V-110	12	110	82.5	2.0	400	~200	50
64GB3530F-12V-145	12	145	108.75	1.4	300	~200	25
64GB3530F-12V-185	12	185	138.75	1.6	520	~200	35
64GB3530F-12V-350	12	350	262.5	1.5	510	~200	20.5
64GB3530F-24V-70	24	70	52.5	2.5	125	~200	50
64GB3530F-24V-145	24	145	108.75	2.1	175	~200	35
64GB3530F-24V-290	24	290	217.5	2.2	375	~200	25
