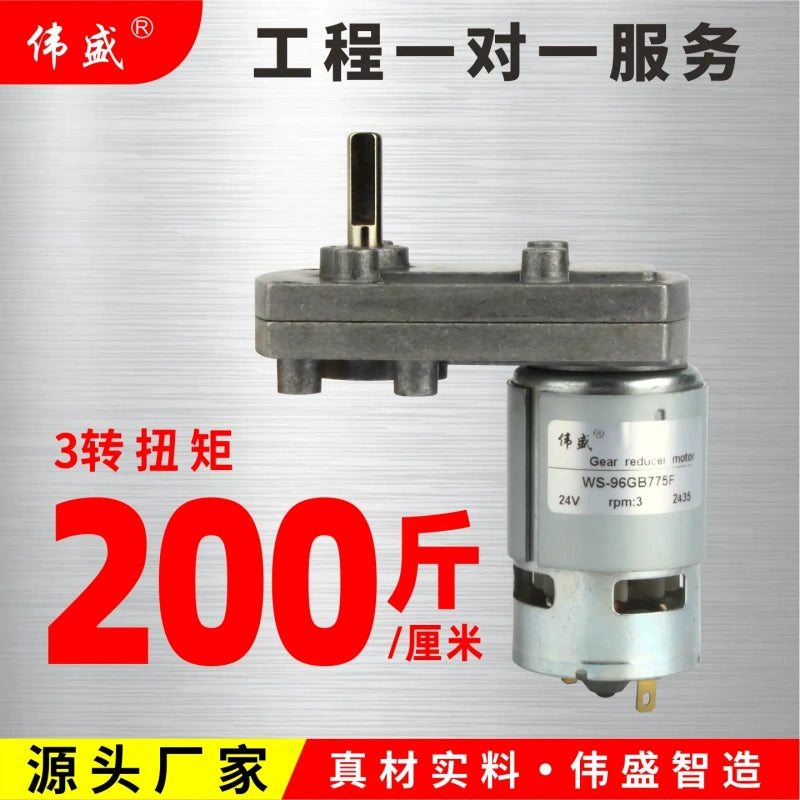

775 7-Shape DC Gear Motor 12V 24V Low Speed High Torque
Regular price
$44.30 USD
Regular price
$35.30 USD
Sale price
$44.30 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

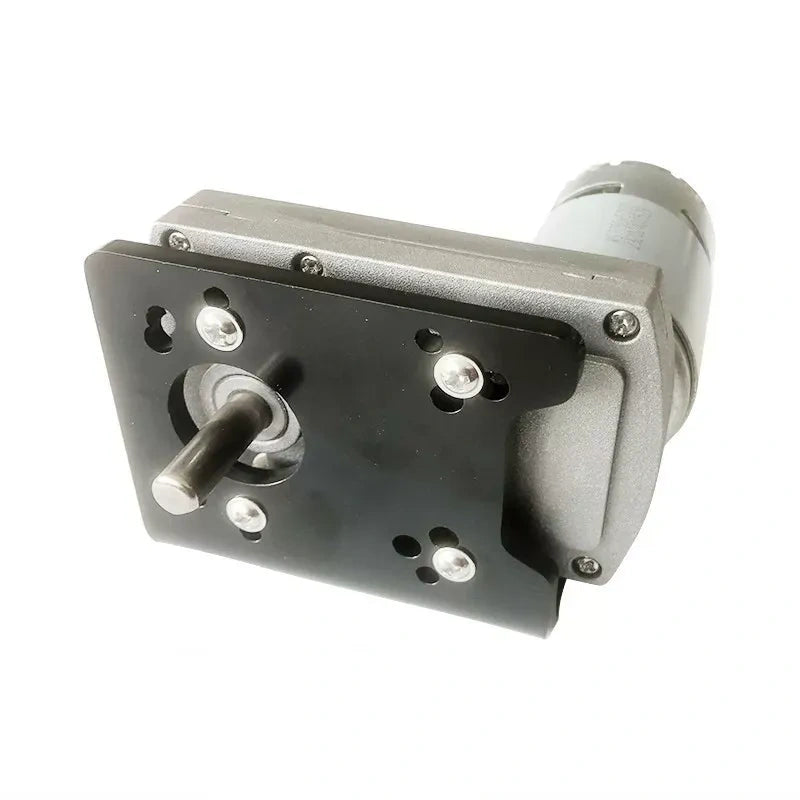

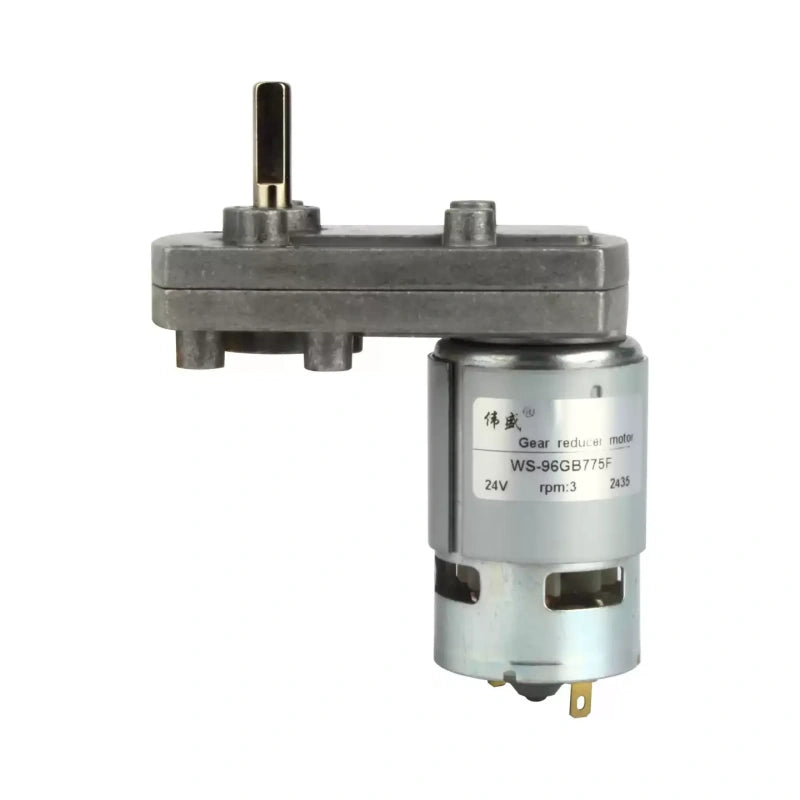

775 7-Shape DC Gear Motor 12V 24V Low Speed High Torque Reversible Speed Adjustable Motor

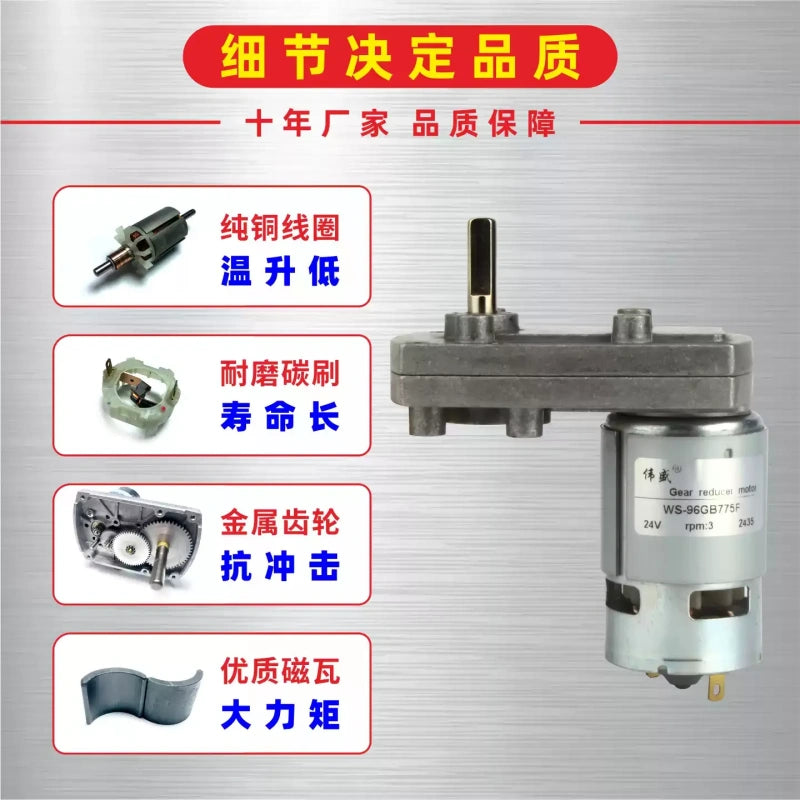

Product Description

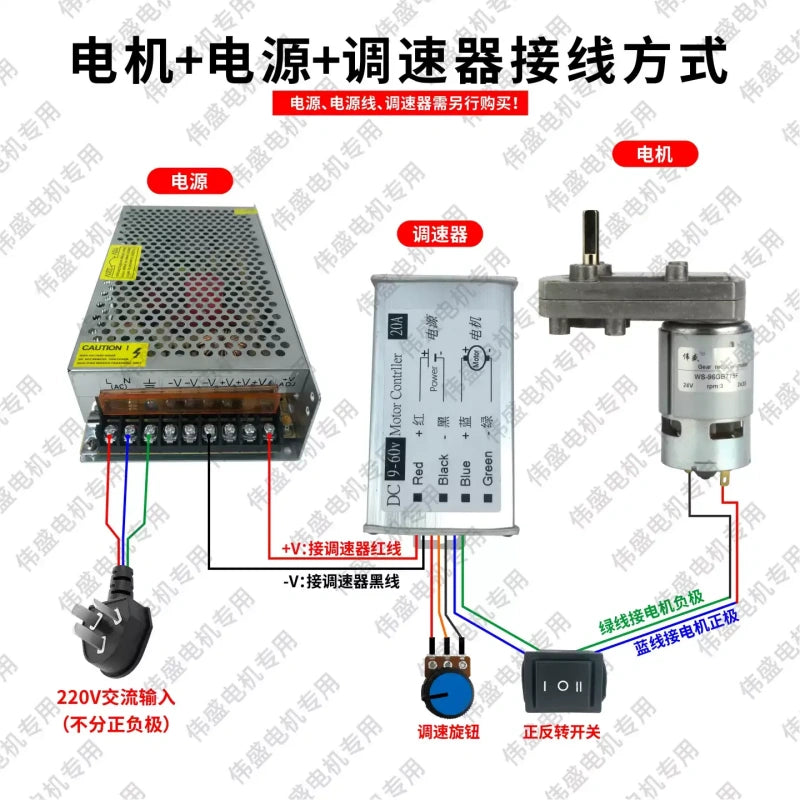

775 type right angle DC gear motor with 7-shaped structure, 12V / 24V optional, low speed and large torque design. Supports forward & reverse rotation and PWM speed control, stable performance for industrial automation and mechanical drive equipment.

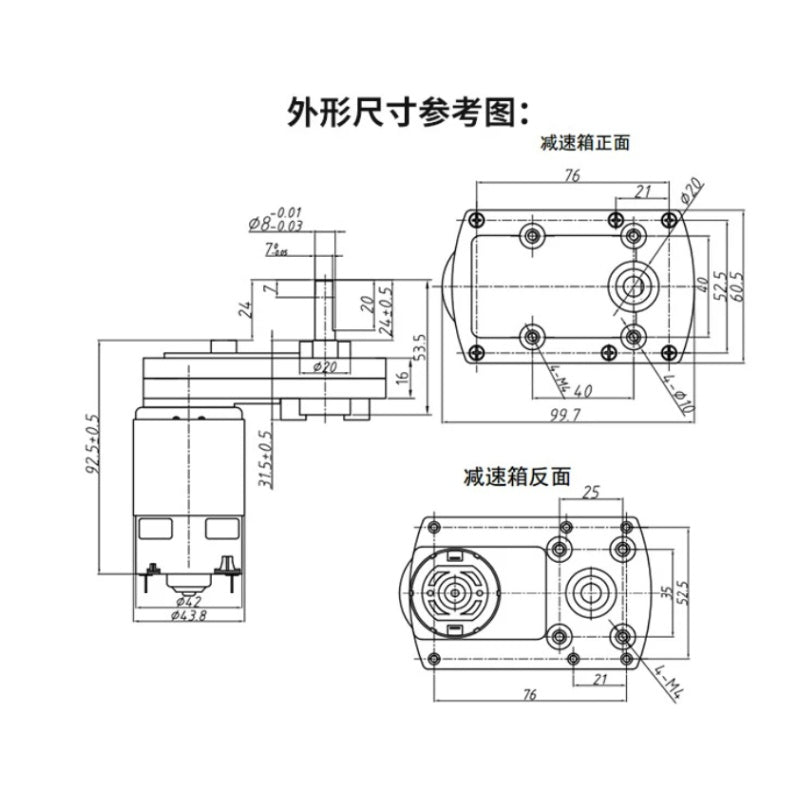

Specification
| Item | Details |
|---|---|
| Model | WS-96GB775F / 96GB775F |
| Rated Voltage | DC 12V / 24V |
| No-load Speed Range | 3r/min – 64r/min |
| Rated Speed | 75% of the no-load speed |
| Output Torque Range | 17kg·cm – 100kg·cm |
| Weight | Approx. 600g |
| Structure | 7-shaped right-angle gearbox |
| Features | Reversible rotation, PWM speed controllable, high torque, low noise |
4. Applications
This motor is widely used in:
- Robotics & Automation: Robots, robotic arms, and automated machinery
- Kiosks & Vending: Vending machines, arcade game consoles, and financial equipment (ATMs)
- Medical & Education: Medical devices, dental chairs, and teaching instruments
- Security & Surveillance: Pan-tilt cameras, searchlights, and parking locks
- Home & Commercial: Display stands, rotating racks, and gas meters
96GB775F DC Gear Motor – Full English Specifications
Here’s the complete English version of the technical data for the WS-96GB775F / 96GB775F series 7-shape DC gear motor.
Motor Parameter Information

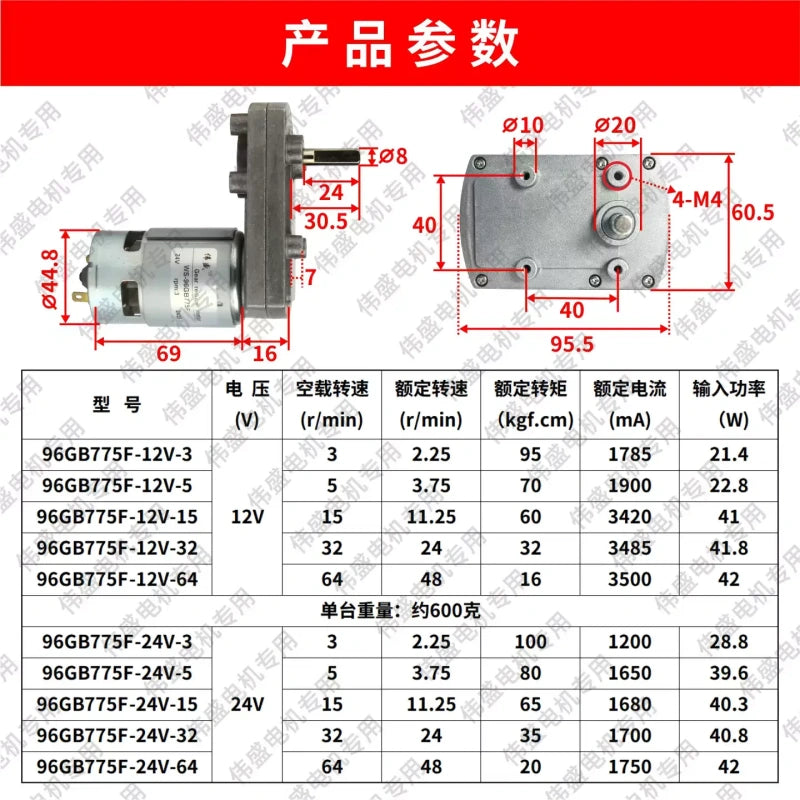

| Model | Voltage (V) | No-load Speed (r/min) | Rated Speed (r/min) | Rated Torque (kgf·cm) | Rated Current (mA) | Input Power (W) |
|---|---|---|---|---|---|---|
| 96GB775F-12V-3 | 12 | 3 | 2.25 | 95 | 1785 | 21.4 |
| 96GB775F-12V-5 | 12 | 5 | 3.75 | 70 | 1900 | 22.8 |
| 96GB775F-12V-15 | 12 | 15 | 11.25 | 60 | 3420 | 41 |
| 96GB775F-12V-32 | 12 | 32 | 24 | 32 | 3485 | 41.8 |
| 96GB775F-12V-64 | 12 | 64 | 48 | 16 | 3500 | 42 |
| 96GB775F-24V-3 | 24 | 3 | 2.25 | 100 | 1200 | 28.8 |
| 96GB775F-24V-5 | 24 | 5 | 3.75 | 80 | 1650 | 39.6 |
| 96GB775F-24V-15 | 24 | 15 | 11.25 | 65 | 1680 | 40.3 |
| 96GB775F-24V-32 | 24 | 32 | 24 | 35 | 1700 | 40.8 |
| 96GB775F-24V-64 | 24 | 64 | 48 | 20 | 1750 | 42 |
Motor Usage Precautions
Here is the full English translation of the motor usage guidelines:
- Before use, confirm that the motor voltage is correct. For DC motors, also verify that the power supply provides sufficient current.
-
Do not overload the motor. Overload protection applies to both torque and shaft load:
- The load torque must not exceed the motor's rated torque.
- Axial and radial forces on the shaft must not exceed the allowable limits.
- The measured operating current under load must not exceed the rated current.
- Always use a fuse in the circuit to prevent motor burnout due to overload.
- Do not store or operate the motor in high-temperature, humid, or corrosive gas environments, as this will degrade motor performance.
- When installing transmission components (such as gears or pulleys) onto the motor shaft, avoid abnormal impact or force during press-fitting.
- When soldering the motor terminals for power connections:
- Maintain the soldering iron temperature at 340°C ± 40°C.
- Keep the heating time within 3 seconds to prevent plastic deformation.
- Ensure solder does not flow into the motor, and do not break the wire ends, as this will impair motor function.
- When installing the motor, check that mounting screws are not too long, to avoid damaging internal components of the motor.
Care Instructions
Care Instructions
