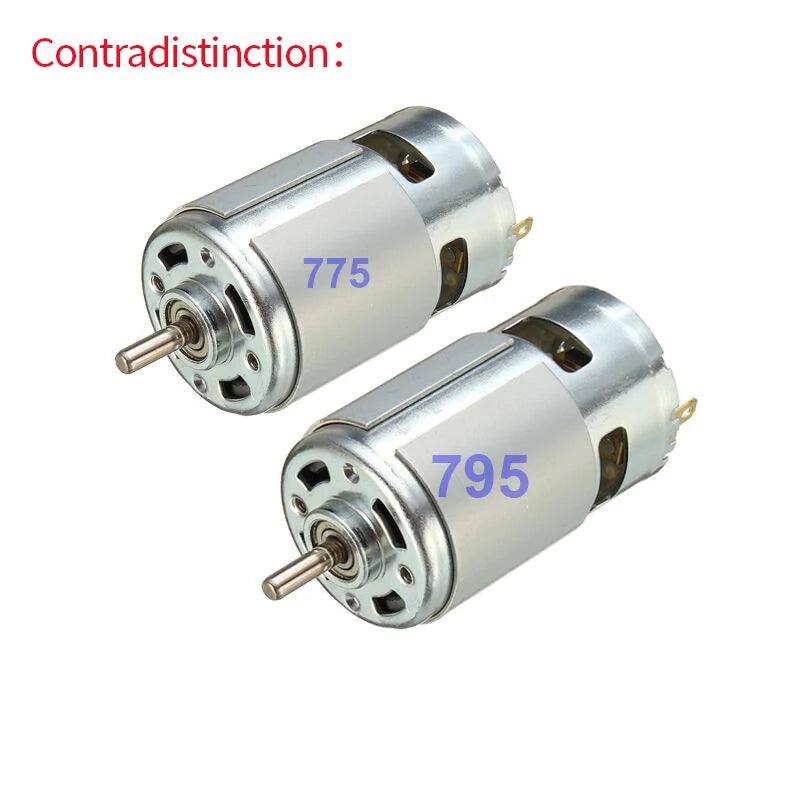

795 775 895 DC Motor Single Shaft 12V 24V Ball Bearing High Speed Power Electric 12 V Volt Moter Engine Drill Cut Tools

1. Rated voltage : DC 12V To 24V

2. No load speed : 12v is 4000rpm Troque  4.4kg.cm , 24v is 8000rpm Troque 6.7kg.cm

3. Maximum torque :  6.7 KG.CM(It is best not to reach this value when the motor is working.）

4. No load current : 2.05A

5. Support for forward and reverse rotation

6. The diameter of the motor shaft is 4MM

7. Material: The front and rear axles are ball bearings; the motor casing is galvanized and rust-proof; the carbon brush is thickened, the service life of the motor can be extended; the inner rotor uses pure copper coils, the electrical conductivity of the motor is stronger

8. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.

For example, Coffee machine ; blender ; child scooter ; micro cutter, etc.

1. Rated voltage : DC 12V To 24V

2. No load speed : 12v is10000rpmTroque  4kg.cm;  24v is 20000rpm  Troque  6kg.cm

3. Maximum torque :  6KG.CM(It is best not to reach this value when the motor is working.）

4. No load current : 2.05A

5. Support for forward and reverse rotation

6. The diameter of the motor shaft is 4MM

7. Material: The front and rear axles are ball bearings; the motor casing is galvanized and rust-proof; the carbon brush is thickened, the service life of the motor can be extended; the inner rotor uses pure copper coils, the electrical conductivity of the motor is stronger

8. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.

For example, Coffee machine ; blender ; child scooter ; micro cutter, etc.

The following are the dimensions of the 795 motor

The measuring instruments we use are different, so the data for measuring the size of the motor will be slightly different. If your device has restrictions on the installation of the motor, you need to check it before buying.

Q1: What models of DC motors are available in this listing?

A1: This listing includes 775,795 and 895 single shaft brushed DC motors. Multiple speed options are available, working voltage DC12V / DC24V. It is permanent magnet micro motor with ball bearing structure.

Q2: What voltage does this series DC motor support?

A2: Rated voltage range: DC12V to DC24V. Please select the correct voltage variant according to your power supply.

Q3: What speed & torque options can I choose?

A3:

• Low speed version: 4000-8000RPM. Max torque up to 6.7KG.CM
• High speed version:10000-20000RPM. Max torque up to 6KG.CM We have multiple preset RPM variants for 775 /795 /895 motor. Higher speed models come with relatively lower torque.

Q4: What is the shaft diameter of the motor?

A4: The motor shaft diameter is 4mm.

Q5: Can this motor rotate forward and reverse?

A5: Yes, it supports forward & reverse rotation. Swap the positive and negative power wires to change rotation direction.

Q6: What is the build material of this motor?

A6: It adopts double ball bearings on front and rear shafts. Galvanized anti-rust housing, thickened carbon brushes and pure copper inner coils for better conductivity and longer service life.

Q7: What is the protection feature of this motor?

A7: It is explosion-proof permanent magnet brushed micro DC motor. Please note it is not fully waterproof.

Q8: What are the typical applications for these 775/795/895 DC motors?

A8: Widely used for boats, cars, electric bicycles, fans, coffee machines, blenders, kids scooters, micro cutting tools, DIY drills, small automation equipment and various DIY mechanical projects.

Q9: What is the no-load current?

A9: The no-load current is approx 2.05A. Avoid continuous running at maximum torque to prevent overheating.

Q10: What certification does this motor have?

A10: It has CCC certification, brand: HYSMOTOR, made in Mainland China.

Q11: Does this product include speed controller or mounting bracket?

A11: Package only contains the DC motor. Speed controllers, brackets and power supplies are sold separately.
