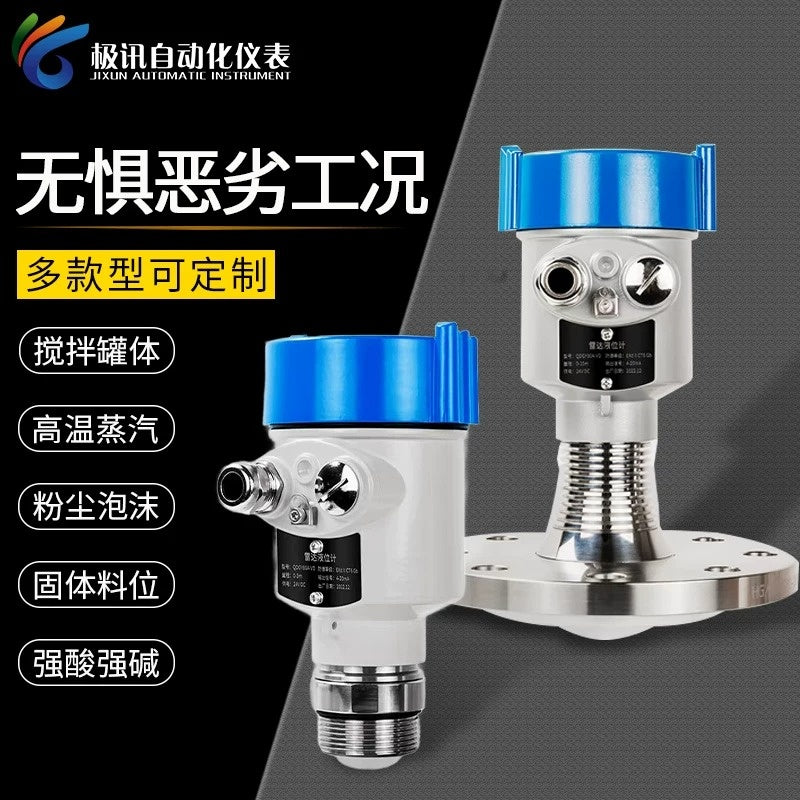

80GHz FMCW Radar Level Transmitter
Regular price
$462.80 USD
Regular price
Sale price
$462.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

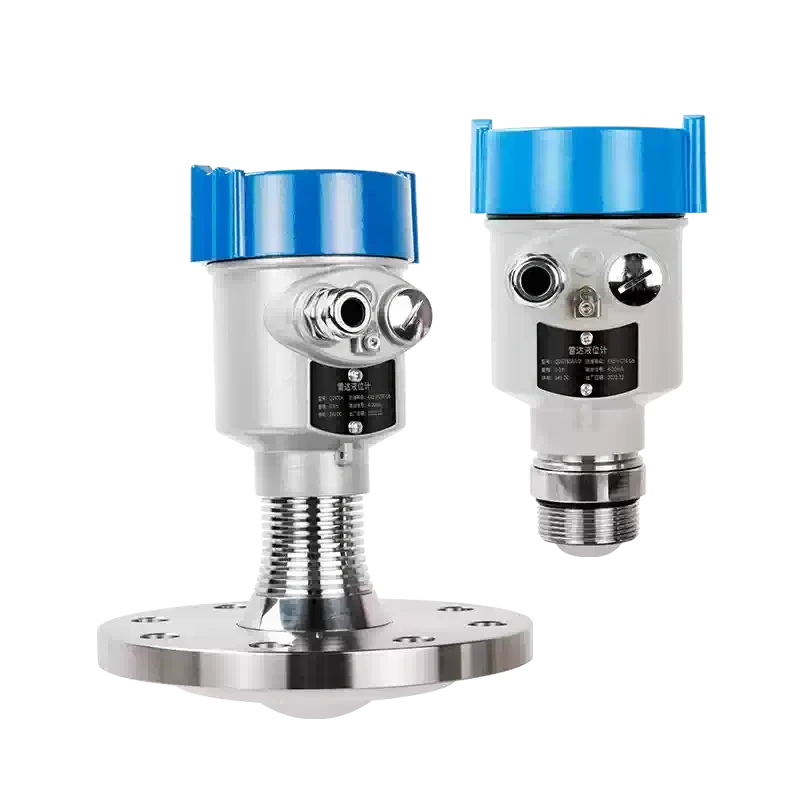

80GHz FMCW Radar Level Transmitter, ±1mm High Precision Non-Contact Liquid Solid Level Sensor, 0~120m Range IP67 Explosion Proof for Sewage, Cement Silo, Corrosive Tank
-
常规液体螺纹款

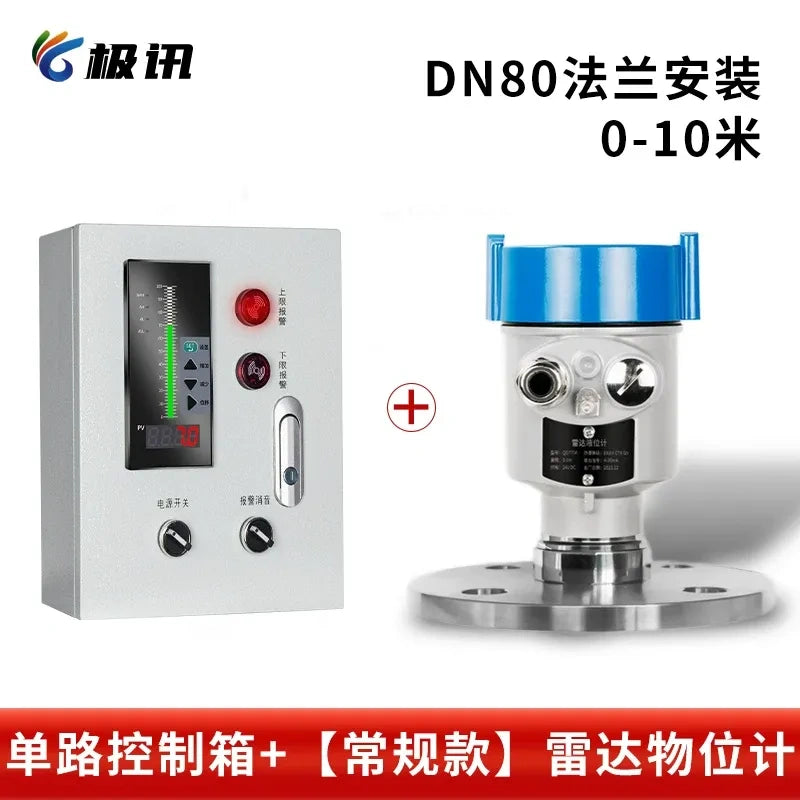

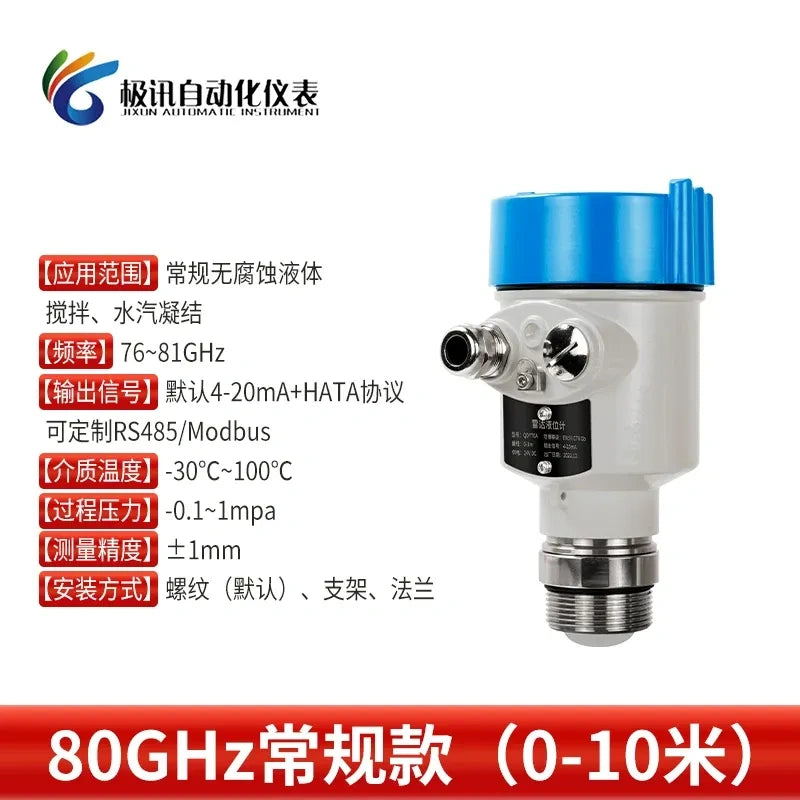

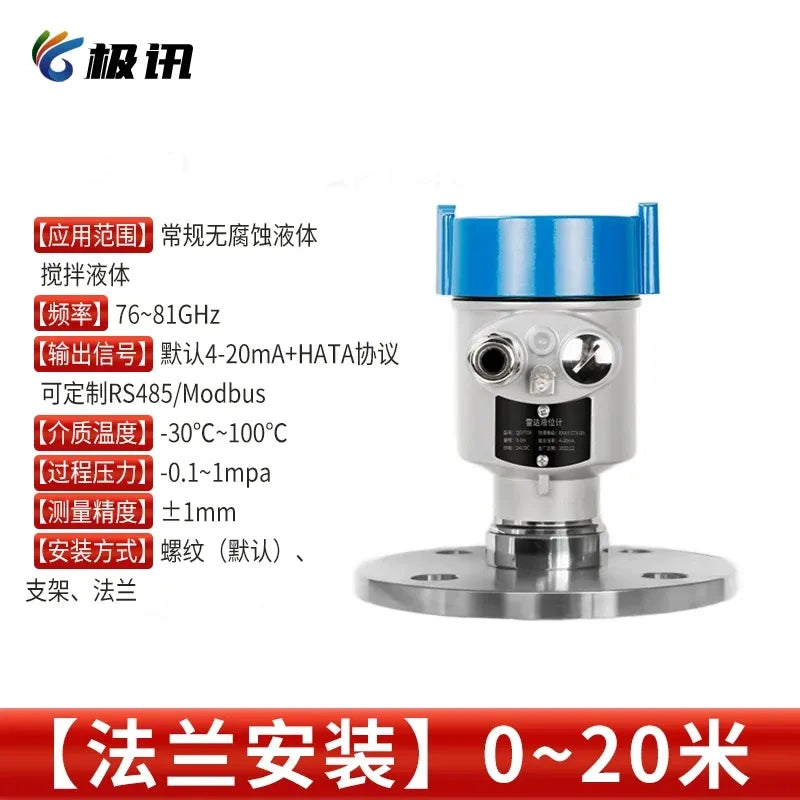

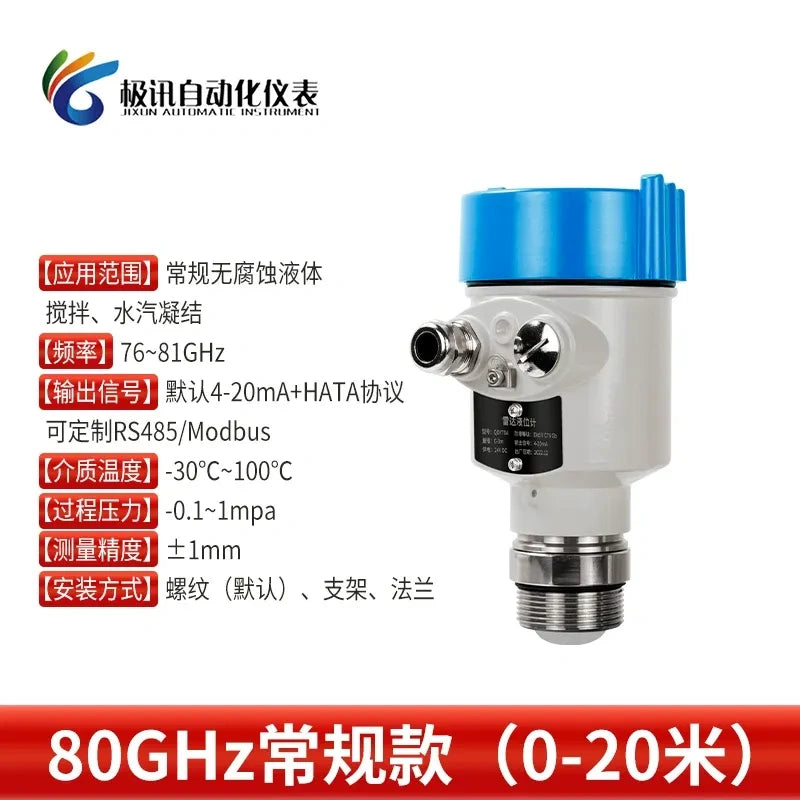

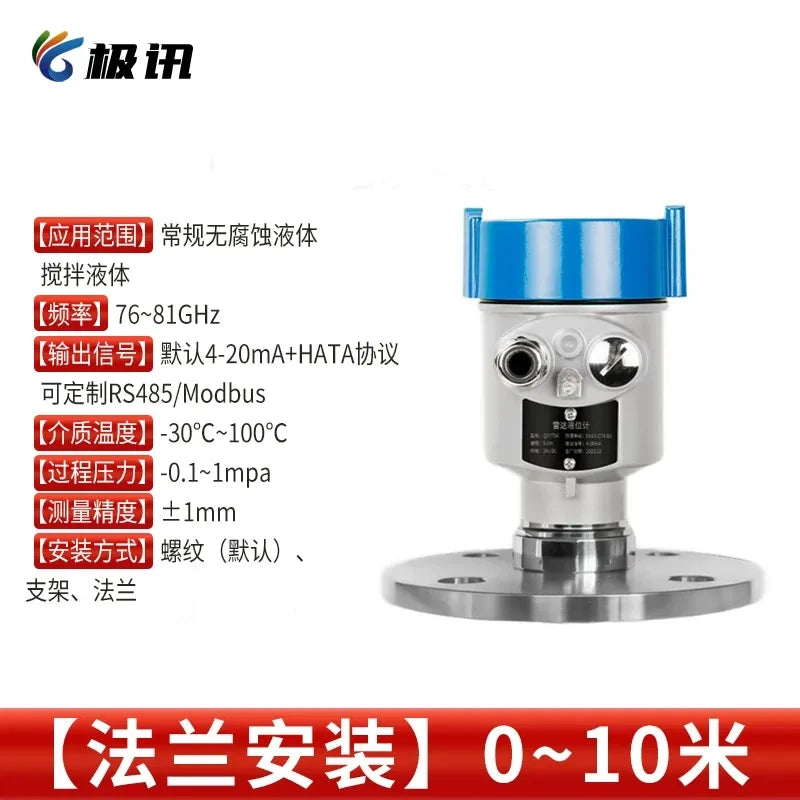

80GHz Radar Liquid Level Gauge Thread Mount 4-20mA HART, 0~20m Range Anti-Foam Anti-Stirring for Waste Water Tank -
高温防腐法兰款

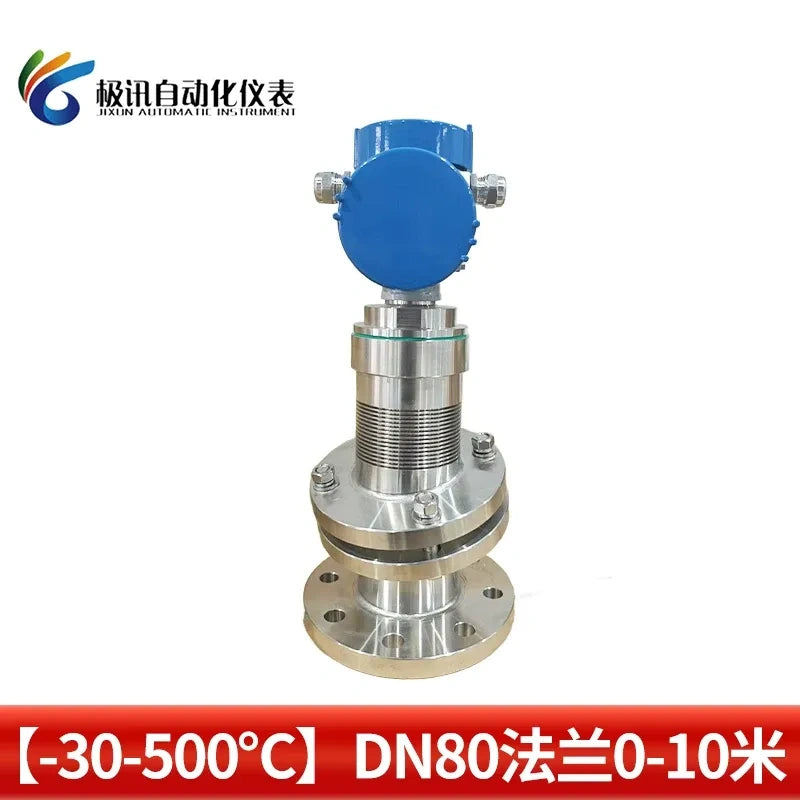

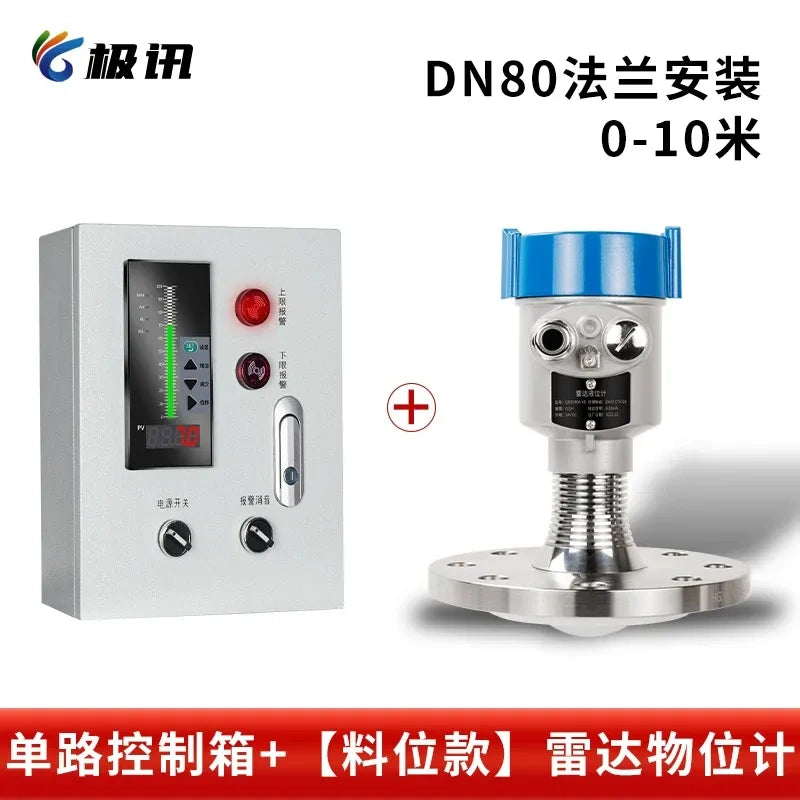

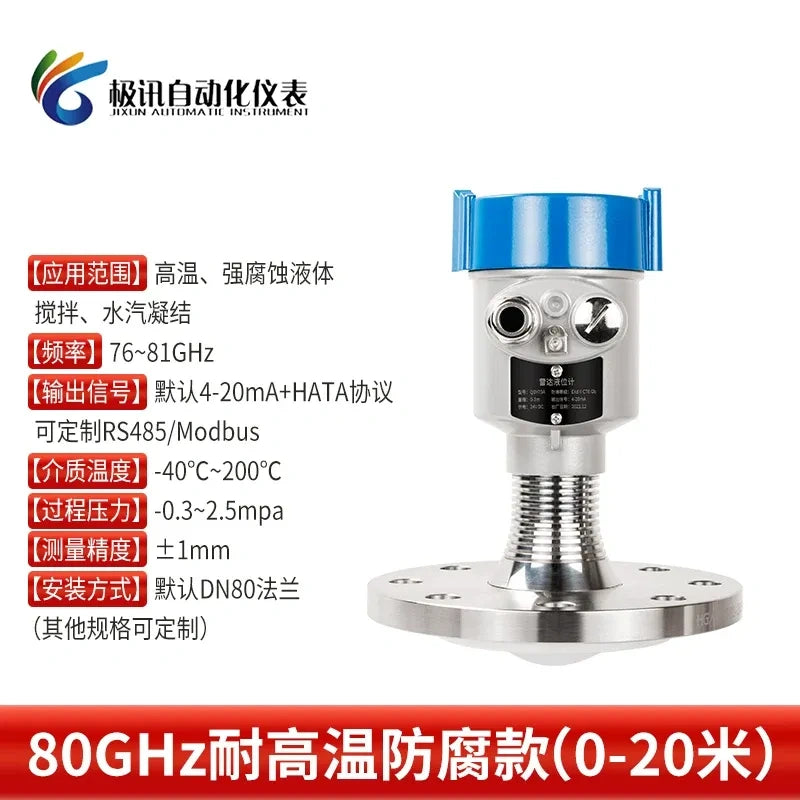

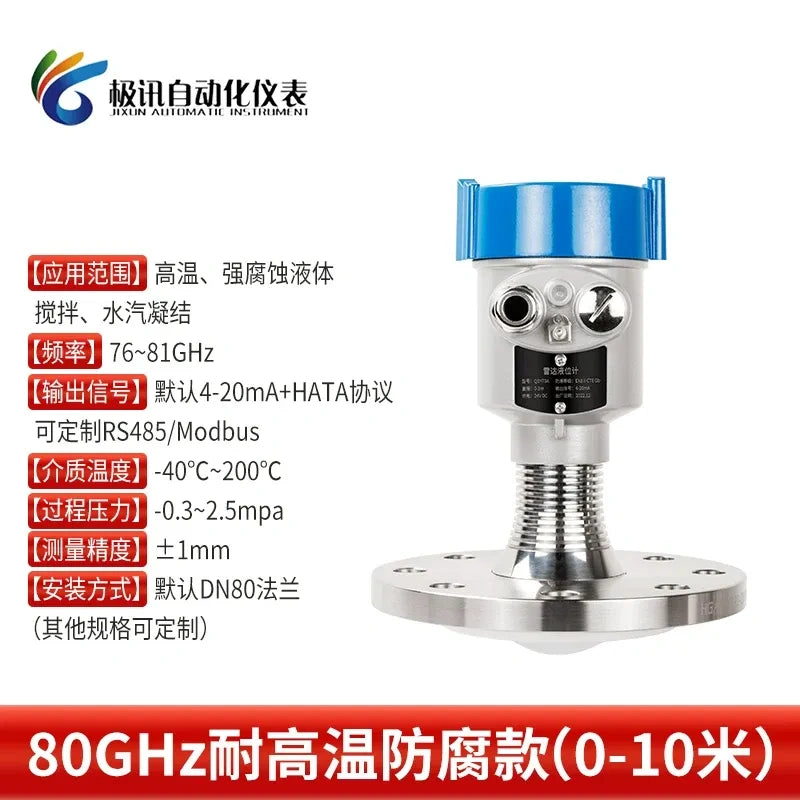

High Temperature Anti-Corrosion Radar Level Transmitter DN80 Flange -40~500℃, Corrosive Chemical Liquid Level Meter -
固体粉料万向吹扫款

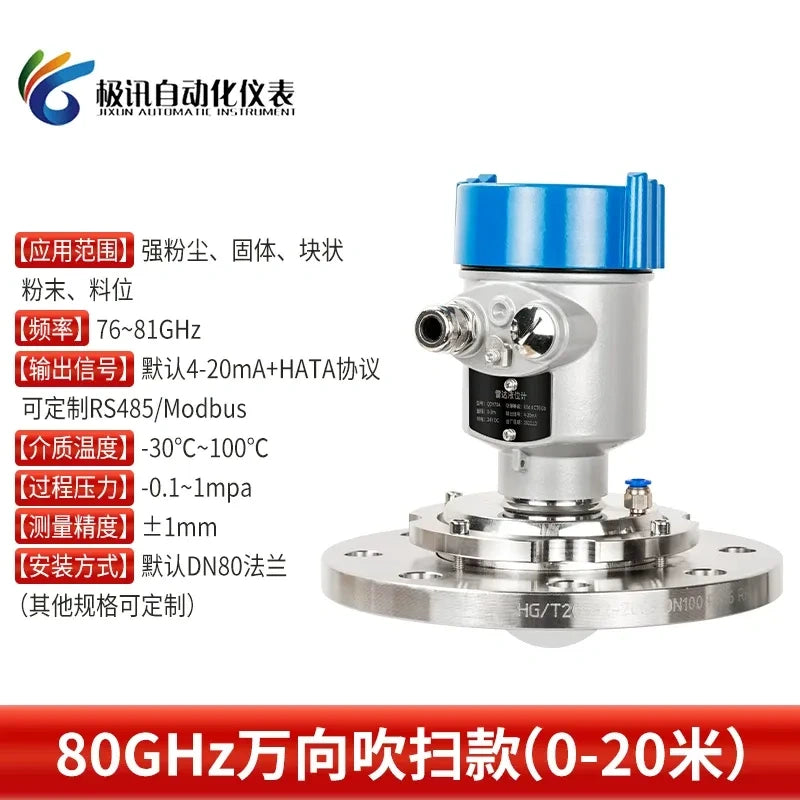

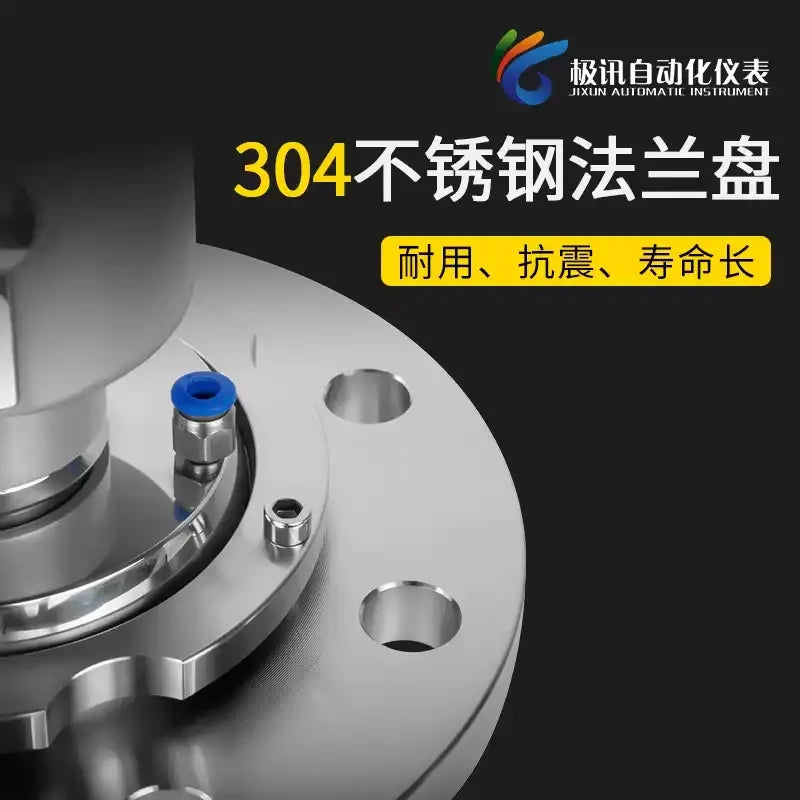

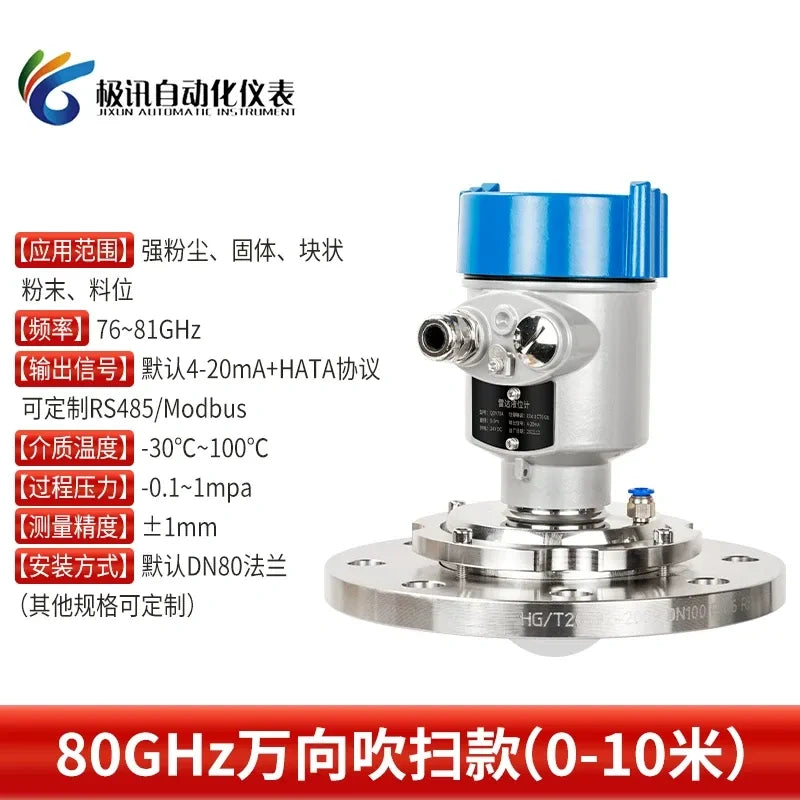

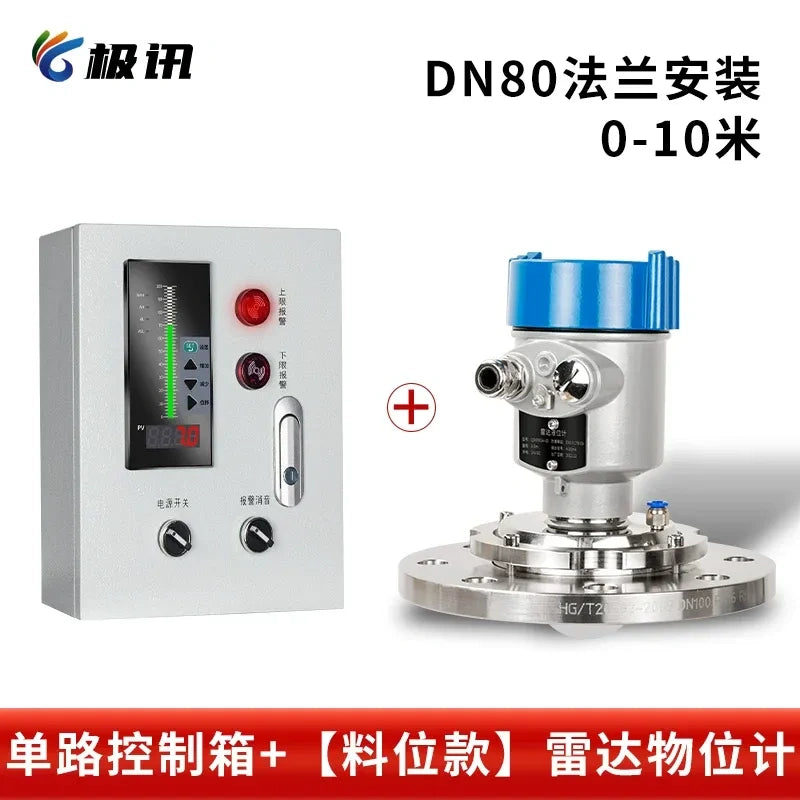

Universal Swivel Air Purge Radar Solid Level Meter 80GHz, Anti-Heavy Dust for Cement Grain Silo Bulk Powder -
卫生卡盘食品医药款
Sanitary Tri-Clamp Radar Level Transmitter 50.5/64 Clamp, Food Grade Non-Contact Liquid Level Sensor -
高温超高温工业炉款

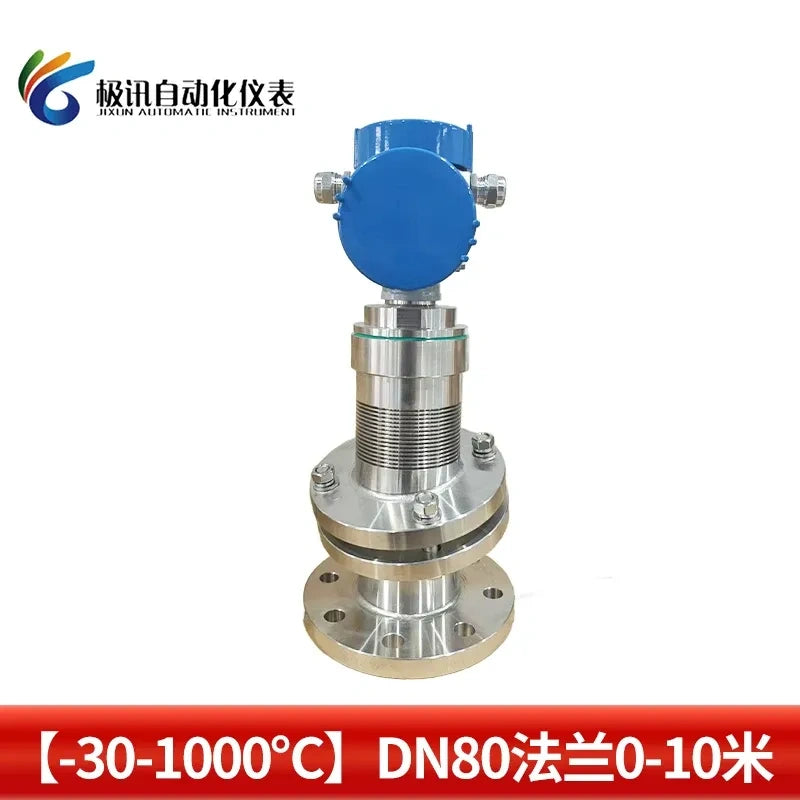

Ultra High Temp Radar Level Transmitter -40~1000℃ DN80 Flange, Furnace & Molten Liquid Level Measurement
This 80GHz FMCW radar level transmitter adopts high-frequency 76~81GHz radar wave, featuring ultra-strong penetration to resist heavy dust, sewage foam, stirring turbulence, steam oil contamination and harsh industrial interference. It achieves ±1mm ultra-high measuring accuracy with measuring range up to 120 meters.

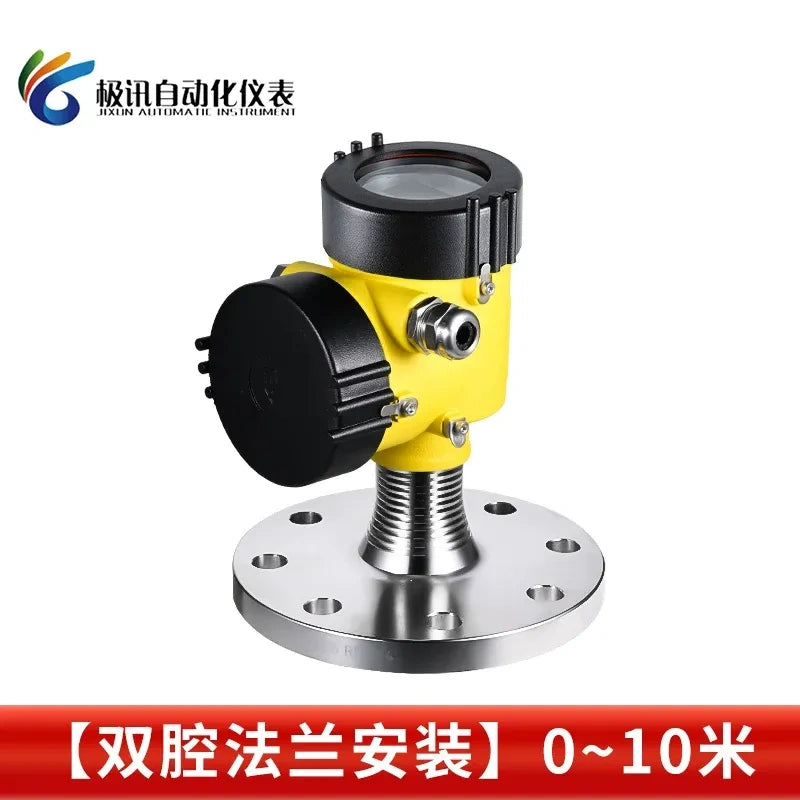

Multiple installation structures are optional: thread, universal swivel air purge flange, high-temperature anti-corrosion flange, sanitary tri-clamp and double-chamber flange, adapting to liquid, solid powder, block materials, corrosive chemicals and ultra-high temperature working conditions.
Standard output is 4-20mA+HART protocol, RS485 Modbus communication is customizable, supports 2-wire/4-wire system. Equipped with LCD local display and operation keys, IP67 waterproof & Ex d ia IIC T6 explosion-proof grade, widely applied in chemical plants, sewage treatment, cement silos, grain warehouses, boilers and reservoir water level monitoring.
Specification
| Key | Value |
|---|---|
| Product Name | 80GHz FMCW Radar Level Transmitter / Level Gauge / Solid Silo Level Meter |
| Frequency | 76~81GHz (80GHz High Frequency) |
| Measuring Range | 0.08~10m / 0.08~20m / 0.08~30m / 0.3~60m / 0.6~120m |
| Accuracy | ±1mm High Precision |
| Beam Angle | 3° Large Lens / 8° Small Lens |
| Power Supply | DC 12~28V (Standard 24V DC); Optional AC220V |
| Output Signal | Standard 4-20mA + HART; Custom RS485 Modbus RTU; 2-wire / 4-wire Optional |
| Update Interval | Fastest 100ms |
| Medium Temp Range | Standard: -30~100℃; High Temp Corrosion Resist: -40~200℃ / Custom -40~500℃ / -40~1000℃ |
| Process Pressure | Standard: -0.1~1MPa; Corrosion Flange: -0.3~2.5MPa |
| Dielectric Constant | ≥2 |
| Display & Operation | 128*64 LCD Dot Matrix Screen + 4 Keys; Support PC Configuration Software |
| Housing Material | Aluminum Alloy / Stainless Steel |
| Protection Grade | IP67 |
| Explosion Proof Grade | Ex d ia IIC T6 |
| Process Connection Types | Thread Mount / Universal Swivel Flange / Corrosion Resistant Flange / Sanitary Tri-Clamp / Double Chamber Flange / Quartz Isolation Flange |
| Cable Entry | M20*1.5 |
| Recommended Wire | AWG18 / 0.75mm² |
| Dimension | φ100*270mm |
| Core Advantages | Strong penetration, anti-dust, anti-foam, anti-stirring interference, anti-vapor oil pollution, high temp & anti-corrosion available |
| Application Scenarios | Sewage tank, chemical corrosive liquid, cement silo, grain silo, river reservoir, high temperature furnace, mixing tank, boiler |
