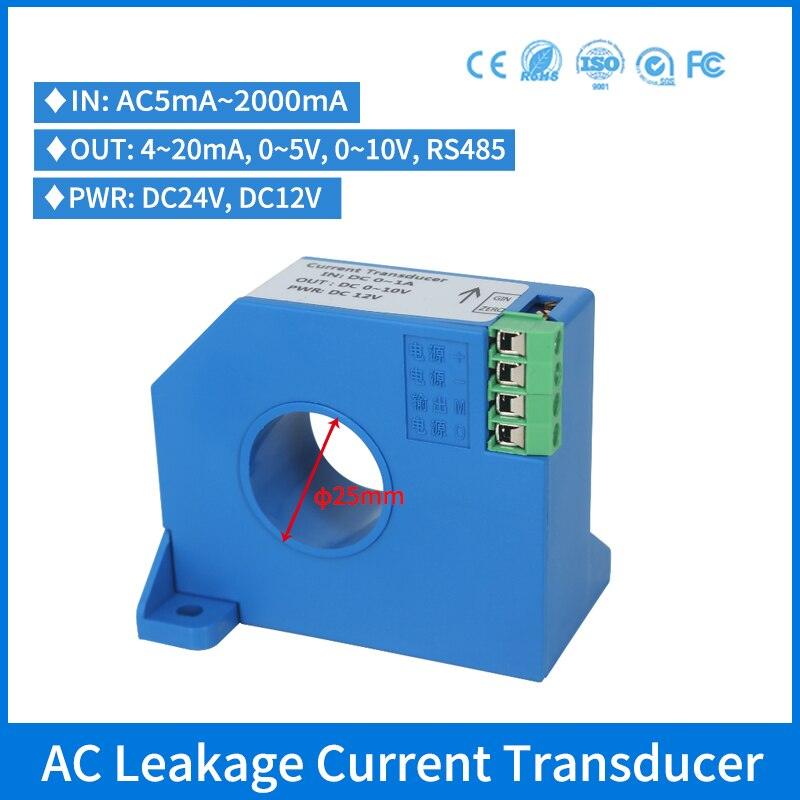

AC 5mA-2000mA Leakage Current Transmitter Analog Output 4-20ma 0-10v

$54.98 USD
$62.91 USD $54.98 USD
Sale Sold out
Shipping calculated at checkout.
Ouput Type
Measuring Range
Supply Voltage

SPECIFICATIONS

5mA~2000mA AC leakage current transmitter with 4-20mA/0-5V/0-10V/1-5V analog output, DC12-24V & AC220V power supply, <200ms response for industrial leakage monitoring.

Supply Voltage: DC12V-24V, AC220V

Response time: <200ms

Product name: Leakage current transducer

Output signal: 4-20mA,0-5V,0-10V,1-5V

Origin: Mainland China

Operating Temperature: -30℃~+85℃

Model Number: ELLCT-12

Installation method: DIN 35mm rail+ plane screw fixation

Input current range: AC 5mA-2000mA

Frequency range: 40-60HZ

Display Type: Analog Only

Dimensions: 25mm

DIY Supplies: ELECTRICAL

Certification: CE

Brand Name: KEJUN

Accuracy Class: 0.5%FS

This link is special for AC leakage current transducer.

DC leakage current transducer link click here: DC leakage current transducer



Leakage Current Sensor Transducer DATA SHEET DOWNLOAD

NOTES:

The leakage current transducer can make any range within DC5mA to 2000mA.

If you need other current range, please contact me.

We can make special customization for you.


Product Description

1>>. Working principle: AC adopts new transformer electromagnetic isolation principle,DC adopts magnetic modulation principle.

2>>. Product application: Measuring AC/DC leakage current,various small current,AC/DC high voltage.

3>>. Product advantages: Good performance,high stability,small size,easy installation,perforation input.

4>>. Product applications: Leakage monitoring system,line detection,signal system,current difference measurement,insulation detection,high voltage measurement.
