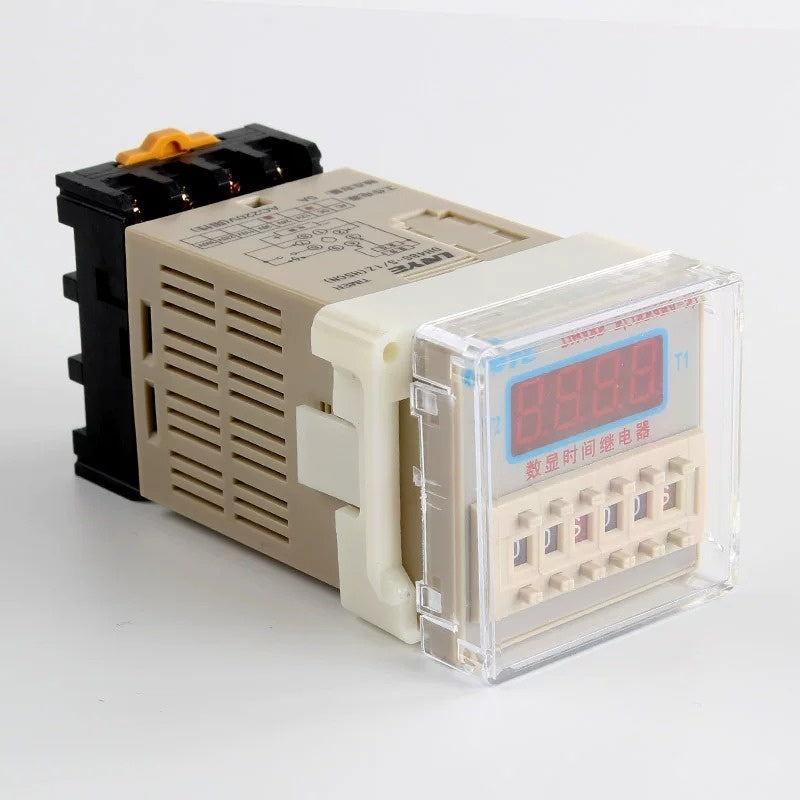

AC/DC110-240V Linear Actuator Reciprocating Cycle Controller, Free Set Stretch & Retract Time
Couldn't load pickup availability
linear actuator controller,reciprocating controller
Description
This digital reciprocating controller is specially developed for electric linear actuators. It can control up to 1 linear actuator to realize automatic reciprocating telescopic movement. You can match additional controllers to drive multiple motors for forward and reverse rotation. Two groups of data can be freely set: working time and rest time. The delay range covers 0.01 seconds to 99 hours 99 minutes, with low timing error ≤0.5%+0.1s. Wide voltage power supply: AC/DC 110-240V (AC/DC12-24V). It supports 1-2 groups of delay output. Contact capacity: 3A AC250V resistive load. Electrical life ≥10^5 times, mechanical life ≥10^7 times. Equipped with 0.3-inch LED positive/countdown bright digital display. Panel size:484891mm, panel cutout size:45*45mm. Widely used for automatic cycle control of linear push rods and other automation equipment.
🔹 Specification
| Attribute Name | Value |
|---|---|
| Product Name | Linear Actuator Reciprocating Controller / Digital Time Relay |
| Controllable Quantity | Max 1pc linear actuator (Extra controller for multi-motor control) |
| Adjustable Parameter | Working Time, Rest Time |
| Delay Range | 0.01s ~ 99h 99min |
| Timing Error | ≤0.5% +0.1s |
| Power Supply | AC/DC 110-240V (AC/DC12-24V) |
| Control Output | 1~2 Groups Delay |
| Contact Capacity | 3A AC250V (Resistive Load) |
| Electrical Life | ≥100,000 times |
| Mechanical Life | ≥10,000,000 times |
| Display | 0.3 inch LED Positive / Countdown Bright Digital Display |
| Overall Dimension | 48(H) ×48(W) ×91(L) mm |
| Cutout Size | 45 ×45 mm |
| Application | Electric Linear Actuator, Automation Equipment |
🔹FAQ
Q1: How many linear actuators can this controller drive?
A1: It can control up to 1 set of electric linear actuator for automatic reciprocating motion. If you need to control multiple motors forward and reverse rotation, you need to match additional controllers.
Q2: Can I customize the stretch and retract running time?
A2: Yes. Two sets of parameters (working time and rest time) are freely programmable. The timing range is from 0.01 second to 99 hours 99 minutes.
Q3: What input voltage does this controller support?
A3: Wide voltage AC/DC 110-240V, also compatible with AC/DC12-24V power supply.
Q4: What is the service life of the relay contact?
A4: Contact rating is 3A AC250V resistive load. Electrical life ≥10^5 times, mechanical life ≥10^7 times, stable for long-term cycle work.
Q5: Is this easy to install on control cabinet?
A5: Standard 4848mm panel mounting, panel cutout size 4545mm, simple installation. With high-brightness LED digital display for easy reading.
Q6: What devices is this controller suitable for?
A6: Mainly designed for electric push rod / linear actuator automatic reciprocating cycle control, also available for other automation timing control projects.
