BJHL Belt Drive Linear Motion Module, 400N Stepper Sliding Table Electric Linear Actuator, 9-36V DC Custom Stroke 5-1500mm
Couldn't load pickup availability
linear module,linear slide table,stepper linear actuator
Description
This BJHL belt drive linear sliding table module is driven by a 42 hybrid stepper motor, controlled by pulse signal to realize precise linear movement. The stepping angle can be subdivided up to 0.007° for high positioning accuracy.
- Premium Material: Aluminum alloy body + stainless steel pulley. Guide rail with German QPQ nitriding treatment, compliant with EU RoHS standard, low noise and smooth sliding, corrosion-resistant and long service life.
- Stable Transmission: 3M synchronous belt, adjustable belt tension. Stainless steel pulley fixed by set screw to prevent falling off during operation. Coupler protects transmission shaft from overload, avoiding motor burnout.
- Wide Compatibility: Working voltage DC 9-36V, operating temperature -40℃ ~ +85℃. Max thrust 400N, max load capacity 40KG, maximum speed 30mm/s.

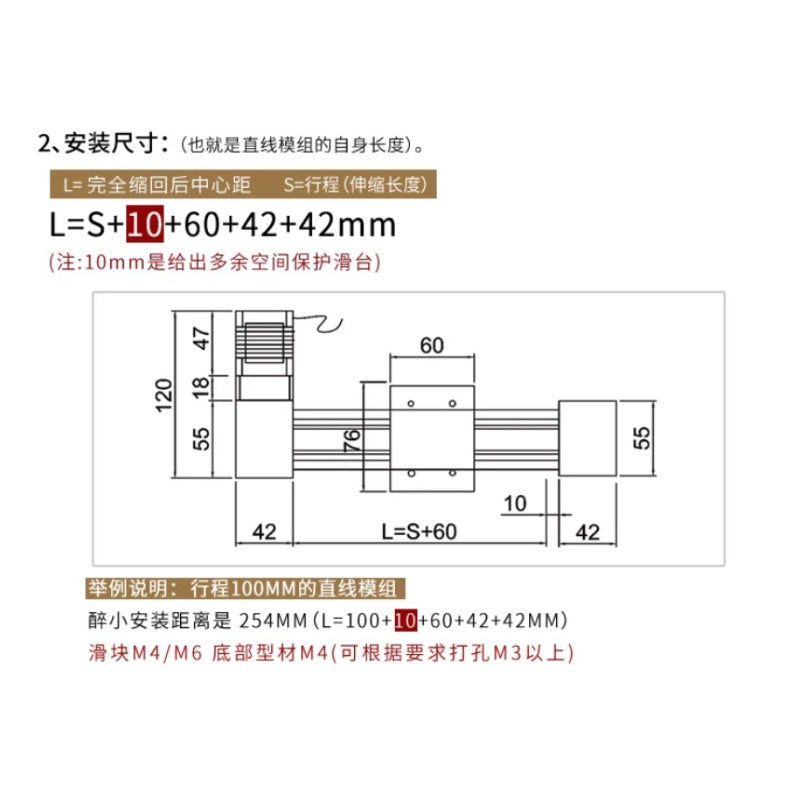

- Flexible Installation: Groove nut mounting design. Slider with M4/M6 mounting thread, base profile M4 hole (custom M3 and above holes available).
- Custom Stroke: Standard options:50/100/150/200/250/300/350/400/450/500/550/600mm. Extra long stroke 5~1500mm can be customized by contacting customer service.
- Optional Accessories: Stepper motor controller, dedicated stepper motor driver.
Notice: All strokes are custom-made, no stock available. 1-year warranty with lifetime technical support. Non-quality returns not accepted. Do not disassemble without authorization.
✅ Attribute Table
| Attribute | Value |
|---|---|
| Product Name | Stepper Sliding Table Electric Linear Actuator, Belt Drive Linear Module |
| Model | BJHL |
| Motor Type | 42 Hybrid Stepper Motor |
| Transmission Type | 3M Timing Belt Drive |
| Material | Aluminum Alloy + Stainless Steel |
| Input Voltage | DC 9-36V |
| Max Thrust | 400N |
| Max Load | 40 KG |
| Max Speed | 30 mm/s |
| Stroke Range | 5mm -1500mm (Custom) |
| Standard Stroke Variants | 50mm,100mm,150mm,200mm,250mm,300mm,350mm,400mm,450mm,500mm,550mm,600mm |
| Operating Temperature | -40℃ ~ +85℃ |
| Mounting Thread | Slider: M4 / M6; Base: M4 (Custom M3+ available) |
| Feature | Precision Positioning, Low Noise, Corrosion Resistant, Stable Operation |
| Application | Automation Equipment, Linear Push Pull Lifting Motion |
| Accessory Option | Stepper Motor Controller, Stepper Motor Driver |
| Warranty | 1 Year Warranty, Lifetime Technical Support |
| Customization | All stroke sizes custom made, No stock |
✅ FAQ
Q1: What motor does this linear sliding table use?
A: Equipped with 42 hybrid stepper motor, controlled by pulse input signal. The step angle can be subdivided up to 0.007° to achieve high precision positioning.
Q2: What is the maximum load and thrust?
A: Max thrust 400N, max bearing load 40KG, max moving speed is 30mm/s.
Q3: What power supply voltage can it accept?
A: Working voltage DC 9-36V, compatible with multiple DC power supplies.
Q4: Can the stroke be customized?
A: Yes. Standard stroke options range from 50mm to 600mm. Stroke from 5mm to 1500mm is available for custom production. Please contact us for custom quotation. All items are custom-made without ready stock.
Q5: What are the installation screw specifications?
A: Slider mounting nut M4/M6, base profile M4 hole, we can drill M3 or larger holes according to your requirements.
Q6: What is the working temperature range?
A: -40℃ ~ +85℃, suitable for most industrial environments.
Q7: What accessories can I buy together?
A: Optional stepper motor controller and dedicated stepper motor driver.
Q8: What is the warranty policy?
A: 1-year warranty, lifetime technical support. Returns are not supported for non-quality issues. Unauthorized disassembly will void the warranty.
Q9: What applications can this linear module be used for?
A: It can drive objects to push, pull, lift and drop, widely used in automation machinery, testing equipment, sorting machines and other automatic linear motion projects.
Q10: What are the advantages of the belt drive structure?
A: Adjustable belt tension, stable operation, low noise. The stainless steel pulley is firmly fixed to prevent falling off, the coupler prevents overload damage and protects the stepper motor.
