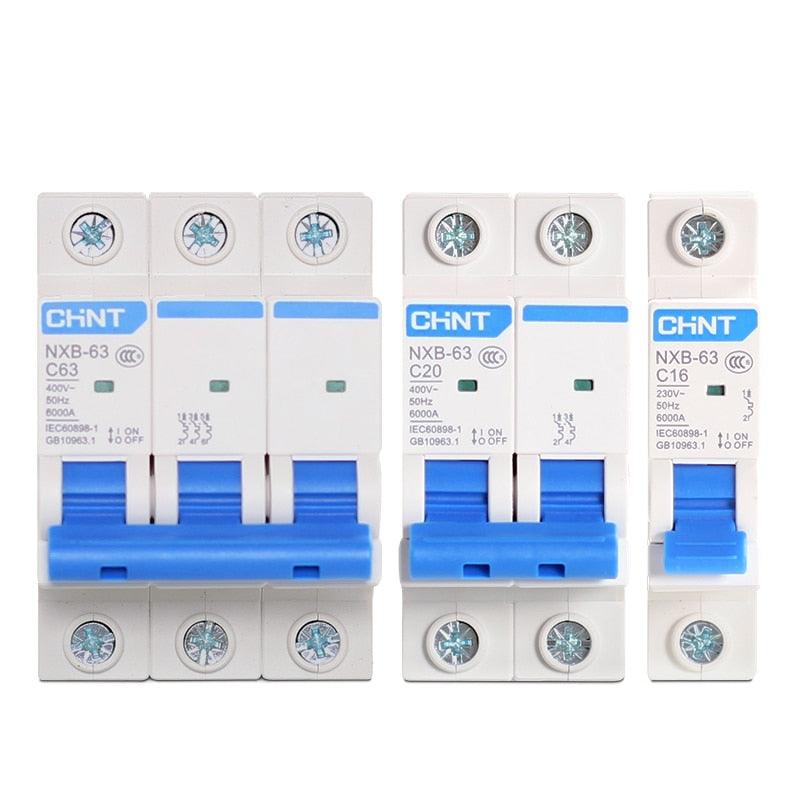

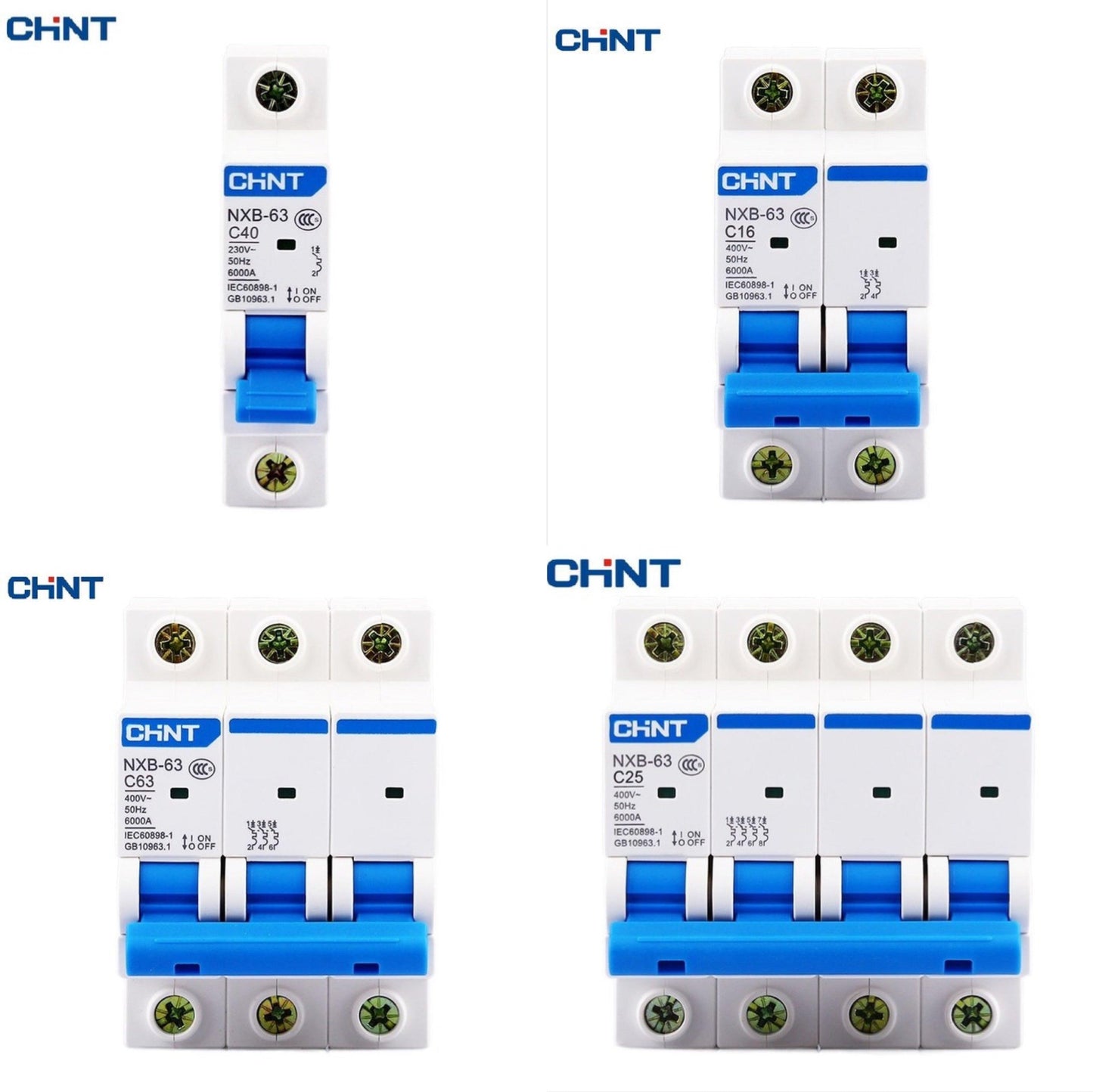

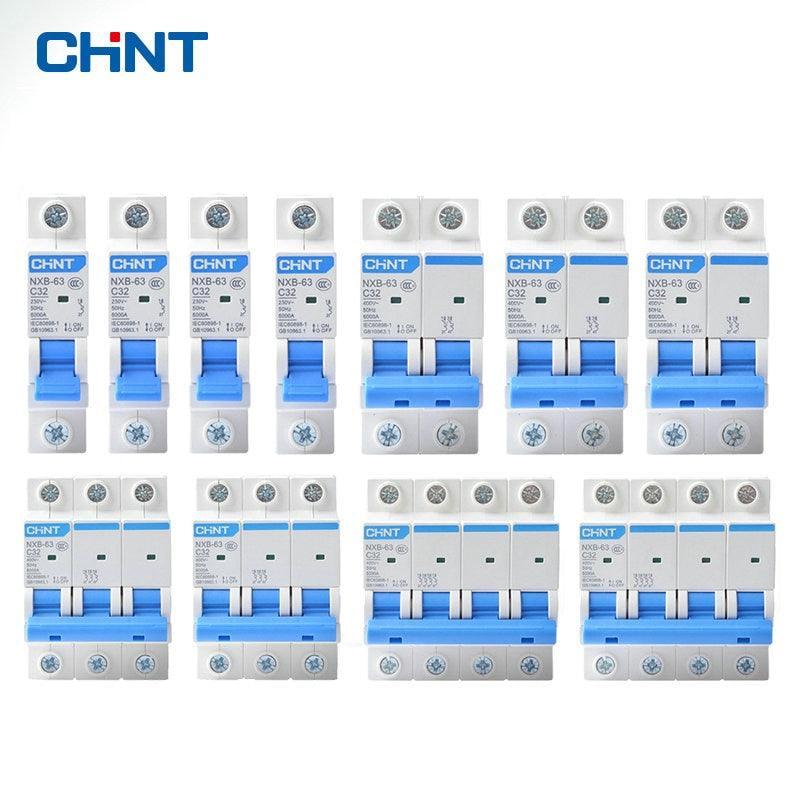

CHINT NXB-63 C-Curve 1P 2P 3P 4P AC 230/400V Circuit Breaker
Couldn't load pickup availability
CHINT NXB-63 DZ30 DZ40 EPN DPN TPN 1P 2P 3P 4P AC 230/400V Circuit Breaker DIN Rail Mounting Miniature Household Air Switch
Brand Name: CHNT
Type: Mini
Origin: Mainland China
is_customized: Yes
Is Smart Device: No
Certification: ccc
Model Number: NXB-63
Certification: CHAIN-3C
Type: Moulded Case
Electromagnetic release type: C
Voltage: AC 230/400V
Poles Number: 3P
Rated Current: 1~125A
nxb 63, chint nxb 63, chint nxb,chint nxb 125,chint nxb 63 c10,chint nxb 63 c16,chint nxb 63 c20,chint nxb 63 c25,chint nxb 63 c32,chint nxb 63 c40,chint nxb 63 c63, nxb 63 c6
1. Compliant standards
IEC60898-1
2. Major function
Overload protection, short circuit protection, positive isolation
3. Technical parameters
Rated current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A; Rated voltage: 230V (1P, 1P+N), 230/400V (2 ~ 4P, 3P+N); Frequency: 50; Electromagnetic release type: C Number of poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P; Mechanical life: 20000 cycles; Electrical life: 10000 cycles; Rated short-circuit breaking capacity(Icn): 6000A; Short-circuit breaking capacity (Ics): 6000A; Rated impulse withstand voltage (Uimp): 4kV;

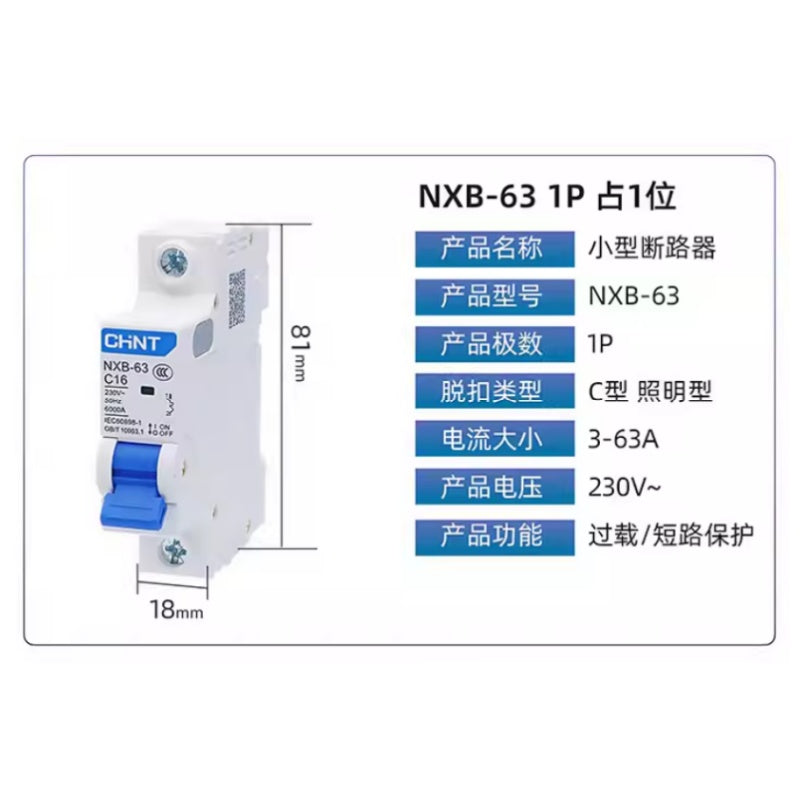

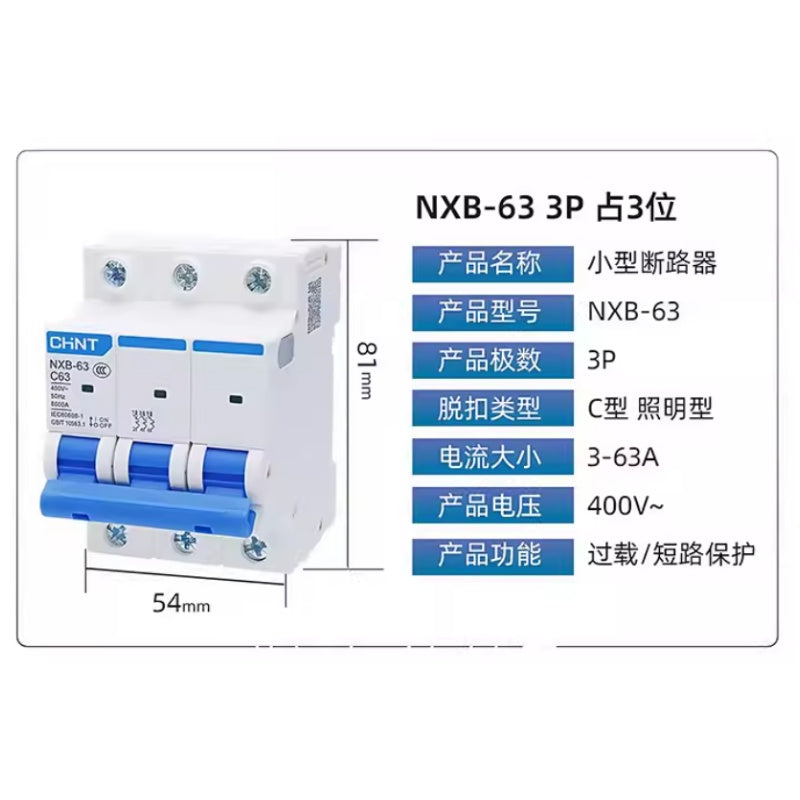

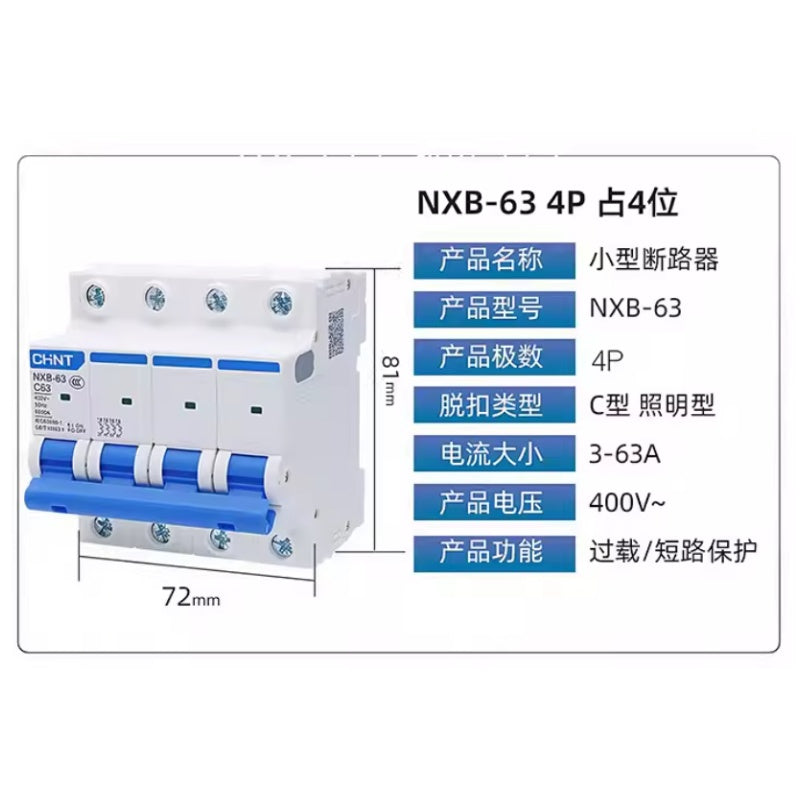

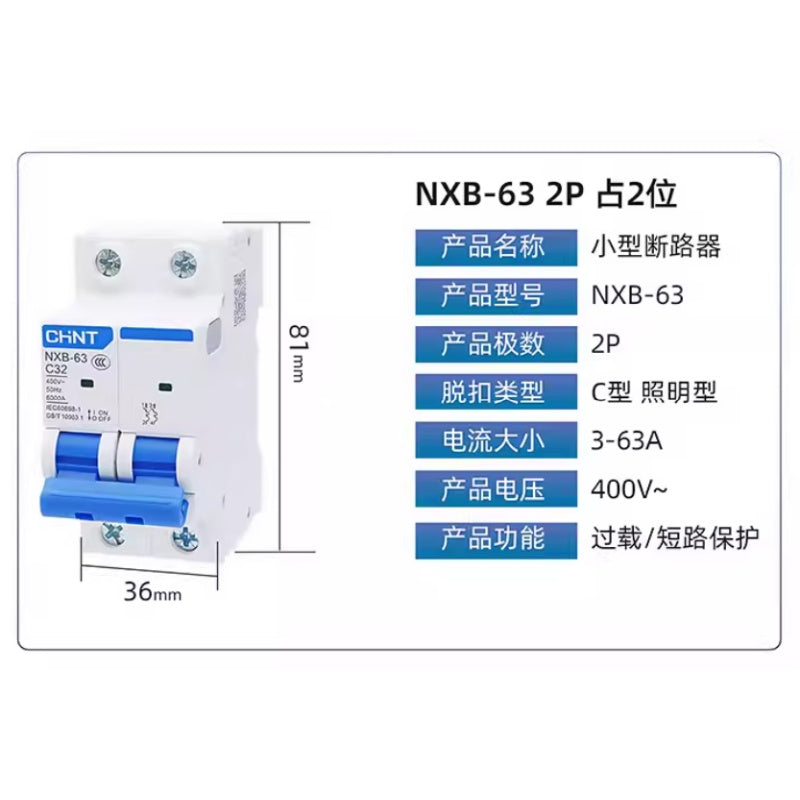

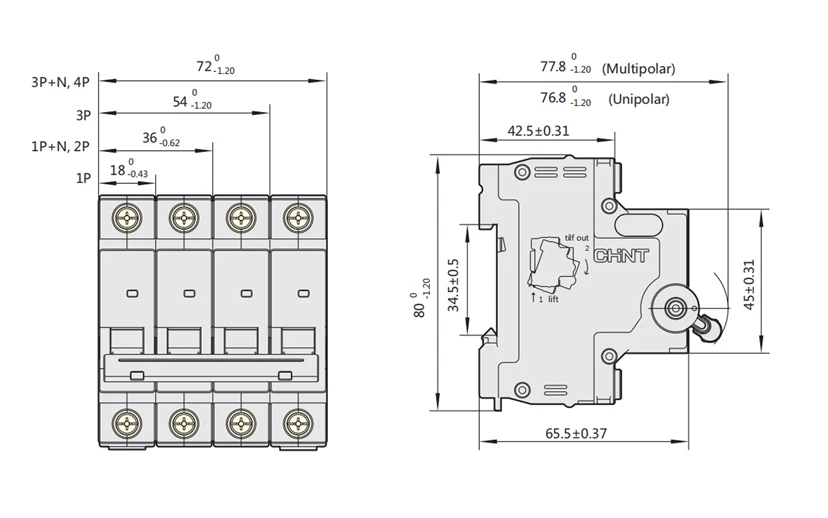

4. Dimensions and installation sizes
Strong adaptability to environment and reliable operation in harsh environment
-30℃~70℃ ambient temperature range, to meet the needs of various applications
Troubleshooting of Common Faults
| Fault Phenomenon | Cause Analysis | Troubleshooting Method |
|---|---|---|
| Cannot Close | Short circuit or leakage at the load end | Check the load status |
| Malfunction of the operating mechanism | Replace the product | |
| Mismatch between the circuit breaker's rated current and the load current | Replace with a product of appropriate specification | |
| Check if the residual current accessory has been reset | Press the reset button | |
| High Temperature | Loose terminal screws or uncompressed wires | Tighten the terminal screws |
| Selected wire cross-sectional area is too small | Replace with a wire of appropriate specification | |
| Mismatch between the circuit breaker's rated current and the load current | Replace with a product of appropriate specification | |
| Natural aging of the product, deformation, rust or looseness of components | Replace with a new product | |
| Fails to Trip During Short Circuit | Malfunction of the product's contact system | Replace with a new product |
| Mismatch between the selected circuit breaker and the load's working conditions | Replace with a product of appropriate specification | |
| Too short stripped length of the wire | Re-strip the wire | |
| Wire not inserted into the terminal block | Re-strip the wire and insert correctly | |
| Possible internal mechanism failure of the product | Replace the product |
