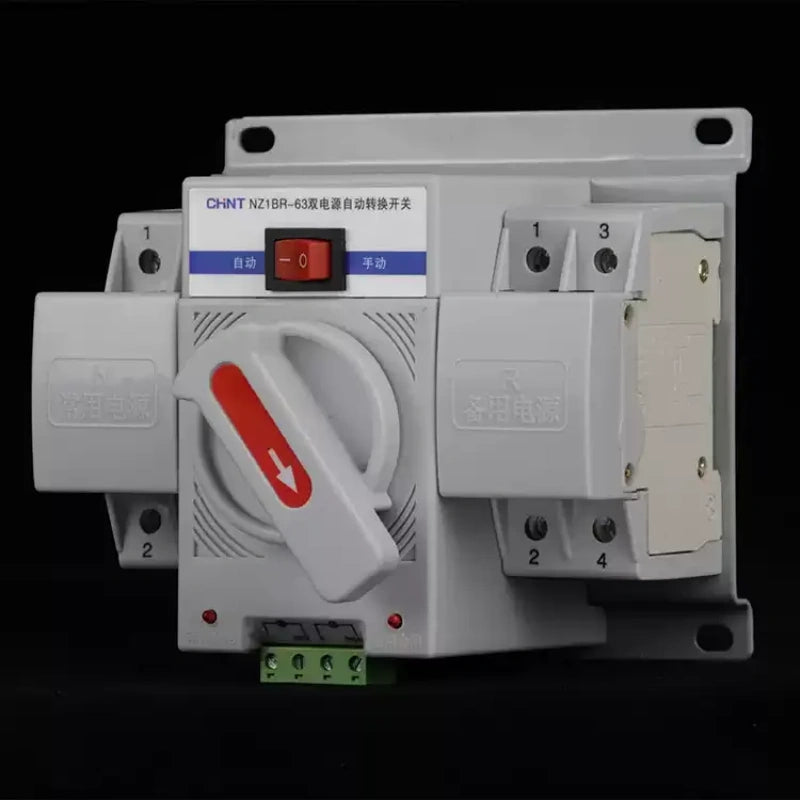

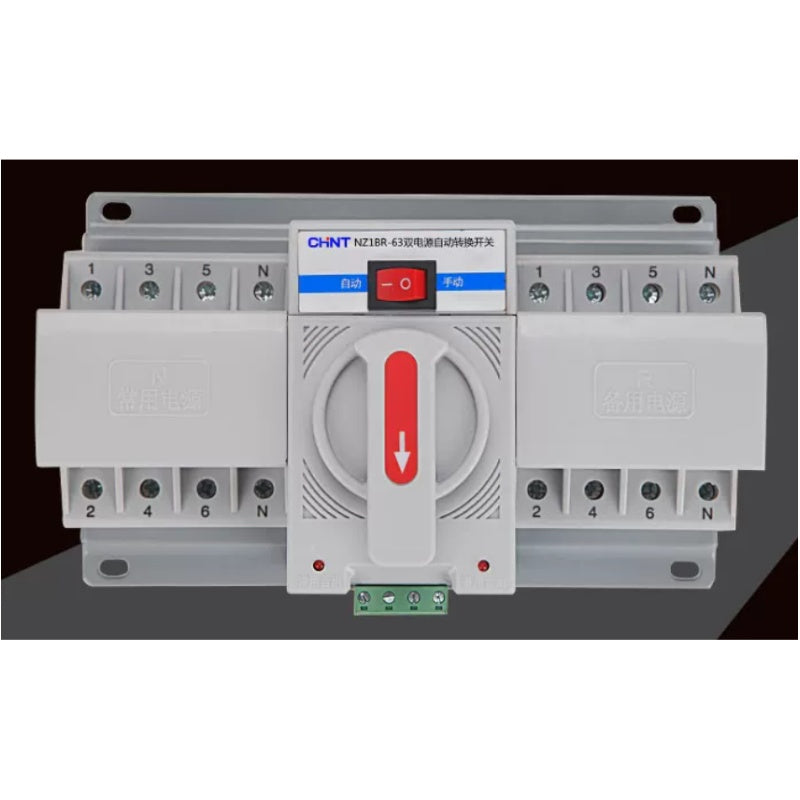

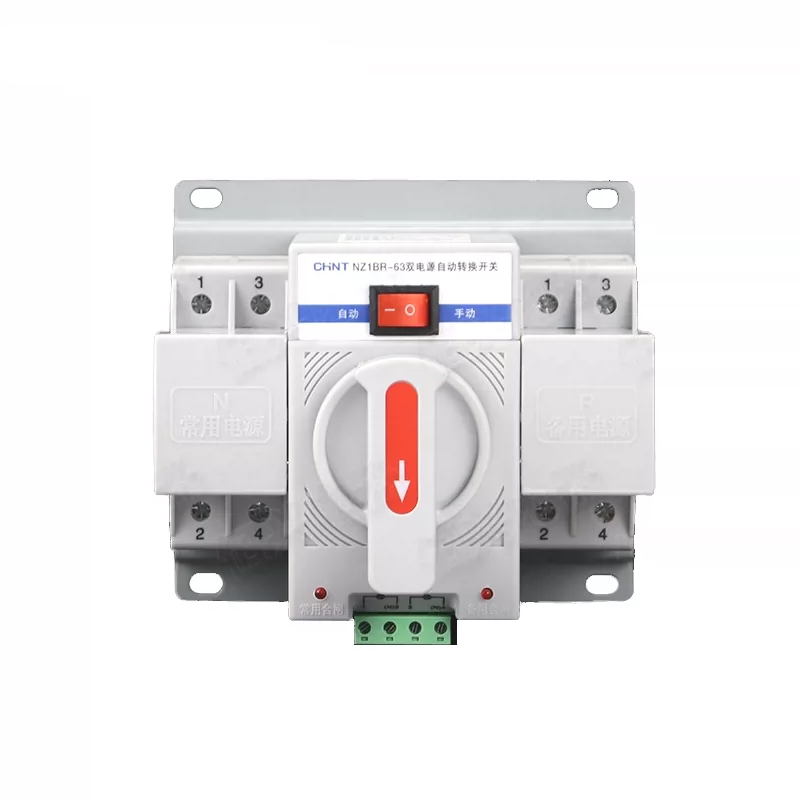

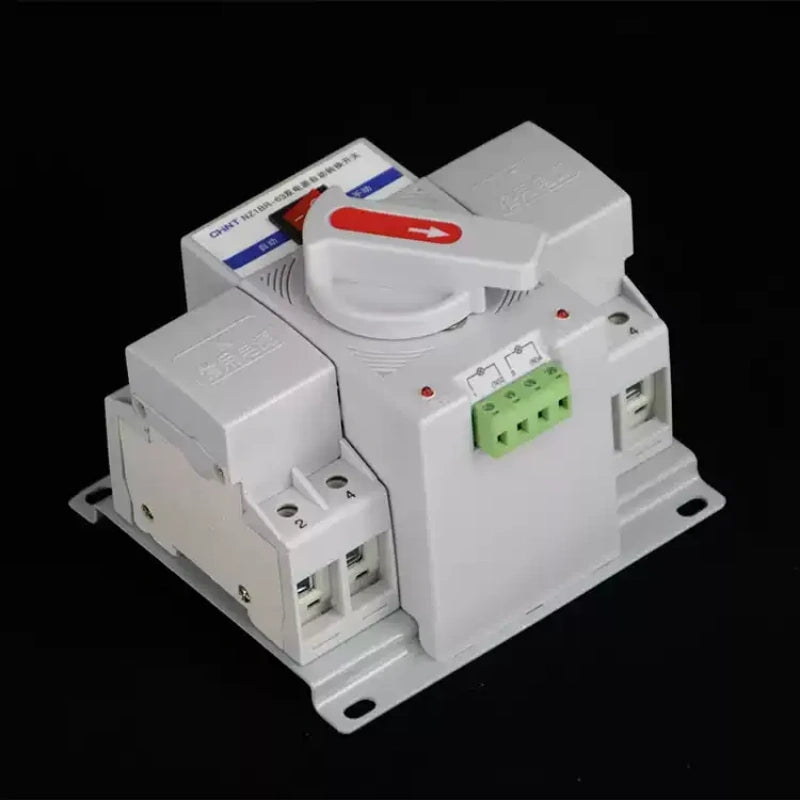

CHINT NZ1BR-63 Automatic Dual Power Transfer Switch ATS 2P/4P 10A~63A

$38.30 USD
$35.30 USD $38.30 USD
Sale Sold out
Shipping calculated at checkout.
ATS Poles NO.
Rated Current

NZ1BR-63 Automatic Dual Power Transfer Switch ATS 2P/4P 10A~63A AC220V/400V CB Grade Manual & Auto Changeover Switch for Home Power Supply

Product Description

NZ1BR-63 CB-class ATS Automatic Dual Power Transfer Switch, auto-switch between main power and backup power to guarantee uninterrupted power supply; automatically revert back to main power once mains power restores, around 2s switching time. Supports both automatic and manual switching mode for emergency manual power shift. Rated voltage AC220V/400V, frequency 50/60Hz, current range optional from 10A,16A,20A,25A,32A,40A,50A,63A, pole options:2P/4P.

Core Advantages

  1. Auto Switchover for Continuous Power Supply

    Automatically switch to reserve power when main power fails, resume main circuit automatically after mains recovers to keep equipment powered nonstop.
  2. Flame-retardant Whole Housing & Fire Safety

    Full fire-resistant shell material, effective fire prevention to enhance electricity usage safety.
  3. Integrated PCB Circuit Board

    Adopts standard industrial PCB circuit board for stable inner circuit performance.
  4. Strong Protection with Built-in Electromagnetic Coil

    Equipped with electromagnetic coil inside circuit breaker to realize reliable protection performance.
  5. Compact Size with Protective Cover

    Small footprint, neat appearance with matched outer protective shield.
  6. Multi-protection Design

    Built-in overload protection & undervoltage protection to avoid circuit damage from abnormal voltage/current.

Application & Supplementary Notes

  1. Manual override available to switch main/standby power under special working condition.

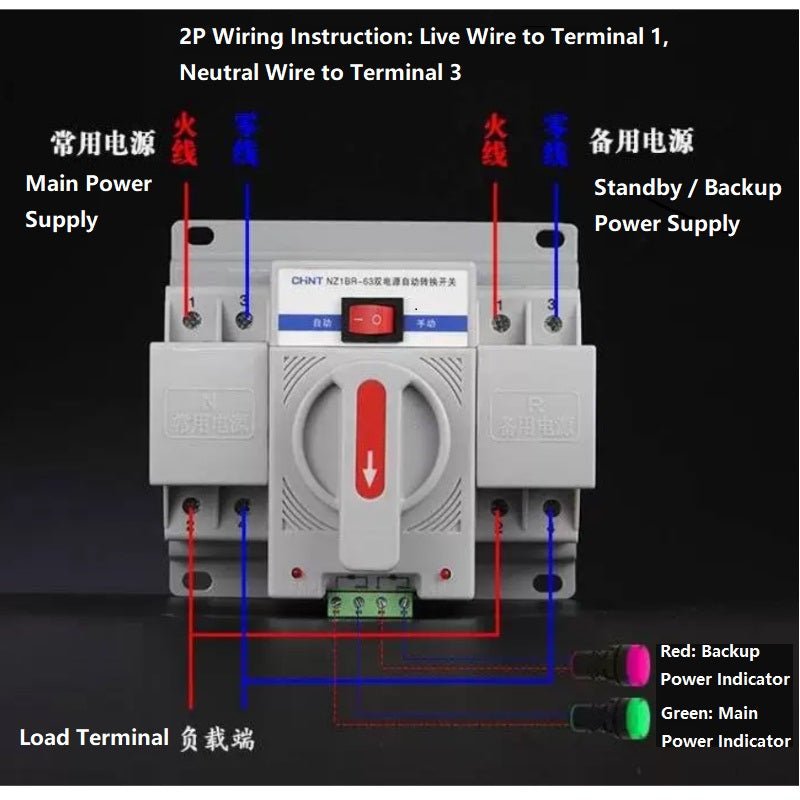

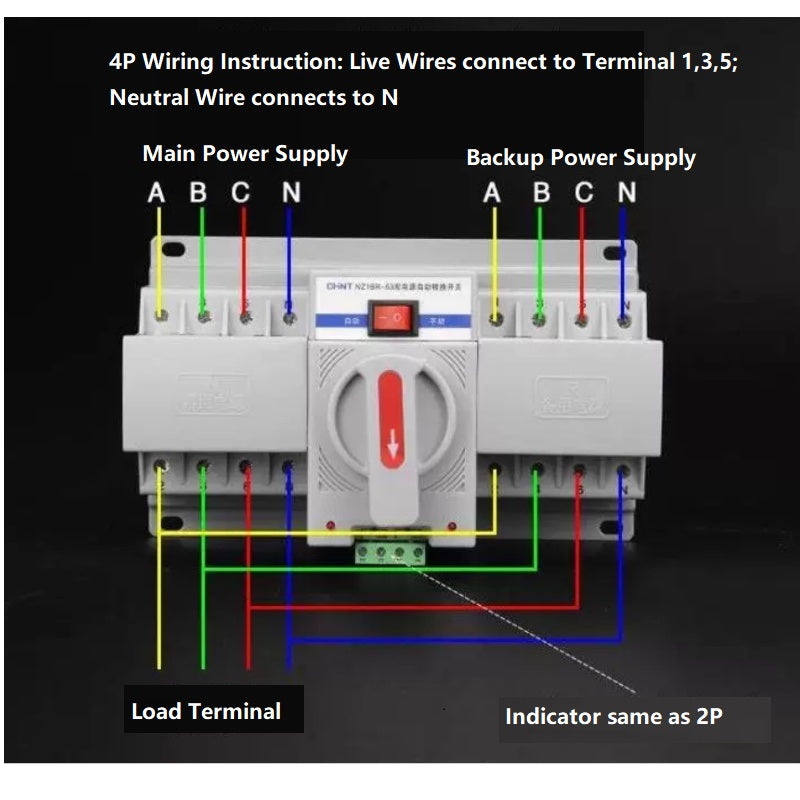

  2. Two input power sources can be city mains, generator, solar power, street light power or storage battery; DC/low-voltage input needs inverter to convert into AC before connecting to this ATS switch.
  3. This item is only power changeover switch, cannot work as backup power source or replace storage battery.
  4. Fixed installation via screw fastening, DIN rail mounting is NOT supported.

Full Specification List

Attribute Content
Product Name Automatic Dual Power ATS Transfer Switch
Model NZ1BR-63
Brand CHNT / OEM Available
Pole Spec 2P,4P
Rated Current 10A/16A/20A/25A/32A/40A/50A/63A Optional
Rated Voltage AC220V,AC400V
Frequency 50/60Hz
Grade CB Class
Switching Time 2s approx
Control Mode Auto + Manual Dual Control
Core Feature Overload & Undervoltage Dual Protection, Full Flame Retardant
Installation Screw Fixed Mounting(DIN Rail Not Available)
Application Household,Generator,Solar Energy,Mains Backup Power Conversion
