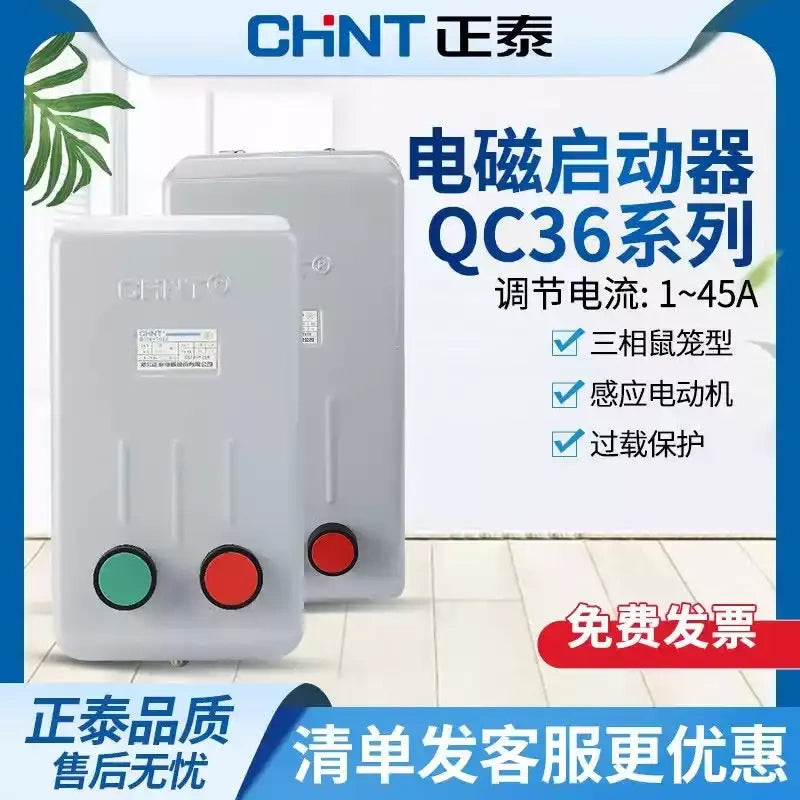

CHINT QC36 Series Magnetic Motor Starter

$43.30 USD
$43.30 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.

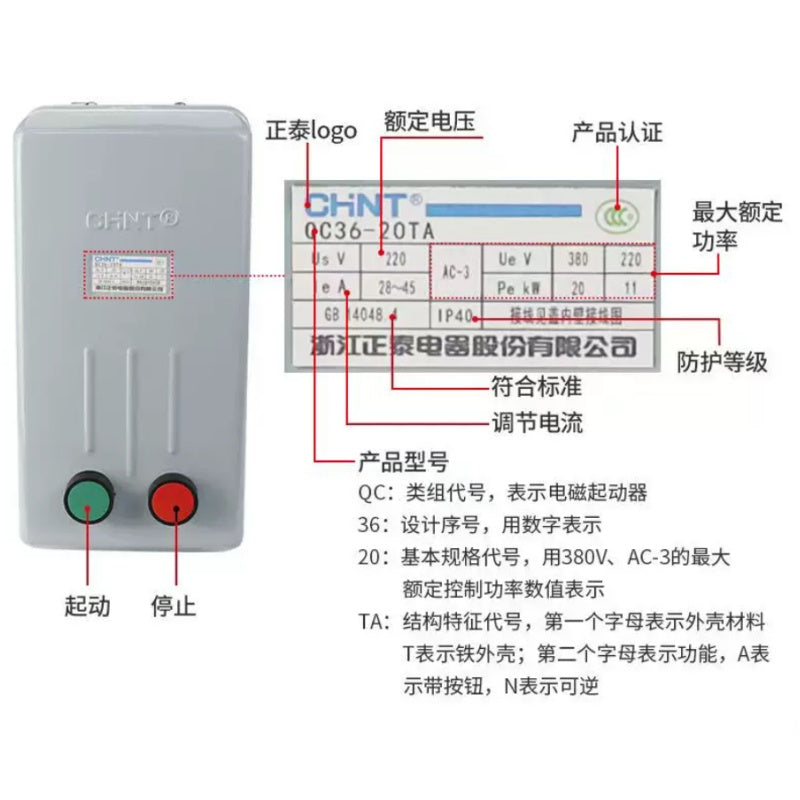

CHINT QC36 Series Magnetic Motor Starter QC36-4TA/10TA/20TA/30TA 380V 1.1A~63A 3-Phase Motor Starter Switch with Phase Loss & Overload Protection IP40

Product Introduction

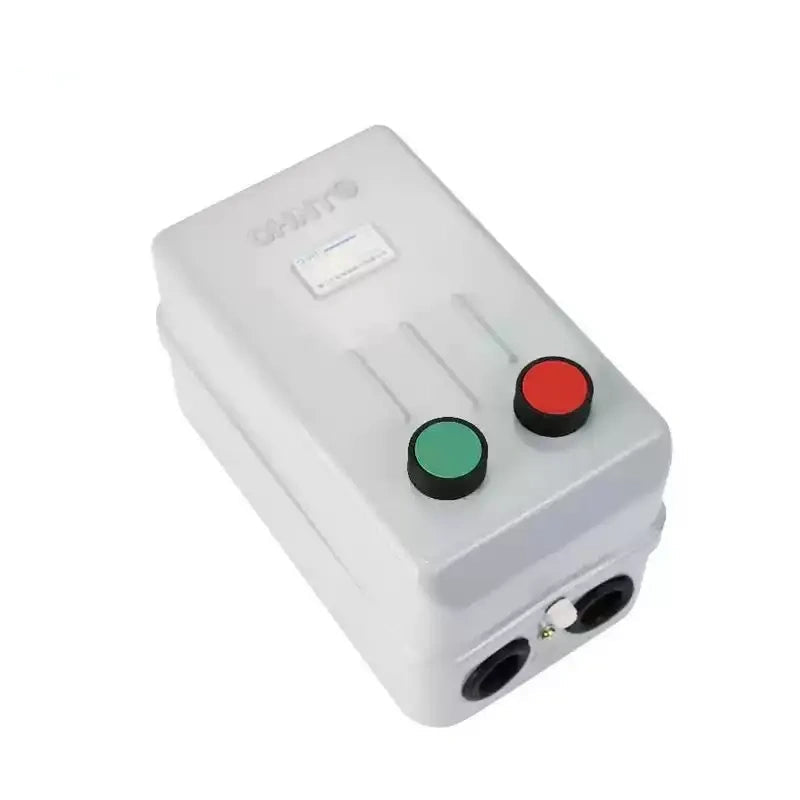

CHINT QC36 series is integrated magnetic motor starter combining AC contactor + thermal overload relay in enclosed housing, designed for 3-phase AC380V 50/60Hz motor direct-on-line start & stop control. Built-in comprehensive protection including overload protection, open-phase/phase loss protection, short-circuit protection, widely used for pump, fan, small machinery motor control circuit, IP40 protection grade with compact enclosed casing.

Full Model Current List

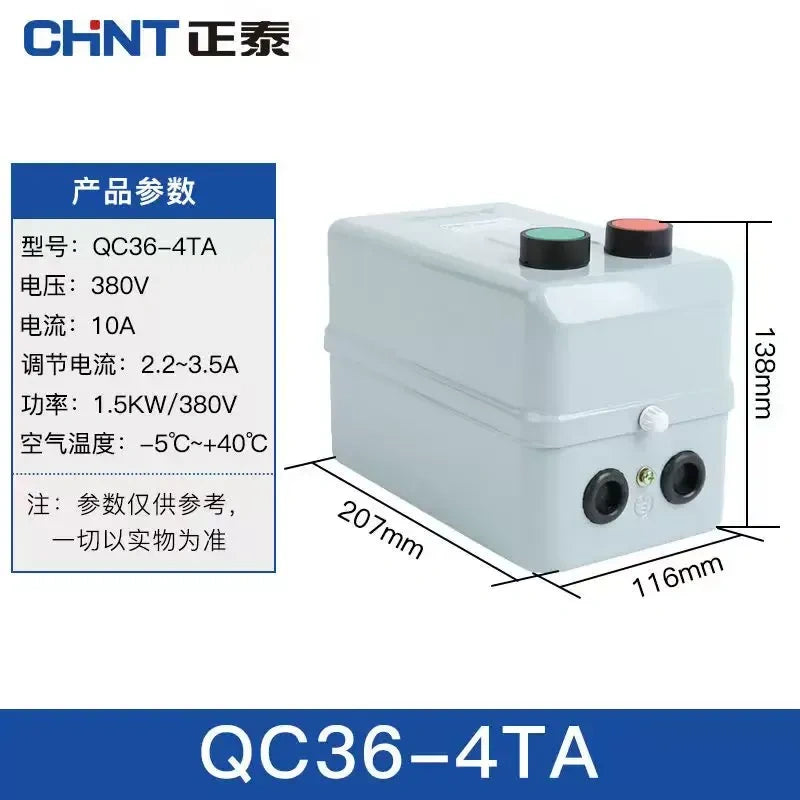

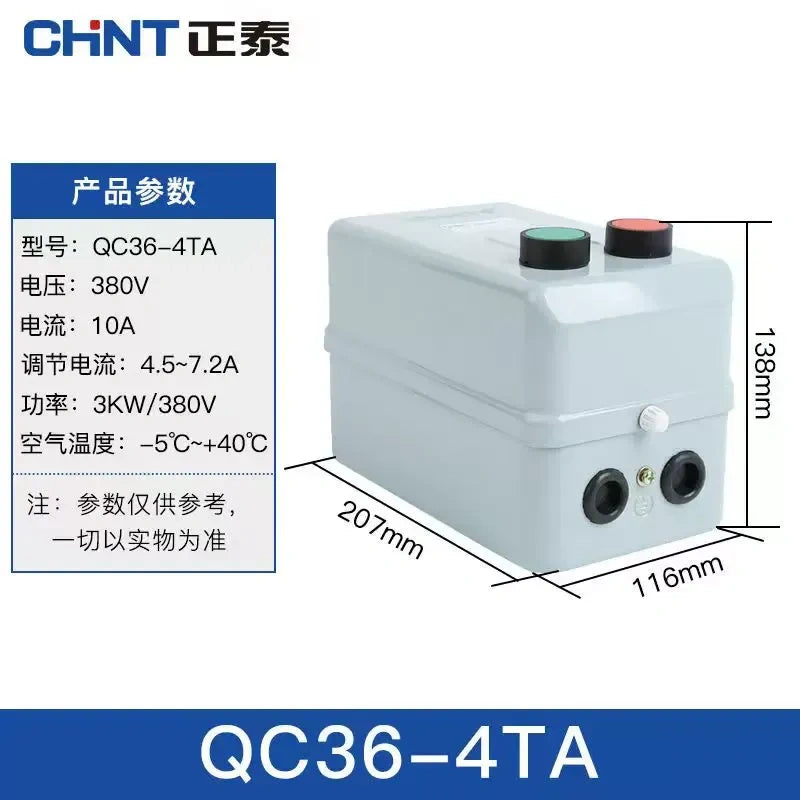

QC36-4TA：1.1A /1.6A /2.4A /3.5A /5A /7.2A /11A

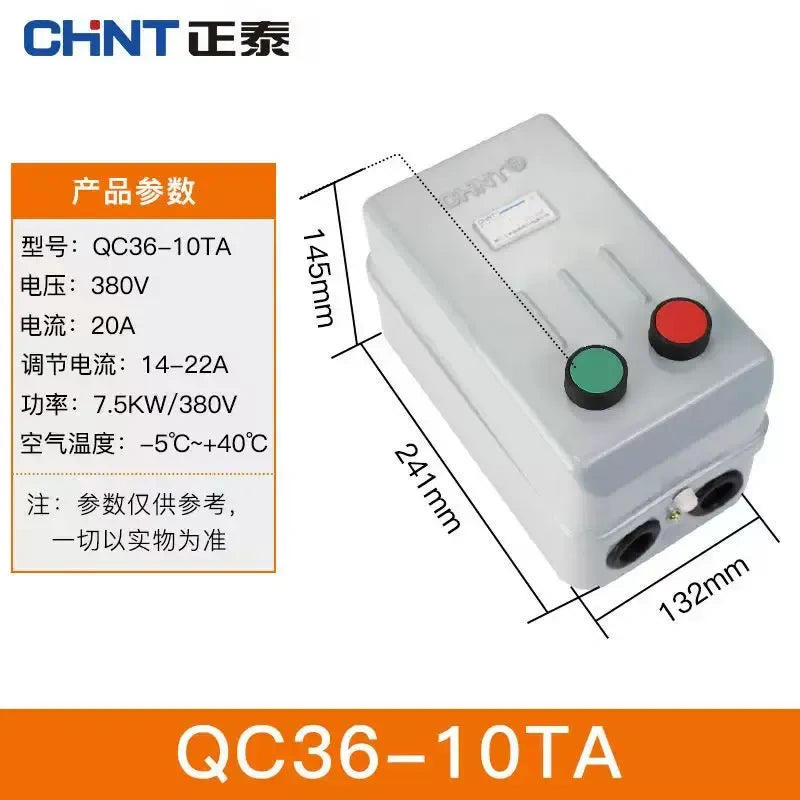

QC36-10TA：16A /22A

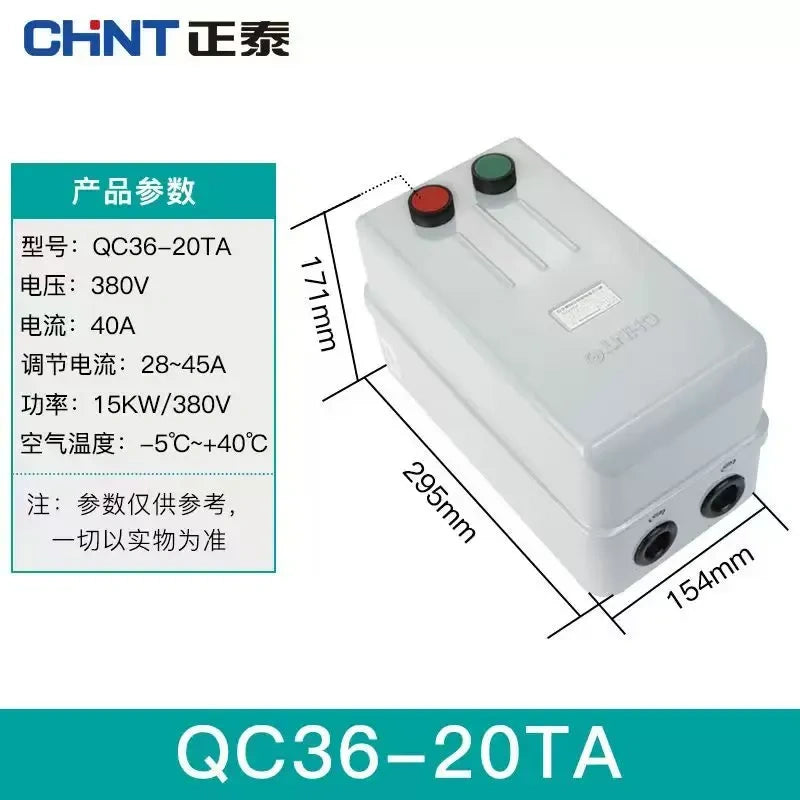

QC36-20TA：32A /45A

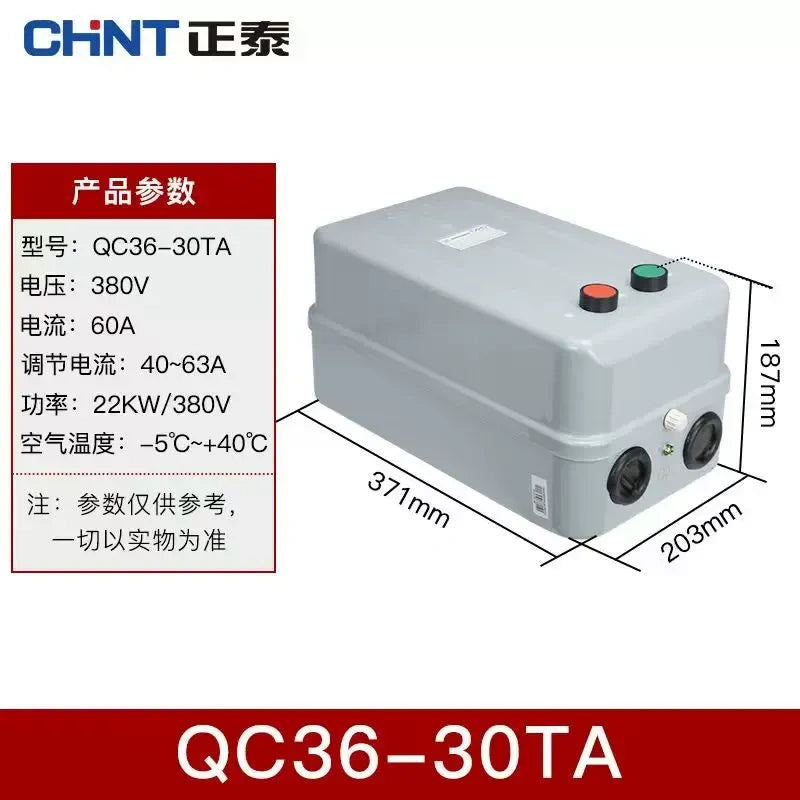

QC36-30TA：63A

Core Technical Parameter

Attribute Content
Product Name 3 Phase Magnetic Motor Starter / Direct On Line Starter
Model QC36-4TA / QC36-10TA / QC36-20TA / QC36-30TA
Brand CHINT
Rated Supply AC380V 50/60Hz
Current Options 1.1A,1.6A,2.4A,3.5A,5A,7.2A,11A,16A,22A,32A,45A,63A
Protection Feature Overload + Phase Loss Protection
IP Grade IP40
Working Condition -5℃~+40℃, Max 2000m altitude
Function Motor Direct Start/Stop Control + Motor Fault Protection

Key Advantages

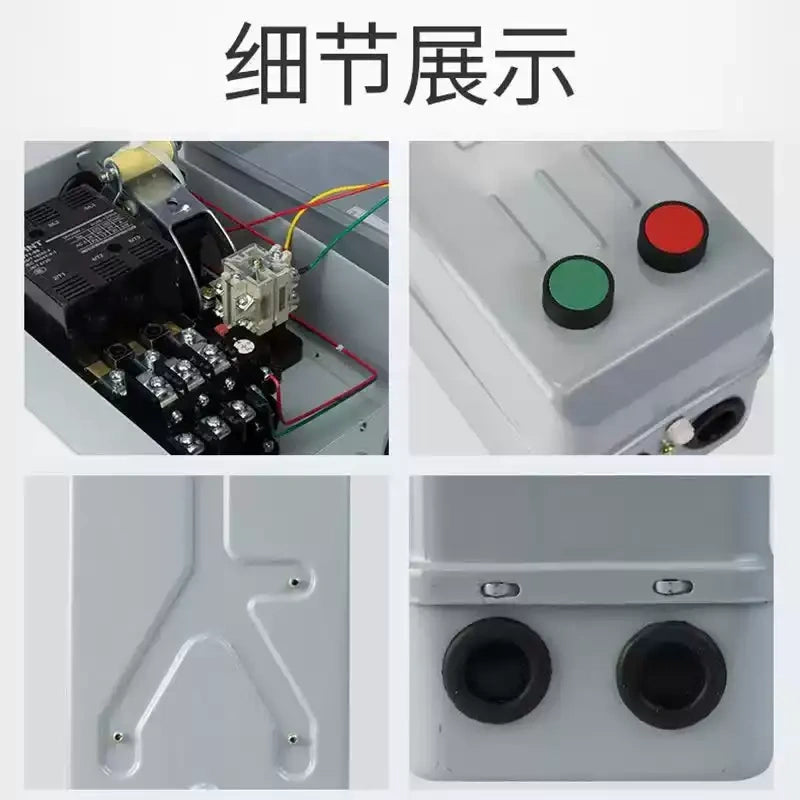

  1. All-in-one integrated structure, pre-wired inside, easy field installation and wiring
  2. Built-in thermal relay for adjustable overload trip and phase failure safeguard to avoid motor burnout
  3. Compact closed plastic housing with IP40 dustproof protection, safe for on-site direct mounting
  4. Front panel manual start/stop pushbutton for local on-off operation

Application

Three-phase asynchronous motor for water pump, exhaust fan, small processing machine, agricultural machinery, HVAC equipment control.
