CHINT YBLX-ME Series Limit Switch

Original CHINT YBLX-ME series limit switches, including popular models YBLX-ME/8108, YBLX-ME/8101, YBLX-ME/8104, YBLX-ME/8107, YBLX-ME/8111, YBLX-ME/8112, YBLX-ME/8166, YBLX-ME/8169, and YBLX-ME/9101. These self-reset micro switches are rated for AC 380V / DC 220V circuits, with a mechanical life of 250,000 operations and an operating frequency of 20 times/minute. Available in multiple actuator styles (adjustable roller lever, plunger, flexible rod, universal type), they are widely used for travel control and position limiting in machine tools, conveyors, and automated equipment.

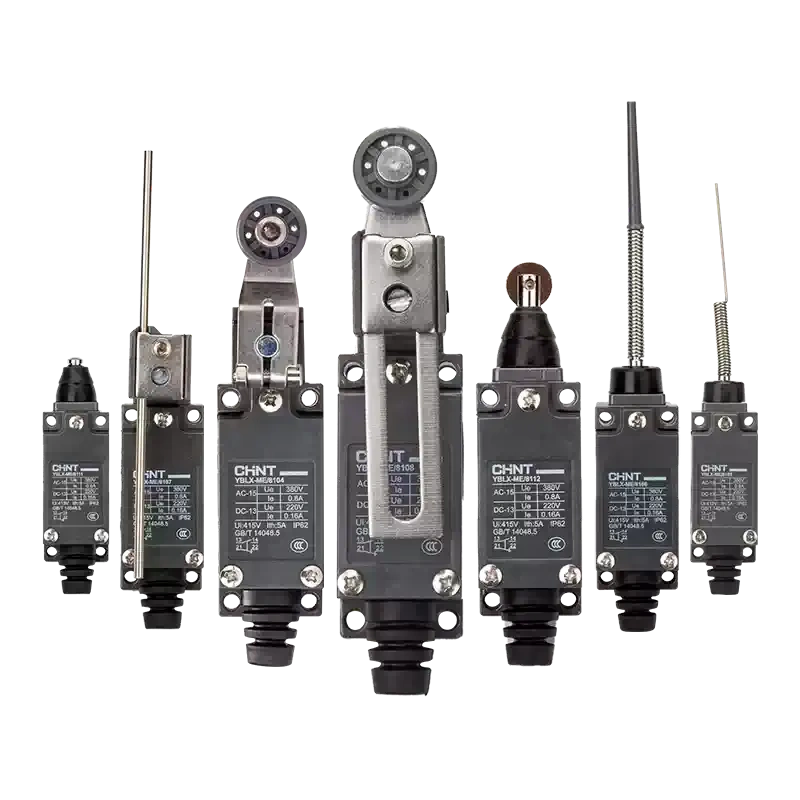

• Multiple Actuator Styles: Choose from adjustable roller lever, plunger, flexible rod, and universal type actuators to suit various mounting and stroke requirements.
• Long Mechanical Life: Rated for 250,000 operations, ensuring reliable performance under frequent use in industrial environments.
• Wide Voltage Compatibility: Works with both AC 380V and DC 220V circuits, suitable for a variety of control applications.
• Self-Reset Design: Automatically resets after actuation, ideal for repetitive travel control and position limiting tasks.
• Versatile Industrial Use: Perfect for machine tool automatic control, conveyor system travel limiting, and automated equipment safety protection.

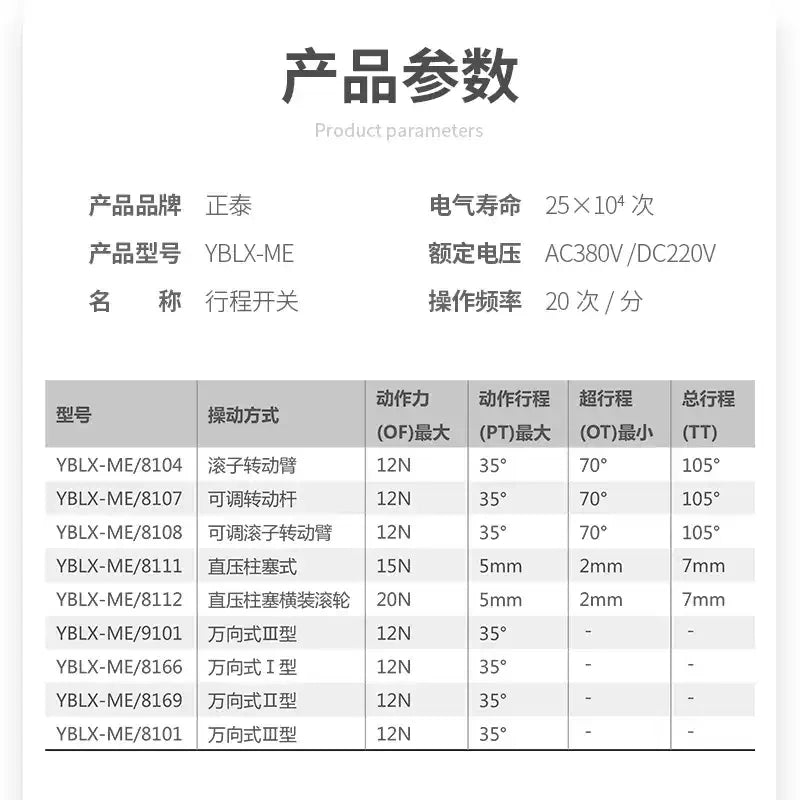

Specification

Attribute	Parameter Details
Brand	CHINT (正泰)

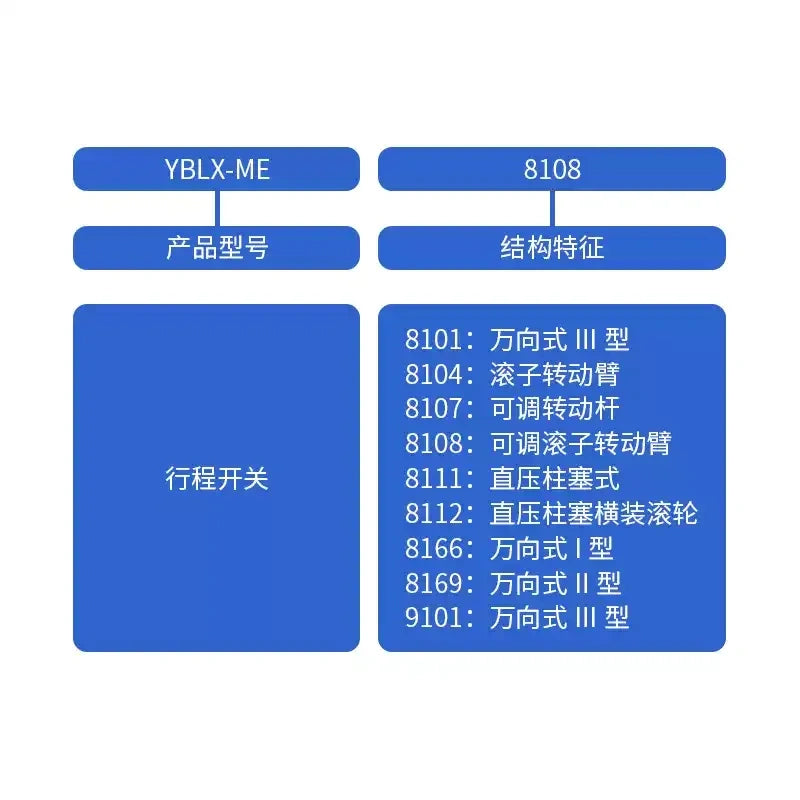

Model Series	YBLX-ME/8108, /8101, /8104, /8107, /8111, /8112, /8166, /8169, /9101
Rated Voltage	AC: 380V (0.8A) / DC: 220V (0.16A)
Contact Configuration	1NO + 1NC

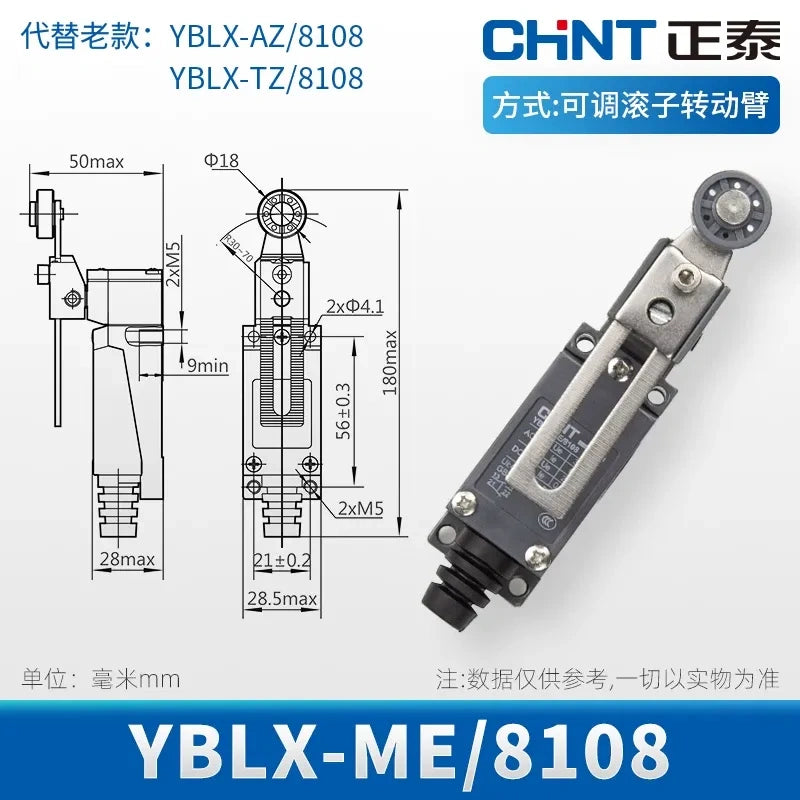

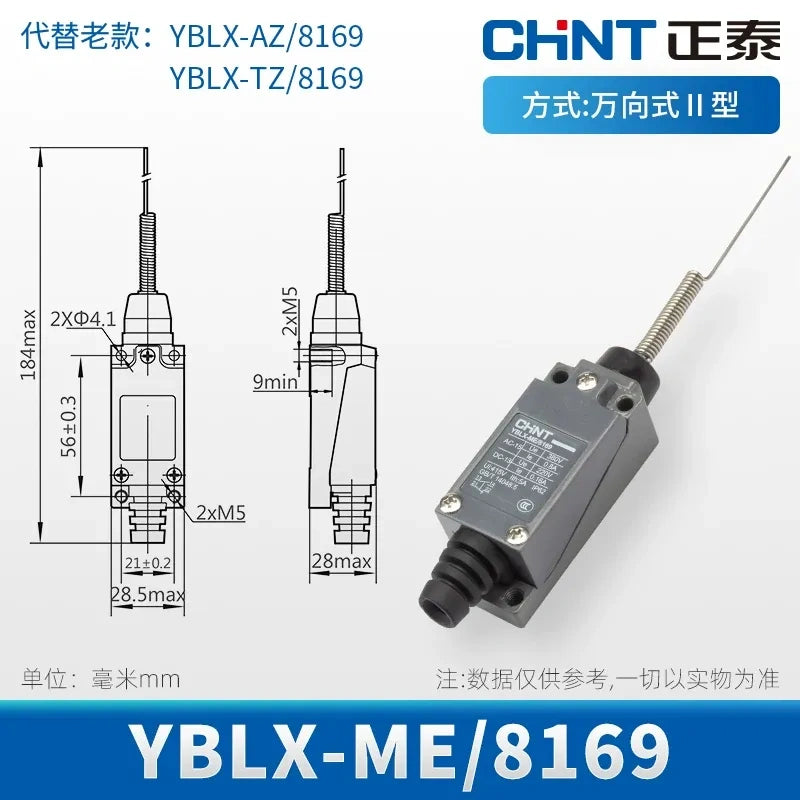

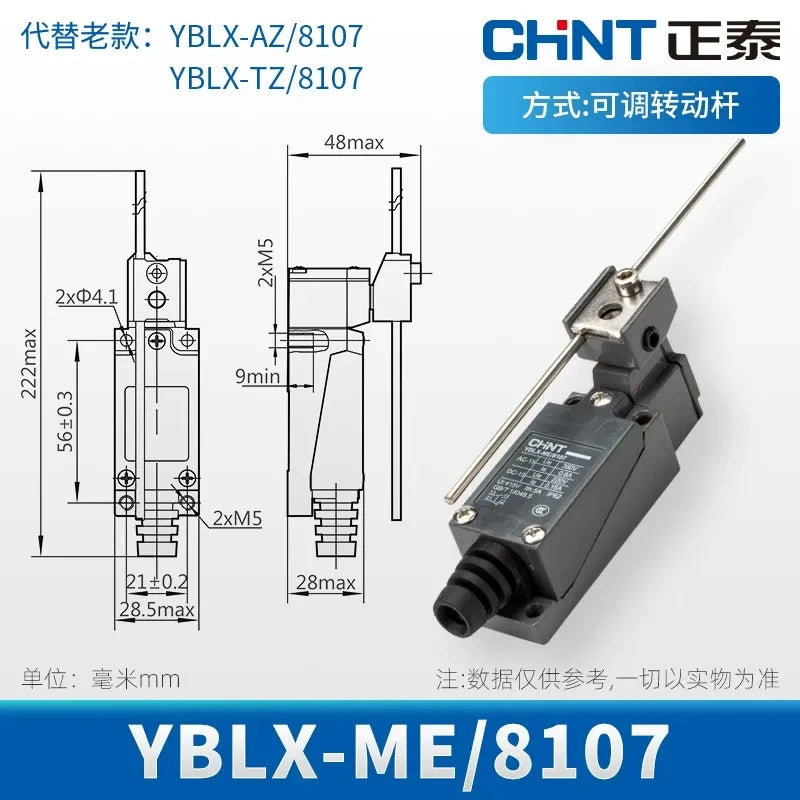

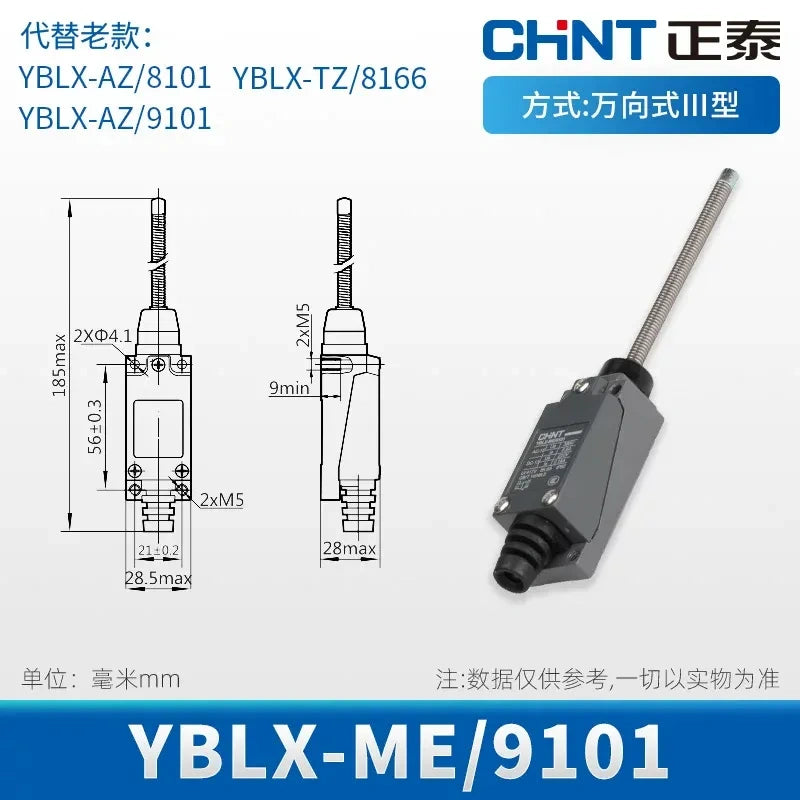

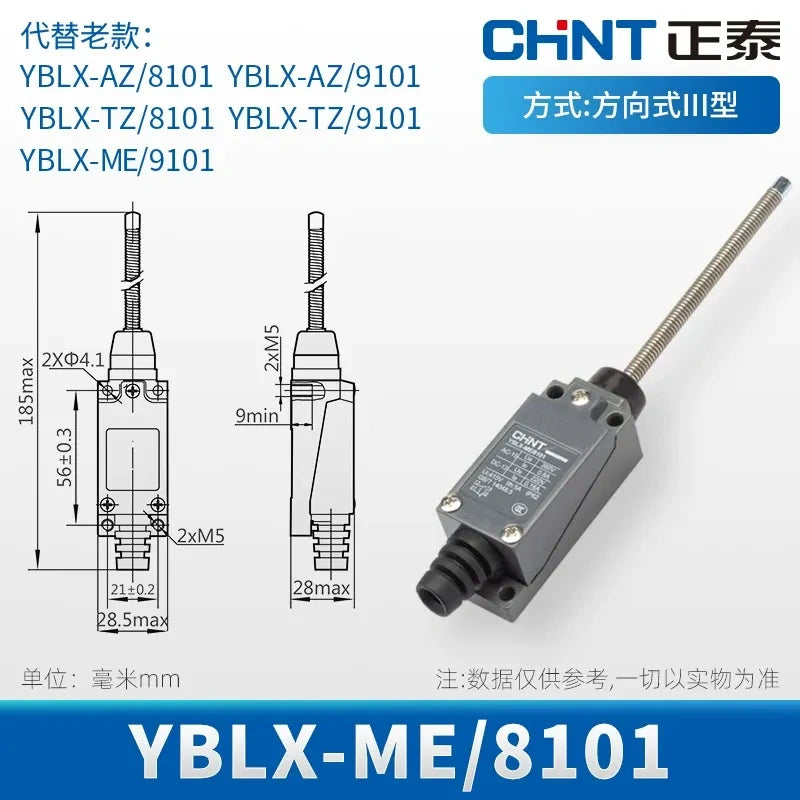

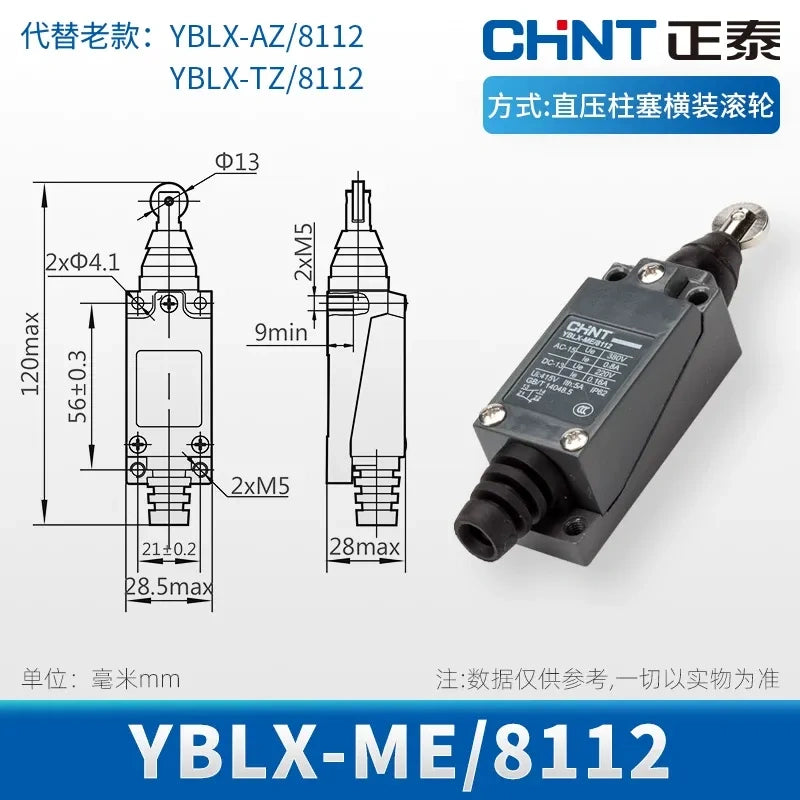

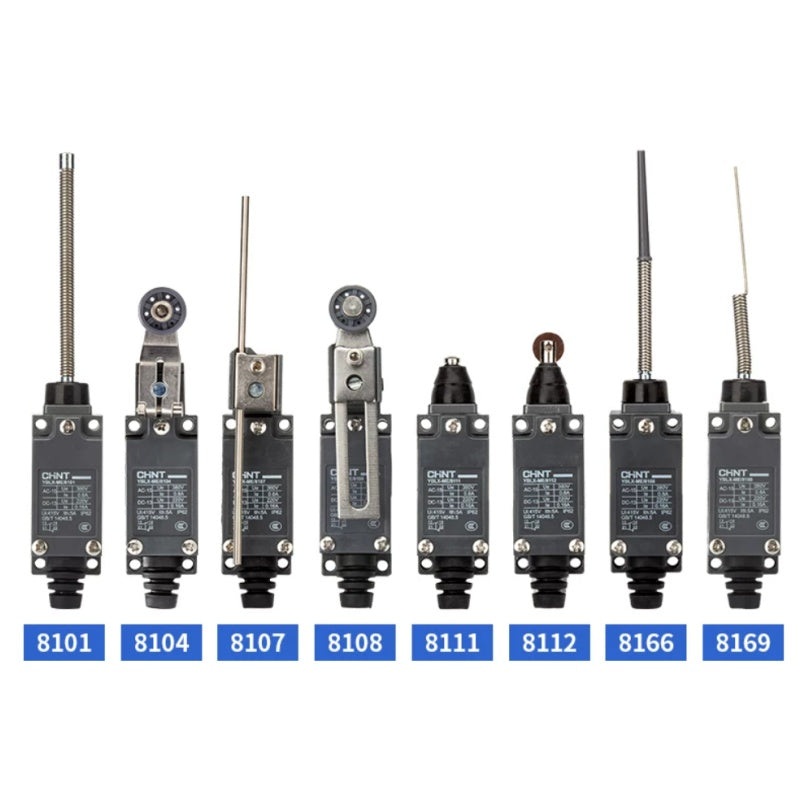

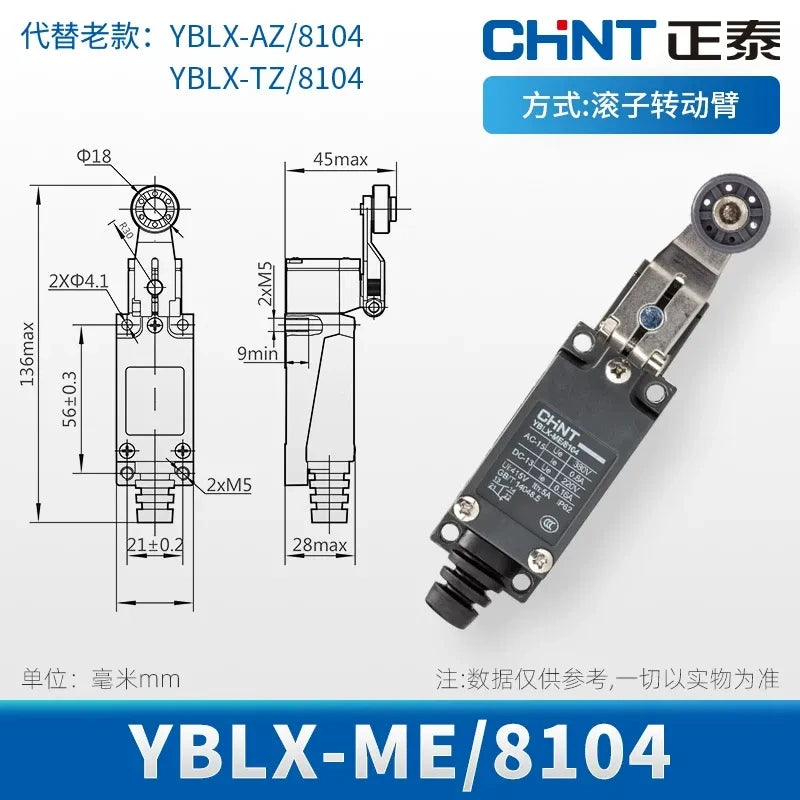

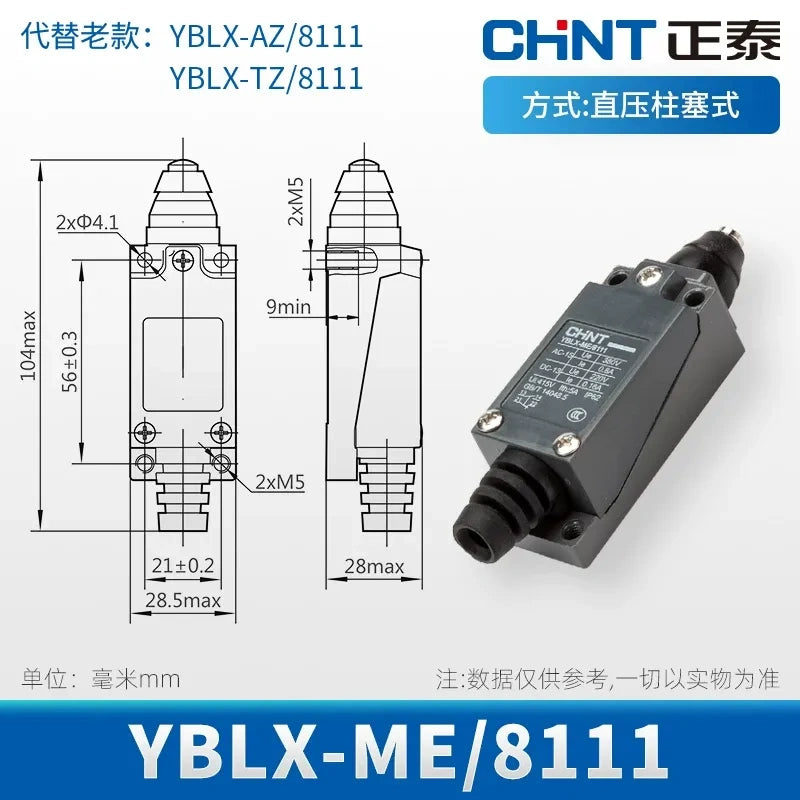

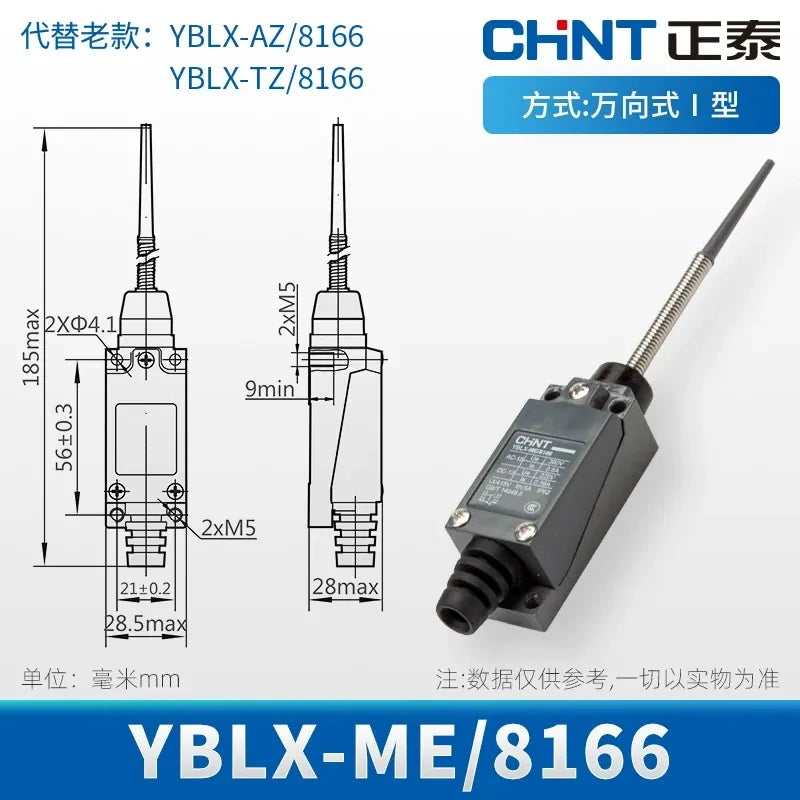

Actuator Types	Adjustable roller lever (8108), roller lever (8104), adjustable lever (8107), plunger (8111), plunger with side roller (8112), universal type (8101/8166/8169/9101)
Mechanical Life	25 × 10⁴ operations
Operating Frequency	20 operations/minute
Action Type	Self-reset
Application	Machine tools, conveyors, automated equipment, travel control systems
