CHNT F4 Auxiliary Contact Block F4-11/F4-02/F4-20/F4-22/F4-31/F4-13/F4-40 & F5 Air Delay Head Fit CJX2 AC Contactor, Auxiliary Contact Attachment NO NC Auxiliary Switch
DESCRIPTION

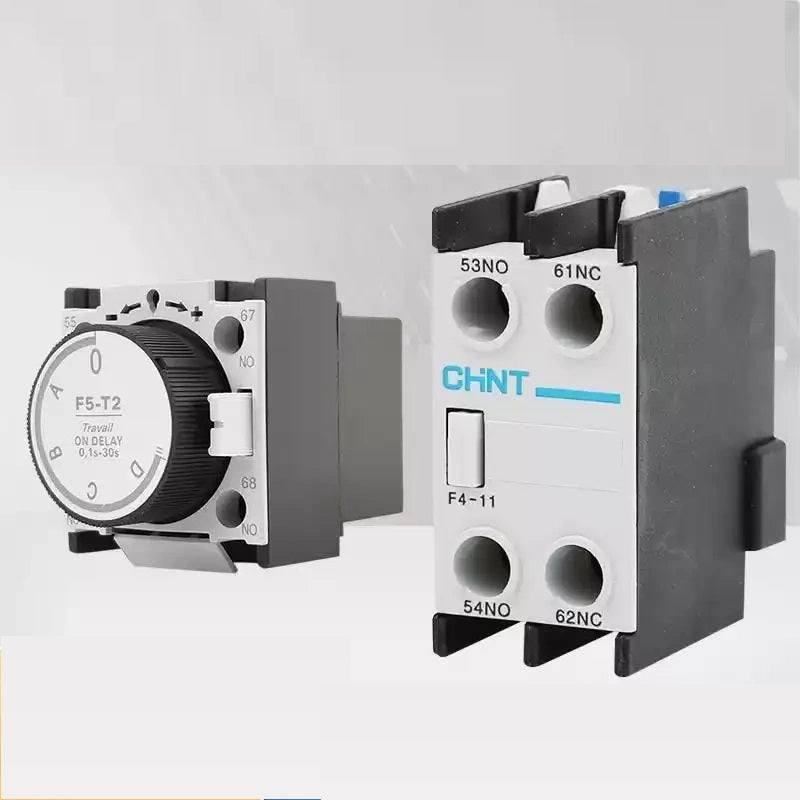

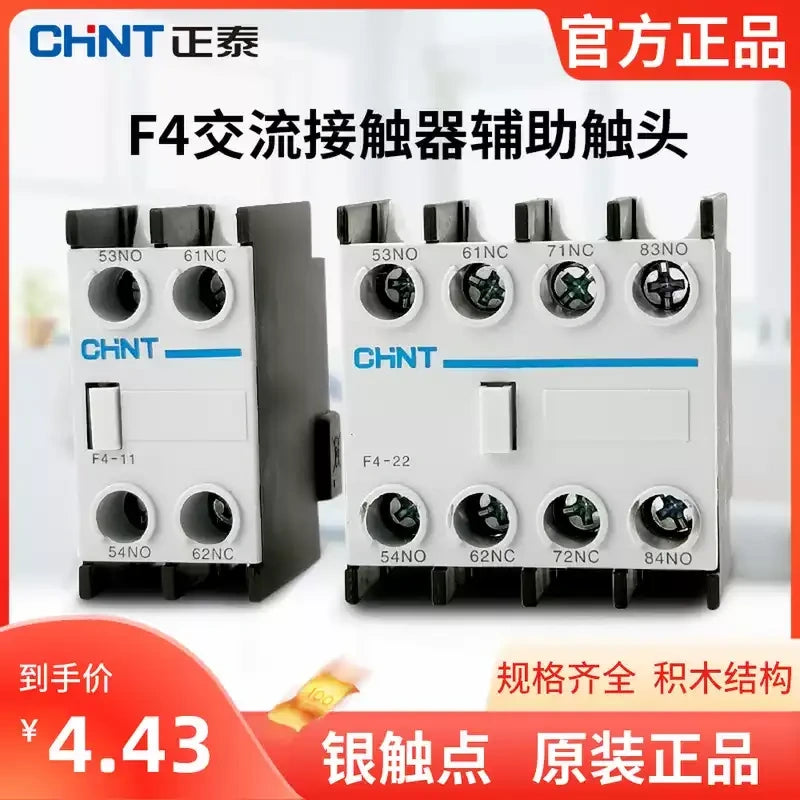

Original CHNT F4 series auxiliary contact block & F5 pneumatic delay head, perfectly compatible with CJX2 series AC contactors.
F4 Auxiliary Contact full specs:

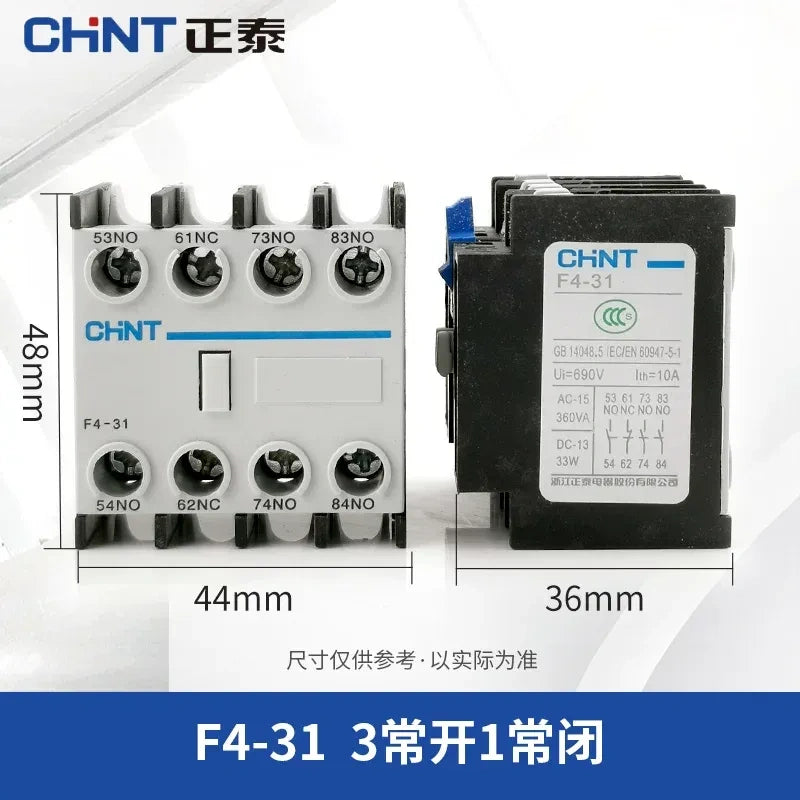

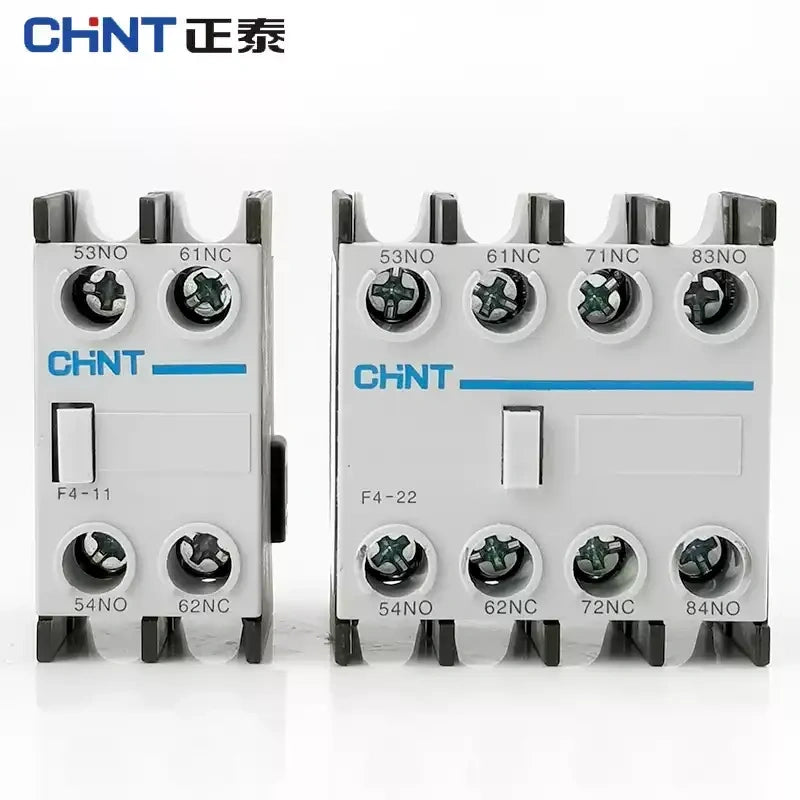

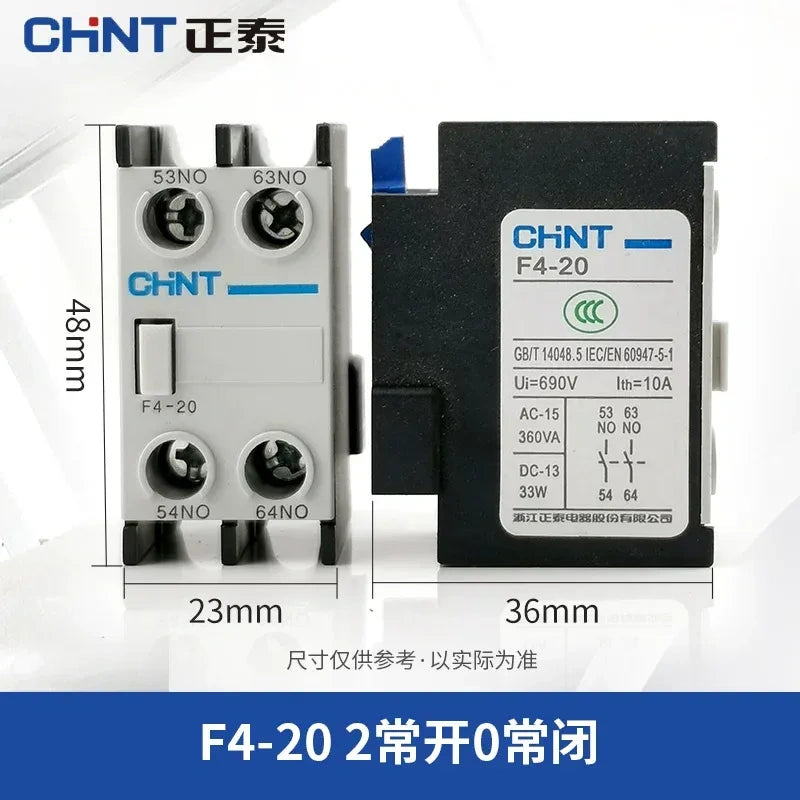

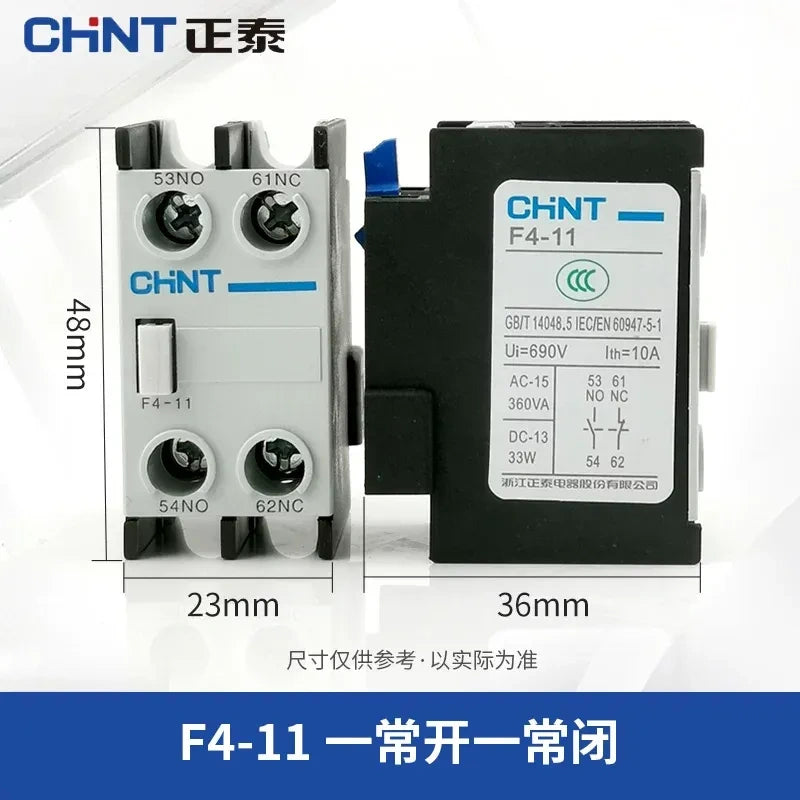

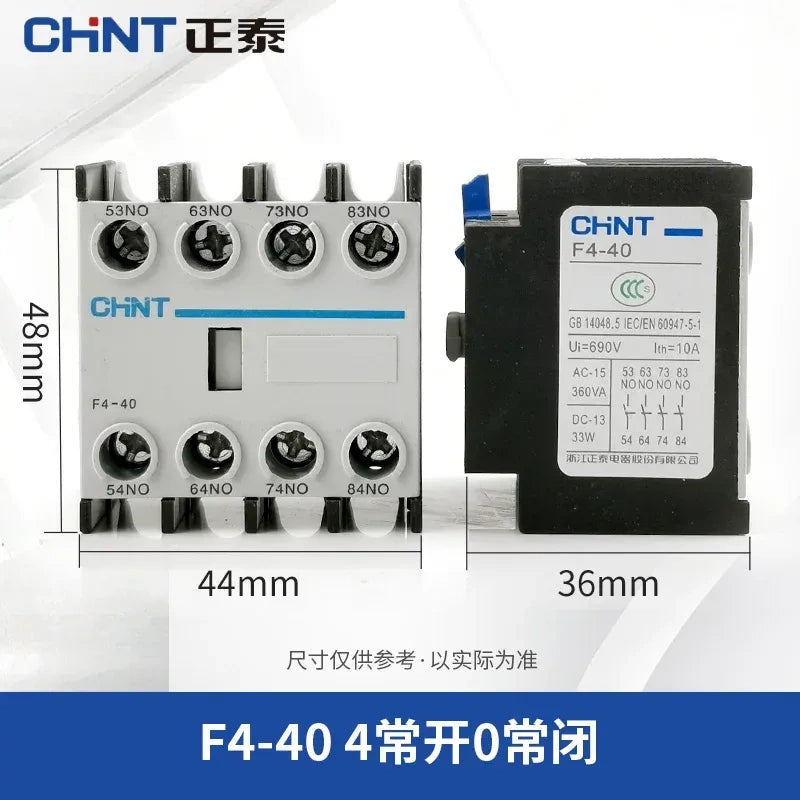

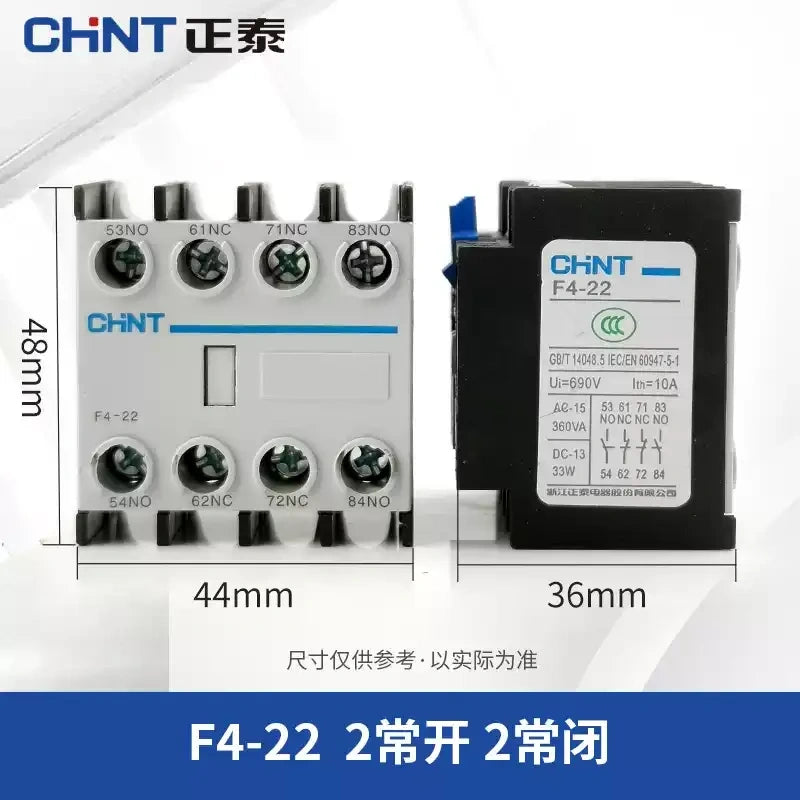

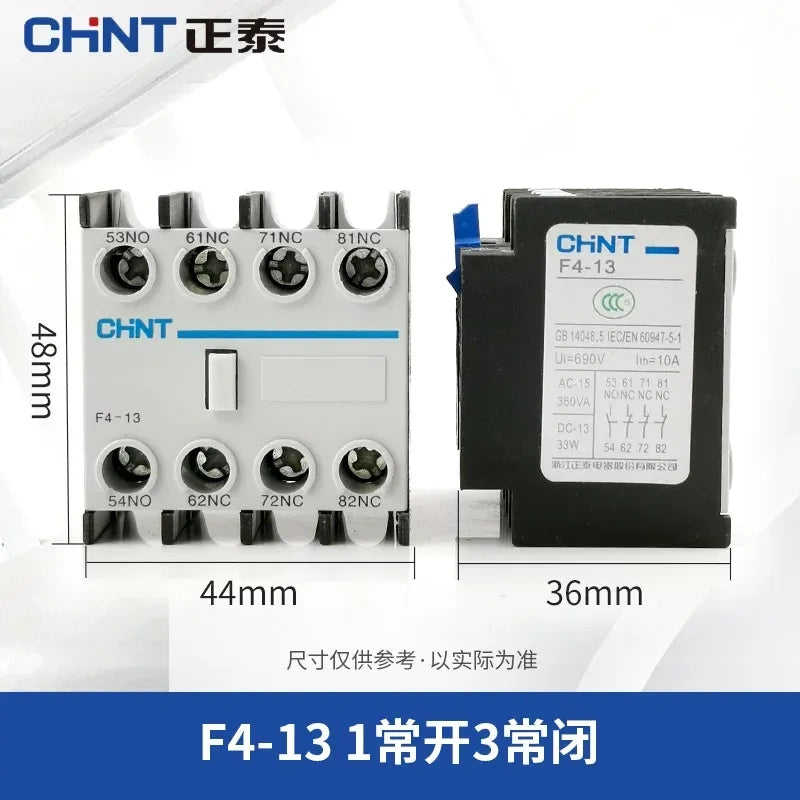

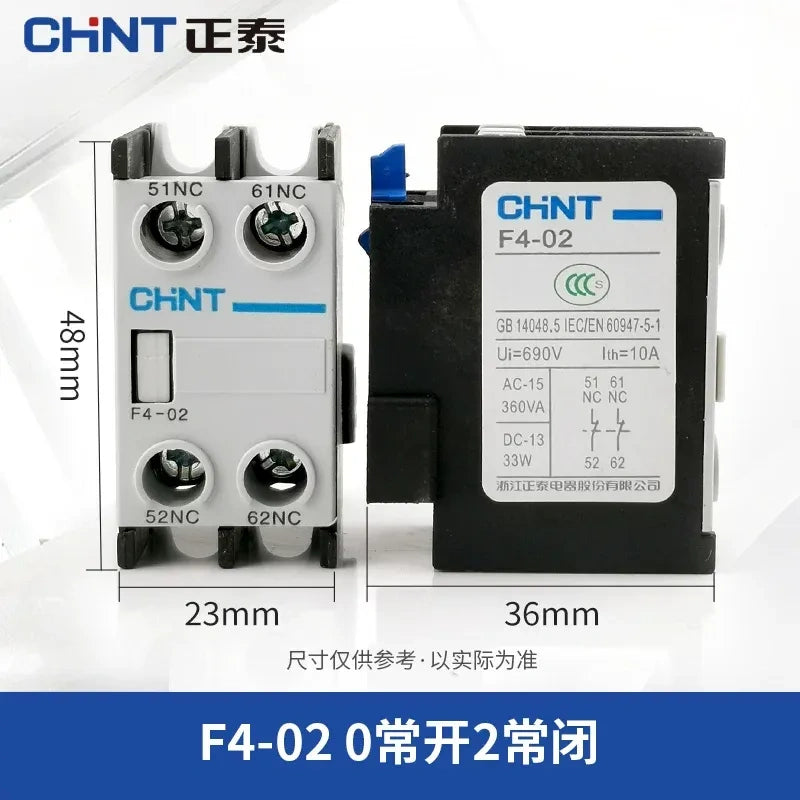

F4-11(1NO+1NC), F4-02(2NC), F4-20(2NO), F4-22(2NO+2NC), F4-31(3NO+1NC), F4-13(1NO+3NC), F4-40(4NO); Rated thermal current 10A, insulation voltage 660V.

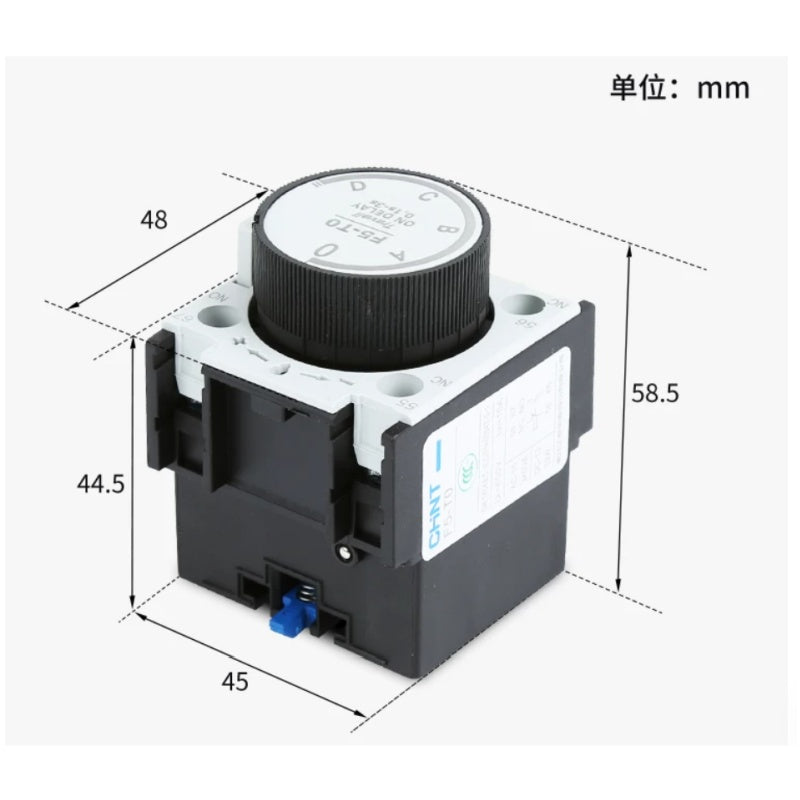

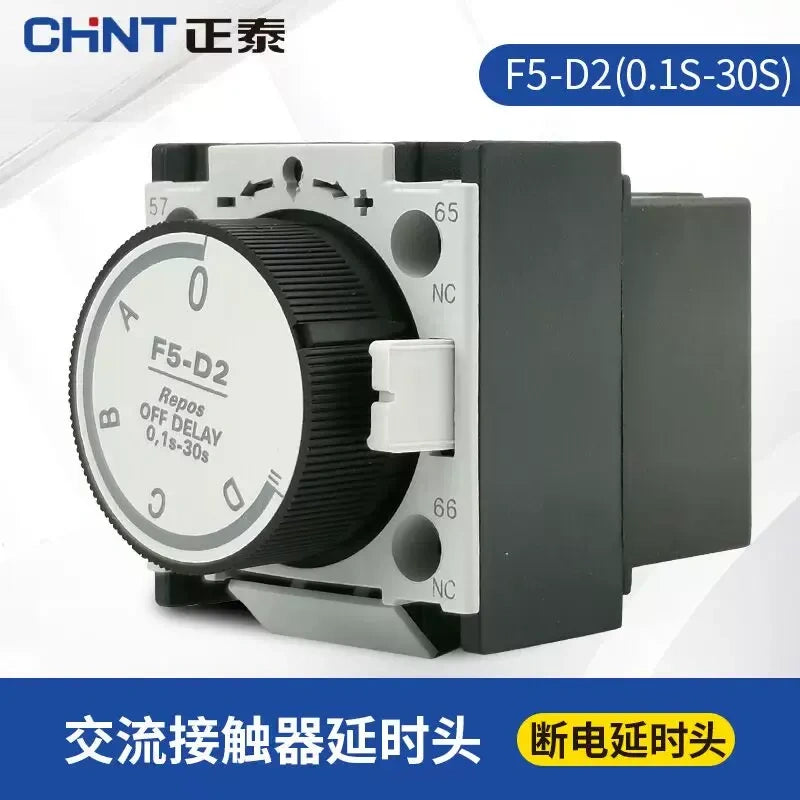

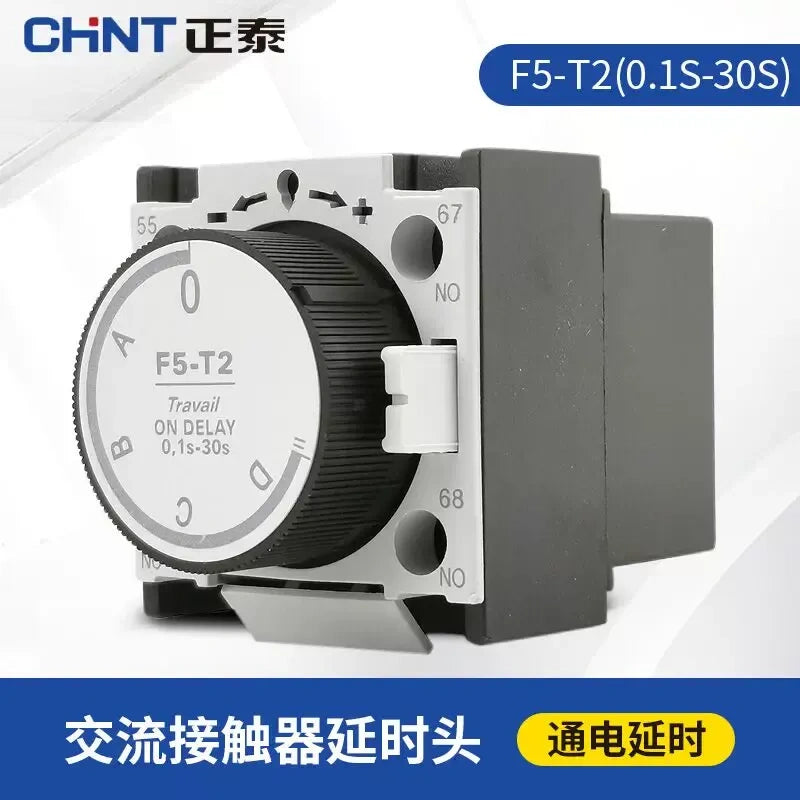

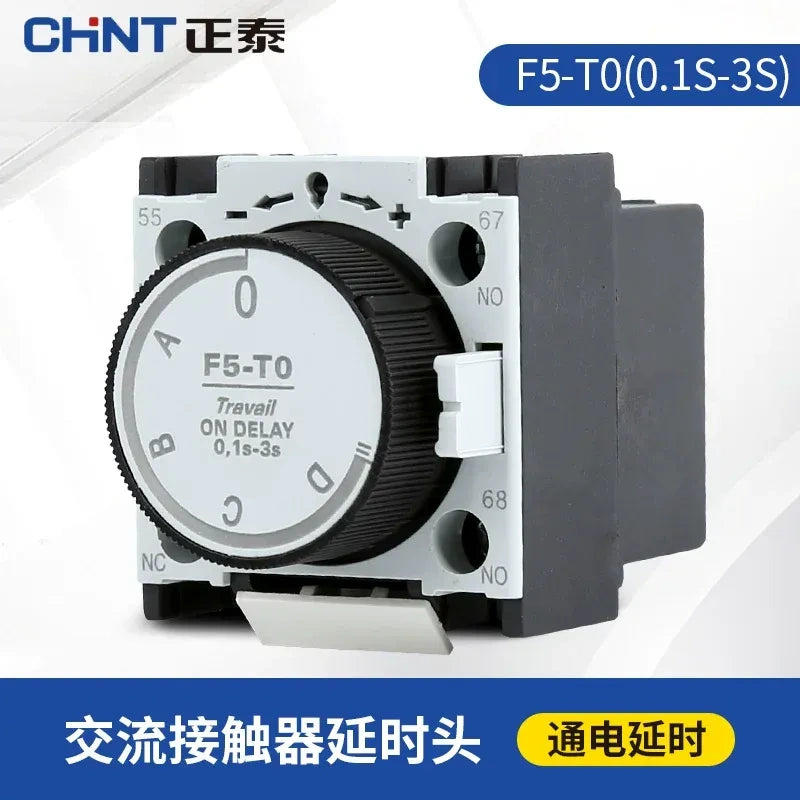

F5 Delay Head: F5-D0/D2(Delay-on-break), F5-T0/T2(Delay-on-make), adjustable delay time 0.1s~30s, used for time-delay control, signal interlock & circuit expansion on contactor control system for automation, pump, motor control cabinet.
- Full Range Contact Combination:7 kinds of F4 auxiliary contacts from 2NC~4NO+NC combinations, freely expand contactor auxiliary points for various interlock circuit design.
- Optional Pneumatic Delay Attachment:F5 series on-delay & off-delay timing heads, adjustable 0.1~30s delay, realize automatic sequential control for motor and equipment startup/shutdown.

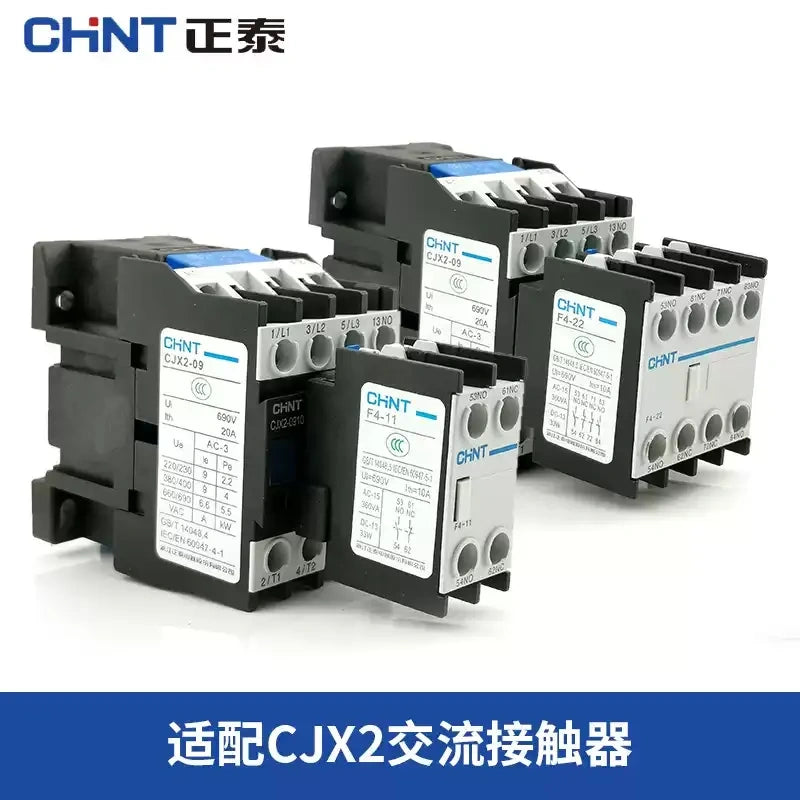

- Perfect Match CJX2 Contactor:Direct snap-on installation to CJX2 AC contactor top, no extra wiring modification needed, easy field assembly.
- High Electrical Rating:10A rated thermal current & 660V insulation voltage, durable for long-term frequent switching in industrial control cabinet.
- Wide Application:Fit for water pump, fan, conveyor motor control, PLC cabinet auxiliary signal conversion, building automation sequential circuit control.
Specification
| 属性项目 | 参数详情 |
|---|---|
| Brand | CHNT 正泰 |
| Product Series | F4 Auxiliary Contact Block + F5 Pneumatic Air Delay Head |
| F4 Contact Models
|
F4-11:1NO+1NC
|
| F5 Delay Type | F5-T0/T2: Power-on Delay；F5-D0/D2: Power-off Delay
|
| Rated Thermal Current | 10A |
| Rated Insulation Voltage | 660V |
| Compatible Contactor | CJX2 series AC contactor |
| Certification | 3C Approved |
| Application | AC contactor auxiliary circuit expansion, motor/pump interlock control, automation equipment time delay switching |
