CHNT JZX-22F(D) Miniature Electromagnetic Intermediate Relay 2Z/3Z/4Z

Name: CHNT JZX-22F(D) Miniature Electromagnetic Intermediate Relay 2Z/3Z/4Z
Brand: CHINT ELECRTIC
SKU: CHNT Miniature Electromagnetic Intermediate Relay JZX-22F(D)/2Z【8Pin/ 2NO+2NC/ 5A】 / DC12V
Price: 9.6 USD
Availability: InStock

$9.60 USD

Sale Sold out

Shipping calculated at checkout.

Model NO. JZX-22F(D)/2Z【8Pin/ 2NO+2NC/ 5A】 JZX-22F(D)/3Z【11Pin/ 3NO+3NC/ 5A】 JZX-22F(D)/4Z【14Pin/ 4NO+4NC/ 3A】 JQX-13F(D)/2Z【8Pin/ 2NO+2NC/ 10A】 JZX-22F(D)/2Z【8Pin/ 2NO+2NC/ 5A】With Base JZX-22F(D)/3Z【11Pin/ 3NO+3NC/ 5A】With Base JZX-22F(D)/4Z【14Pin/ 4NO+4NC/ 3A】With Base JQX-13F(D)/2Z【8Pin/ 2NO+2NC/ 10A】With Base

Volage DC12V DC24V AC380V AC220V AC24V

Product variants

Quantity

CHNT JZX-22F(D) Miniature Electromagnetic Intermediate Relay 2Z/3Z/4Z 8Pin/11Pin/14Pin & JQX-13F(D) 8Pole Socket Optional, DC12V/DC24V/AC24V/AC220V/AC380V 5A/3A Plug-in Power Relay

Description

Original CHNT JZX-22F(D) & JQX-13F(D) plug-in intermediate relay, multiple contact configurations:

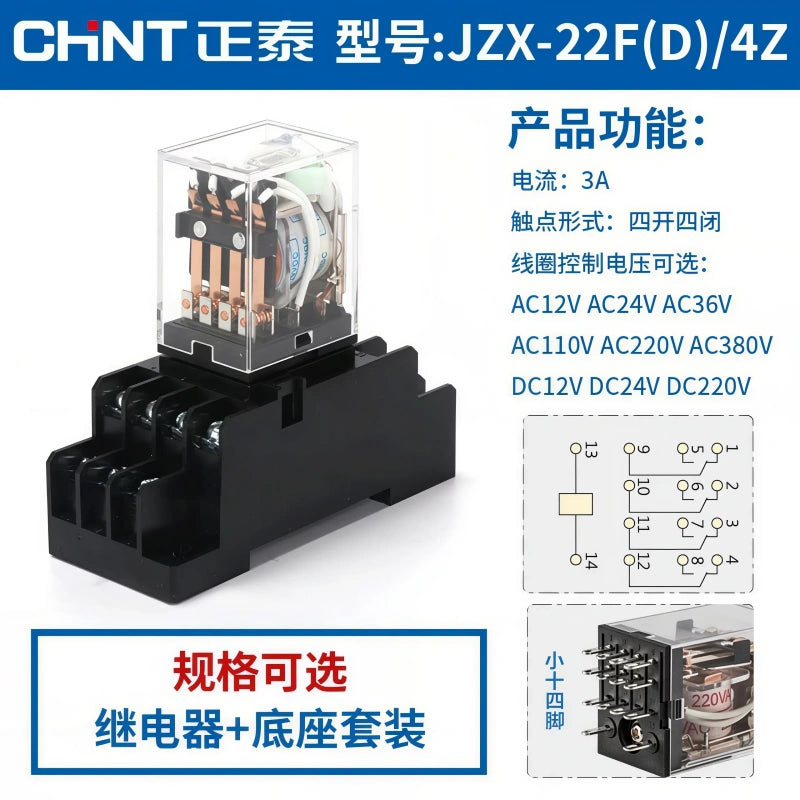

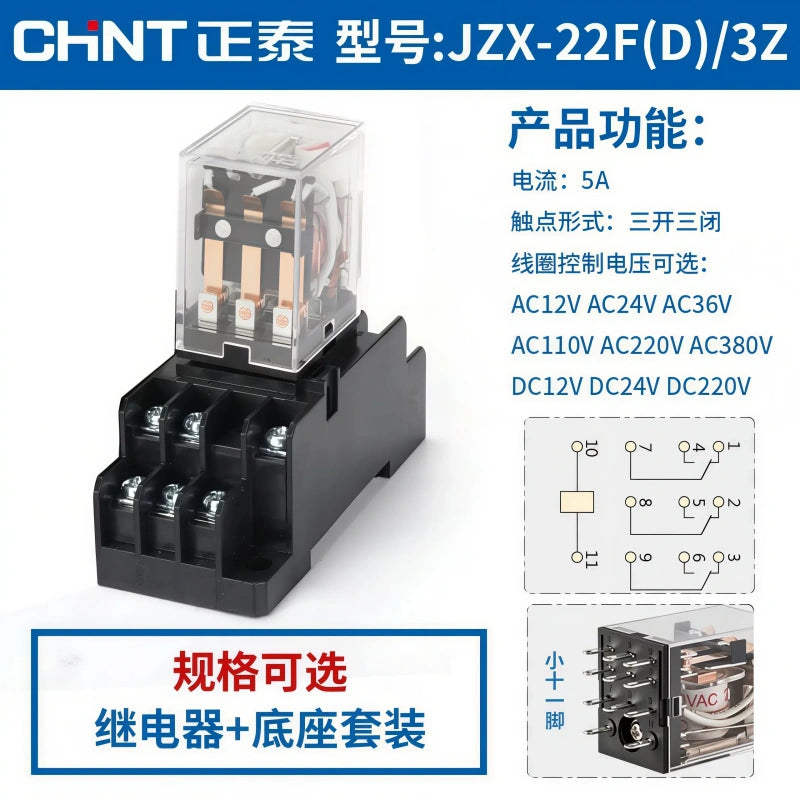

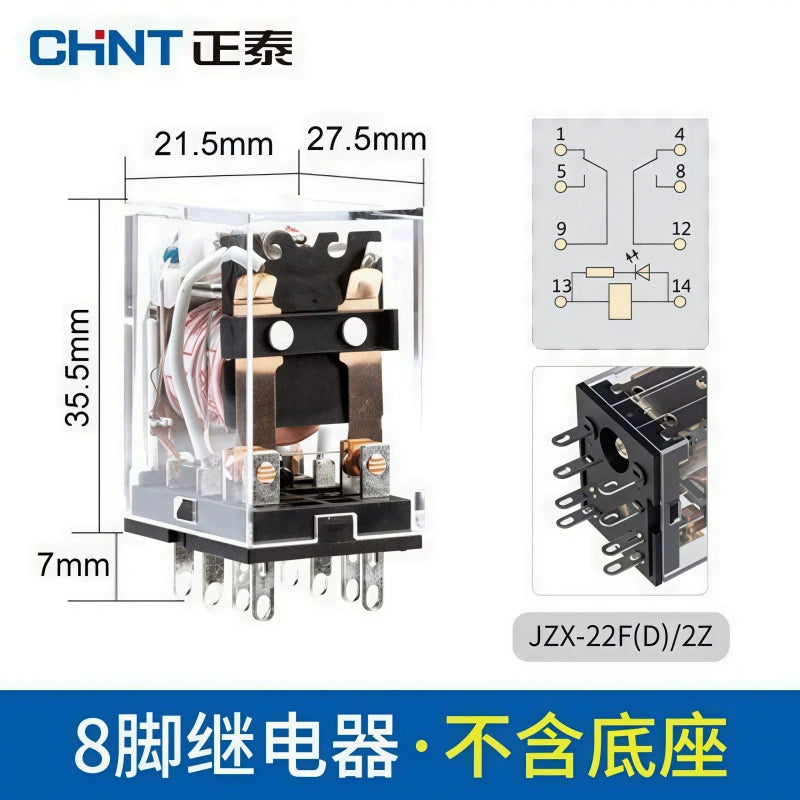

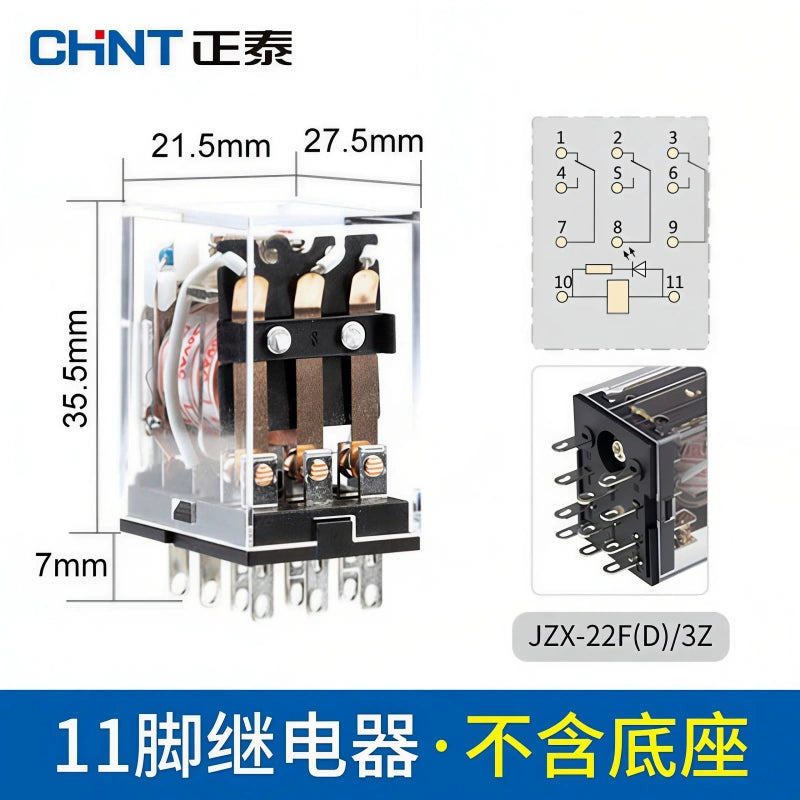

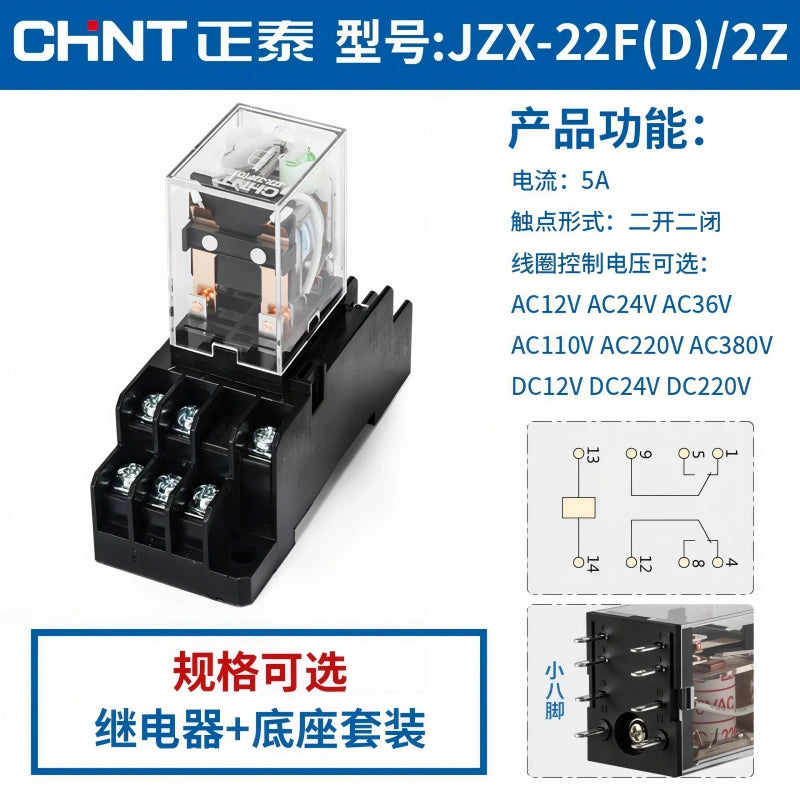

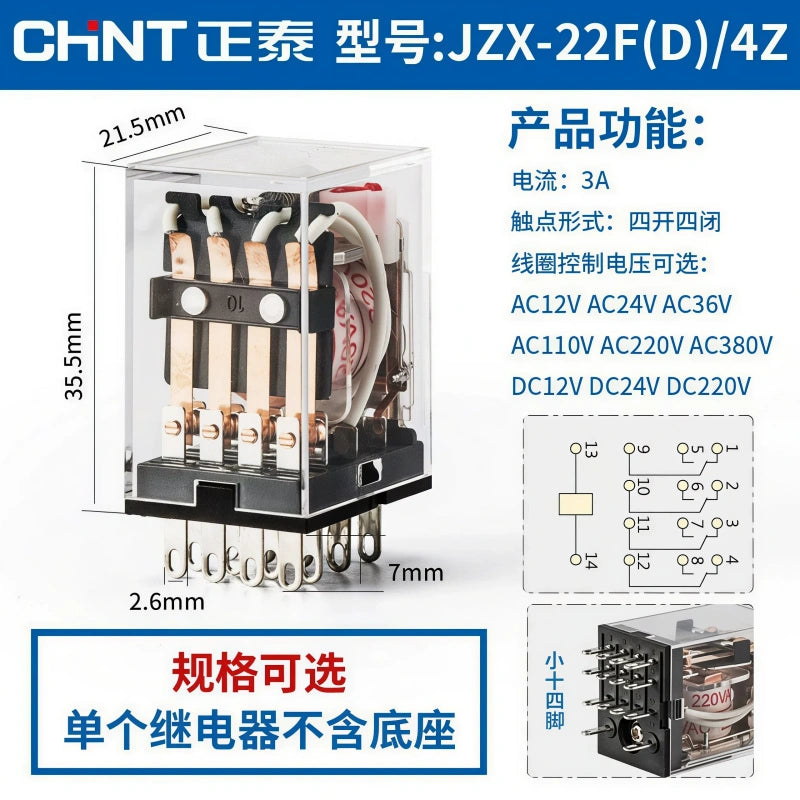

JZX-22F(D)/2Z(8Pin,2NO+2NC,5A)、3Z(11Pin,3NO+3NC,5A)、4Z(14Pin,4NO+4NC,3A);

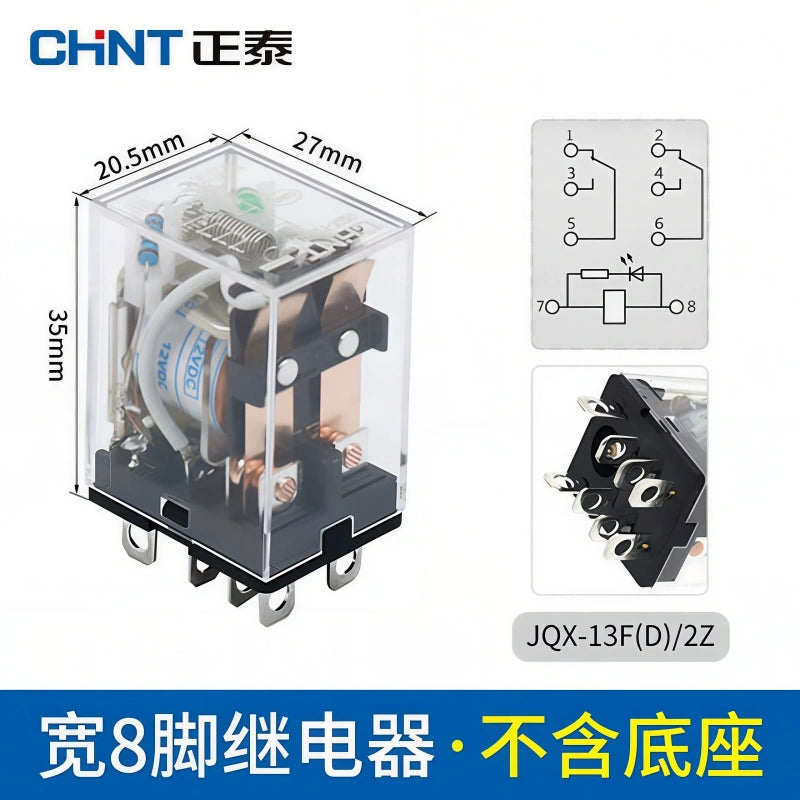

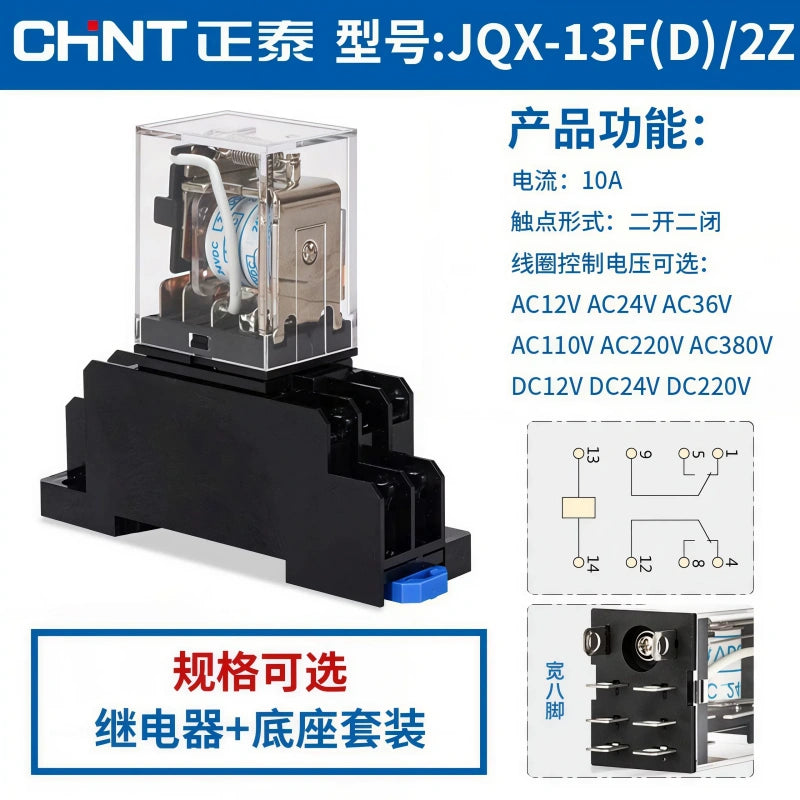

JQX-13F(D): Thick 8Pin specification.

Available coil voltage: DC12V,DC24V,AC24V,AC220V,AC380V; silver alloy contact, fast operate & release time ≤20ms, pluggable design with optional matching DIN socket base for easy replacement. Widely used for PLC cabinet signal conversion, equipment interlock, water pump/fan/motor auxiliary circuit control, automation equipment switching control.

Diversified Contact & Pin Options: 8/11/14 pin & 2Z/3Z/4Z multiple contact combinations plus JQX-13F thick 8pin model, fully meet different circuit interlock design demands.
Rich Coil Voltage Range: DC12/24V & AC24/220/380V optional, compatible with most global common industrial & household control power supply.
Premium Silver Alloy Contacts: Silver alloy contact ensures stable switching, anti-oxidation & long service life under frequent on-off cycles.
Convenient Plug-in Design: Separate relay or relay+base kit available, pluggable structure enables quick disassembly & replacement without rewiring.
Wide Application Scenarios: Perfect for automation equipment, PLC cabinet signal amplification, fan/water pump/motor auxiliary circuit control, building electrical interlock system.

Specification

属性类目	参数详情
Brand	CHNT 正泰
Main Model	JZX-22F(D)-2Z/3Z/4Z ; JQX-13F(D)
Pin & Contact	•2Z：8Pin，2NO+2NC，5A •3Z：11Pin，3NO+3NC，5A •4Z：14Pin，4NO+4NC，3A •JQX-13F(D): Thick 8Pin
Coil Voltage	DC12V / DC24V / AC24V / AC220V / AC380V
Rated Load Current	5A(2Z/3Z),3A(4Z)
Action/Release Time	≤20ms
Contact Material	Silver Alloy
Structure	Plug-in type, available separate relay / relay+socket base set
Application	PLC control cabinet, industrial automation, pump/motor auxiliary interlock, household equipment circuit switching
