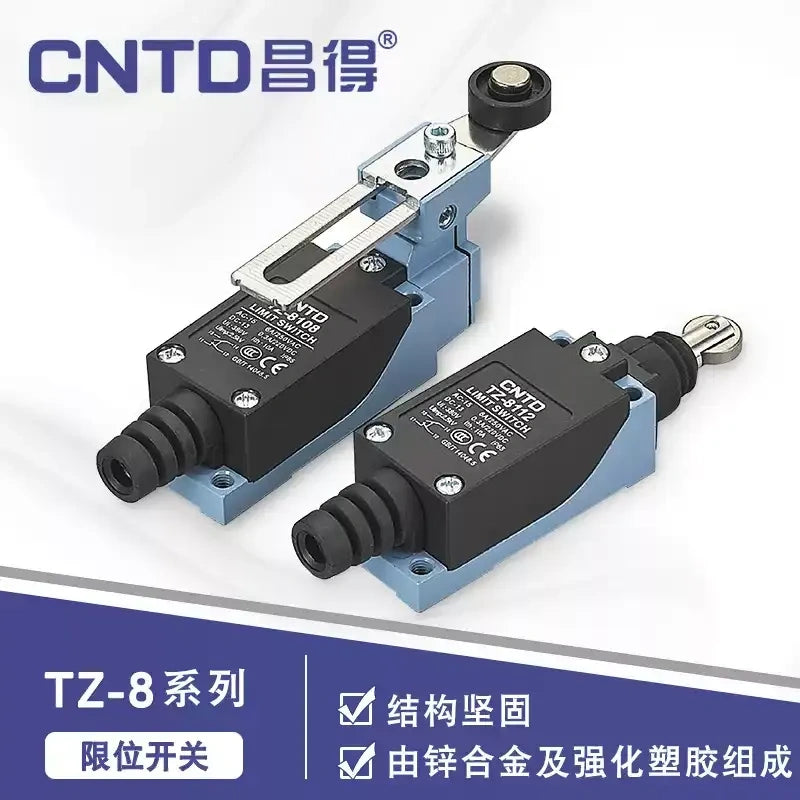

CNTD TZ-8 Series Limit Switch 1NO1NC
Regular price
$27.40 USD
Regular price
Sale price
$27.40 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

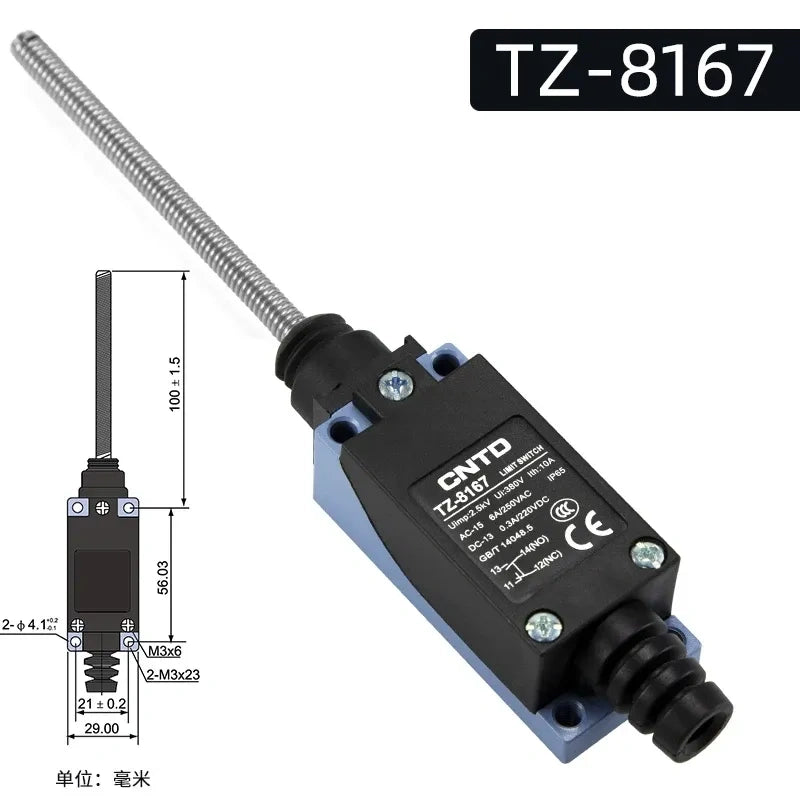

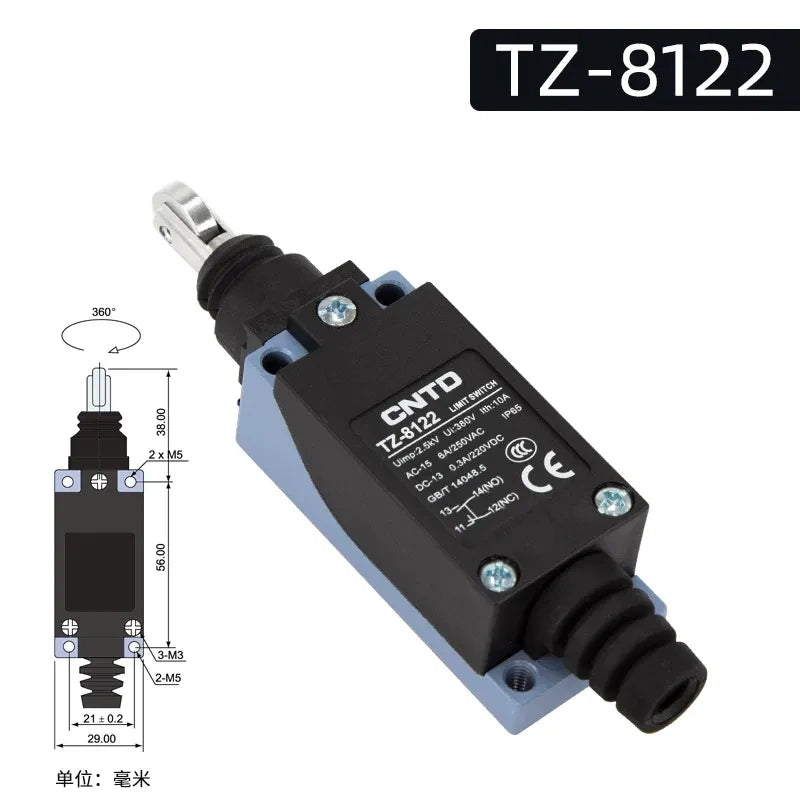

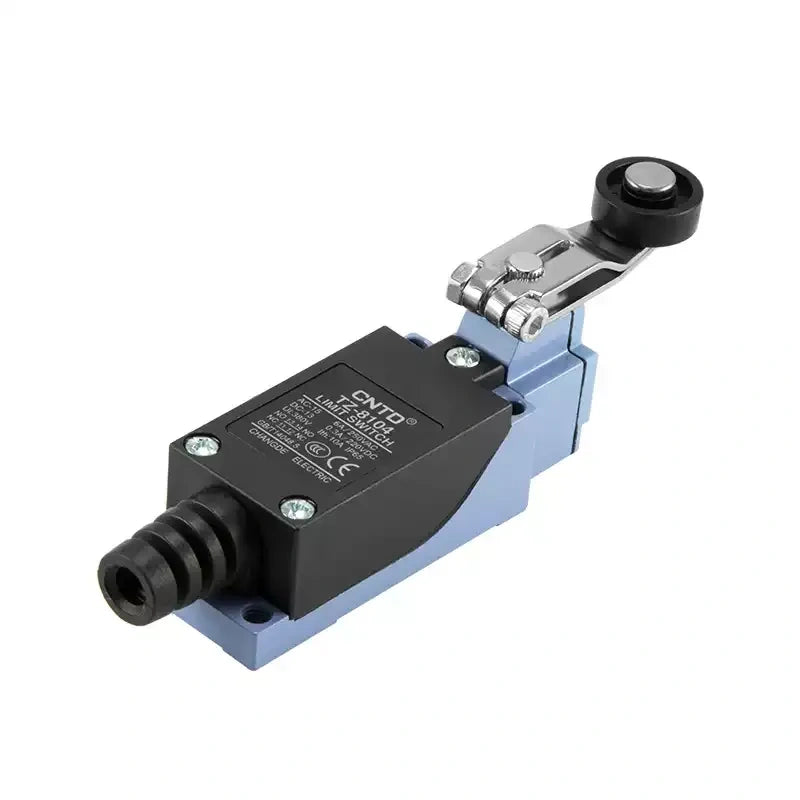

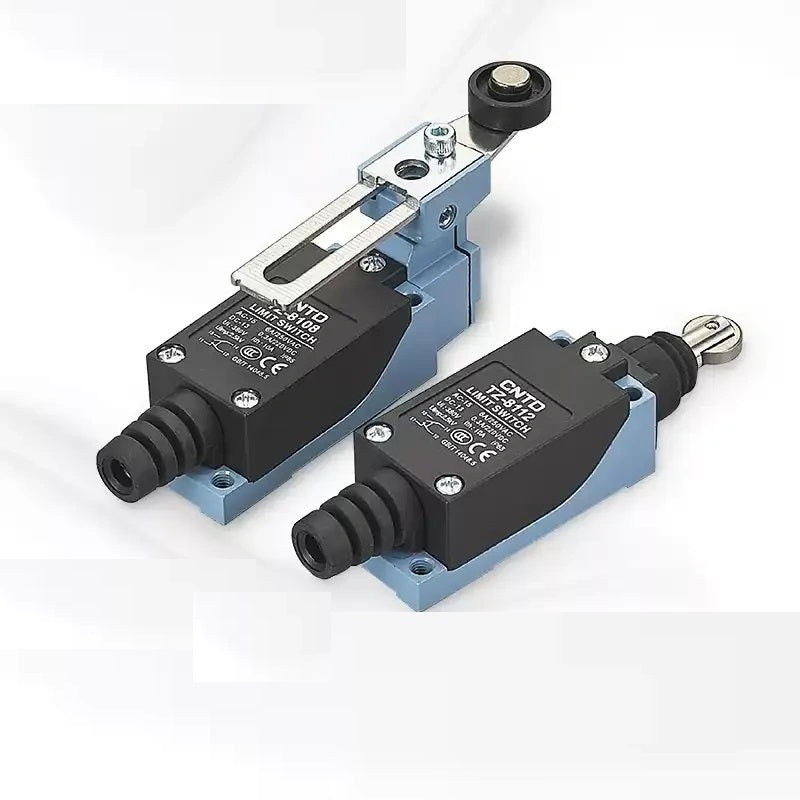

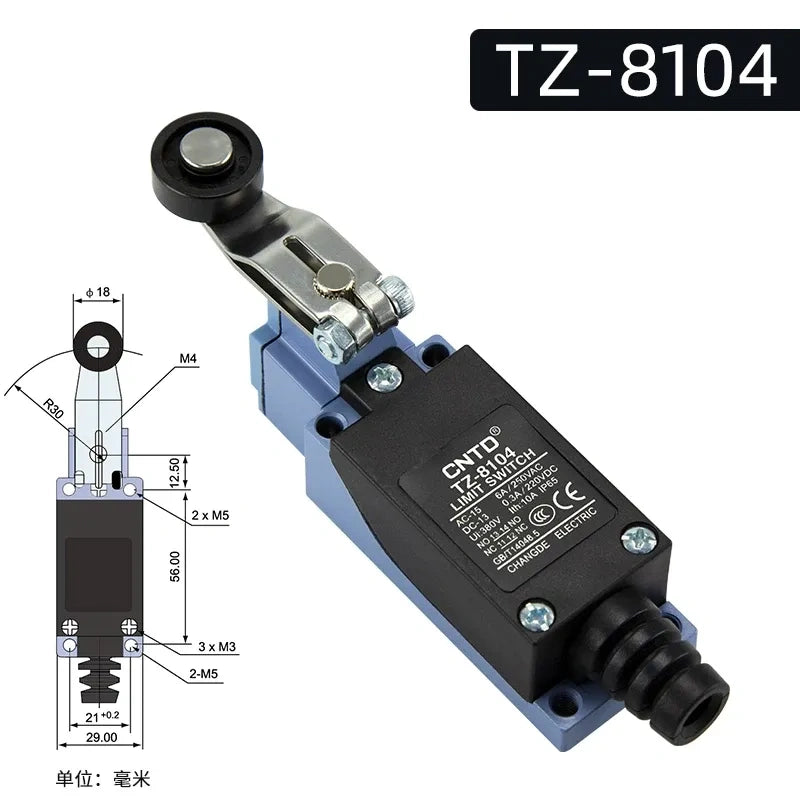

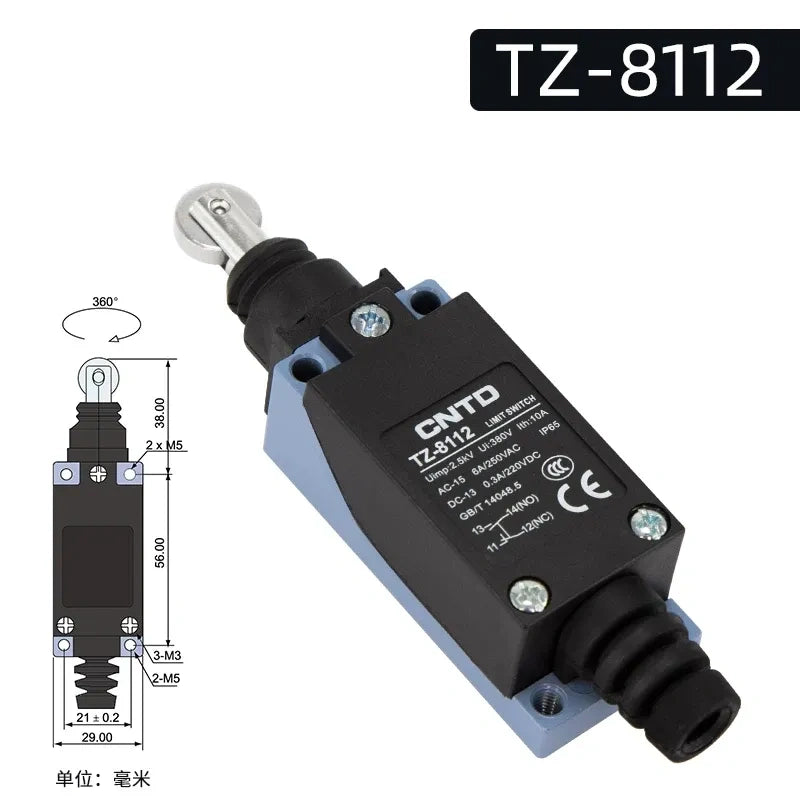

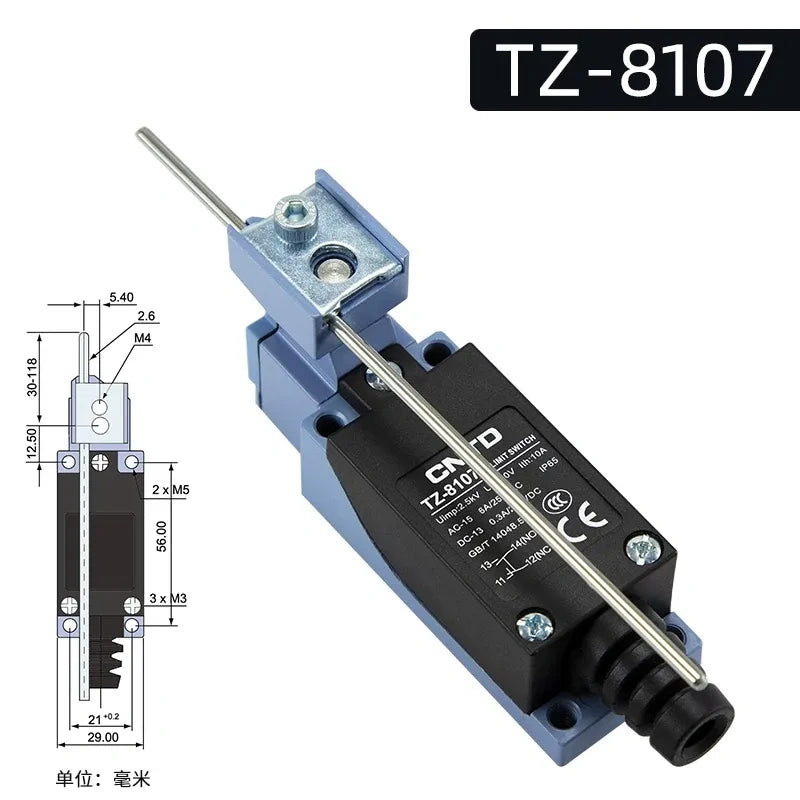

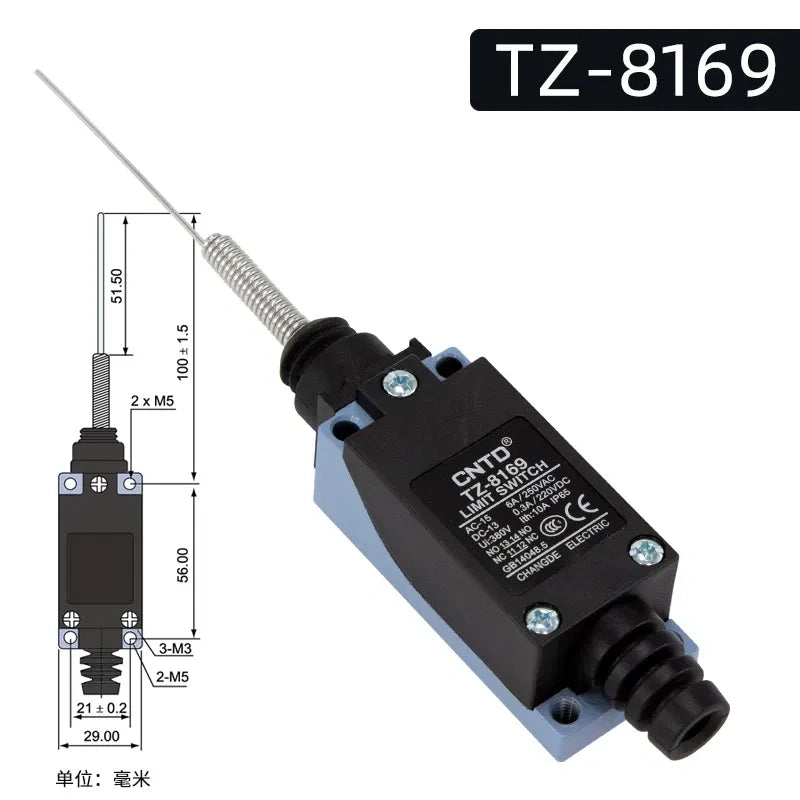

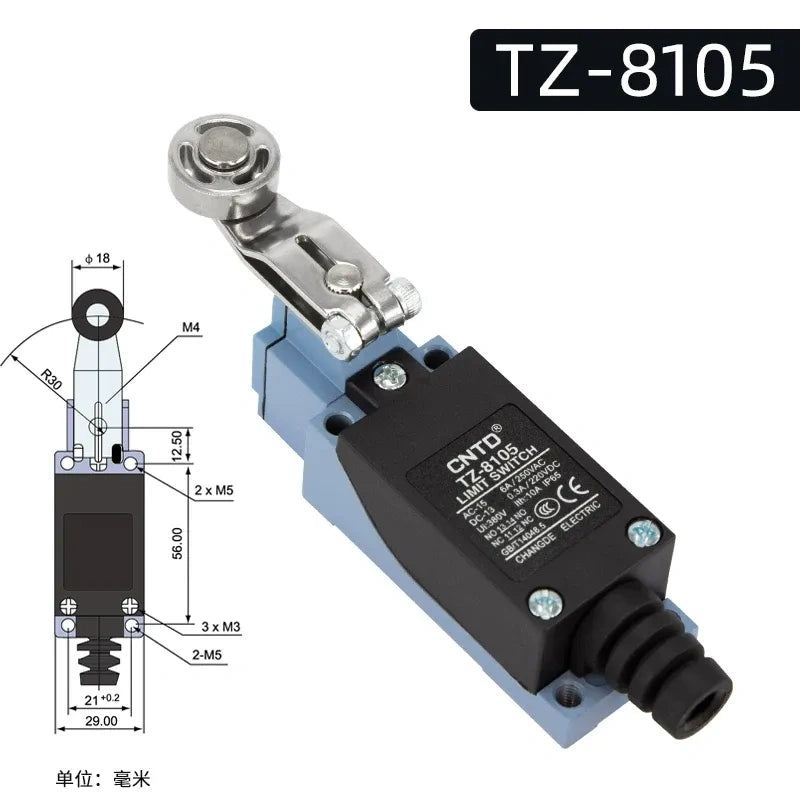

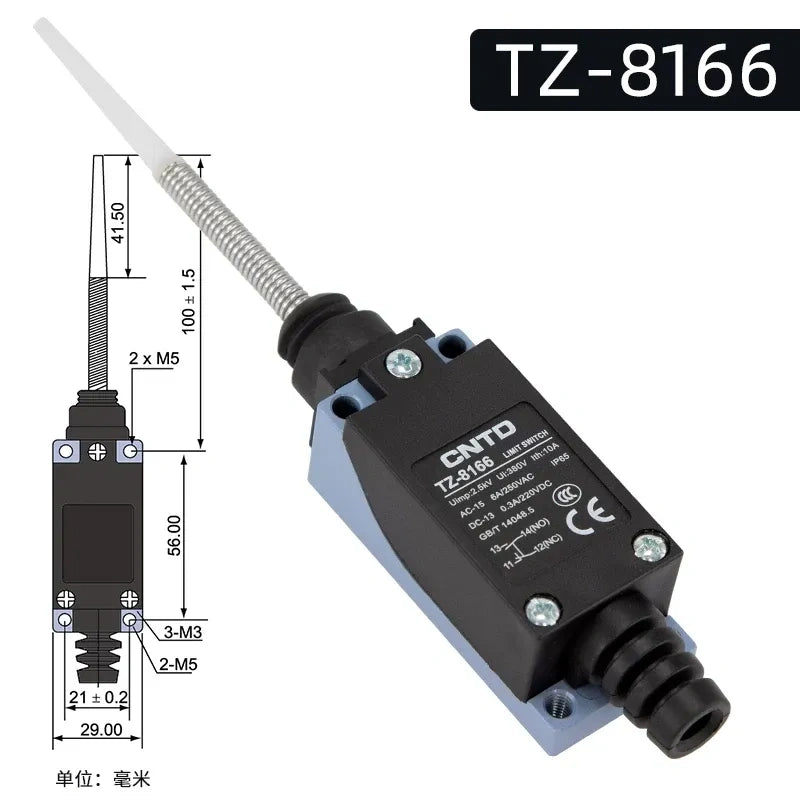

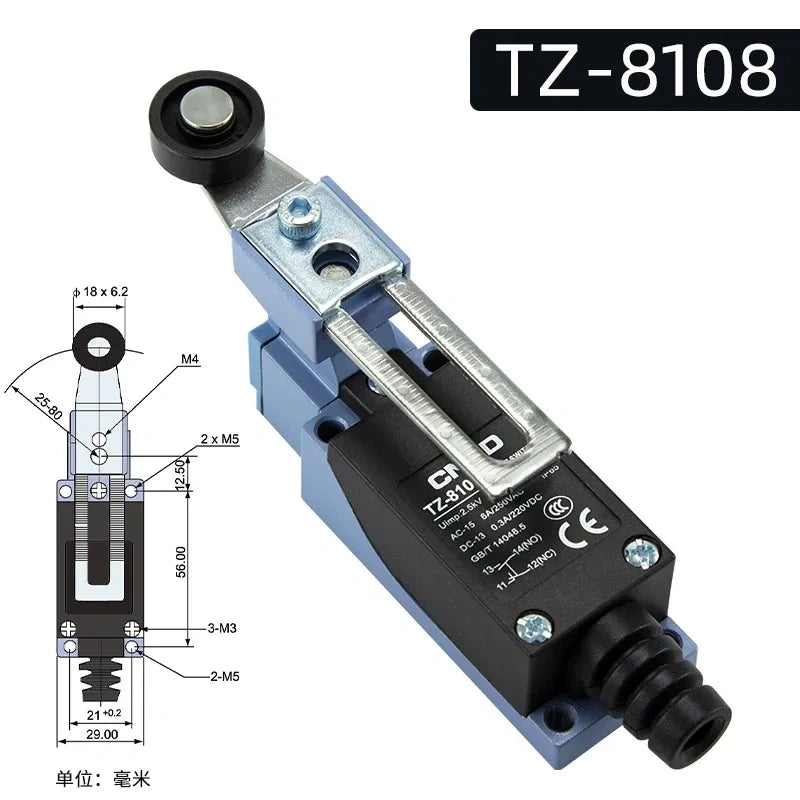

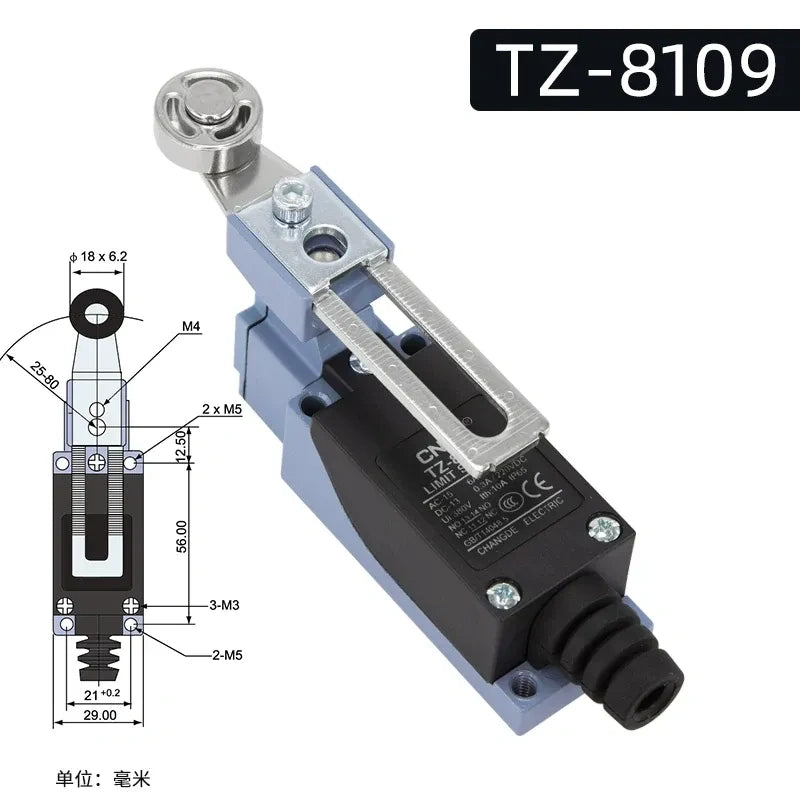

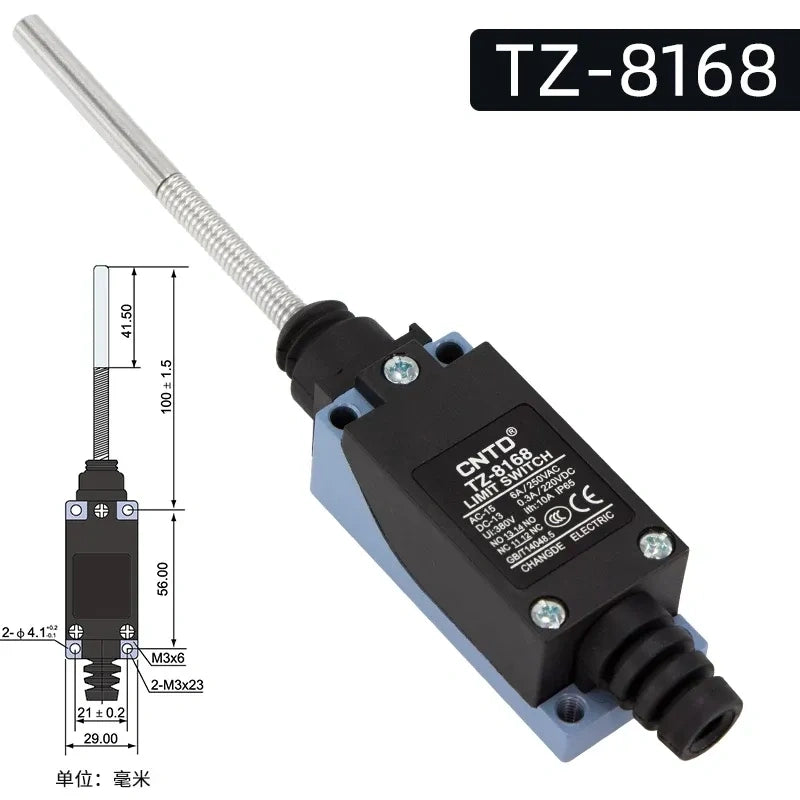

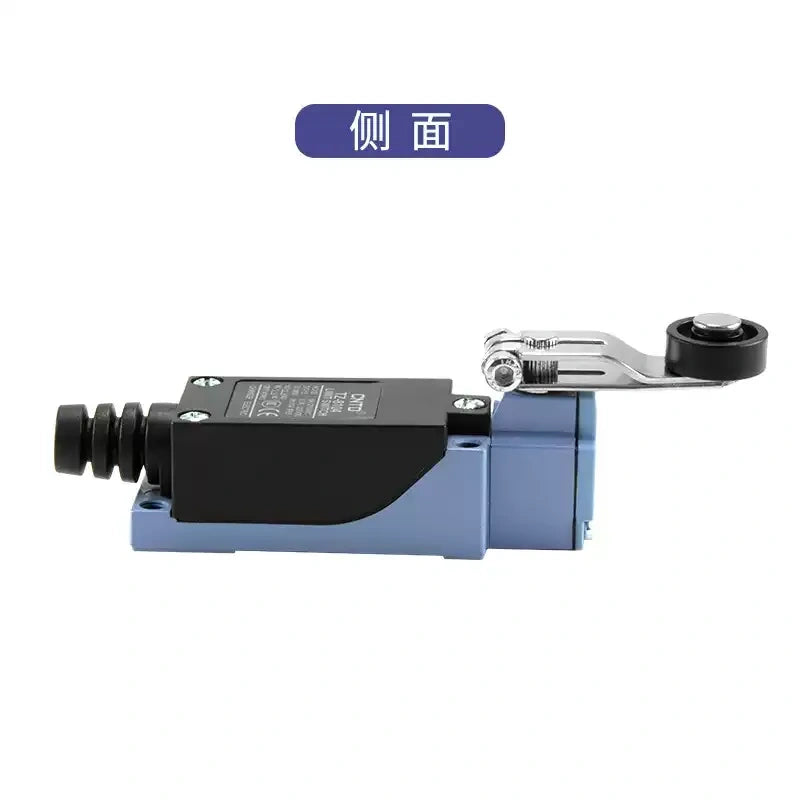

CNTD TZ-8 Series Limit Switch TZ-8104/8105/8107/8108/8109/8111/8112/8122/8166/8167/8168/8169, 1NO1NC Roller Lever Plunger Travel Switch for Machine Tool Safety
Product Description
Original CNTD TZ-8 series limit switches, including popular models TZ-8104, TZ-8105, TZ-8107, TZ-8108, TZ-8109, TZ-8111, TZ-8112, TZ-8122, TZ-8166, TZ-8167, TZ-8168, TZ-8169. These self-reset travel switches feature standard 1NO+1NC contacts with silver alloy for low contact resistance (≤25mΩ). Rated for 125VAC/250VAC with an operating speed range of 5mm to 0.5m/s. The housing is made of reinforced, corrosion-resistant plastic with an optimized tail conduit design for easy wiring. The metal lever mechanism is smooth and stable. They are widely used for machine tool stroke positioning, conveyor machinery overtravel protection, elevator door interlocks, and automated equipment limit control.
- Comprehensive Model Selection: Multiple actuator types (roller lever, plunger, flexible rod) available to meet different mechanical stroke and mounting requirements.
- Reliable Silver Alloy Contacts: Low contact resistance ensures stable electrical performance and long life under frequent switching operations.
- Durable Construction: Reinforced plastic housing is resistant to corrosion and impact, suitable for harsh industrial workshop environments.
- Convenient Wiring: Optimized tail conduit design simplifies wiring and installation, saving time during equipment setup.
- Versatile Industrial Use: Ideal for machine tool positioning, conveyor stop limits, elevator door interlocks, and automated production safety protection.
Specification
| Attribute | Parameter Details |
|---|---|
| Brand | CNTD (昌得) |

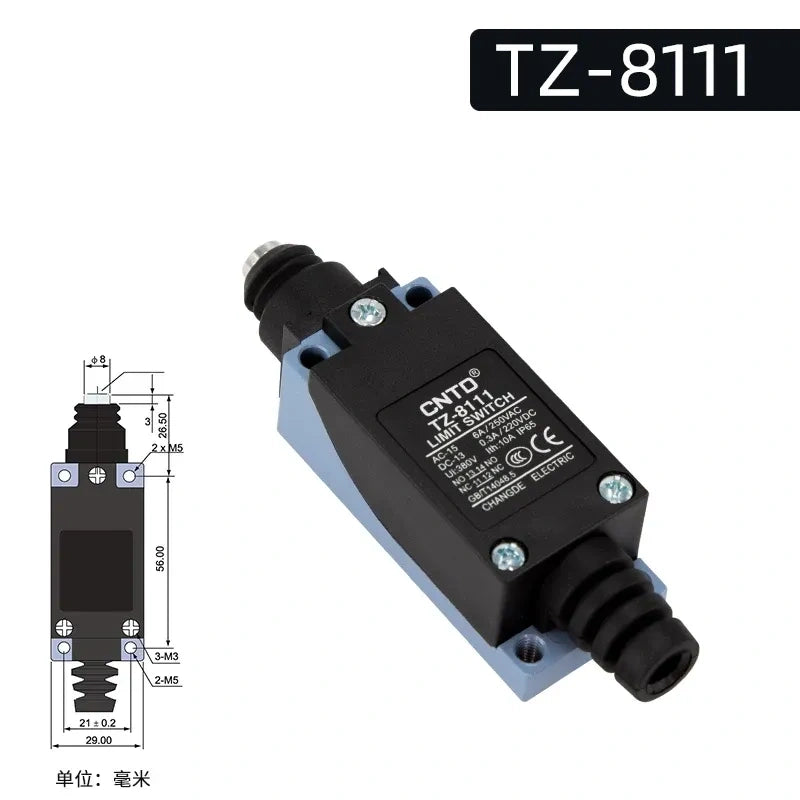

| Model Series | TZ-8104, TZ-8105, TZ-8107, TZ-8108, TZ-8109, TZ-8111, TZ-8112, TZ-8122, TZ-8166, TZ-8167, TZ-8168, TZ-8169 |
| Contact Configuration | 1NO + 1NC (Silver Alloy Contacts) |
| Rated Voltage | 125VAC / 250VAC |
| Contact Resistance | ≤25mΩ (initial) |
| Insulation Resistance | ≥100MΩ (at 500VDC) |
| Operating Speed | 5mm ~ 0.5m/s |
| Actuator Type | Roller lever, plunger, flexible rod, adjustable lever (varies by model) |
| Housing Material | Reinforced corrosion-resistant plastic |
| Action Type | Self-reset |
| Features | Optimized tail conduit design for easy wiring, sturdy metal lever |
| Application | Machine tools, conveyors, elevators, automated equipment, safety limit protection |
