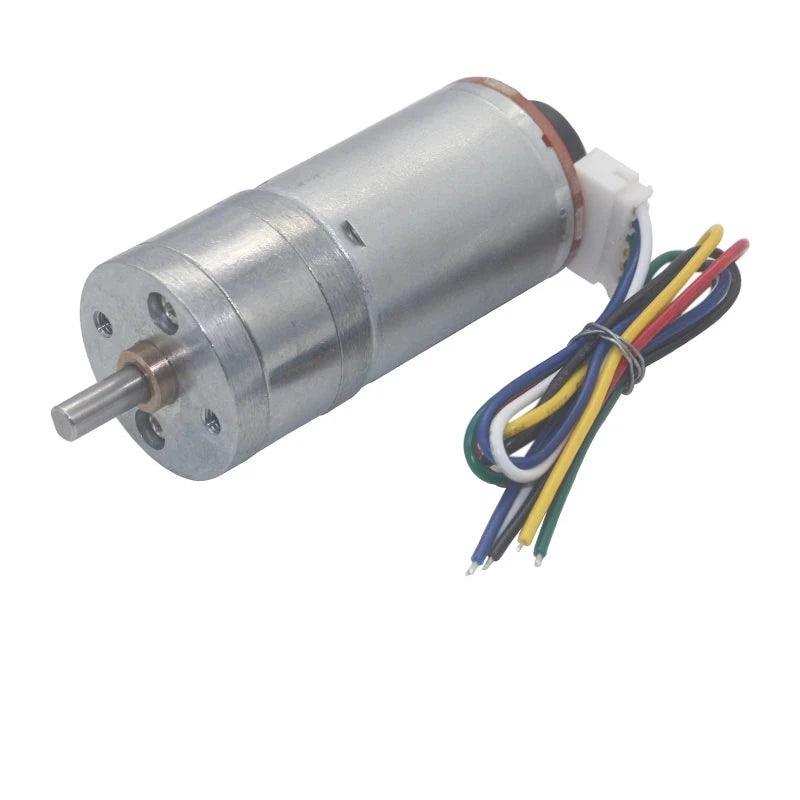

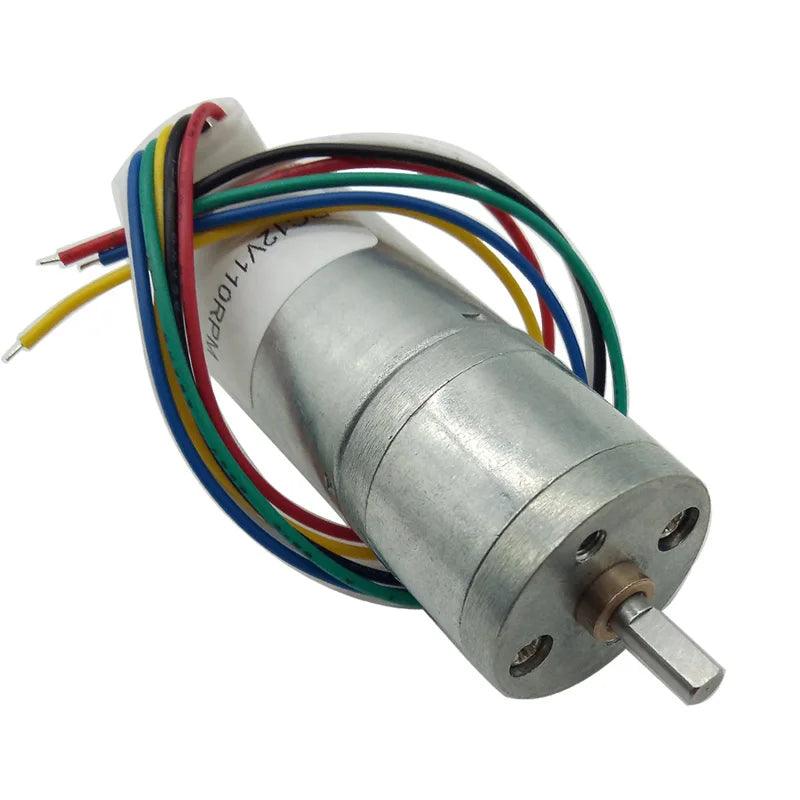

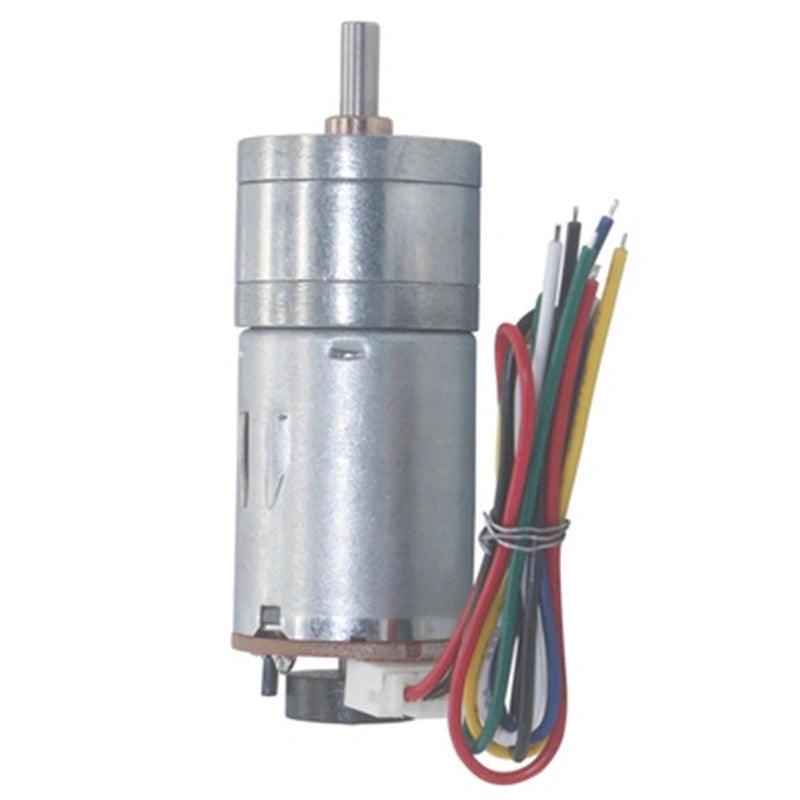

JGA25-370 Encoder Gear Motor

SPECIFICATIONS

DC 6v 12v 24v High Torque Electric Motor Gear Motor with Encoder,dc motor with encoder,dc gear motor with encoder,dc motor with encoder,gear motor with encoder

JGA25-370 Mini DC Encoder Gear Motor, 3W, DC 6V/12V/24V, All-Metal Gears, Reversible & Speed Adjustable, High Torque for Self-Balancing Cars, Smart Home, Robots, Camera Arms

Brand Name: HYSMOTOR

Product Description

Overview

Core Specifications

• Model: JGA25-370
• Type: Encoder Gear Motor
• Power: 3W
• Rated Voltage: DC 6V / 12V / 24V
• No-Load Current: 100mA
• No-Load Speed: 6–2000 RPM (varies with reduction ratio)
• Motor Size: 50×24mm (excluding output shaft)

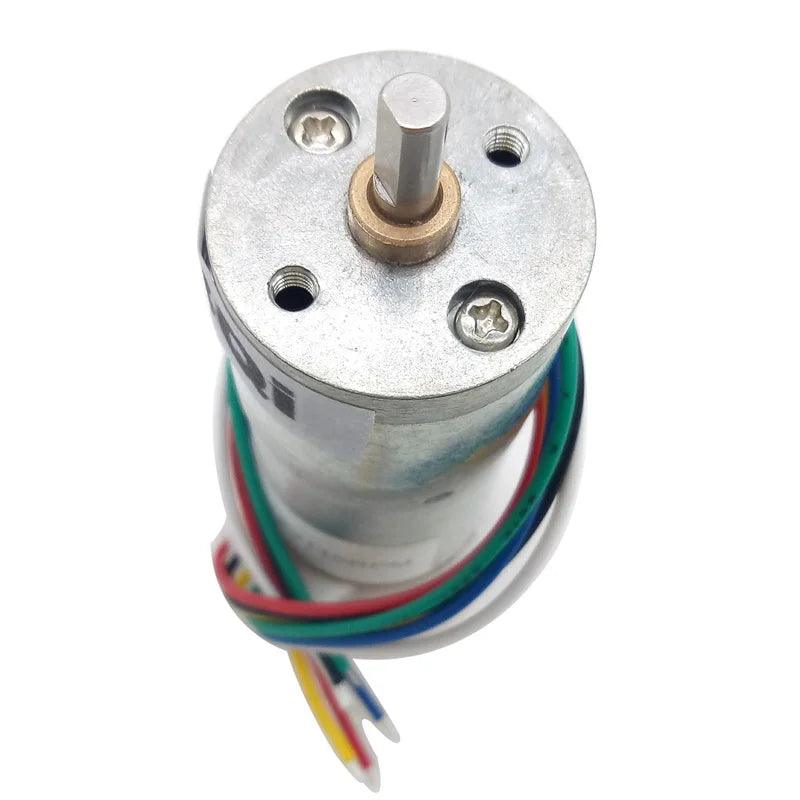

• Shaft Diameter: 4mm (D-shaped)
• Shaft Length: 12mm (D8 type), shaft extension: 9.8mm (without step)
• Cable Length: 142mm
• Weight: 93g (varies slightly with reduction ratio)

Key Features

1. Reversible & Speed Adjustable: Change rotation direction by reversing polarity; adjust speed with a compatible controller.
2. All-Metal Gears: Ensures wear resistance, stable transmission, and extended service life even under continuous operation.
3. Customizable: Tailor shaft length, speed, and voltage to fit your unique project requirements.
4. Compact Design: Small footprint (50×24mm) for easy integration into tight spaces, ideal for robots, self-balancing cars, and smart home devices.
5. In-Stock Availability: Standard model is always in stock for quick delivery; bulk orders and custom samples are welcome.

Application Scenarios

• Intelligent self-balancing dual-wheel vehicles
• Smart home appliances
• Robots and robotic arms
• Camera pan/tilt mechanisms
• Electric cutting and paper processing machines
• DIY electronics and hobby projects

Important Notes

• Do not operate the motor under overload or stall conditions, as this may cause burnout or gear damage (improper use voids warranty).
• Select the appropriate voltage (6V/12V/24V) based on your power supply and application needs.
• Total length varies with gear ratio: slower speed corresponds to longer length; slight manual measurement errors apply, refer to the actual product.
• For bulk orders or custom parameters, please contact us to discuss sample lead times and factory visits.

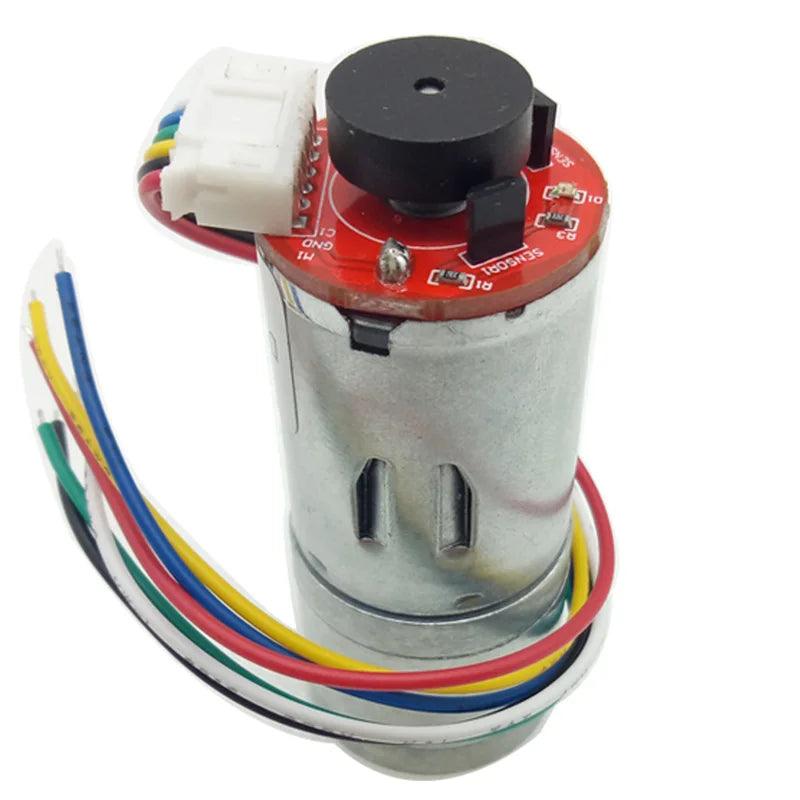

Wiring method:

• Red Wire - positive power supply of motor(+)(change positive and negative of motor the rotation will change)

• White Wire - negative power supply of motor(-)(change positive and negative of motor the rotation will change))

• Yellow Wire - signal feedback (motor one turn has 11 signals)

• Green Wire - signal feedback (motor one turn has 11 signals)

• Blue Wire - positive of encoder power supply(+)(3.3-5V),cannot be wrong

• Black Wire - negative of encoder power supply(-)(3.3-5V),cannot be wrong
