Heavy-Duty Linear Actuator 6000N Max Thrust
Regular price
$58.66 USD
Regular price
Sale price
$58.66 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
6000N High Force Linear Actuator Motor, 12/24V DC, 30-700mm Stroke, Electric Reciprocating Lift for Medical Beds & Industrial Use
DC 12V/24V Electric Linear Actuator, 6000N Heavy Duty, 30mm to 700mm Stroke, Telescopic Rod for Nursing Beds & Lifting Systems
Product Description
This heavy-duty DC linear actuator delivers a maximum thrust of 6000N (600kg), designed for demanding industrial and medical applications. With adjustable stroke lengths from 30mm to 700mm and dual 12V/24V DC compatibility, it provides reliable reciprocating linear motion for lifting, pushing, and positioning tasks.
Key Features
- ✅ High Thrust Performance: Delivers up to 6000N (600kg) max thrust, ideal for heavy-duty lifting on hospital beds, workstations, and industrial equipment.
- ✅ Adjustable Stroke: Available in standard strokes from 30mm to 700mm, customizable to fit your specific installation needs.
- ✅ Dual Voltage Compatibility: Operates with 12V DC or 24V DC power systems, offering flexible integration with different power sources.
- ✅ Built-In Safety Features: Equipped with internal limit switches to automatically stop the actuator at full extension/retraction, preventing damage from over-travel.
- ✅ Durable Construction: Made with an aluminum alloy housing and driven by a brushed DC motor, ensuring long-lasting performance and stability.
- ✅ Variable Speed Options: Multiple speed/thrust combinations available (5mm/s to 30mm/s), with the tradeoff: higher speed = lower thrust, lower speed = higher thrust.
- ✅ Wide Operating Temperature: Rated for use between -25℃ to +65℃, suitable for diverse indoor and controlled environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Rated Voltage | 12V DC / 24V DC |
| Rated Power | 72W~120W |
| Rated Current | 6A~10A |
| Max Thrust | 6000N (600kg) |
| Speed Options | 5mm/s (6000N), 10mm/s (3000N), 20mm/s (1500N), 25mm/s (500N), 30mm/s (500N) |

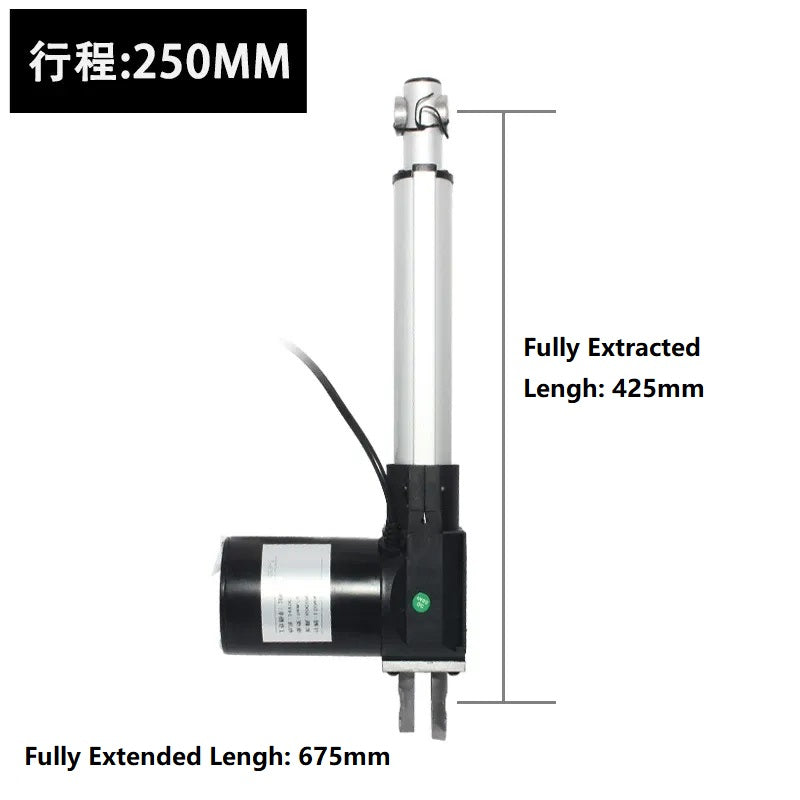

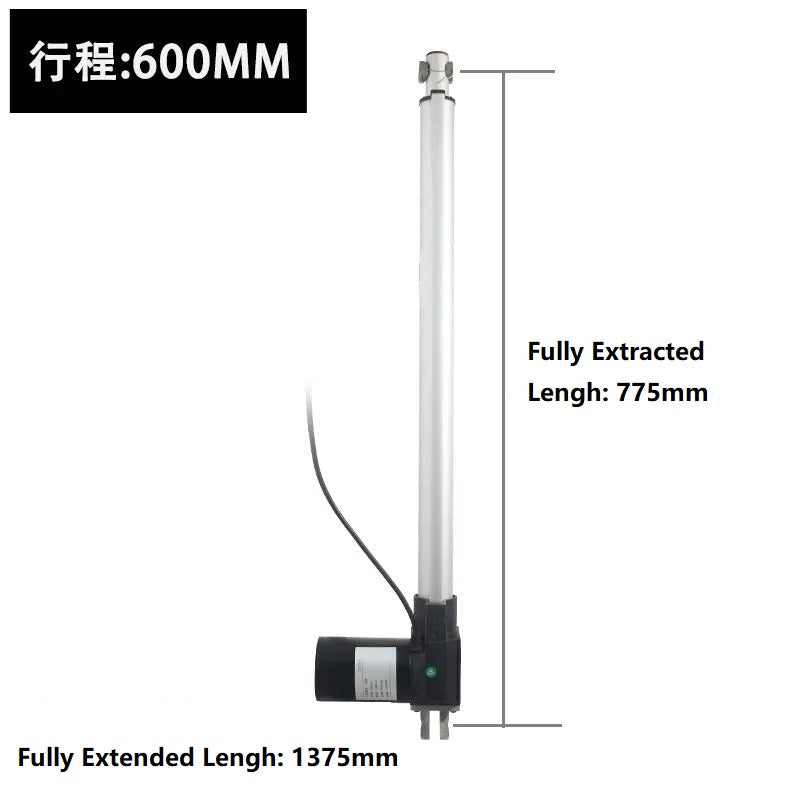

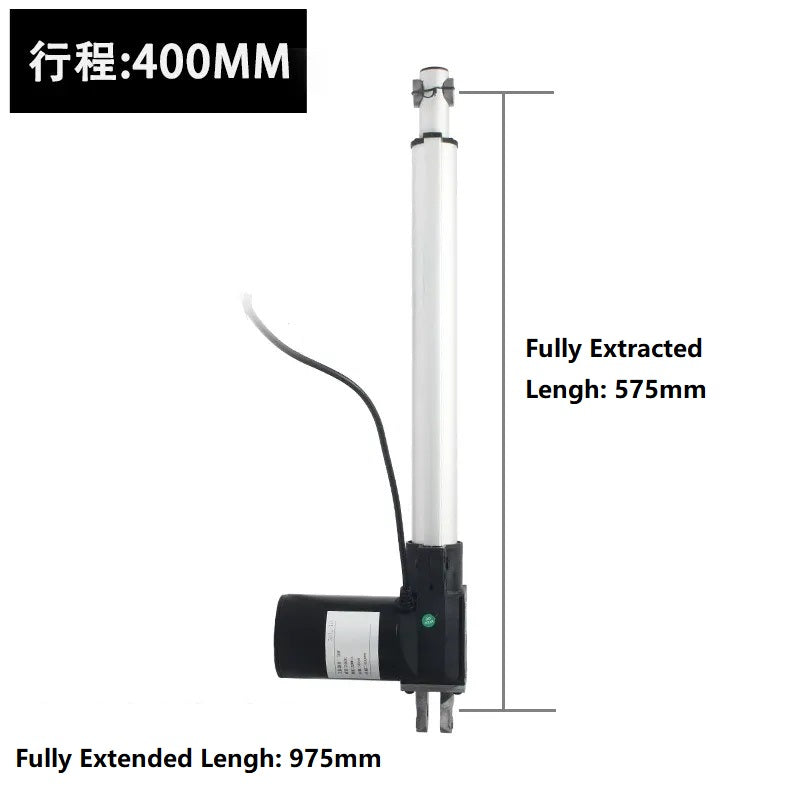

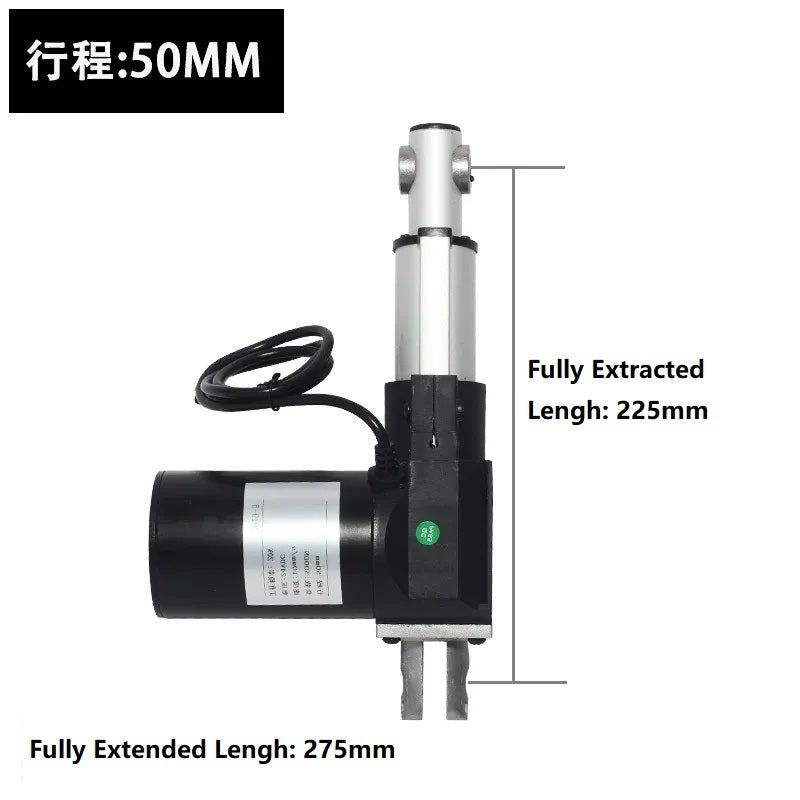

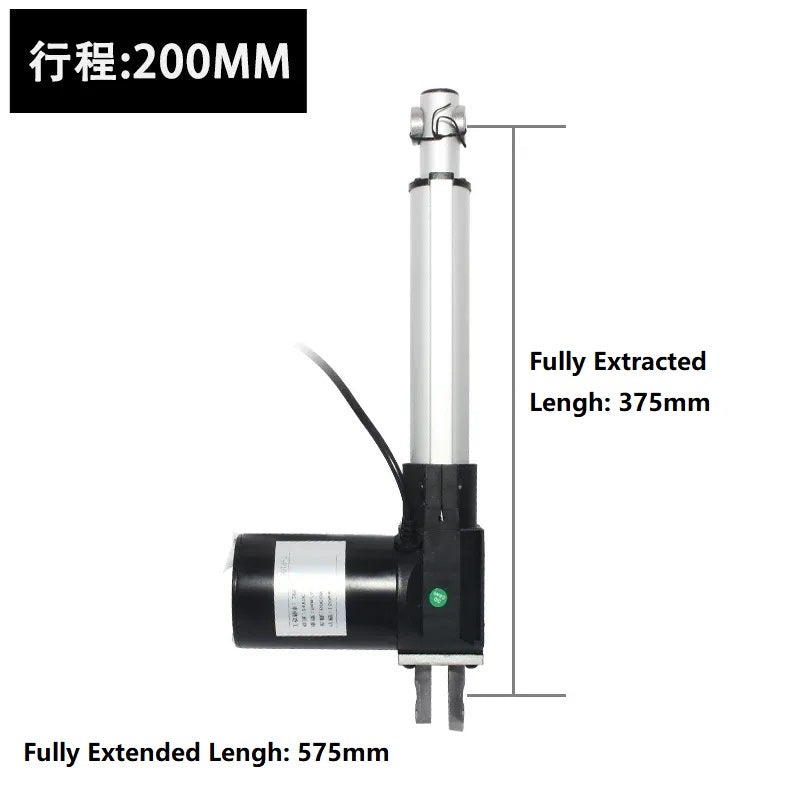

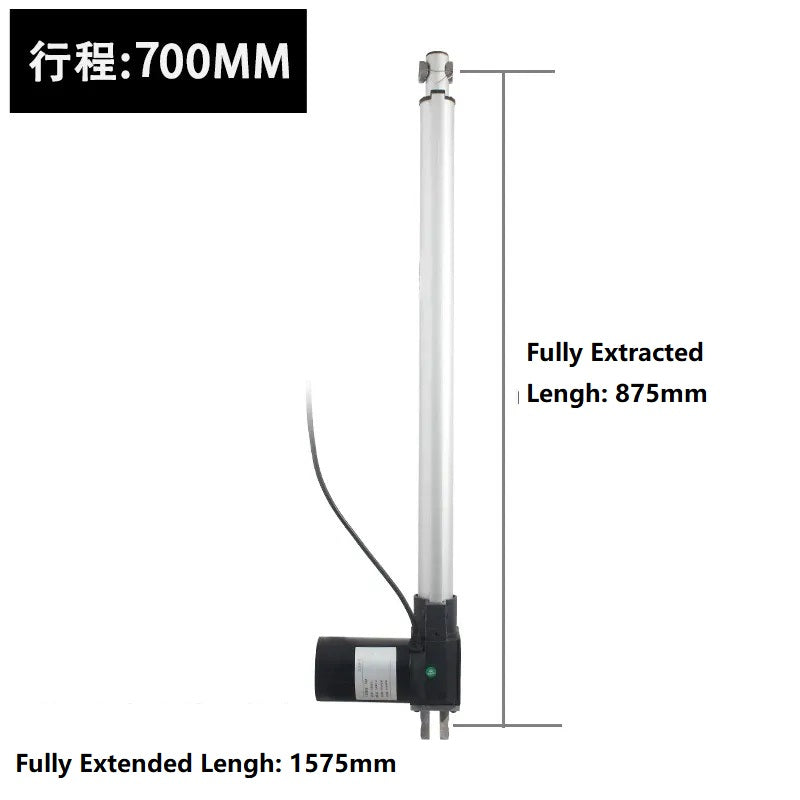

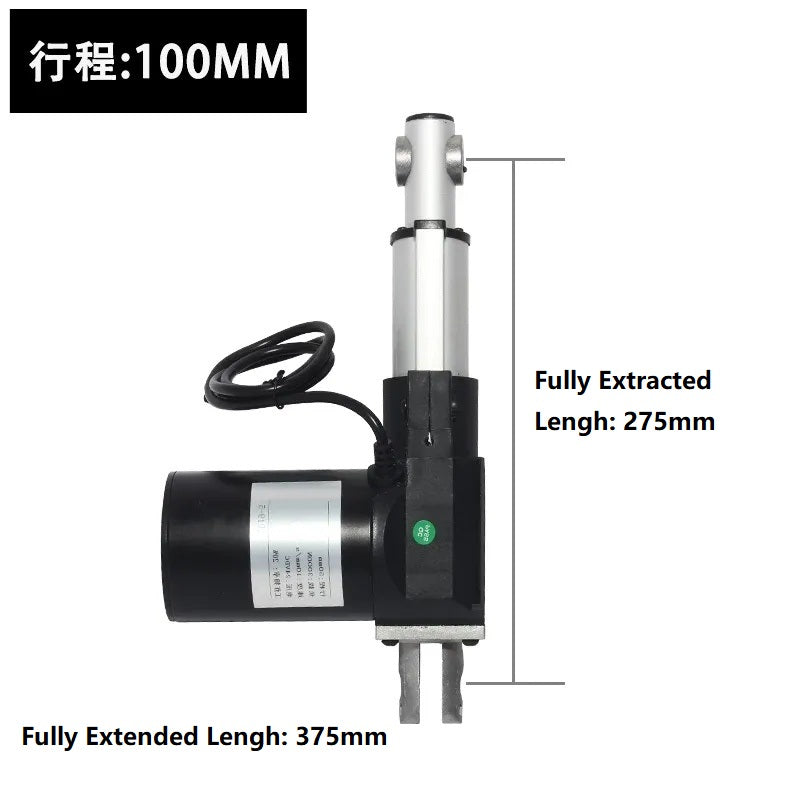

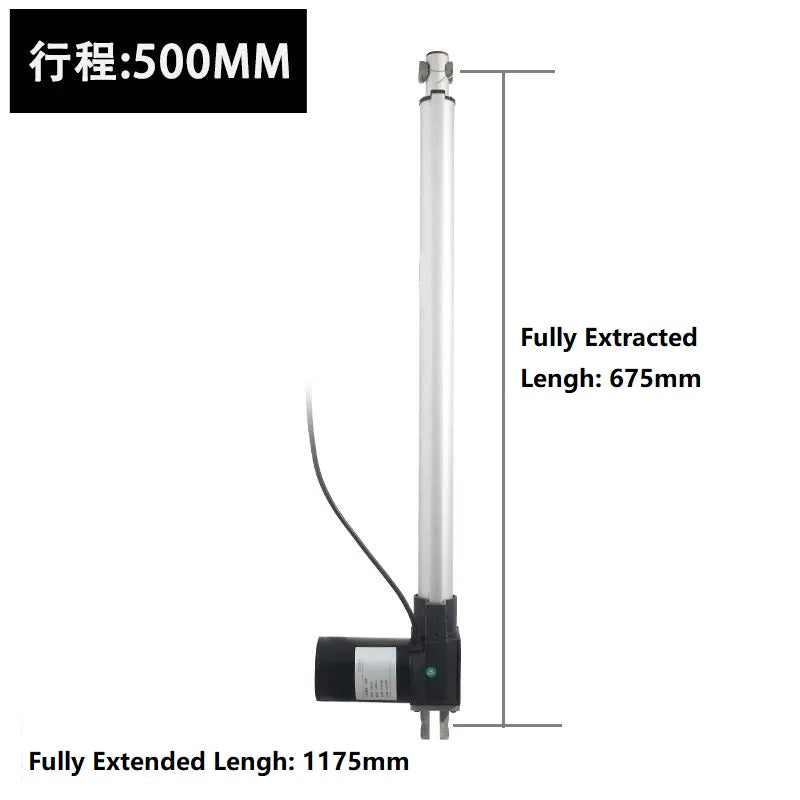

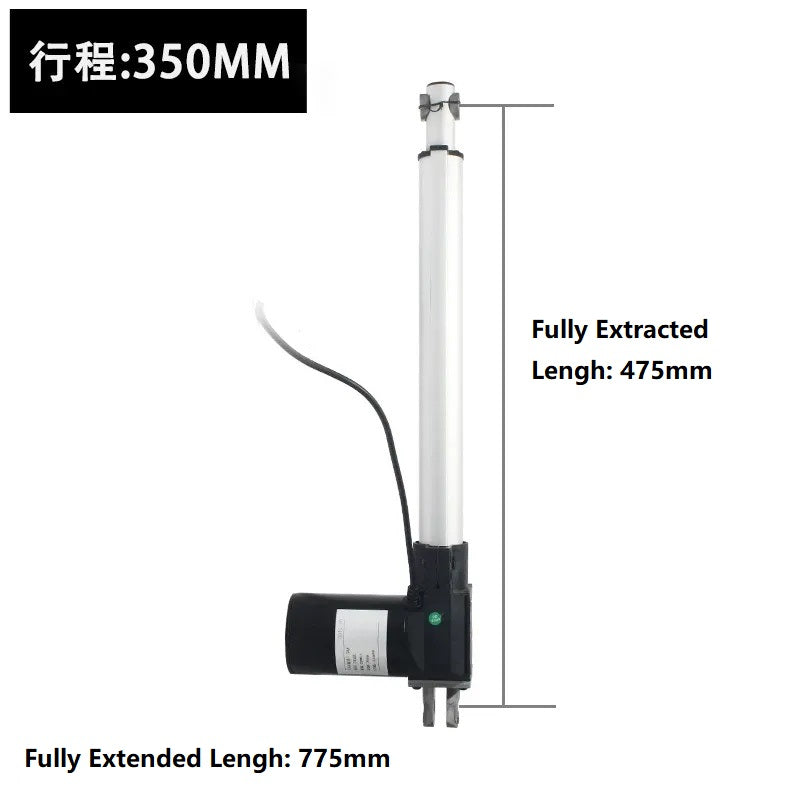

| Stroke Length | 30mm~700mm (customizable) |
| Actuator Material | Aluminum Alloy |
| Motor Type | Brushed DC Motor |
| Limit Switches | Built-in (top and bottom) |
| IP Rating | IP54 (dustproof, splash-resistant; not fully waterproof) |
| Noise Level | ≤42dB (varies with speed) |
| Duty Cycle | 20% (2 minutes continuous run, 8 minutes rest) |
| Operating Temperature | -25℃ ~ +65℃ |
Applications
- Medical & Healthcare: Electric hospital beds, nursing beds, medical chairs, rehabilitation equipment
- Furniture: Adjustable desks, standing workstations, electric sofas, TV lift stands
- Industrial Automation: Lifting platforms, scissor lifts, industrial reciprocating machinery
- Photography & Media: Camera rigs, motorized camera sliders, broadcast equipment
- Smart Home: Motorized cabinets, automatic window openers, adjustable fixtures
Wiring & Control Notes
- The actuator is controlled by reversing the polarity of the two main power wires (positive/negative).

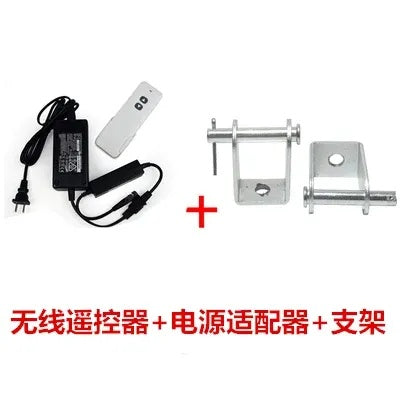

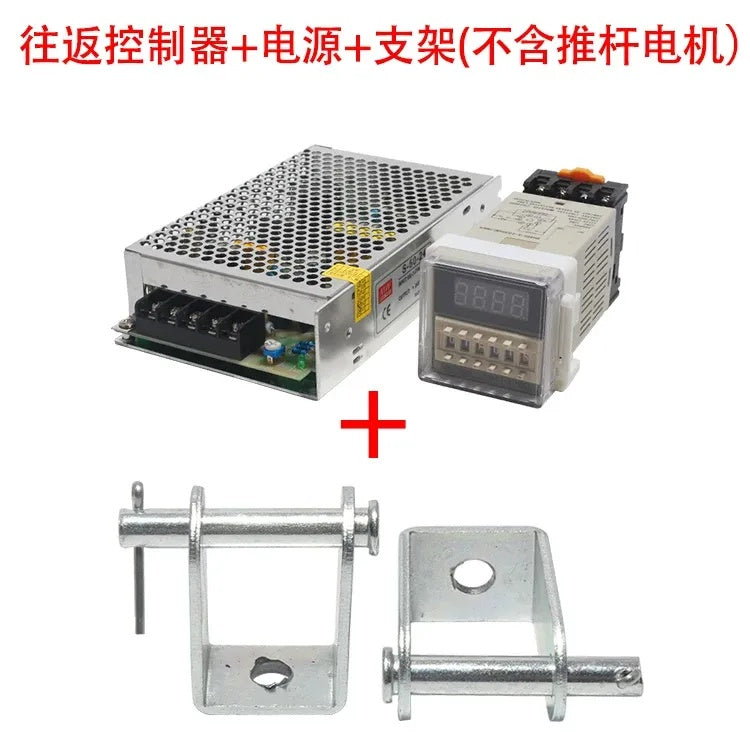

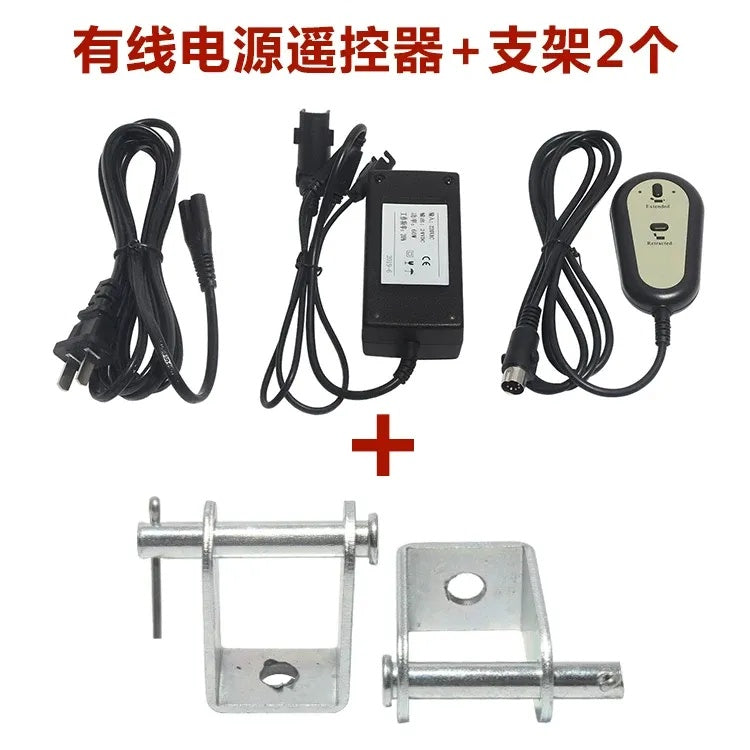

- Adding a forward/reverse switch or controller (wired/wireless) allows convenient control of extension/retraction.
- Hall encoder feedback (optional) enables multi-actuator synchronous operation for coordinated movement.
Important Usage & Safety Notes
- Duty Cycle: Do not operate continuously beyond the 20% duty cycle (2 minutes on / 8 minutes off) to prevent motor overheating.
- Water Resistance: The actuator is rated IP54, not fully waterproof. Do not use in high-moisture or submerged environments (water damage is not covered under warranty).
- Speed-Thrust Tradeoff: Faster speeds result in lower thrust, while slower speeds provide higher thrust. Choose the right combination for your application.
- Mounting Brackets: Mounting brackets are sold separately. Please contact customer service if you need them.
- Stroke Fixed: The stroke length is pre-set at the factory and cannot be adjusted by the user.
