DC Linear Actuator With Potentiometer Position Stroke 50mm~450mm

SPECIFICATIONS

DC Linear Actuator With Potentiometer Position Signal Feedback Electric 24V Load 1200N Stroke 50mm 100mm 200mm 450mm Gear Motor

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Output Power: 20W-30W

Commutation: Brush

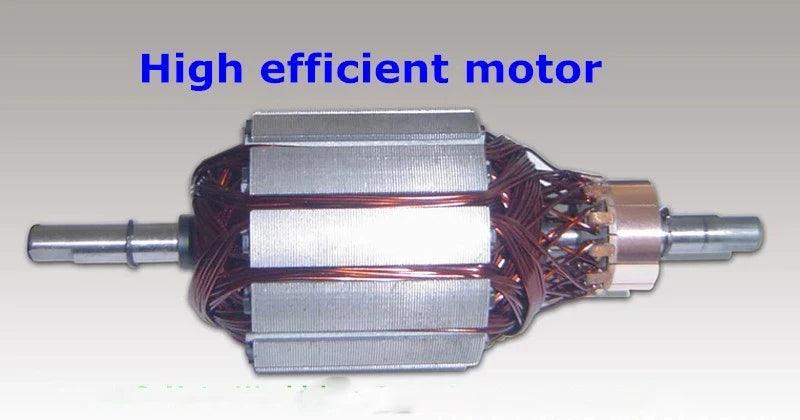

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: 1200n linear actuator

Torque: 1200n

Product parameters

1. Operating voltage: 24V DC

2. Operating Current: 2.5A max.

3. Preset limit switches: two ends.

4. Feedback potentiometer: 1KΩ, 5KΩ, 10KΩ (linear)

5. Maximum thrust: 1200N

6. Maximum tension: 1000N

7. Forced static load: 950N

8. Material: Aluminum alloy outer tube and thrust rods, zinc alloy casing, powder metal gears.

Pls contact us if you need other voltage speed and stroke

Voltage

DC12V DC24V DC36V DC48V

speed optional

3mm/s 5mm/s 10mm/s 15mm/s 20mm/s 25mm/s 30mm/s 40mm/s 50mm/s 60mm/s 80mm/s

thrust 1200N 900N 750N 600N 450N 350N 300N 200N 100N 80N 50N

Stroke：500mm 550mm 600mm...

Working environment:

1. Operating temperature range: -26 -65 ° C

2. Operating Relative Humidity 5-95%, non-condensing.

3. Protection class: IP65 (per IEC-60529).

4. Maximum load: 1500N ---- 900N equal to the maximum thrust

5. Maximum self-locking force: 2500N

6. Duty cycle: 20%

7. Life: 50,000 full cycle

For example, the stroke is 300mm installation distance

Lmin=140+Stroke=140+300mm=440mm

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,stop automatically,very safe.

Stroke means the movement length of linear actuator.

Lmax=Lmin+Stroke=440+300=740mm

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,stop automatically,very safe.
