Name: 1000Pcs/Lot VE Series Insulated Ferrule Wire Crimp Connectors
Brand: electrical center b2c
SKU: 1000Pcs/Lot E0308 (for wire 22AWG) / Red
Price: 20.3 USD
Availability: InStock

VE Series Insulated Ferrule Wire Crimp Connectors, E0508/E7508/E1008/E1508/E2508 Tube Terminal Connectors, 1000PCS/Bag

Specification

These VE series insulated ferrule wire crimp connectors (also known as tube terminals or pin terminals) are designed for electrical wiring applications. They provide a secure, vibration-resistant connection for stranded wires, preventing fraying and ensuring reliable conductivity.

Available in multiple sizes from 0.5mm² to 16mm², with color-coded insulation (red/blue/green/black/yellow) for easy identification. Each bag contains 1000 pieces (500/200PCS for larger sizes), ideal for electrical projects, wiring harnesses, and industrial use.

Key Features

✅ Full Range Sizes: 0.5mm² / 0.75mm² / 1.0mm² / 1.5mm² / 2.5mm² / 4.0mm² / 6.0mm² / 10mm² / 16mm²

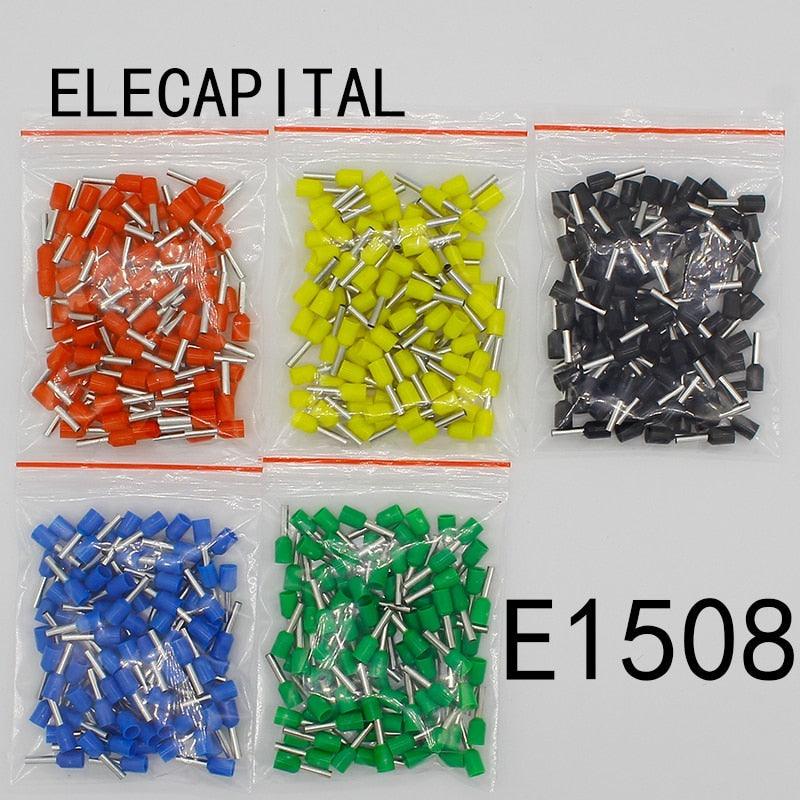

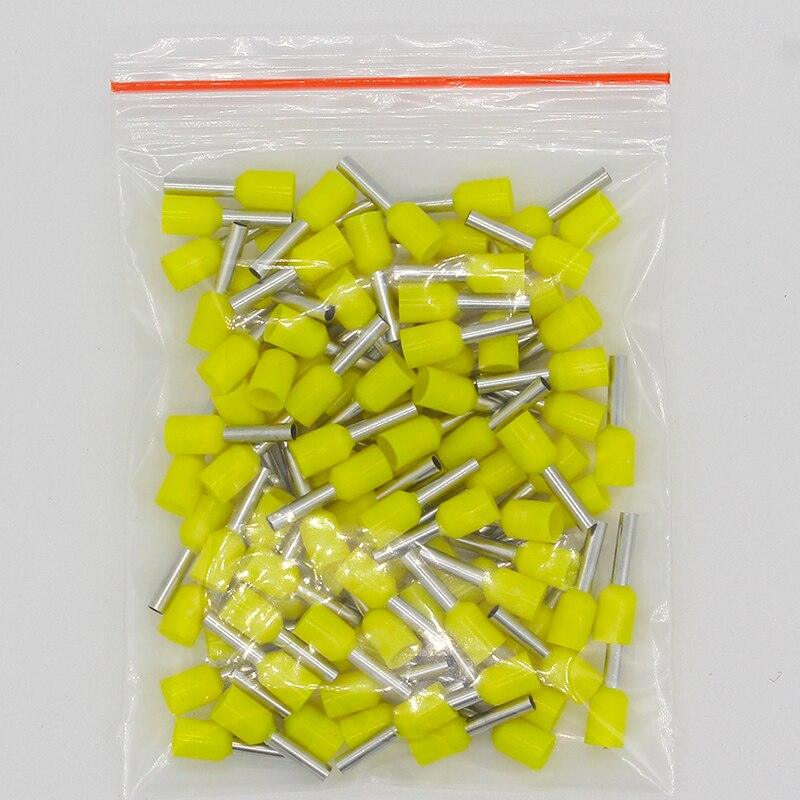

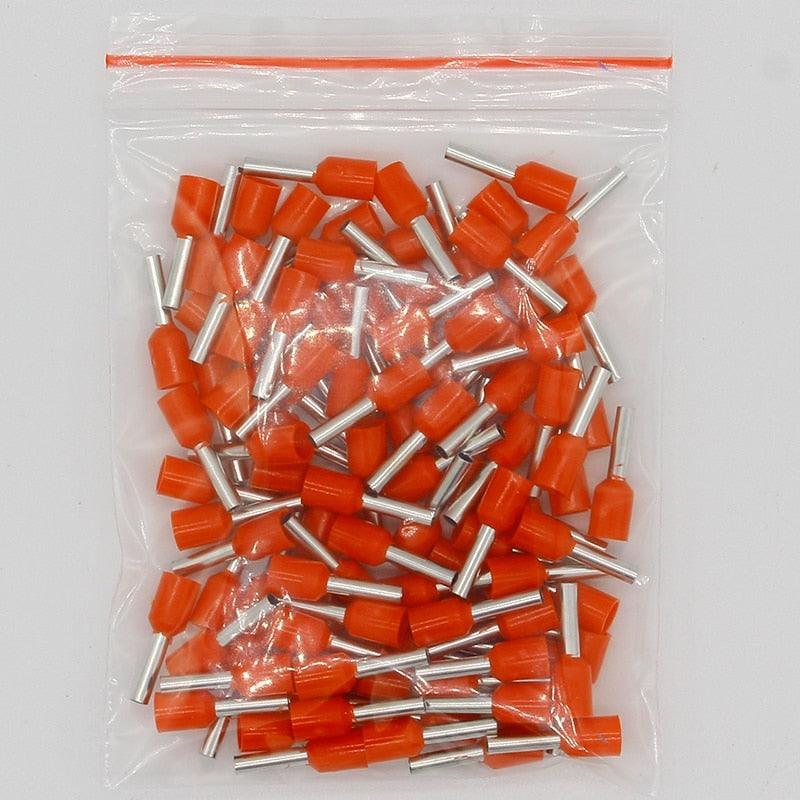

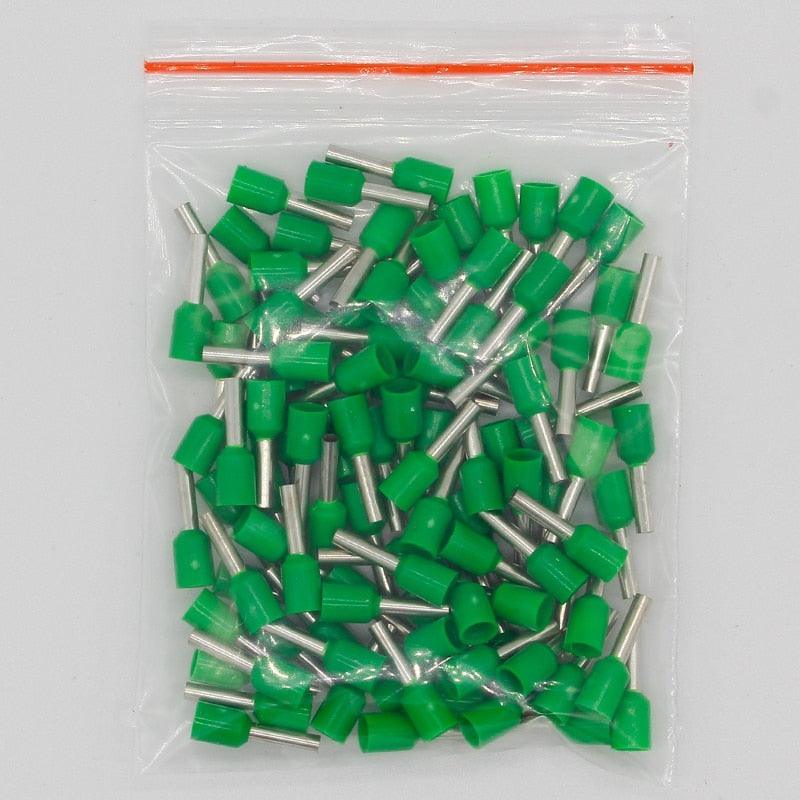

✅ Color-Coded Insulation: Red, Blue, Green, Black, Yellow for quick size identification
✅ High Quality Material: Copper tube with tin plating + PVC insulation, corrosion-resistant
✅ Easy Crimping: Perfect for use with 4-sided crimping pliers (0.25-10mm²)
✅ Bulk Packaging: 1000PCS/Bag (500/200PCS for large sizes), cost-effective for projects
✅ Wide Application: Electrical wiring, household appliances, industrial equipment, automotive, DIY projects

Model	Wire Size (mm²)	Color (Example)	Quantity
E0508	0.5	Yellow	1000PCS
E7508	0.75	Grey	1000PCS
E1008	1.0	Red	1000PCS

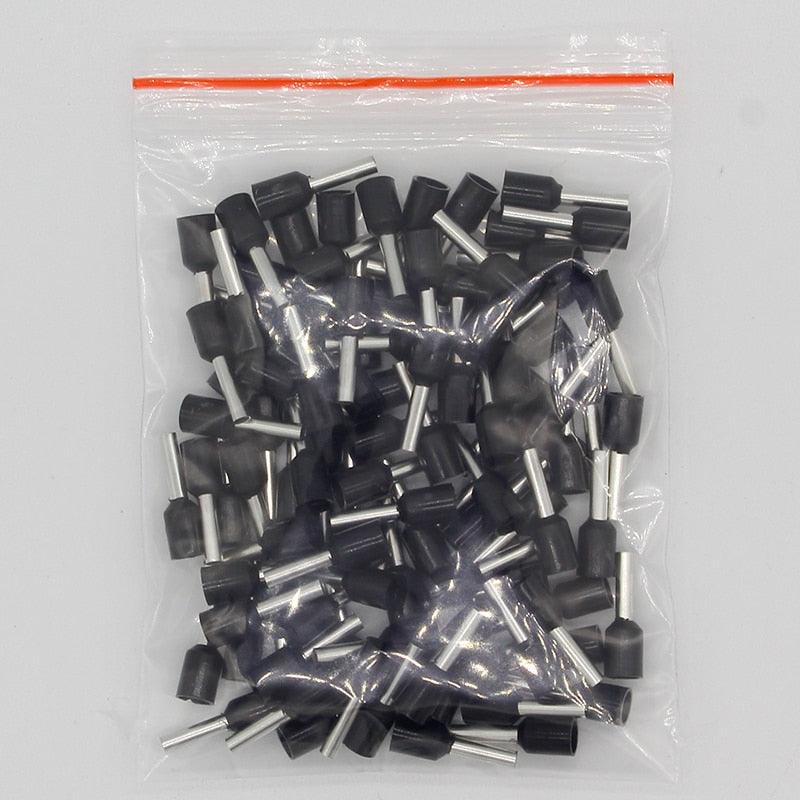

E1508	1.5	Black	1000PCS

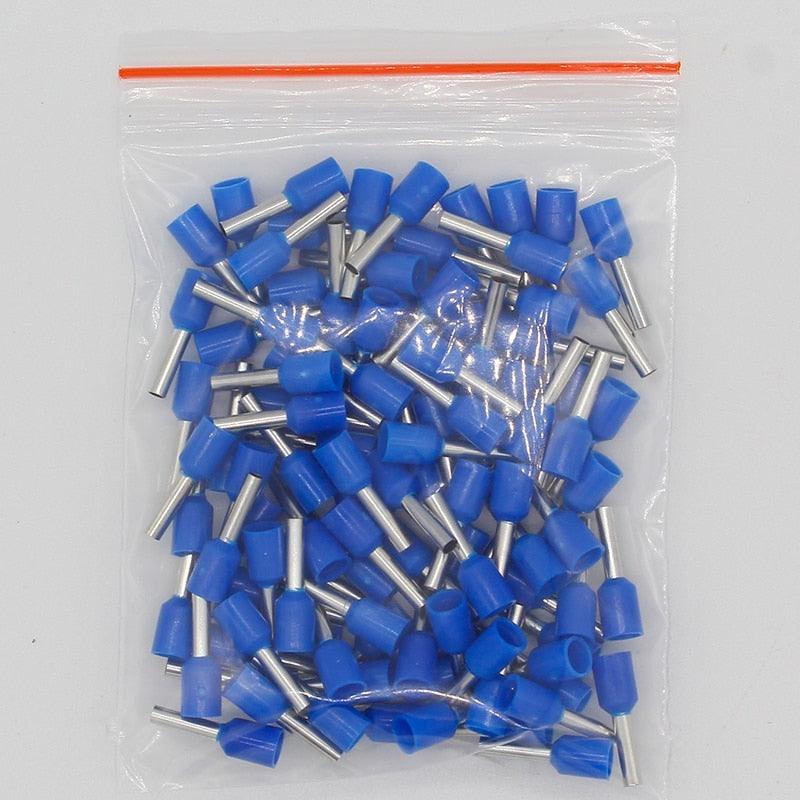

E2508	2.5	Blue	1000PCS
E4009	4.0	Grey	1000PCS
E6012	6.0	Yellow	1000PCS
E10-12	10.0	Red	1000PCS
E16-12	16.0	Blue	500PCS

Working temperature limit: 105 Ui = 300VThe Material of ends: Copper
ITEMNO	Dimension(mm)						Conductor area(mm⊃2;)	Insulating sleevecolor (Up)Germany (Down)France
	F	L	W	DΦ	CΦ	A.W.G
E0506	6.0	12.0	2.6	1.3	1.0	#22	0.5	Orange White
E0508	8.0	14.0
E0510	10.0	16.0
E7506	6.0	12.4	2.8	1.5	1.2	#20	0.75	White Blue
E7508	8.0	14.6
E7510	10.0	16.4
E7512	12.0	18.4
E876	6.0	12.4	3.0	1.7	1.4	#18	1.0	Yellow Red
E878	8.0	14.6
E1008	8.0	16.4
E1012	12.0	18.4

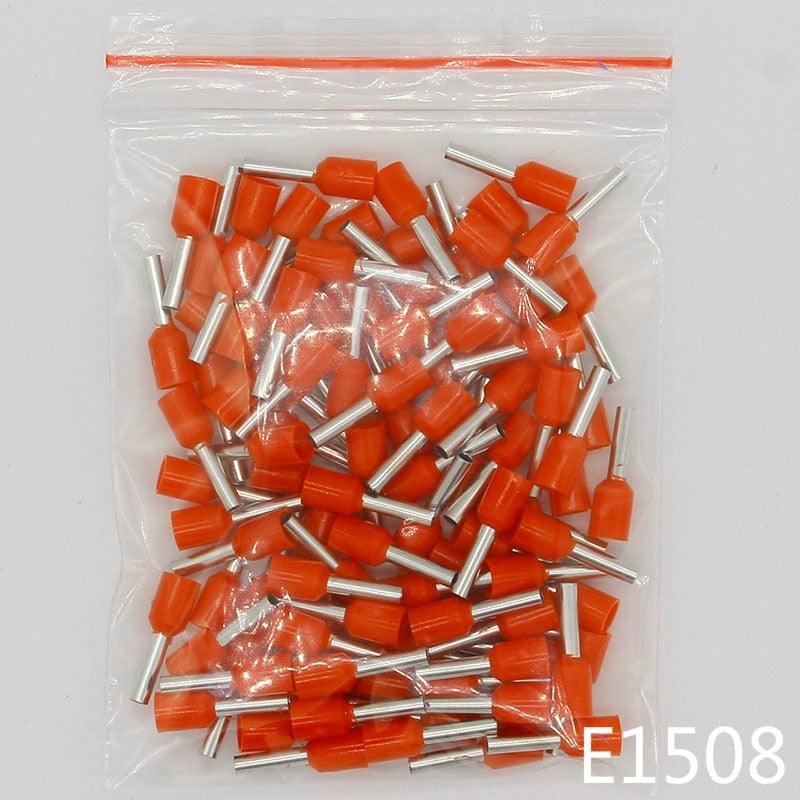

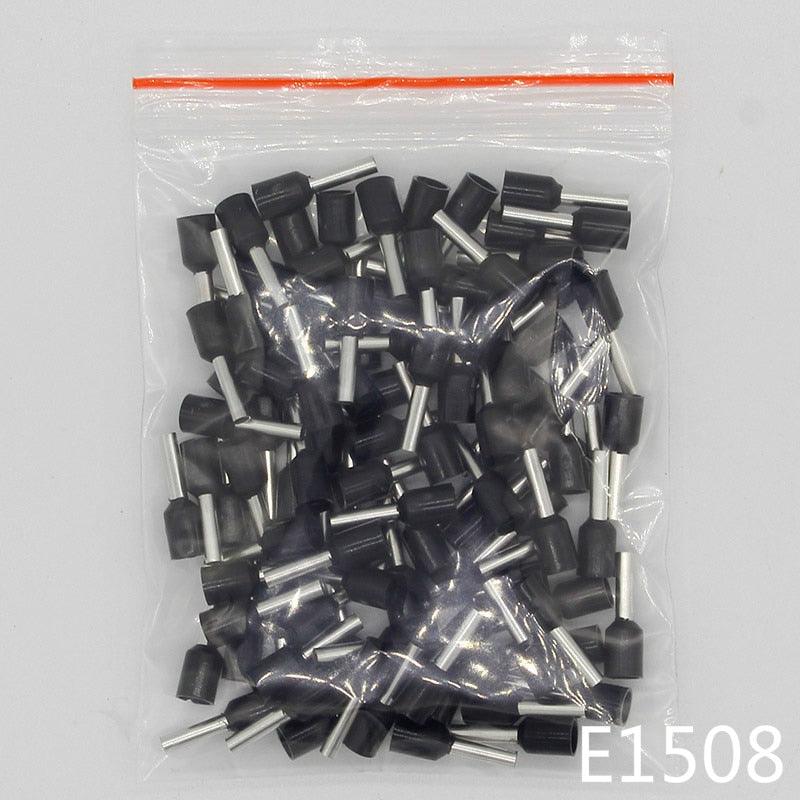

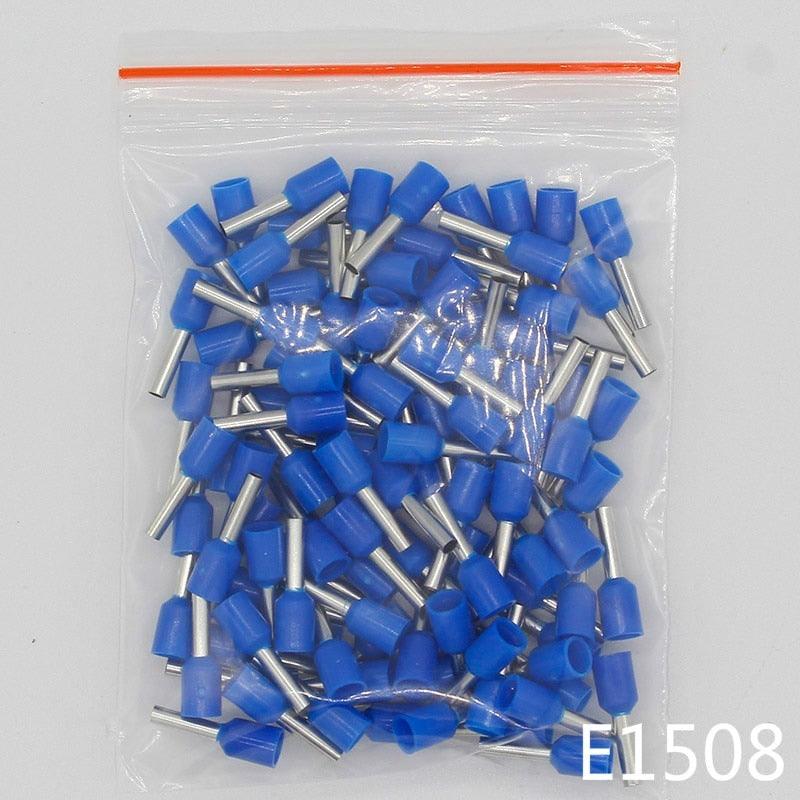

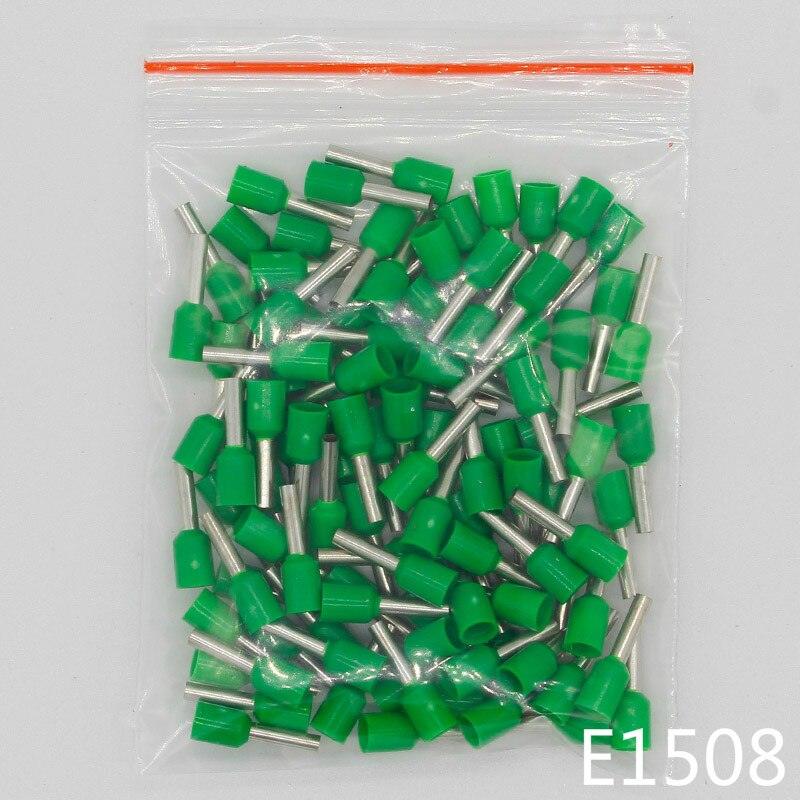

E1508	8.0	14.6	3.5	2.0	1.7	#16	1.5	Red Black
E1510	10.0	16.4
E1518	18.0	24.4
E2508	8.0	15.2	4.0	2.6	2.3	#14	2.5	Blue Gray
E2512	12.0	19.0
E2518	18.0	25.0
E4009	9.0	16.5	4.4	3.2	2.8	#12	4.0	Gray Orange
E4012	12.0	19.5
E4018	18.0	25.5
E6012	12.0	20.0	6.3	3.9	3.5	#10	6.0	Black Green
E6018	18.0	26.0
E10-12	12.0	21.5	7.6	4.9	4.5	#7	10.0	Milky Brown
E10-18	18.0	27.5
E16-12	12.0	22.2	8.8	6.2	5.8	#5	16.0	Green Milky
E16-18	18.0	28.2
E25-16	16.0	29.0	11.2	7.9	7.5	#4	25.0	Brown Black
E25-22	22.0	35.0
E35-16	16.0	30.0	12.7	8.7	8.3	#2	35.0	Taupe
E35-25	25.0	39.0
E50-20	20.0	36.0	15.3	10.9	10.3	#1	50.0	Olive
E50-25	25.0	41.0
