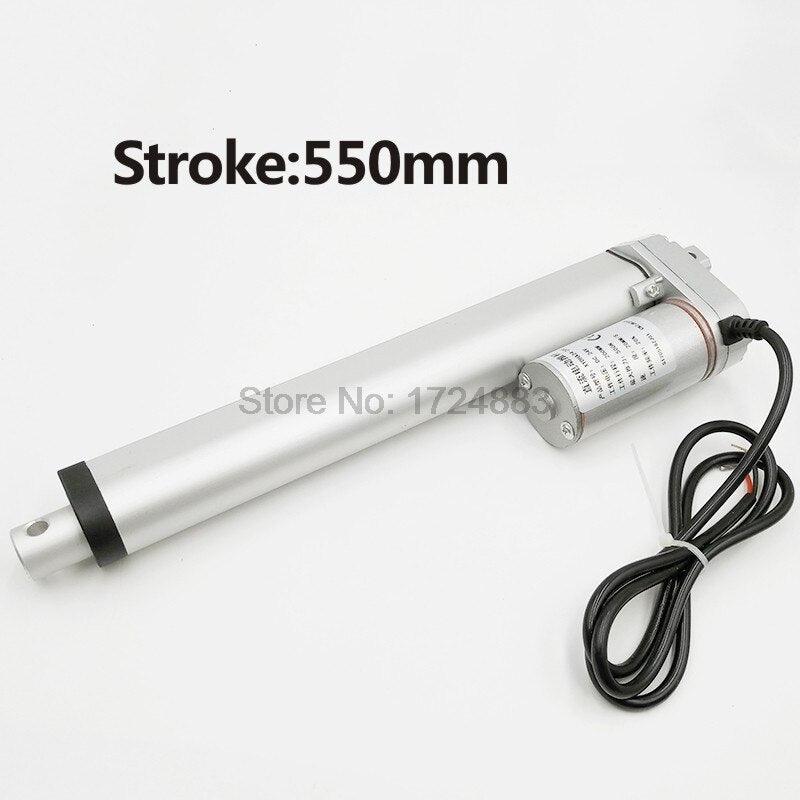

550mm Linear Actuator 100-1500N 12V/24V DC

DC 12/24V linear actuator 550mm stroke, 1500N 150KG mid-long travel push rod, 100N 90mm/s electric actuator 12V 24V

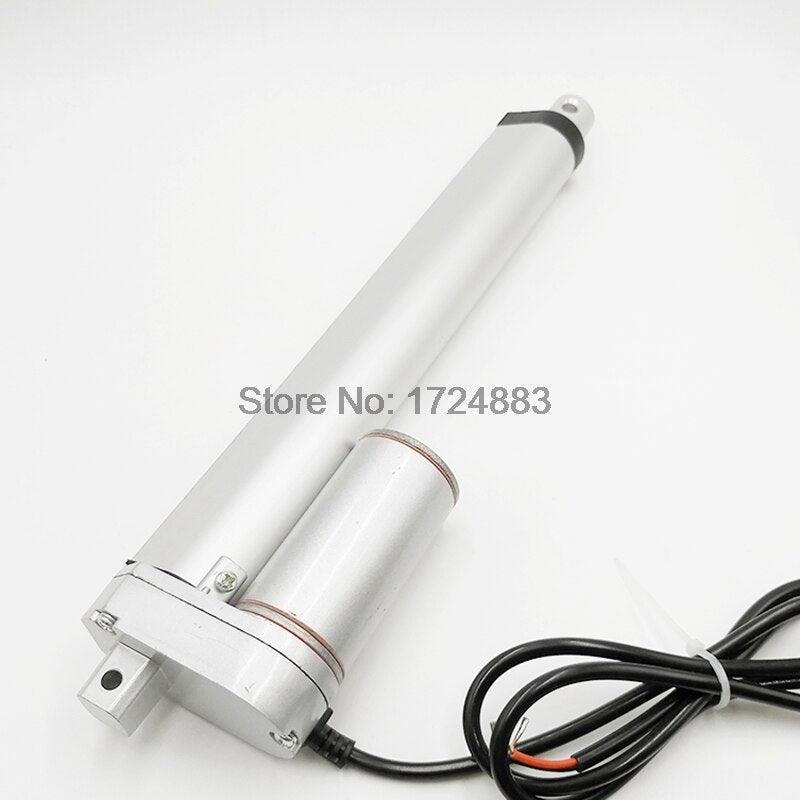

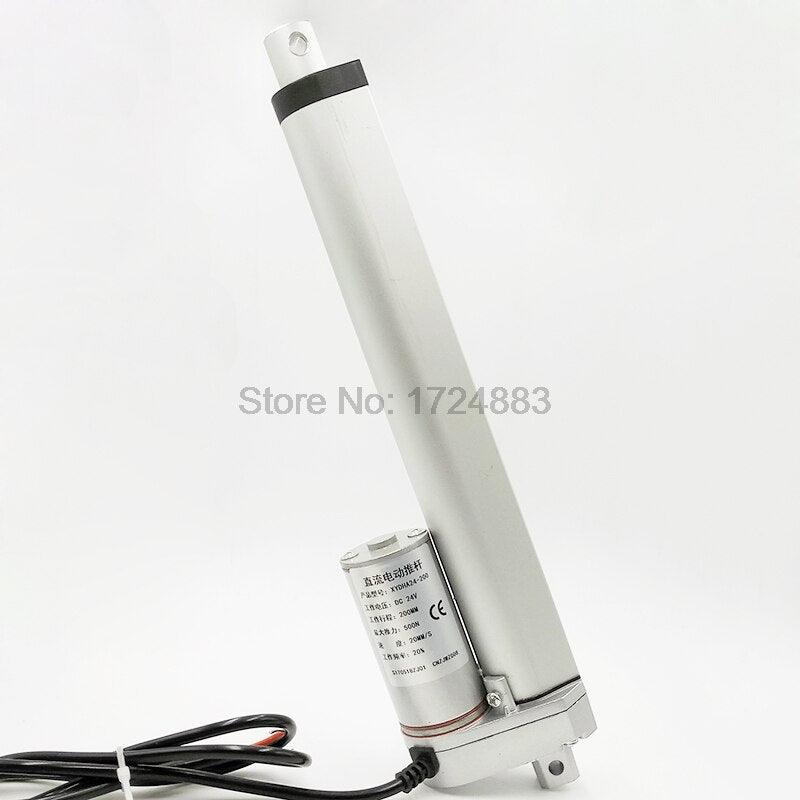

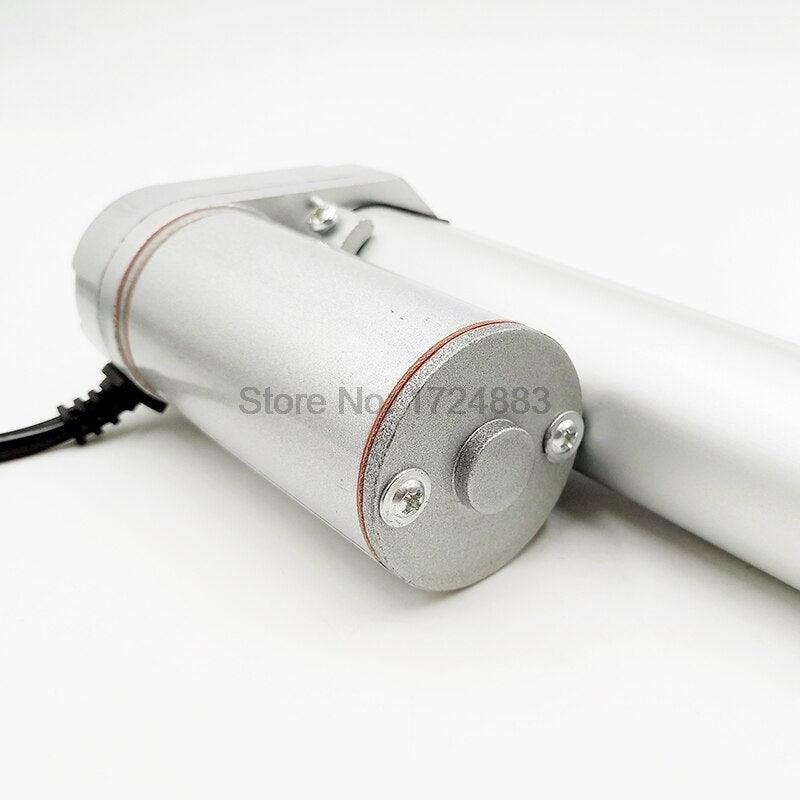

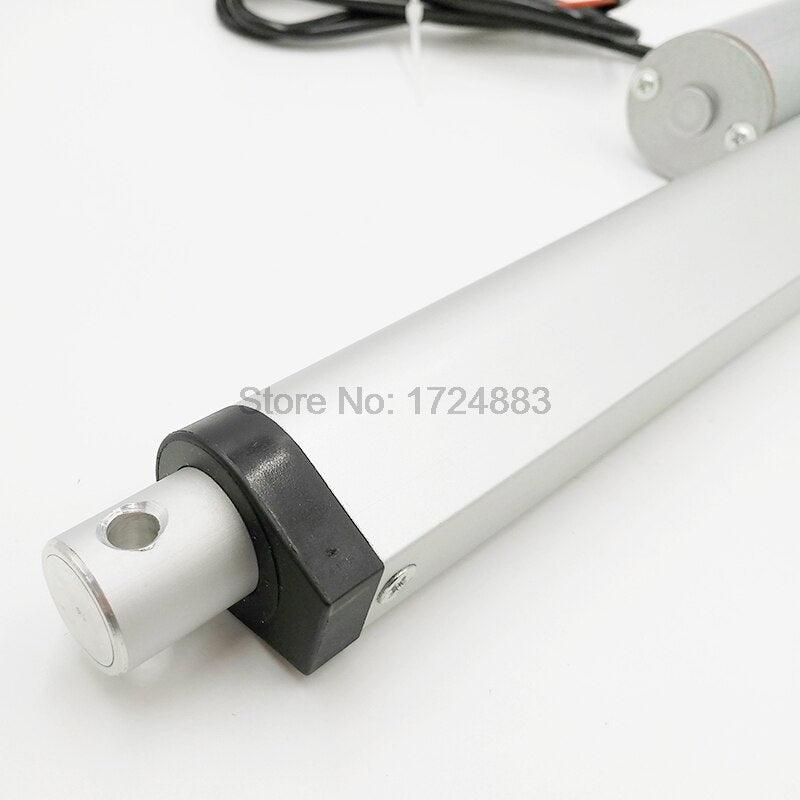

Electric Linear Actuator 12V/24V DC Motor 550mm Stroke Linear Motion Controller

• Spec: DC 12/24V electric linear actuator, 550mm stroke, 100-1500N (10-150KG) thrust, 4-90mm/s speed. 20 variants (12V/24V × 10 loads). Pure actuator.
• Feature: Mid-long stroke mid-heavy duty; thrust-speed linked (100N@90mm/s, 1500N@4mm/s); 12V & 24V optional; robust DC motor; ideal for 550mm push/pull.
• Use: Industrial automation, smart home lift, agricultural machinery, large furniture, medical device, heavy DIY needing 550mm travel & 10-150KG force.
• Pairing: Match with U/O/H mounting brackets + aluminum plates, silver end fittings, 12/24V controller & power (sold separately). Compare 700mm 1500N (longer same class), 400/450/500mm 2000-8000N (shorter heavier), 800mm 500-1000N (longer lighter).
• Note: 550mm stroke only; 100-1500N (10-150KG); 4-90mm/s; 12/24V; avoid side force; bracket & controller separate.

Voltage(V): DC12V/24V/36V/48V

Usage: BoAt,Home Appliance,Electric Bicycle,car

Type: Gear Motor

Torque: 100/200/300/500/750/800/900/1100/1300/1500N

Speed(RPM): 4/8/10/13/18/20/30/45/90mm/s

Protect Feature: Drip-proof

Output Power: 12~35W

Origin: CN(Origin)

Model Number: 550mm Stroke

Efficiency: IE 2

Continuous Current(A): 1~2A

Construction: Permanent Magnet

Commutation: Brush

Material: aluminum alloy

Rated power:20W Maximum 30W

Permanent magnet DC motor drive;Voltage:12V,24V

Standard protection grade:IP54

Application:Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....

The self-locking force of the linear actuator is about 80%
