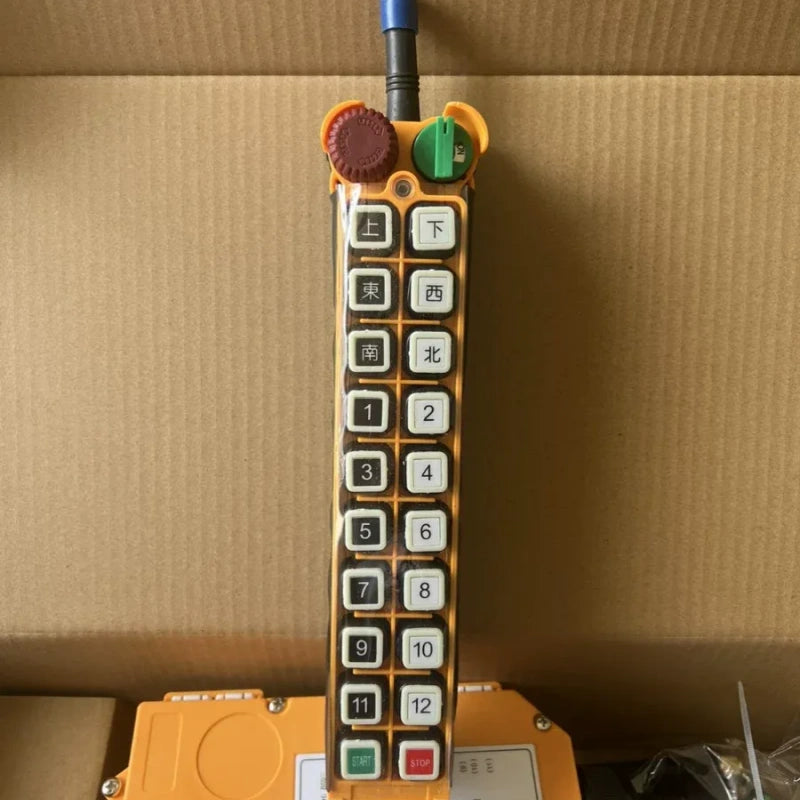

F24-16S 16 Buttons Industrial Wireless Crane Remote Control for Hydraulic Cylinder Hoist
Regular price
$91.68 USD
Regular price
Sale price
$91.68 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
F24-16S 16 Keys Industrial Wireless Remote Control IP65 Waterproof Crane Radio Controller Transmitter Receiver Kit with Emergency Stop Key Switch for Hoist Hydraulic Cylinder Overhead Bridge Crane
Product Overview
F24-16S industrial wireless remote control is a 16-channel single-speed radio control system specially designed for overhead cranes, hydraulic cylinders, hoists and various lifting construction equipment. It adopts rugged industrial-grade housing with IP65 waterproof and dustproof rating, stable long-distance signal transmission, and complete multi-layer safety protection, perfectly suitable for harsh factory, mine and outdoor construction working environments.
Key Features
- 16 independent single-speed control buttons, support 16 groups of equipment actions at the same time, meet multi-channel hydraulic cylinder and crane operation demands.
- Standard mushroom emergency stop button + green safety key switch: remove the key under OFF status to lock the remote, prevent unauthorized operation and misoperation risks.
- Built-in anti-interference antenna, fast signal transmission, anti-electromagnetic interference from motors and inverters in workshop.
- Multi-function indicator light with flashing status prompt for power, signal and fault alert.
- Customizable button logic and functions via computer programming, flexible matching different machinery equipment.
- Low battery voltage warning system: auto cut off circuit when power insufficient to guarantee operation safety.
- 32-bit unique safety encryption code, 4.3 billion non-repeating groups, effectively avoid cross-frequency interference between multiple remotes on site.
- Anti-collision corner design for transmitter, effectively reduce damage caused by accidental dropping.
- Wide temperature range from -40℃ to +85℃, stable operation under extreme cold and high temperature conditions.
- Multiple set configurations optional: single transmitter, 1T1R, 2T1R, 3T1R; multiple receiver voltage options (24V/36V/220V/380V) for different power supply systems.
Transmitter Specs
- Casing: Glass fiber reinforced nylon
- Power: 2pcs AA alkaline battery
- Control distance: Up to 120 meters in open space
- Frequency: VHF 310-331MHz / UHF 425-446MHz
Receiver Specs
- Casing: Glass fiber reinforced nylon, IP65 protection
- Working voltage: 18-65V wide voltage, 24V, 36V, 220V, 380V customizable
- Receiving sensitivity: ≤10dBm
- Wiring cable: High-quality pure copper control cable for stable conductive performance
Application Scenarios
Overhead bridge crane, gantry crane, electric hoist, hydraulic cylinder lifting system, hydraulic grab, lifting platform, construction engineering machinery, loading and unloading heavy equipment, industrial lifting winch equipment.
Specifications
| Attribute Name | Attribute Value |
|---|---|
| Model Number | F24-16S |
| Product Name | Industrial Wireless Crane Remote Control |
| Button Quantity | 16 Single Speed Buttons |
| Protection Grade | IP65 Waterproof & Dustproof |
| Housing Material | Glass Fiber Reinforced Nylon |
| Frequency Band | VHF:310-331MHz; UHF:425-446MHz |
| Transmit Power | ≤10dBm |
| Receiver Sensitivity | ≤10dBm |
| Remote Distance | Max 120m in Open Area |
| Transmitter Power Supply | 2 x AA Alkaline Battery |
| Receiver Voltage Option | 24V / 36V / 220V / 380V / Custom 18-65V Wide Voltage |
| Safety Code | 32-bit Encryption (4.3 Billion Groups) |
| Working Temperature | -40℃ ~ +85℃ |
| Safety Features | Mushroom Emergency Stop Button, Safety Key Switch, Low Voltage Auto Shutdown |
| Configuration Types | Single Transmitter / 1 Transmitter+1 Receiver / 2 Transmitter+1 Receiver / 3 Transmitter+1 Receiver |
| Application | Overhead Crane, Bridge Hoist, Hydraulic Cylinder, Lifting Platform, Construction Machinery |
| Customization | Support Button Function Program via Computer |
| Cable Material | High Purity Copper Control Cable (Receiver) |
