F24-8D / F24-8S 8 Channel Industrial Wireless Remote Control | Single & Dual Speed

$61.54 USD
$61.54 USD
Sale Sold out
Shipping calculated at checkout.
Speed Type
Receiver Voltage
Assembly Configuration

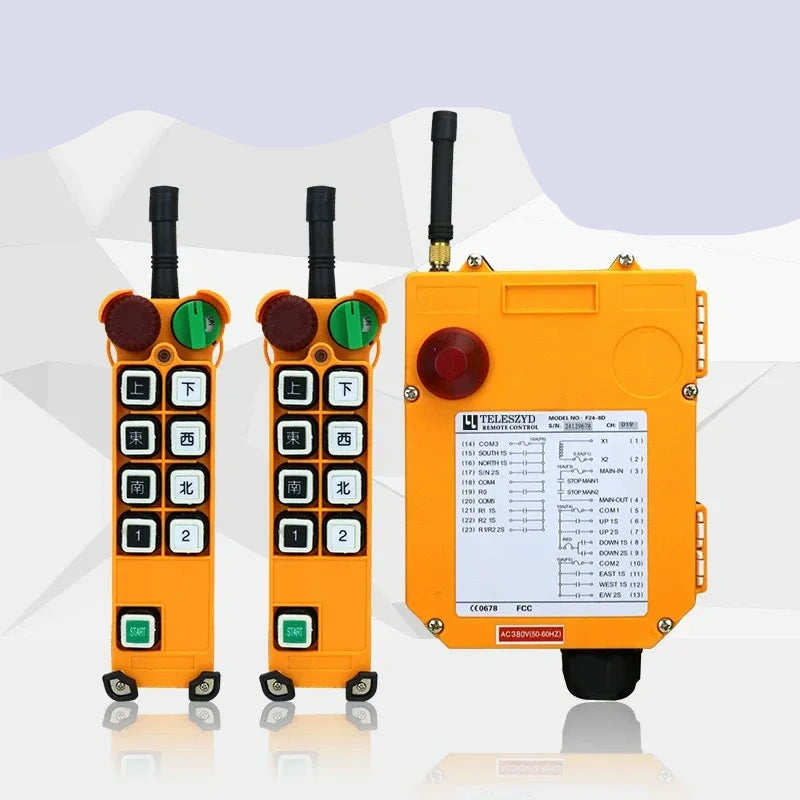

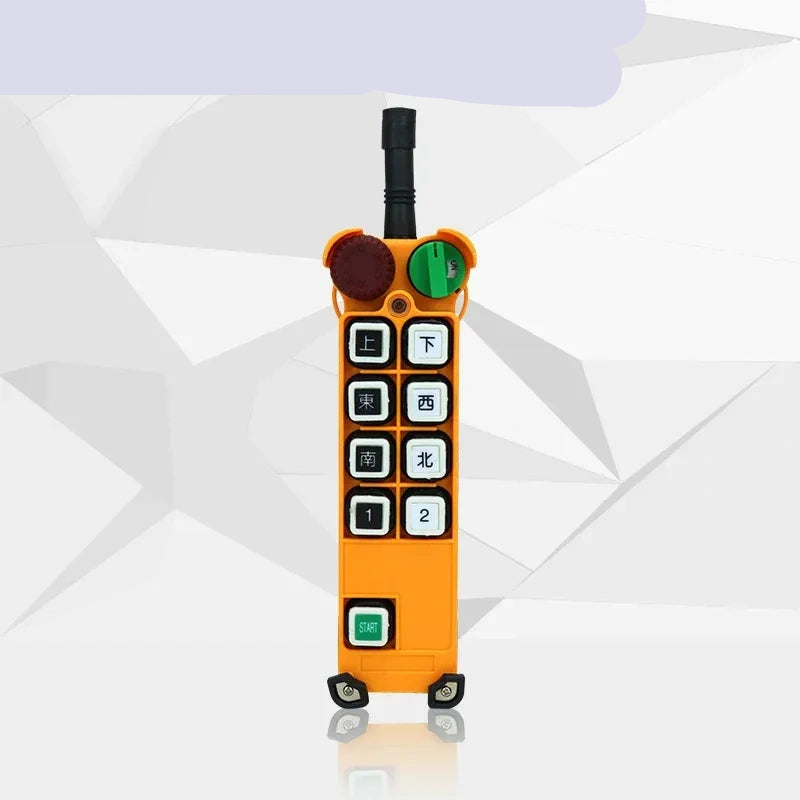

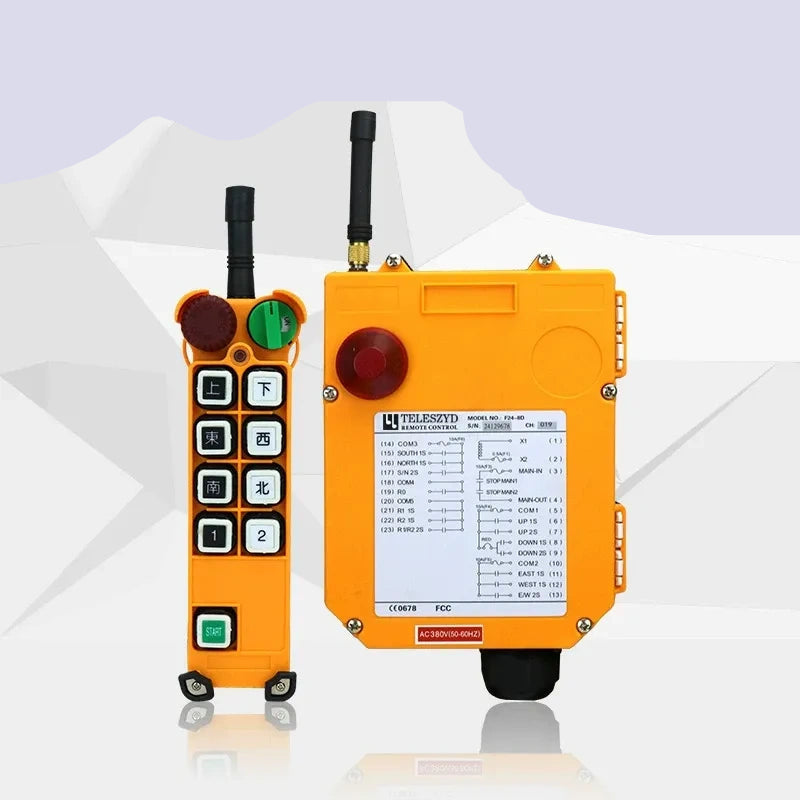

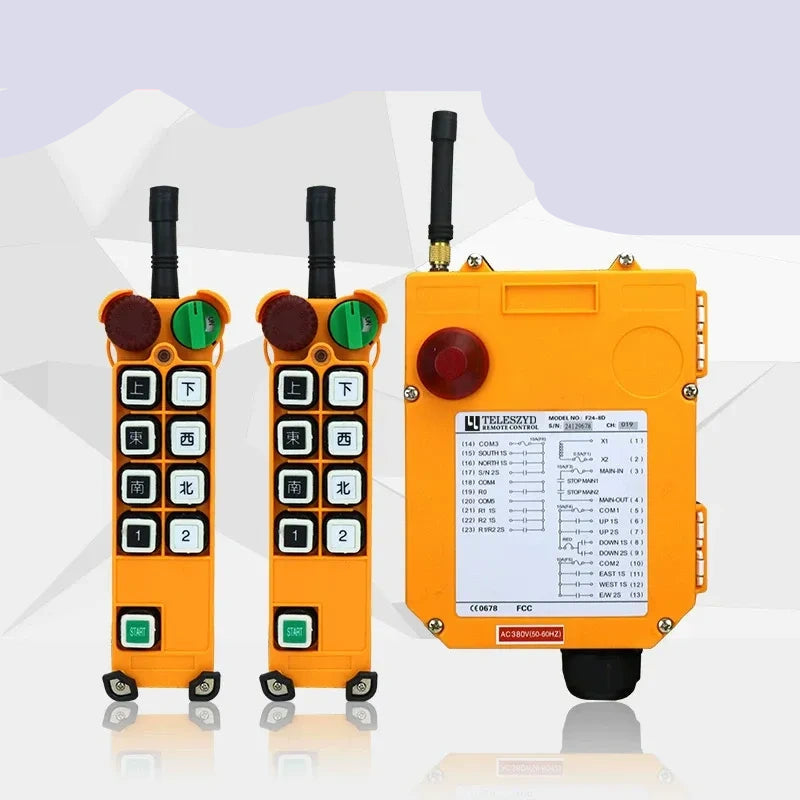

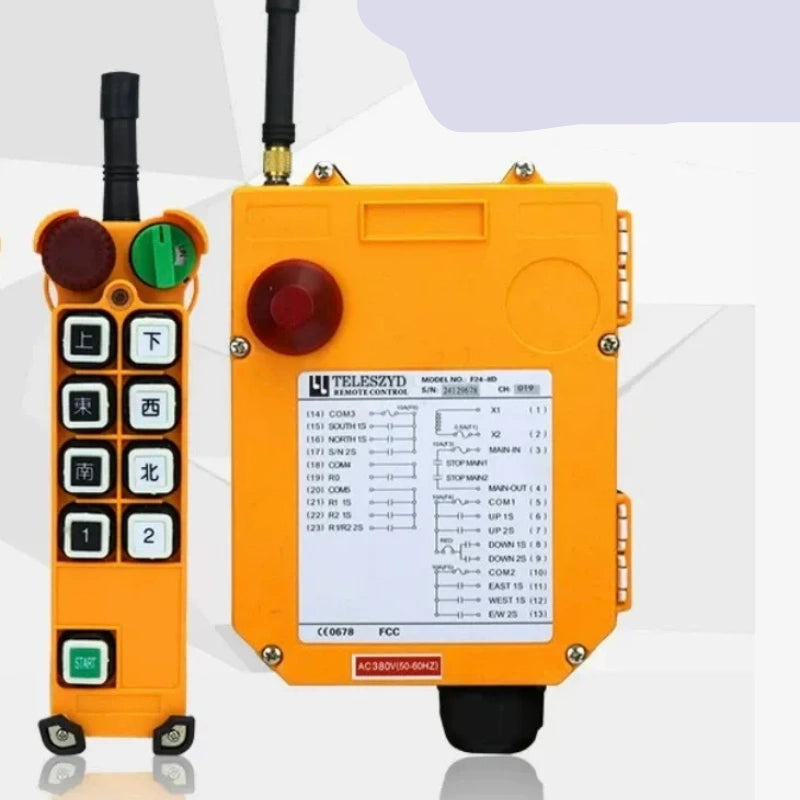

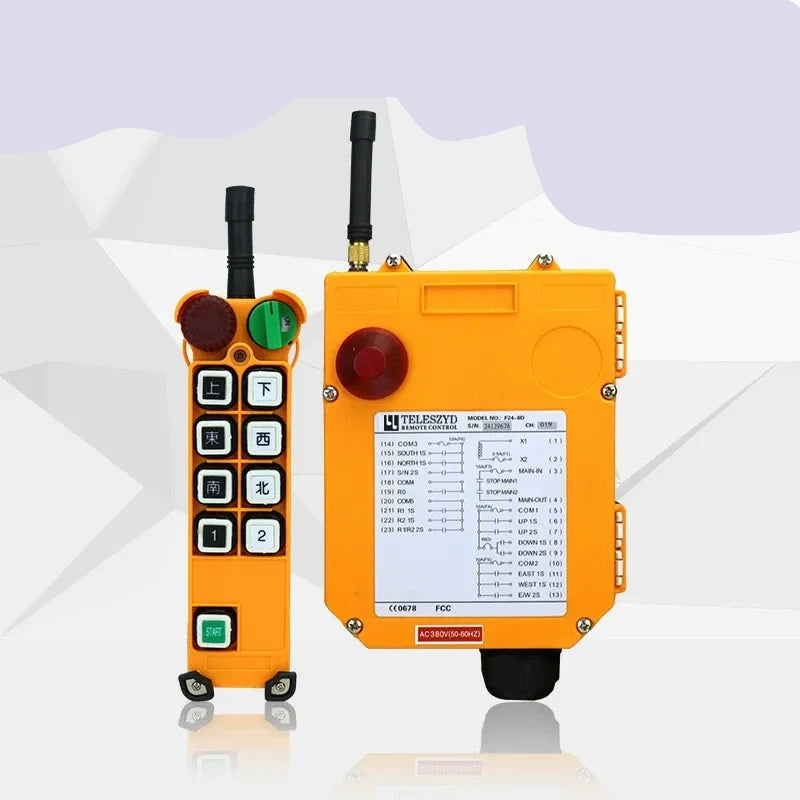

F24-8D / F24-8S Industrial Wireless Remote Control | Single & Dual Speed Radio Transmitter Receiver Kit for VFD Overhead Crane, Gantry Hoist

Product Overview

F24-18S and F24-8D are multi-channel industrial radio remote controllers designed for heavy-duty VFD cranes, gantry cranes and multi-motor electric hoists. Two functional versions are available:

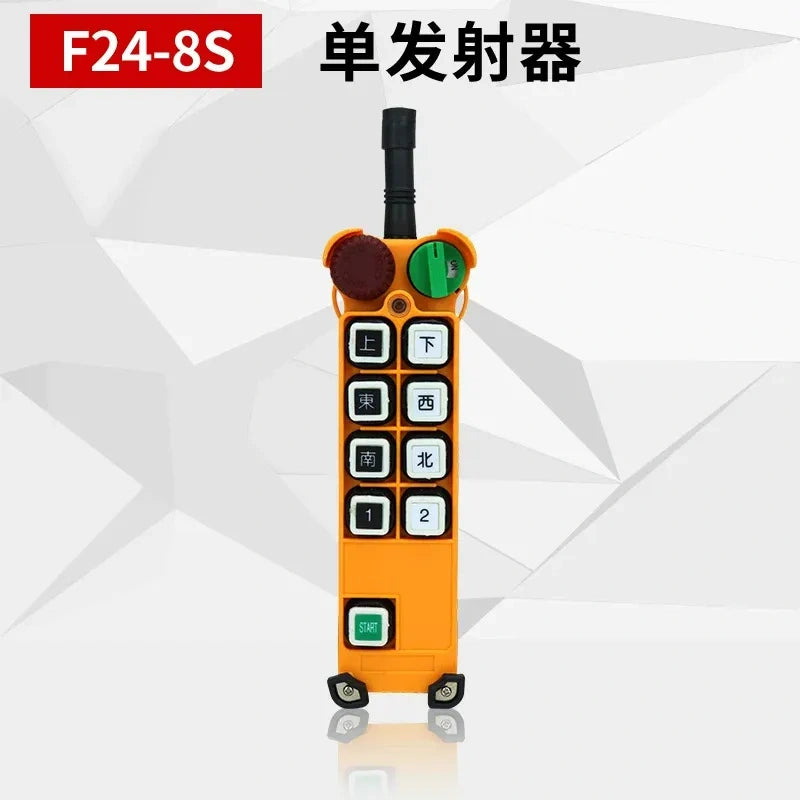

  • F24-8S: 8 single-speed buttons for simple single-speed lifting equipment
  • F24-8D: 8 dual-speed buttons with light-press low speed / heavy-press high speed one-touch dual-speed control, perfect for variable frequency cranes
Both models share identical outer housing, equipped with standard mushroom emergency stop and green safety key switch to meet new industrial safety regulations.

Core Difference Between 8S & 8D

  1. F24-8S: 8 independent single-speed push buttons, each output single speed signal
  2. F24-8D: Special dual-speed metal contact buttons; light press = low speed, hard press = high speed, realize dual-speed control with one single button
  3. Long service life: Dustproof internal structure, 2.5N actuation force, up to 12 million zero-failure presses

Key Features

  1. 8 functional control keys: Mushroom emergency stop + safety start key + auxiliary spare button
  2. Standard large red mushroom emergency stop knob & green key lock switch; remote cannot operate after removing key to avoid unauthorized use
  3. Built-in anti-interference antenna, fast signal transmission, stable 360° control up to 120m in open space
  4. Multi-function indicator lights with flash alert for signal & low battery status
  5. Customizable button logic and functions via PC software
  6. Low battery voltage reminder; auto power cut-off to guarantee operation safety
  7. Up to 20 independent control points to support multi-group motor synchronous control
  8. Reinforced anti-collision corner pads to resist drop and impact damage
  9. IP65 waterproof, dustproof & shockproof glass fiber reinforced nylon housing
  10. Wide operating temperature range: -40°C ~ +85°C
  11. Multiple receiver voltage options: 24V / 36V / 48V / 220V / 380V

Complete Technical Parameters

Transmitter (F24-8S / F24-8D)

  • Model: F24-8S (Single Speed) / F24-8D (One-Touch Dual Speed)
  • Housing Material: Glass fiber reinforced nylon
  • Protection Class: IP65
  • Frequency Band: VHF 310-331MHz / UHF 425-446MHz
  • Transmit Power: ≤10dBm
  • Power Supply: 2 x AA alkaline batteries
  • Security Code: 32-bit (4.3 billion unique encryption groups)
  • Max Control Distance: 120 meters in open area
  • Operating Temperature: -40°C ~ +85°C

Receiver (F24-8S / F24-8D RX)

  • Model: F24 series matching receiver
  • Housing Material: Glass fiber reinforced nylon
  • Protection Class: IP65
  • Frequency Band: VHF 310-331MHz / UHF 425-446MHz
  • Receiving Sensitivity: ≤10dBm
  • Input Voltage: 18-65V, optional 24V/36V/48V/220V/380V
  • Control Cable: High-purity copper wiring harness
  • Operating Temperature: -40°C ~ +85°C

Available Configuration Kits

F24-8S Single Speed Series

  1. Single transmitter only
  2. 1 Transmitter + 1 Receiver: 24V / 36V / 48V / 220V / 380V
  3. 2 Transmitters + 1 Receiver: 24V / 36V / 48V / 220V / 380V

F24-8D Dual Speed Series

  1. Single transmitter only
  2. 1 Transmitter + 1 Receiver: 24V / 36V / 48V / 220V / 380V
  3. 2 Transmitters + 1 Receiver: 24V / 36V / 48V / 220V / 380V

Application Scenarios

Suitable for dual-speed electric hoists, overhead travelling cranes, gantry cranes, variable frequency lifting machinery and industrial control equipment within 14/21 control contacts. Widely used in factory heavy lifting, construction hoists and multi-material handling equipment.


Specification

Attribute Name Value
Product Model F24-8S, F24-8D
Product Type Industrial VFD Crane Wireless Remote Controller
Speed Mode 8S Single Speed; 8D One-Touch Dual Speed
Button Feature Metal contact dual-speed buttons, 12 million service life
Safety Design Mushroom emergency stop, key lock safety switch
Protection Rating IP65 Waterproof, Dustproof, Shock Resistant
Max Control Distance 120 Meters (Open Environment)
Frequency Range VHF 310-331MHz, UHF 425-446MHz
Optional Receiver Voltage 24V, 36V, 48V, 220V, 380V
Shell Material Glass Fiber Reinforced Nylon
Operating Temp -40°C ~ +85°C
Available Kits Single Transmitter, 1T+1R, 2T+1R
Core Advantage Multi-channel control, dual-speed adjustable, anti-interference signal
Matching Equipment VFD Overhead Crane, Gantry Crane, Double Speed Electric Hoist
