GM1024-N10 Micro DC Gear Motor DC 3V 6V

$21.50 USD
$21.50 USD
Sale Sold out
Shipping calculated at checkout.
Motor Voltage
Reduction Ratio

CHF-GM1024-N10 Micro DC Gear Motor DC 3V 6V High Torque Metal Gear Reduction Motor

Attribute Details
Product Name Micro DC Gear Reduction Motor
Model CHF-GM1024-N10
Brand Chihai Motor
Rated Voltage DC 3V / 6V
Motor Type DC Gear Motor (Metal Gear)

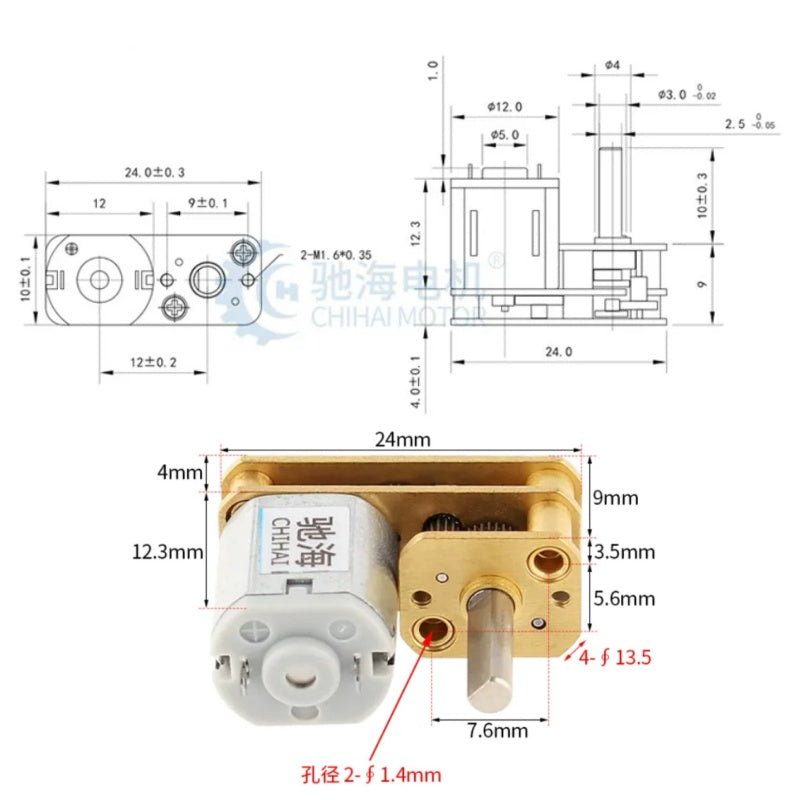

Shaft Diameter 3mm D-Shape Shaft
Shaft Length 10mm
Gear Ratio 1:50 / 1:100 / 1:150 / 1:200 / 1:350 / 1:500
Feature High Torque, Low Speed, Speed Controllable, Reversible, Metal Gear
Max Power 0.12W (3V 07 Type) / 0.42W (3V 92 Type) / 0.35W (6V 07 Type)
Weight ~10g
Application Smart Robots, Robotic Arms, Smart Furniture, Lenses Focusing System, Mini Pan-Tilt
Customization Support Custom Gear Ratio, Wire Length
Supply Type Factory Direct Wholesale, OEM/ODM Available



This is the CHF-GM1024-N10 micro DC gear reduction motor from Chihai Motor, designed for low-voltage, compact applications. It supports DC 3V and 6V power supply, with multiple gear ratios (1:50 to 1:500) for different speed and torque requirements.

The motor features a 3mm D-shape shaft (10mm length) and metal gear construction, ensuring durability and stable performance. It supports speed control and forward/reverse rotation, making it ideal for small projects like smart robots, robotic arms, smart furniture, camera pan-tilts, and lens focusing systems.

There are three versions available:

  • DC 3V 07 Type (0.12W, 10000rpm): Low power, suitable for light-load, battery-powered devices
  • DC 3V 92 Type (0.42W, 22000rpm): Higher speed & torque, for medium-load applications
  • DC 6V 07 Type (0.35W, 21000rpm): Balanced performance for standard DC 6V projects

Note: Avoid stalling the motor for long periods, as this may cause damage not covered by warranty. Always use a power supply matching the rated voltage.
