GP42-4260 42mm Planetary Gear Brushless DC Reduction Motor 12V 24V, High Torque Low Noise motor, Reversible PWM Speed Control for Automation Robotic Arm
Product Description

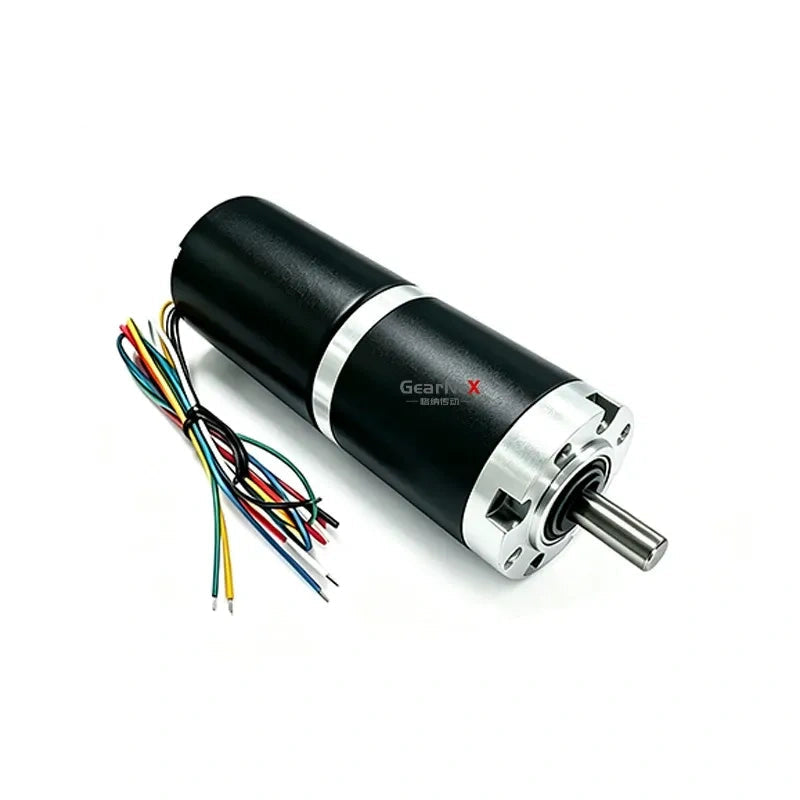

GP42-4260 is a 42mm brushless DC planetary gear reduction motor, also known as heavy-duty 775 type brushless gear motor. It supports 12V / 24V working voltage, rated power up to 30W, with wide optional no-load speed range from 9 RPM to 950 RPM.
Wiring version optional: 5 wire or 6 wire.
D-type output shaft options: D8 27mm / D10 27mm.
Net weight approx 369–429g.
Equipped with precision planetary gear set, delivering outstanding high torque output while maintaining low running noise. It supports PWM speed regulation and forward & reverse rotation, stable operation and long service life.
Suitable for CNC machine tools, laser cutting, food packaging machinery, robotic manipulators, medical equipment, semiconductor devices, aerospace accessories, parking equipment, measuring instruments, vehicle industry and various automatic control systems.
Core Advantages
✅ 42mm planetary brushless gear motor, heavy high torque output
✅ Dual voltage:12V & 24V, wide speed selection from 9~950RPM
✅ Optional 5-wire / 6-wire wiring, D8/D10 D-type shaft 27mm length
✅ Low noise planetary gearbox, stable transmission, durable structure
✅ PWM speed adjustable & forward/reverse rotation supported
✅ 30W rated power, compact heavy-duty design for industrial automation
Wire Sequence & Function Description
Please read carefully before using the product
Red Wire: Motor Power Positive + (DC 12V–24V). Do NOT miswire
Black Wire: Motor Power Negative − (DC 12V–24V). Do NOT miswire
Yellow Wire: Speed Feedback Signal (6 pulses per rotation. Max low level:0.6V; High level:4V ~ 5.6V)
Orange Wire: Motor Direction Control Input Signal (Forward rotation when connected together with black negative wire)
White Wire: PWM Speed Control Signal for motor speed regulation (Compatible with 0–5V speed controller)
Green Wire: Motor Brake Signal Input Control (Brake triggered at low level, max 0.6V)
⚠️ WARNING: Never reverse positive and negative power supply. Signal wires must NOT connect to power. Warranty void if miswired!
Specification
| Attribute | Value |
|---|---|
| Product Model | GP42-4260 |
| Motor Type | 42mm Brushless DC Planetary Reduction Motor (775 Style) |
| Rated Voltage | 12V / 24V |
| Rated Power | 30W |
| No-load Speed | 9 ~ 950 RPM optional |
| Wiring | Optional: 5 Wire / 6 Wire |
| Output Shaft | D-type, D8 27mm / D10 27mm |
| Function | PWM Speed Control, Forward & Reverse Rotation |
| Gear Structure | Precision Planetary Gear, High Torque, Low Noise |
| No-load Current | 300mA(12V) / 0.15A(24V) |
| Net Weight | 369–429g |
| Feature | High torque, low noise, heavy duty, stable running |
| Application | Robotic arm, CNC, laser cutting, packaging, medical, automation, parking equipment |
FAQ
Q1: What is the model and dimension of this motor?
A: Model GP42-4260, 42mm diameter brushless planetary reduction motor, heavy-duty 775 type.
Q2: What voltage choices are available?
A: 12V and 24V.
Q3: What shaft and wiring options can I select?
A: Wiring: 5 wire /6 wire. D-type shaft: D8 27mm or D10 27mm.
Q4: What speed range does GP42-4260 have?
A: Optional no-load speed:9,13,18,25,35,50,98,185,355,950 RPM.
Q5: Can this motor adjust speed and rotate forward/reverse?
A: Yes, it supports PWM speed control and forward & reverse rotation.
Q6: What industries is this motor used for?
A: Widely used for robotic arms, CNC, laser cutting, packaging, medical instruments, parking equipment and automation systems.
