Heavy Duty Connector HDC-HE-024-1/2/3/4-F/M 24Pin Aviation Plug Socket

hdc connectors, Heavy Duty Connectors 24pin HDC-HE-024, 24pin heavy duty connector

-1/2/3/4 F/M 24pin Industrial rectangular Aviation connector plug  16A 500V Screw connection,hdc connector

• Reliable Connection: Screw crimping terminal design ensures secure wiring and low contact resistance.
• Durable Materials: The core insert is made of high-grade flame-retardant plastic reinforced with glass fiber, while the pins are crafted from pure brass with silver plating for optimal conductivity.
• Versatile Applications: Widely used in automation equipment, machinery, electrical cabinets, power distribution systems, and other industrial scenarios.
• Flexible Installation: Available in multiple housing options (top entry, side entry, surface mount, etc.) to meet different installation needs.

Working current: 16A

Working voltage: 400/500V

Rated pulse voltage: 6KV

Pollution level: 3

Isolation resistance: ≥10

Material: Polycarbonate

Operating temperature range: -40℃~+125℃

Flame retardant grade (according to UL94): V0

Conductor section: 0.5- 6mm²

Installation method: hole installation

Connectors Material: Copper

Surface treatment: silver plated

Contact resistance:=<1m ohm

Wiring form: screw connection

Screw tightening torque/test torque: 0.25Nm+

Wiring forms: screw fixing

Metal upper case/base

Material: Cast aluminum alloy

Surface treatment: high temperature powder coating

Locking device: stainless steel or iron galvanized

Operating temperature range: -40℃~+125℃

Protection class: IP65

FAQs | HDC-HE-024 Heavy Duty Connector

Q1: What is the model and pin count?

A1: HDC-HE-024 series heavy duty connector, 24-pin industrial rectangular aviation plug & socket.

Q2: What is the rated current?

A2: Rated current 16A for stable power and signal transmission.

Q3: What wiring type does it adopt?

A3: Screw crimping terminal design, secure wiring and low contact resistance.

Q4: What are the materials of insert and contacts?

A4: The insert uses high-grade glass fiber reinforced flame-retardant plastic. Contacts are pure brass with silver plating for good conductivity.

Q5: What environmental performance does it have?

A5: Excellent waterproof, dustproof and anti-vibration performance, suitable for harsh industrial environments.

Q6: What housing variants are available for HDC-HE-024?

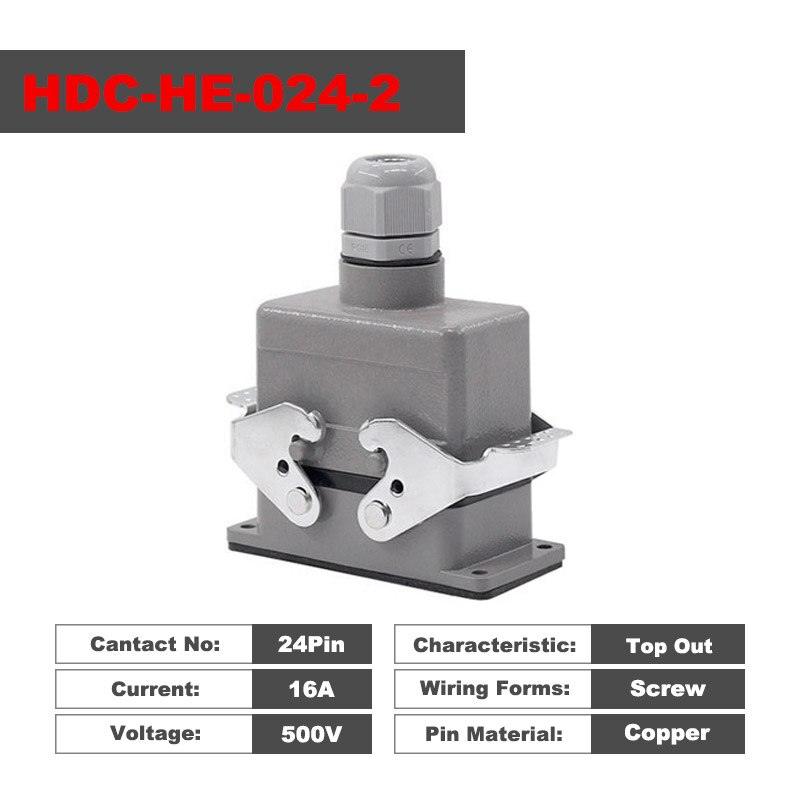

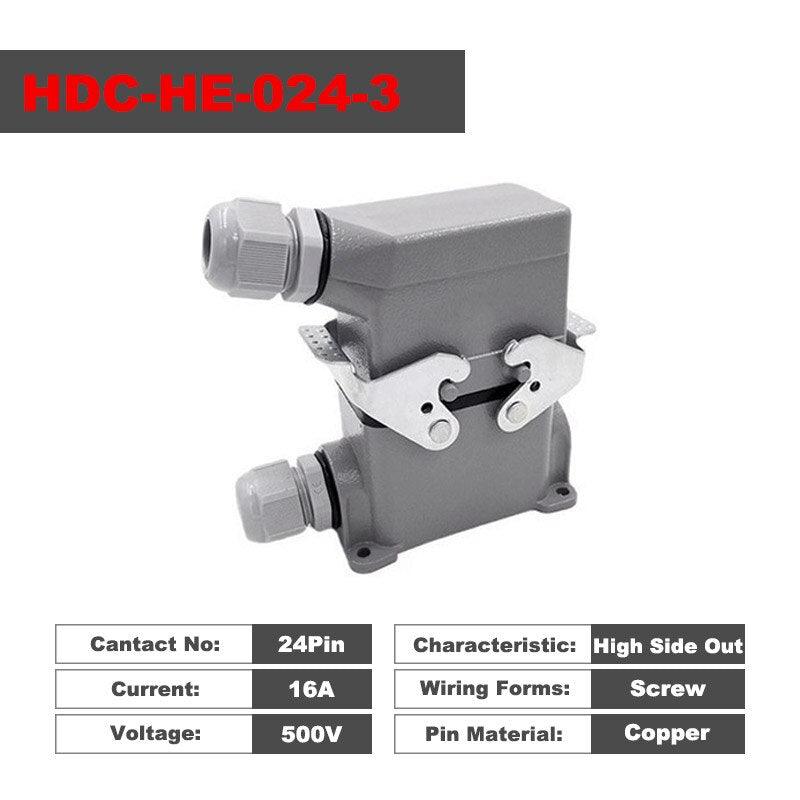

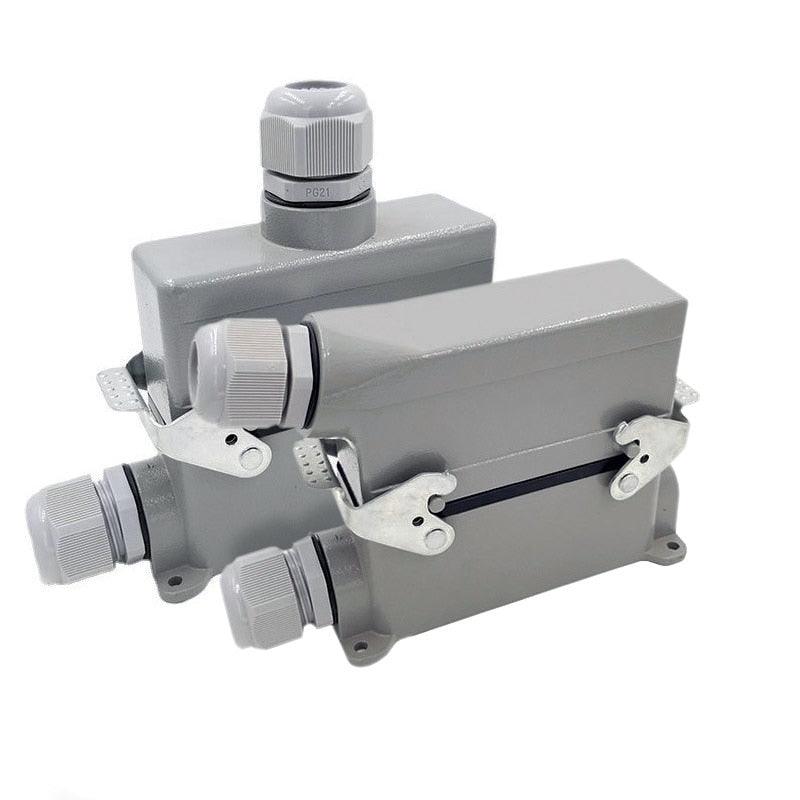

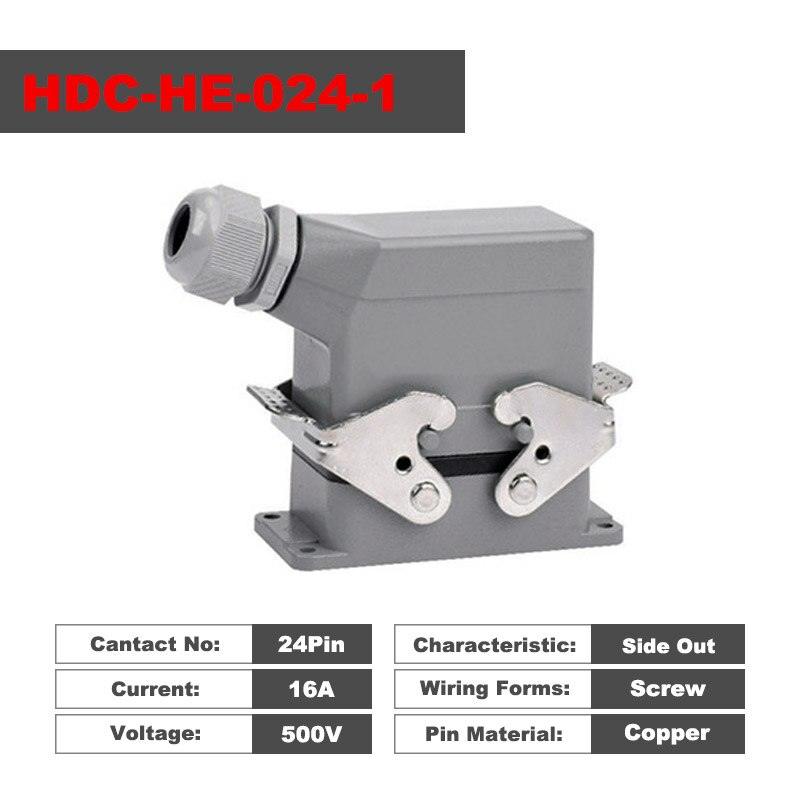

A6: HDC-HE-024-1 / 24Pin Side-Out HDC-HE-024-2 / 24Pin Top-Out HDC-HE-024-3 / 24Pin Side-Out Surface mount HDC-HE-024-4 / 24Pin Top-Out Surface mount 24Pin cable Docking type Cover versions: Side-Out with Cover, Top-Out with Cover, Surface mount Side-Out / Top-Out with Cover Separate 24Pin Male Connector and 24Pin Female Connector

Q7: What is the difference between Side-Out and Top-Out?

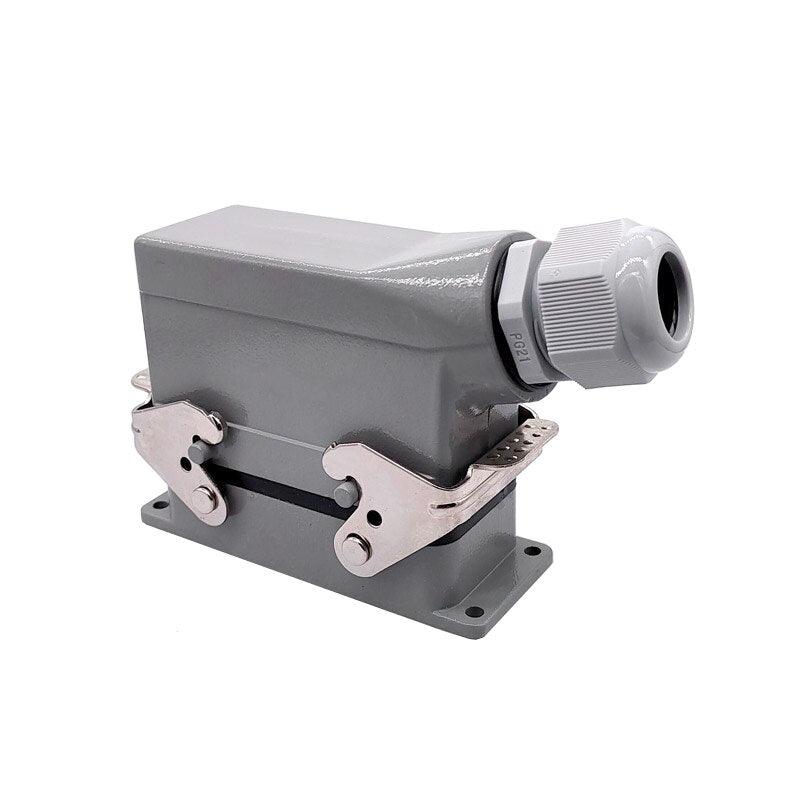

A7: Side-Out means cable exits from side; Top-Out means cable exits from top, select according to cabinet wiring layout.

Q8: What is surface mount type?

A8: Surface mount version can be mounted directly on cabinet surface, different from standard panel hole mounting.

Q9: What is the function of the cover version?

A9: The protective cover shields the idle connector from dust and contaminants when unplugged.

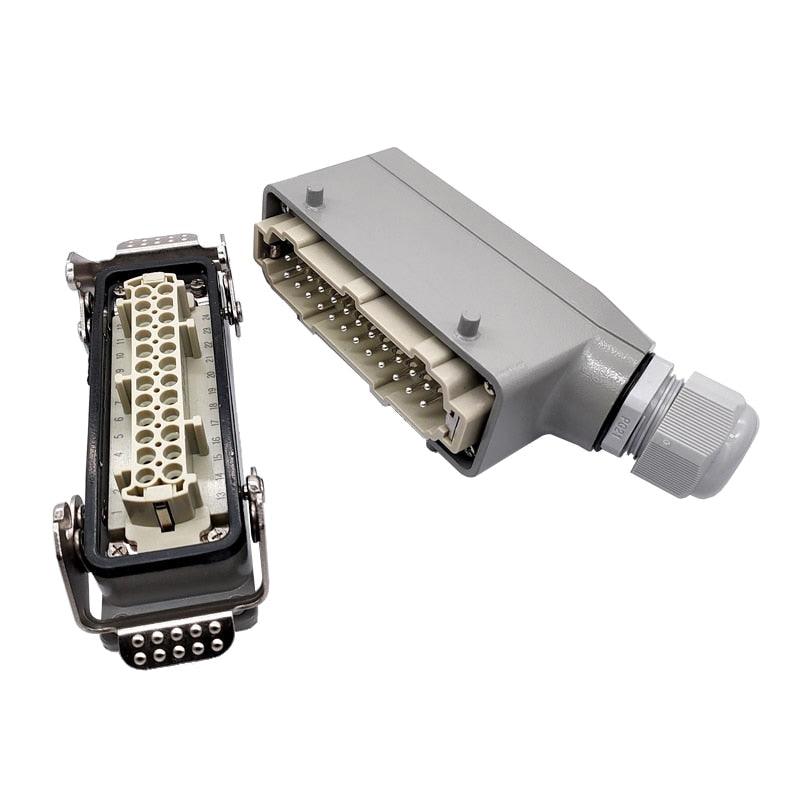

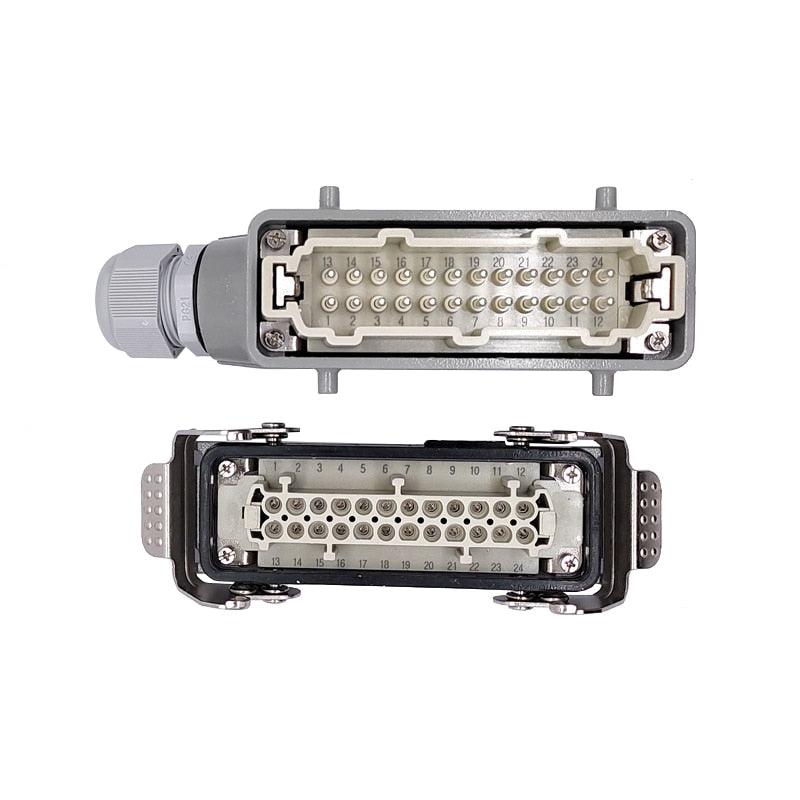

Q10: Are male and female inserts sold separately?

A10: Yes, 24Pin male connector and female connector can be purchased individually.

Q11: What are the main application scenarios?

A11: Widely used in automation equipment, machinery, electrical cabinets and power distribution systems.
