Heavy Duty Connector HDC-HE-048-1/2/3/4-F/M 48 Pin Aviation Plug Socket 16A Industrial Rectangular Connector

hdc connectors, 48pin heavy duty connector

Heavy Duty Connectors HDC-HE-048-1/2 F/M 48pin 500V 16A Industrial rectangular Aviation connector plug Screw connection,hdc connector

FAQs | HDC-HE-048 Heavy Duty Connector

Q1: What is the model and pin count of this heavy duty connector?

A1: Model HDC-HE-048 series, 48-pin industrial rectangular heavy duty connector.

Q2: What are the rated electrical parameters?

A2: Rated working current:16A; Rated working voltage:500V; Rated pulse voltage:6KV; Pollution level:3.

Q3: What is the insulation resistance?

A3: Insulation resistance ≥1000MΩ.

Q4: What materials are used for housing and contacts?

A4: Housing: Polycarbonate; Contact material: Copper with silver-plated surface treatment for excellent conductivity and anti-oxidation.

Q5: What is the operating temperature range?

A5: -40℃ ~ +125℃, works reliably under extreme hot and cold environments.

Q6: What is the flame retardant rating?

A6: UL94 V0 flame retardant grade, good fire safety performance.

Q7: What is the standard installation method?

A7: Hole installation (panel cutout mounting). Surface mount versions are also available as variants.

Q8: What different configuration options are available for HDC-HE-048?

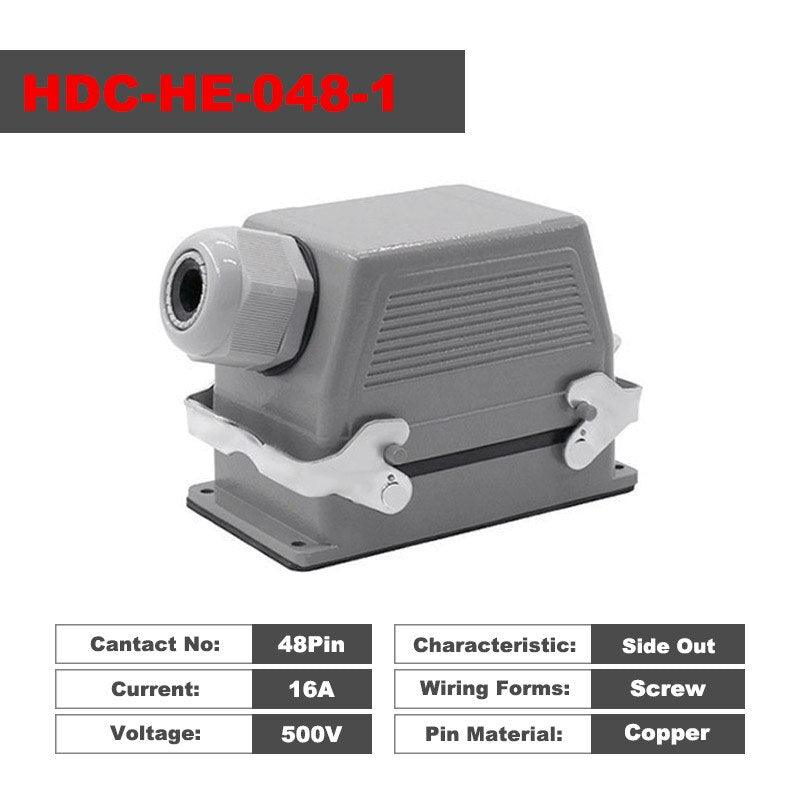

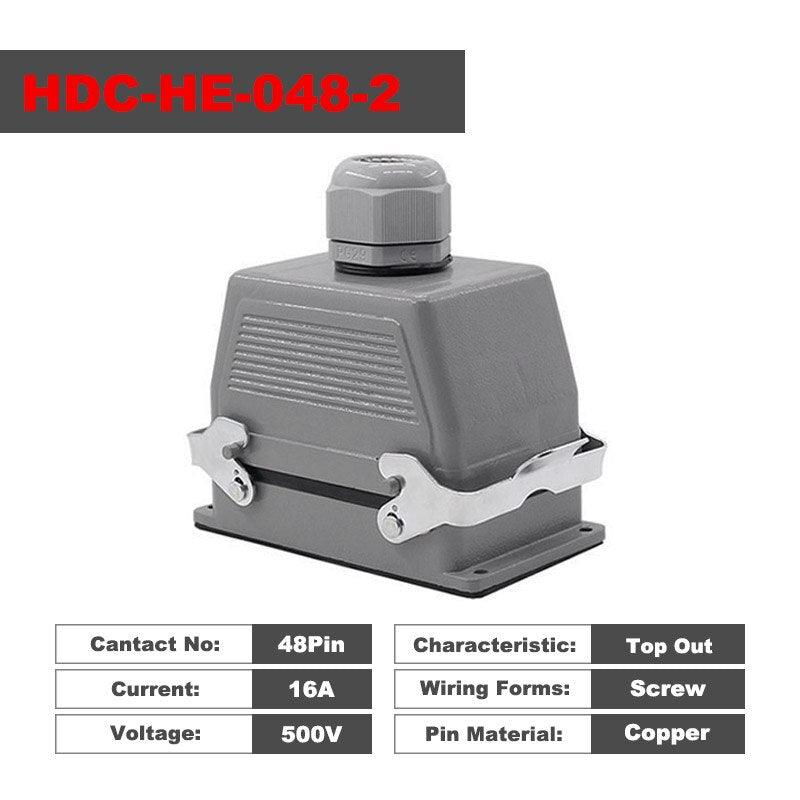

A8: Multiple optional versions: 48 pin double clip Side-Out HDC-HE-048-1 48 pin double clip Top-Out HDC-HE-048-2 48 pin new type double clip Side-Out HDC-HE-048-1 Big 48 pin new type double clip Top-Out HDC-HE-048-1 Big 48 pin double clip Side-Out Surface mount HDC-HE-048-3 48 pin double clip Top-Out Surface mount HDC-HE-048-4 48 pin Cable butt joint type Versions with protective cover (Side-Out / Top-Out / Surface mount) Separate 48 pin Male connector & Female connector

Q9: Does this series have male and female inserts?

A9: Yes, male (M) and female (F) inserts are optional.

Q10: What wiring type does it use?

A10: Screw connection for wiring.

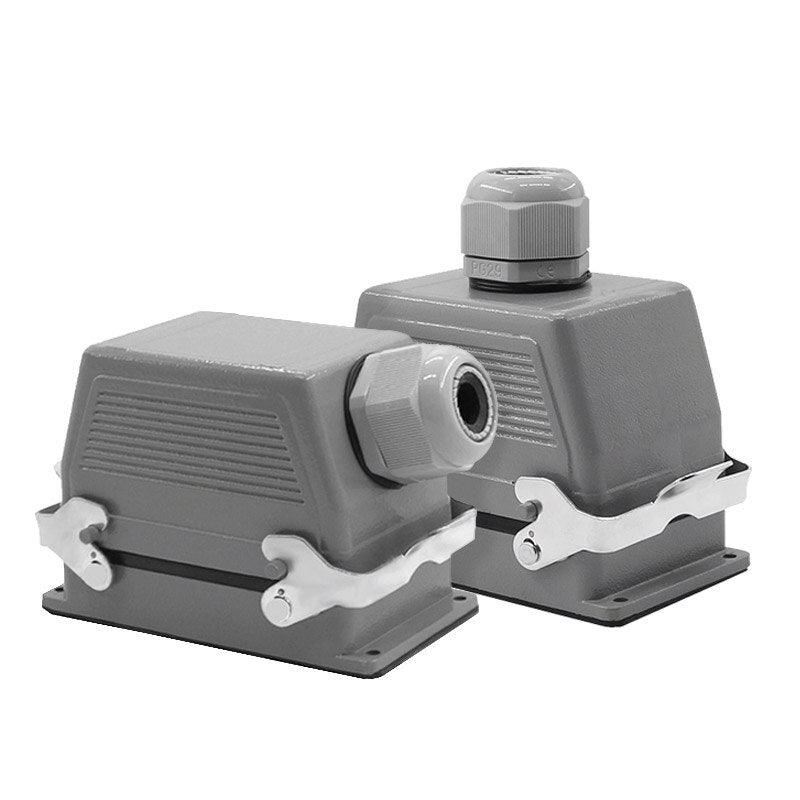

Q11: What is the difference between Side-Out and Top-Out?

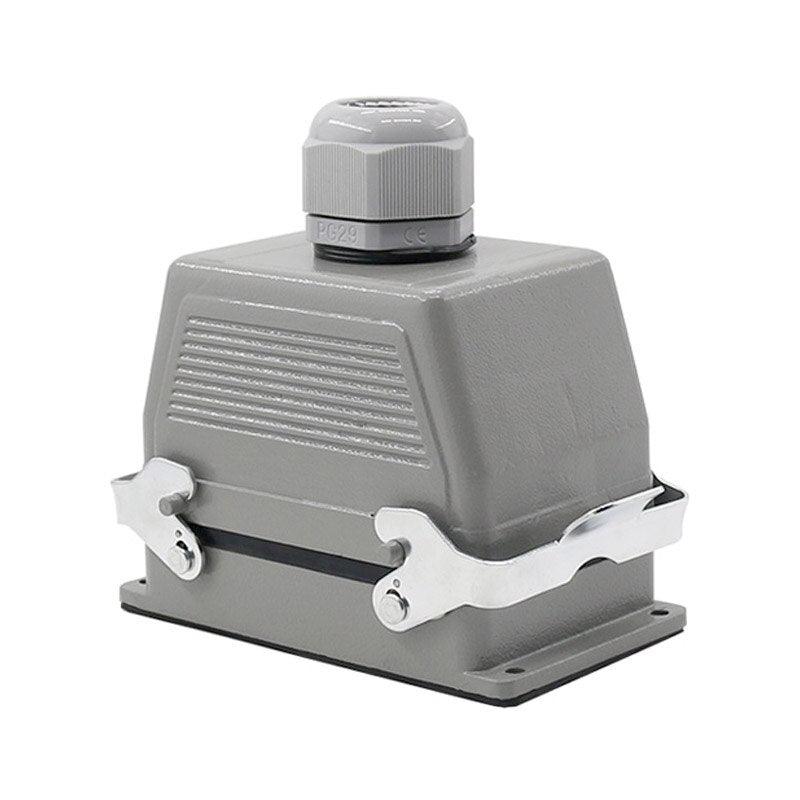

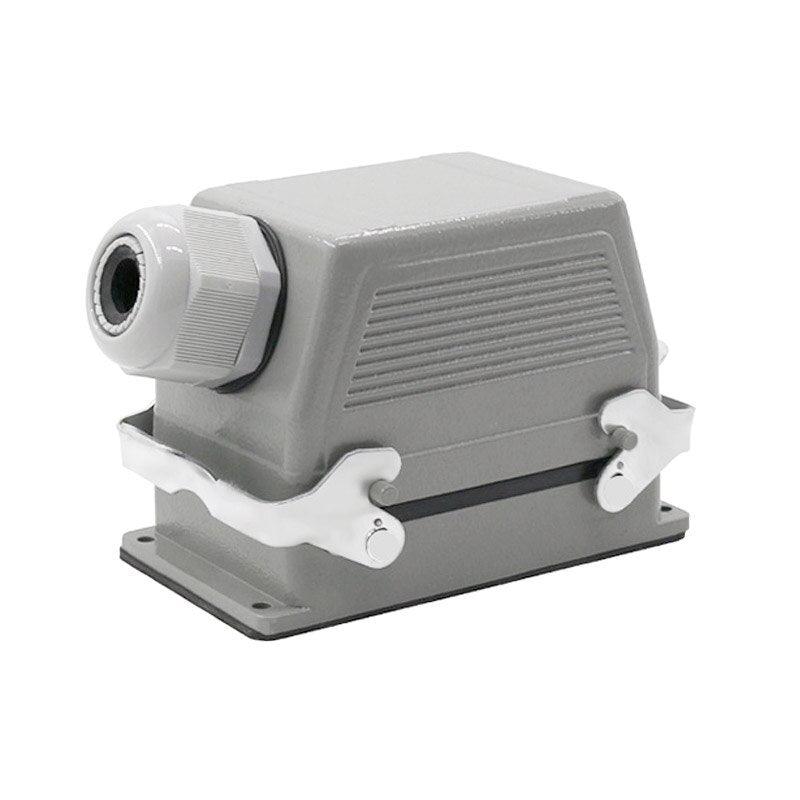

A11: Side-Out: cable exits from the side; Top-Out: cable exits from top, select based on your cabinet wiring layout.

Q12: What is the function of the cover version?

A12: The protective cover protects the idle connector against dust and debris when unplugged.

Q13: What applications is this 48pin heavy duty connector suitable for?

A13: Industrial automation, machinery, power cabinets, factory equipment for multi-channel power and signal transmission.
