10 Pin Rectangular Heavy Duty Connector HDC-HE-010-1/2/3/4-F/M 16A Waterproof Aviation Plug Socket
Couldn't load pickup availability
hdc connectors, 10pin heavy duty connector
Heavy Duty Connectors HDC-HE-010-1/2/3/4 F/M 10pin 16A Screw connection Industrial rectangular Aviation connector plug,hdc connector
| Insert Body | Metal Upper Housing/Base | ||
|---|---|---|---|
| Operating Current | 16A | Material | Die-cast Aluminum Alloy |
| Operating Voltage | 500V | Surface Treatment | High-temperature Powder Coating |
| Rated Impulse Withstand Voltage | 6kV | Locking Device | Stainless Steel or Zinc-plated Iron |
| Pollution Degree | 3 | Operating Temperature Range | -40°C ~ +125°C |
| Insulation Resistance | ≥10Ω | Protection Class | IP65 |
| Material | Polycarbonate | ||
| Operating Temperature Range | -40°C ~ +125°C | Contacts | |
| Flammability Class (per UL94) | V0 | Material | Copper |
| Operating Voltage (per UL/CSA) | 500V | Surface Treatment | Silver-plated |
| Number of Contact Pins | 4/6/10/16/20/24/32/48 pins | Contact Resistance | ≤1mΩ |
| Mounting Method | Cutout Mounting | Wiring Type | Screw Crimping |
| Screw Tightening Torque / Test Torque | 0.25Nm |
FAQs | HDC-HE-010 Heavy Duty Connector
Q1: What is the model and pin count of this heavy duty connector?
A1: Model HDC-HE-010 series, 10-pin (10 core) industrial rectangular heavy duty connector.
Q2: What is the rated current?
A2: Rated current is 16A, suitable for power and signal transmission.
Q3: What different configurations are available for HDC-HE-010?

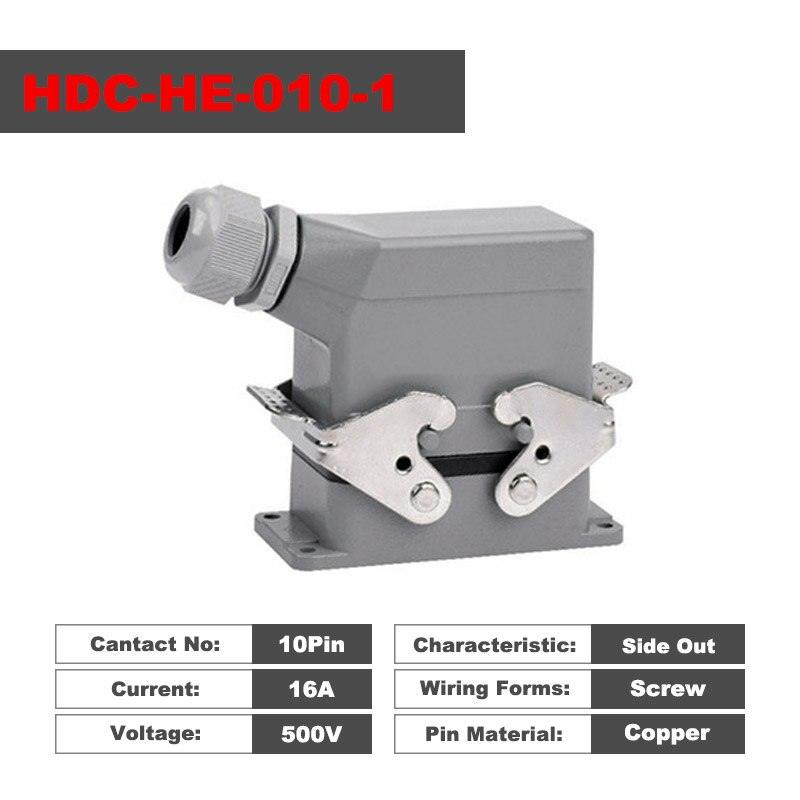

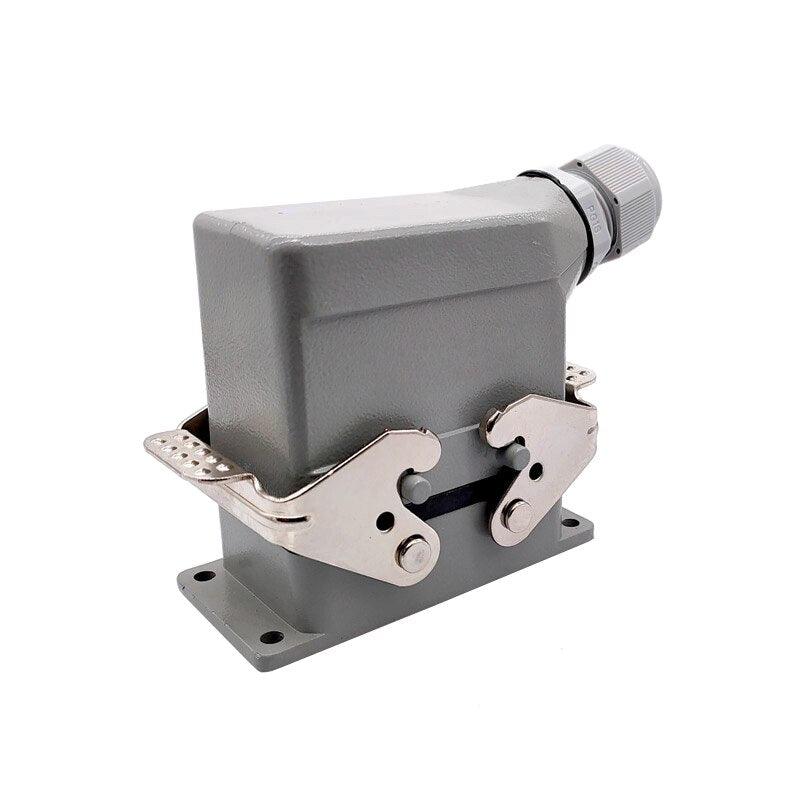

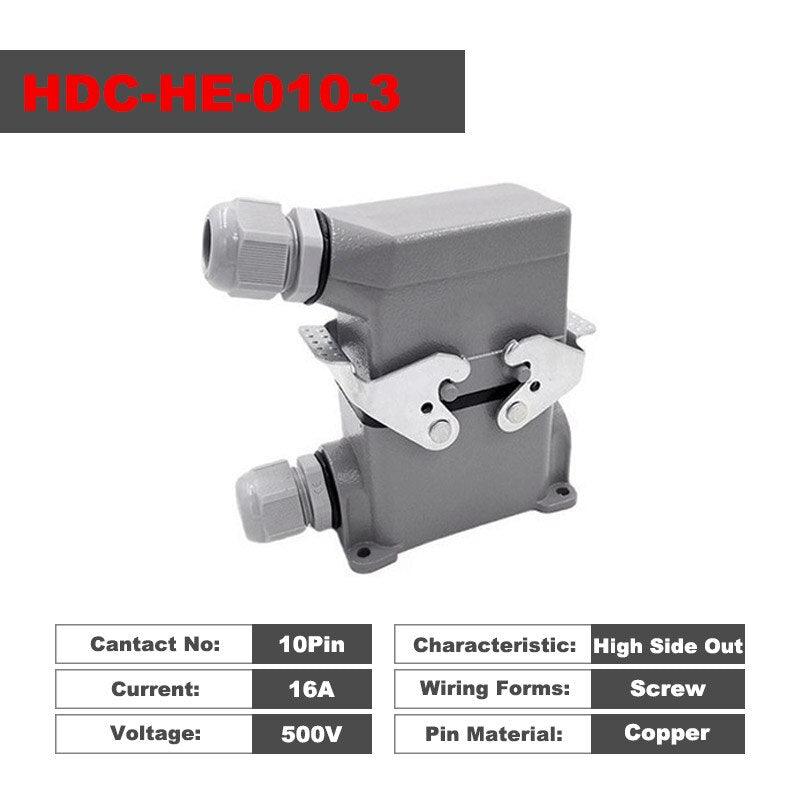

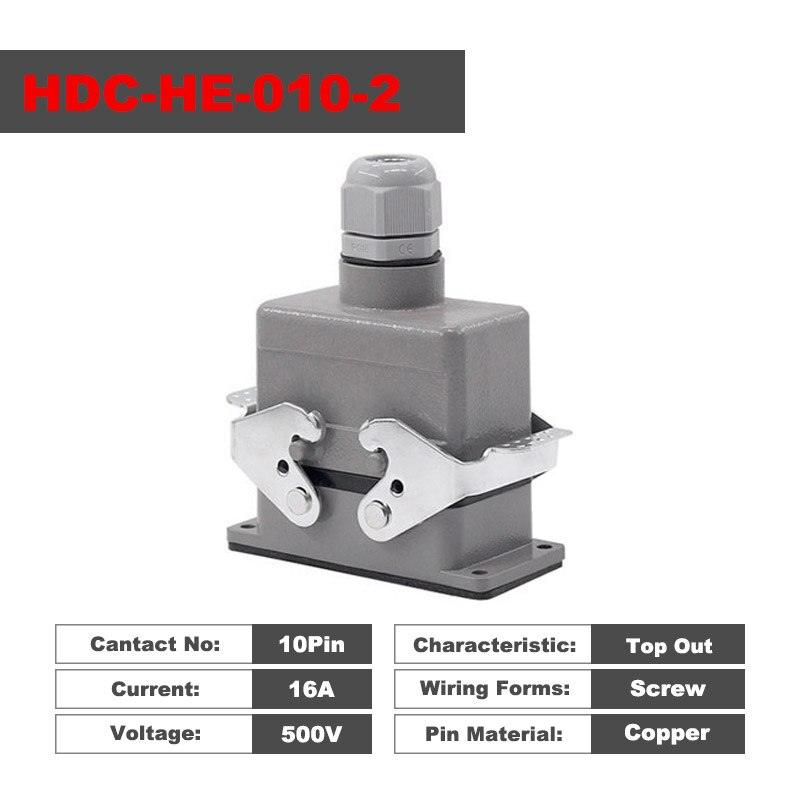

A3: Multiple versions: 10 Core double clip Side-Out HDC-HE-010-1 10 Core double clip Top-Out HDC-HE-010-2 10 Core double clip Side-Out Surface mounting HDC-HE-010-3 10 Core double clip Top-Out Surface mounting HDC-HE-010-4 Also available: cable butt-joint type, versions with protective cover, separate male connector and female connector.
Q4: Does it have male and female inserts?
A4: Yes, both male (M) and female (F) inserts are optional.
Q5: What connection method does it adopt?
A5: Screw connection type for wiring.
Q6: What environment can this rectangular heavy duty connector withstand?
A6: Rugged construction resists high temperature, humidity, dust and vibration for harsh industrial environments.
Q7: Does it prevent accidental disconnection?
A7: Yes, built-in secure locking mechanism to avoid unexpected unplugging during operation.
Q8: What are the main application scenarios?
A8: Widely used in industrial automation, machinery equipment, power cabinets and outdoor equipment for stable power & signal transmission.
Q9: What advantages does its material have?
A9: Made of high-quality raw material, excellent insulation performance and corrosion resistance for longer service life.
Q10: Is installation easy?
A10: Standard pin layout, simple assembly design, improves on-site installation efficiency.
Q11: Can I use it for both power and signal?
A11: Yes, it is designed for both signal and power transmission.
Q12: What is the difference between Side-Out and Top-Out versions?
A12: Side-Out means cable exits from side direction; Top-Out means cable exits from top direction, choose according to your wiring layout.
Q13: What is surface mounting type?
A13: Surface mounting version is for direct installation on cabinet surface, while standard type is for panel cutout mounting.
Q14: What is the cover version for?
A14: The version with cover adds extra protection for idle connector when unplugged, preventing dust and debris.
